Mondraker MTB Crafty Carbon RR S 2026

Power meets lightness!

Take on any trail with the Mondraker Crafty Carbon RR, the electric MTB that redefines the rules of off-road riding. Its ultra-light full carbon frame and powerful Bosch Performance Line CX motor push you beyond your limits, with smooth and responsive power even on the most extreme climbs.
Whether you're looking for race performance or uncompromising fun, the Crafty Carbon RR is your ideal companion for dominating the mountain.

Tech spec

• Frame: Crafty Stealth Air full carbon, optimized Zero Suspension system, 150 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, UDH, tapered head tube, monoblock upper link, HHG internal cable routing, sealed bearings with MAX load capacity, 15 mm oversized axles, exclusive plastic motor covers.

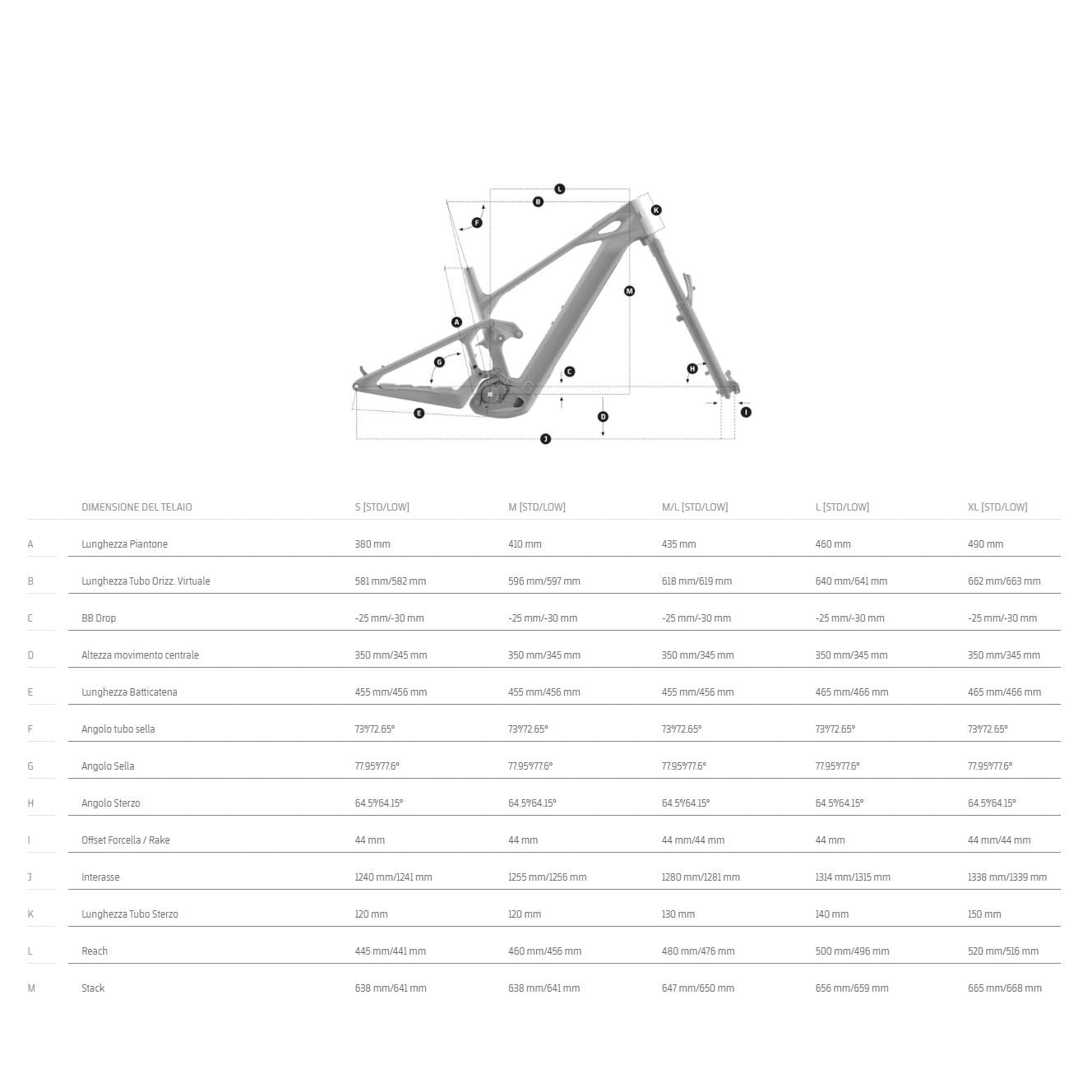

• Size: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
• Shock absorber: Fox Float-X Factory Kashima EVOL LV, 185x55 mm. Adjustments: 2-position compression lever, low-speed compression, low-speed rebound, air preload. Trunnion upper mount, 30x8 mm lower bushings
• Shock adjustment: CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 air spacer
• Fork: Fox Podium 29 GRIPX2 Factory Kashima, 160 mm, tapered head tube, 20x110 mm Kabolt Boost axle, 44 mm offset. Adjustments: high and low speed compression, high and low speed rebound, air preload
• Steering: Custom Acros ZS56/ZS56, 1-1/8“, 1.5” steerer tube, internal cable routing, blocklock seal caps
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm steerer
• Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm steerer. Size L and XL: 38mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm. L and XL: thicker size
• Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6 mm, size S: 95 mm -120 mm, size M: 125 mm -150 mm, size ML: 155 mm -180 mm, size L: 185 mm -210 mm, size XL: 185 mm -210 mm
• Saddle: Ergon SM-10
• Front brake: Sram Maven Silver, 4-piston caliper 18 and 19.5 mm, HS2 200 mm one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Rear brake: Sram Maven Silver, 4-piston caliper 18 and 19.5 mm, HS2 200 mm one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Brake levers: Sram Maven Silver, SwingLink and lever pivot bushings, tool-free reach adjustment
• Rims: Mavic E-Deemax S 29, internal width 30 mm, Maxtal alloy welding, PFP, tubeless ready, 28 spokes
• Spokes: Mavic double-thickness straight-pull, contactless lacing
• Front hub axle: Mavic Boost 20x110 mm, 6 IS bolts
• Rear hub: Mavic, Boost 12x148 mm, Ratched ID360 ratchet system, 6 IS bolts, X freehub
• Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Cranks: Race Face Aeffect-R ebike, 160mm
• Crankset: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
• Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85.5 mmSram Apex, 12s, Powerlock
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: Sram X0 Eagle AXS, T-Type, 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XS-1275, 10-52T, T-Type, 12s
• Hanger: Sram UDH
• Producer's weight: 23.9 kg

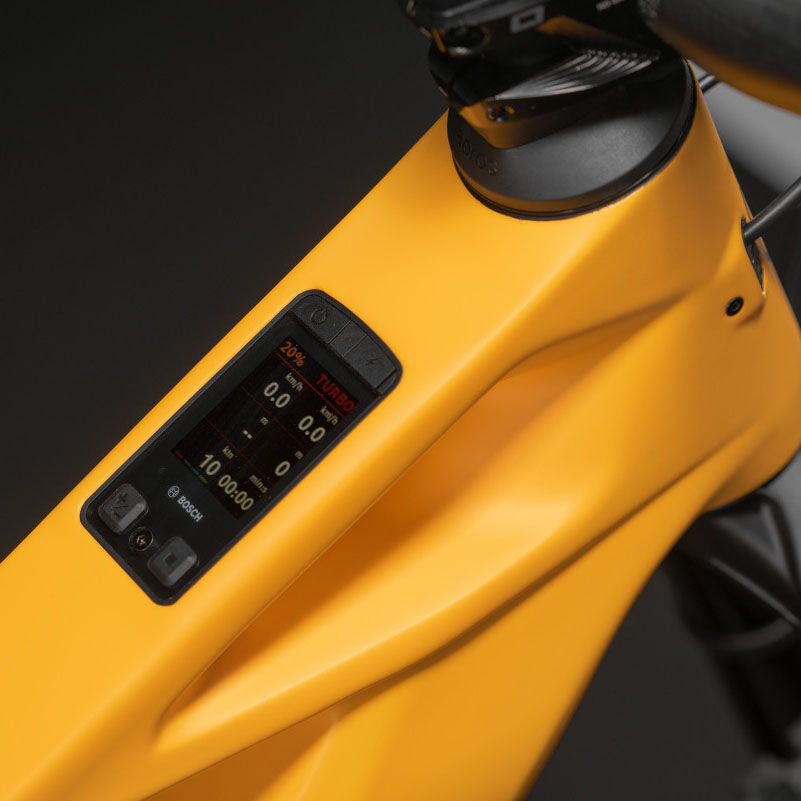

• Display: Kiox 400C Remote Control / Bosch Mini
• Motor: Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only
