Mondraker MTB Crafty Carbon RR SL 2025

Carrera Blue / S

$12,512.15

$12,512.15 $16,682.86

1/4

Mondraker MTB Crafty Carbon RR SL 2025

$12,512.15

$12,512.15 $16,682.86

Crafty Carbon RR SL: crème de la crème in Mondraker blue

The top-of-the-range Crafty Carbon RR SL just had to come in the colour that best defines us as a brand: Carrera Blue (with a touch of Black and Crystal White). This standout paint scheme shines on the best dressed Crafty Carbon of all. The lightest build of the five, the RR SL comes with a Kashima coated Fox 36 29 Float GRIPX2 Factory fork, SRAM Reverb AXS dropper post and 2.5” tyres on e*thirteen Sylvan Race Carbon IW30 carbon fibre wheels (30mm internal width). Fitted with Bosch’s 600Wh internal removable battery, it’s 100% compatible with the optional Powermore 250Wh range extender if needed.

Tech Specs

Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear shock: Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer
Fork: Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 390x125mm, M size: 440x150mm, ML size: 480x170mm, L size: 480x170mm, XL size: 480x170mm
Saddle: FIZIK Vento Argo 00 Carbon 150mm
Front brake: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims: e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Minion DHF 29x2.5, tubeless ready, 3C MAXX GRIP, EXO+ Protection, 600TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.5 tubeless ready, 3C MAXX TERRA, EXO+ Protection, 60TPI, folding bead
Crankset: e*Thirteen Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings: Sram T-Type 34T, steel, narrow-wide, 104 BCD
Chain: Sram XX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram XX Eagle AXS, T-Type, 12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Casette: Sram XS-1295, 10-52T, T-Type, 12s
Producer's weight: 21,1 kg
Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor: New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 600Wh

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.

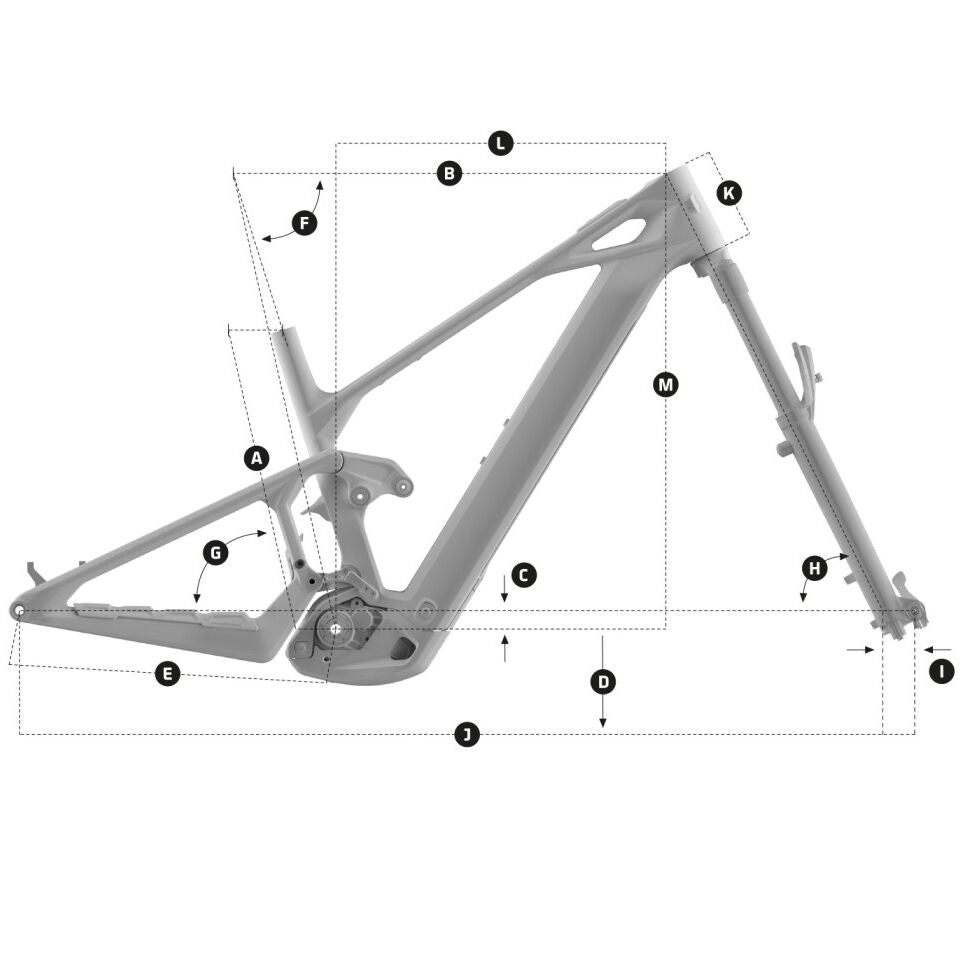

Crafty Carbon RR

	Frame size	S [Std/Low]	M [Std/Low]	M/L [Std/Low]	L [Std/Low]	XL [Std/Low]
A	Seattube length	380 mm	410 mm	435 mm	460 mm	490 mm
B	Toptube length	581 mm/582 mm	596 mm/597 mm	618 mm/619 mm	640 mm/641 mm	662 mm/663 mm
C	Bottom bracket drop	-25 mm/-30 mm	-25 mm/-30 mm	-25 mm/-30 mm	-25 mm/-30 mm	-25 mm/-30 mm
D	Bottom bracket height	350 mm/345 mm	350 mm/345 mm	350 mm/345 mm	350 mm/345 mm	350 mm/345 mm
E	Chainstay length	455 mm/456 mm	455 mm/456 mm	455 mm/456 mm	465 mm/466 mm	465 mm/466 mm
F	Seat tube angle	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°
G	Effective seattube angle	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°
H	Headtube angle	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°
I	Fork Offset	44 mm	44 mm	44 mm/44 mm	44 mm	44 mm/44 mm
J	Wheelbase	1240 mm/1241 mm	1255 mm/1256 mm	1280 mm/1281 mm	1314 mm/1315 mm	1338 mm/1339 mm
K	Headtube length	120 mm	120 mm	130 mm	140 mm	150 mm
L	Reach	445 mm/441 mm	460 mm/456 mm	480 mm/476 mm	500 mm/496 mm	520 mm/516 mm
M	Stack	638 mm/641 mm	638 mm/641 mm	647 mm/650 mm	656 mm/659 mm	665 mm/668 mm
