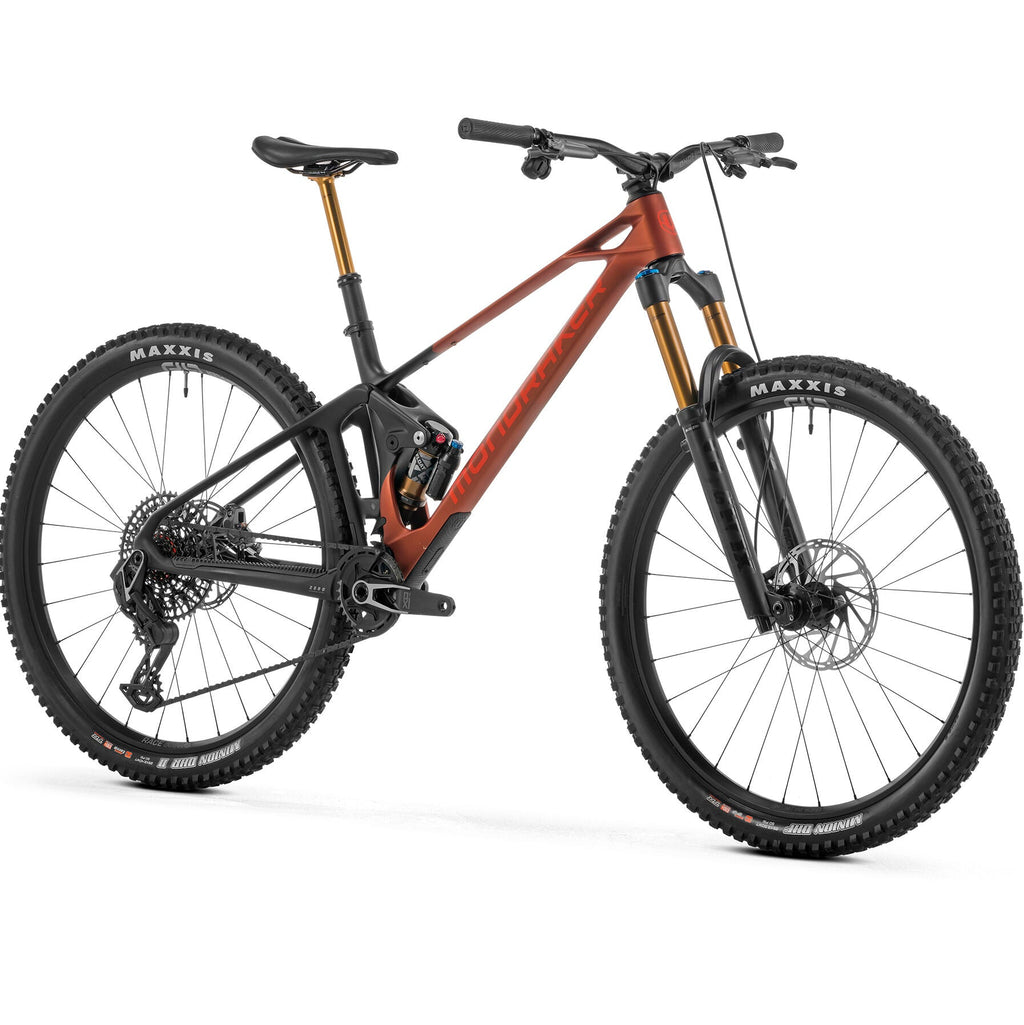

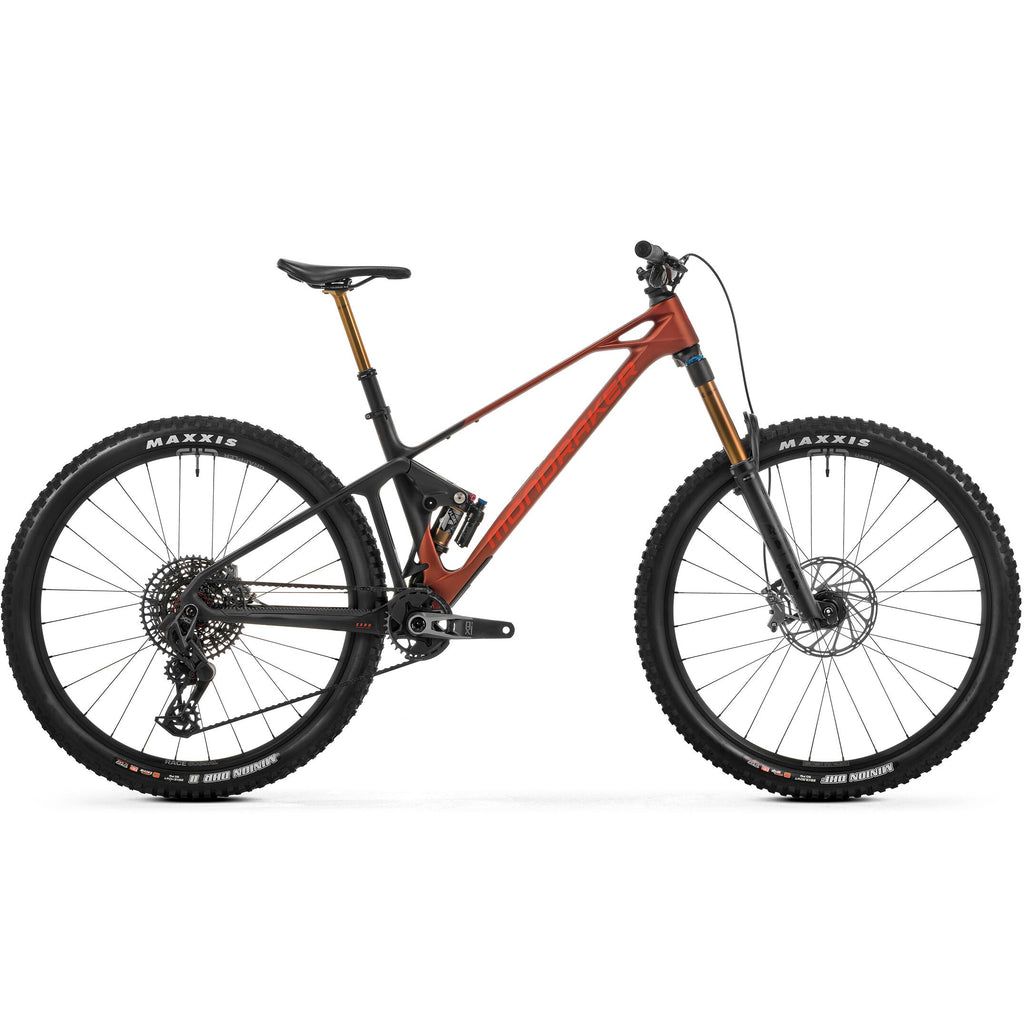

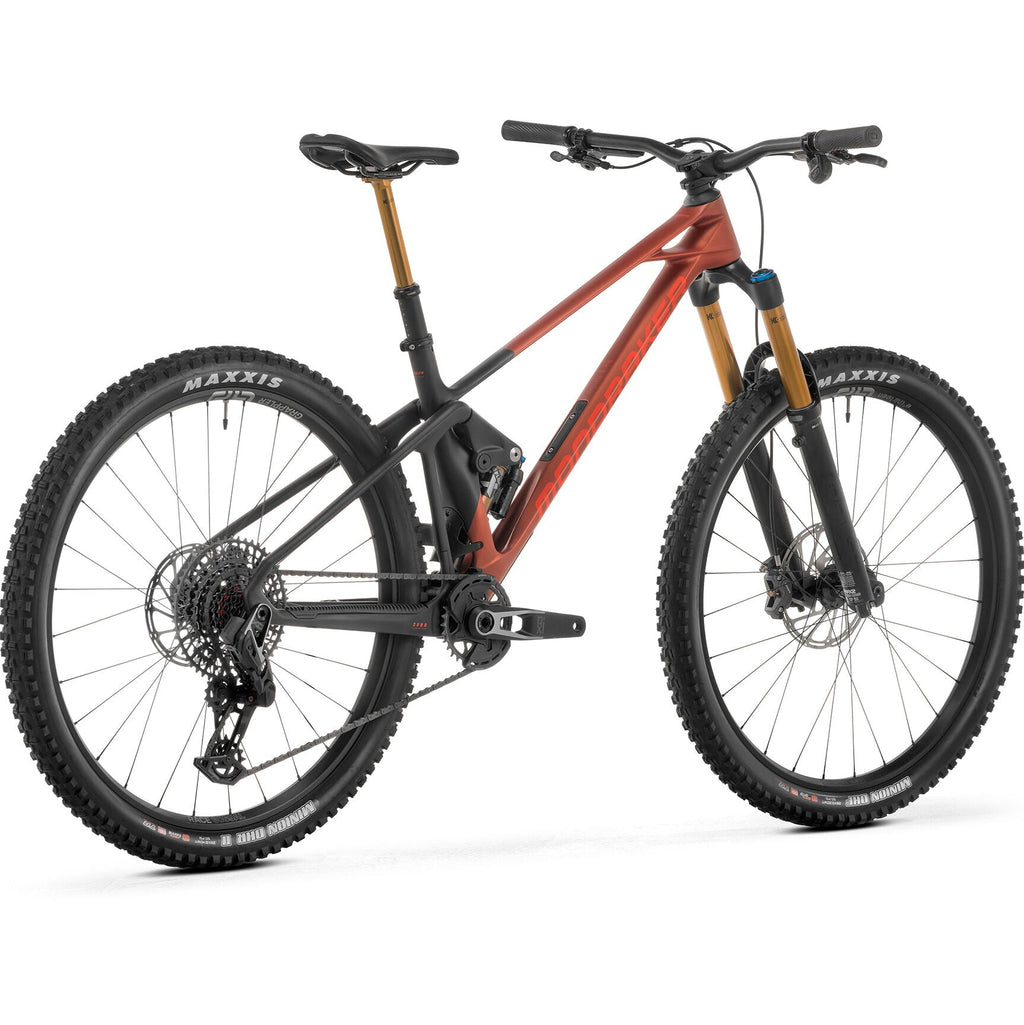

Mondraker MTB Foxy Carbon RR 2025

The Mondraker Foxy Carbon RR is a full suspension enduro and all-mountain mountain bike that combines lightness, rigidity and absolute control on the most demanding terrain. The Stealth Air carbon frame houses the proven Zero Suspension system, with 150 mm of rear travel and 160 mm at the front, ensuring a smooth and stable response even on the most technical descents. Mondraker's signature Forward Geometry offers a balanced and aggressive riding position, with great steering precision and traction on climbs. With its high-end components and meticulous design, the Foxy Carbon RR is a bike designed for those who want to tackle every trail with speed, confidence and fun.

Tech Specs

• Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• Rear shock: Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock settings: Light compression, light rebound, air volume spacer 0.6
• Fork: Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
• Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
• Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
• Grips: Onoff Forest, CNC lock-on, 135mm
• Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
• Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
• Front brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Rear brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Brake lever: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
• Rims: e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
• Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
• Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
• Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
• Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Crankset: Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
• Rings: 32T, CNC-machined alloy, T-Type
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm, wide
• Chain: Sram X0 Eagle T-Type, 12s, Powerlock
• Rear derrailleur: Sram X0 Eagle AXS T-Type,12s
• Shift levers: Sram Eagle AXS Pod, 12s
• Casette: Sram XS-1295, 10-52T, T-Type 12s
• Producer's weight: 14,4 kg

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
