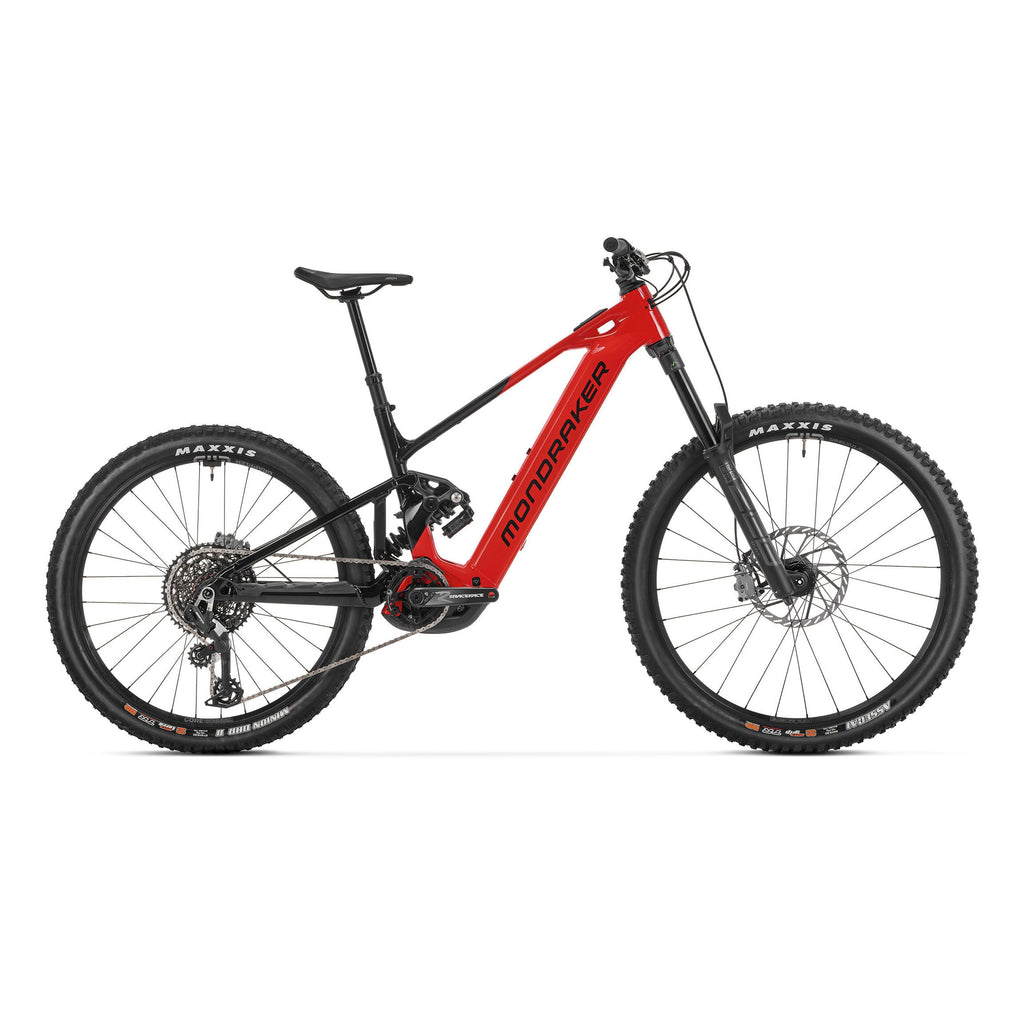

Mondraker MTB Level R 2026

Take your enduro riding to the next level

The most accessible model in the range is designed to improve your enduro performance. Equipped with the fifth generation Bosch CX motor, upgraded to 750W and 100Nm, it combines a removable 800Wh battery with a carbon cover located under the down tube.

Tech spec

• Frame: Level 6061 Stealth Evo alloy, optimized Zero Suspension system, Mullet, 170 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, UDH, tapered head tube, monoblock upper link, HHG internal cable routing, sealed MAX capacity bearings, oversized 17 mm axles, exclusive plastic motor covers

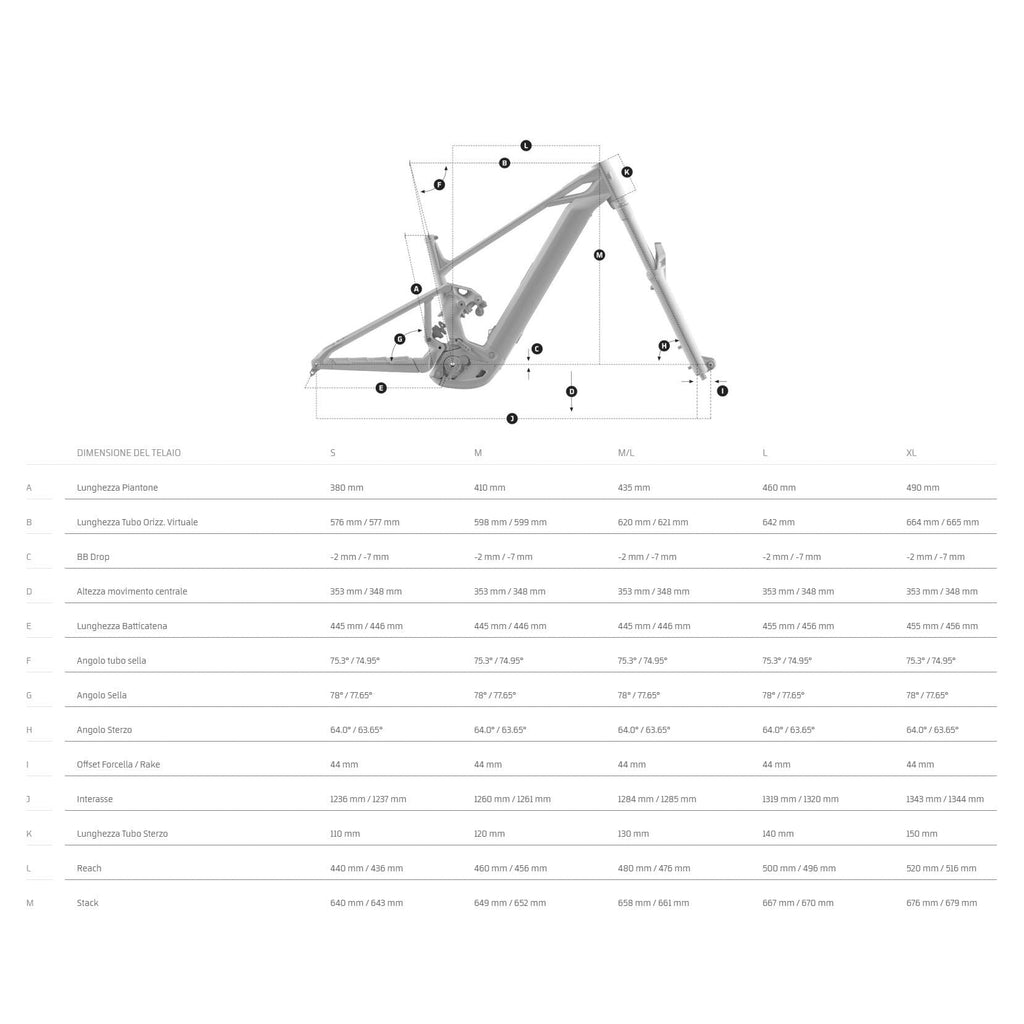

• Sizes: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
• Shock absorber: RockShox Vivid Coil base, 205x65 mm. Adjustments: external end of stroke, low speed rebound, spring preload. Trunnion upper mount, 30x8 mm lower bushings
• Shock absorber adjustment: Compression C26, rebound R23. Spring calibration: size S 350 lbs (158.75 kg), size M 400 lbs (181.43 kg), size L 450 lbs (204.11 kg), size XL 500 lbs (226.79 kg)

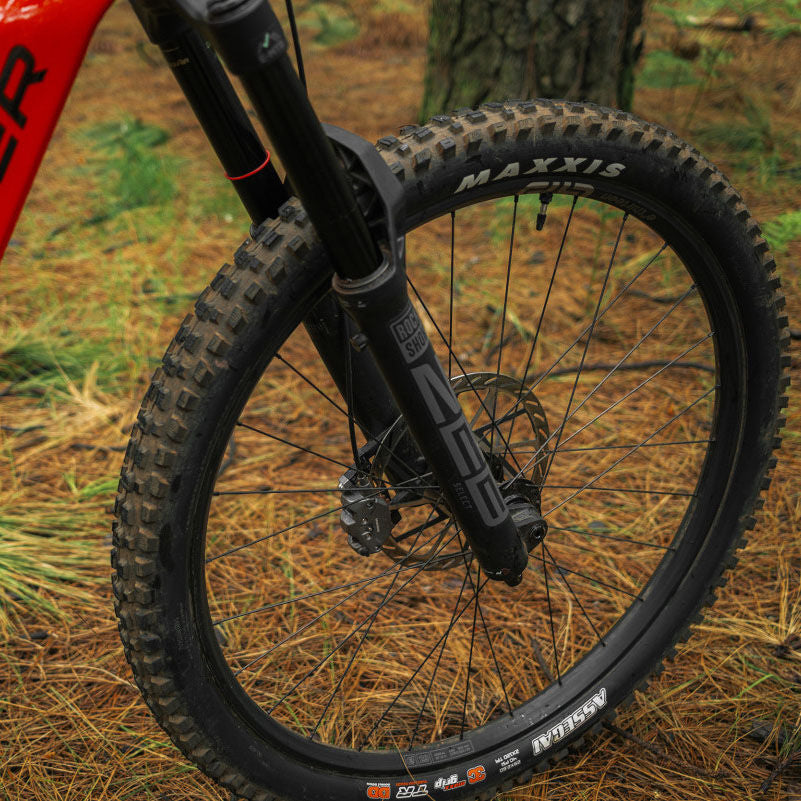

• Fork: RockShox ZEB Select Charger RC 29, 180 mm, e-bike approved, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Adjustments: low-speed compression, low-speed rebound, air preload
• Steering: Onoff ZS44/ZS56, 1-1/8“, 1.5” head tube, sealed ACB bearings, upper 42x30x7x45ºx45º, lower 52x40x8x45ºx45º
• Stem: Onoff S3 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: Onoff S3 1.0 6061 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Sizes L and XL: 38 mm increase.
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm. L and XL: thicker size
• Seatpost: Onoff Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size ML: 180-155 mm (468-275 mm), size L: 210-185 mm (528-305 mm) size XL: 210-185 mm (528-305 mm)
• Saddle: FIZIK Terra Aidon X5 145 mm
• Front brake: Sram Maven Bronze, 4-piston caliper 18 and 19.5 mm, Centerline 220 mm HS2 one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Rear brake: Sram Maven Bronze, 4-piston caliper 18 and 19.5 mm, Centerline 200 mm HS2 one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Brake levers: Sram Maven Bronze, SwingLink and lever pivot bushings, tool-free reach adjustment
• Rims: e*thirteen Grappler Core, Hookless 6066 Welded Aluminum, 30 mm internal width, tubeless ready, 28F front spokes, 29.275 rear spokes
• Spokes: e*thirteen custom J-bend, triple-thickness steel, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6 IS bolts
• Rear hub: e*thirteen Boost 12x148 mm, triple seal, aluminum finish with 6-degree drive, 6 IS bolts, HG freehub
• Front tire: Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
• Rear tire: Maxxis Minion DHR II 27.5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Cranks: Race Face Aeffect Ebike, all sizes: 160 mm
• Crankset: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
• Chain: Sram 70 Eagle T-Type, 12s, Powerlock
• Rear derailleur: Sram 90 Eagle, T-Type, 12V
• Shifters: Sram 90 Eagle, 12s, T-Type actuation, single click
• Cassette: Sram XS-1270, 10-52T, T-Type 12s
• Producer's weight: 26.7 kg
• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
• Motor: Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800 Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
