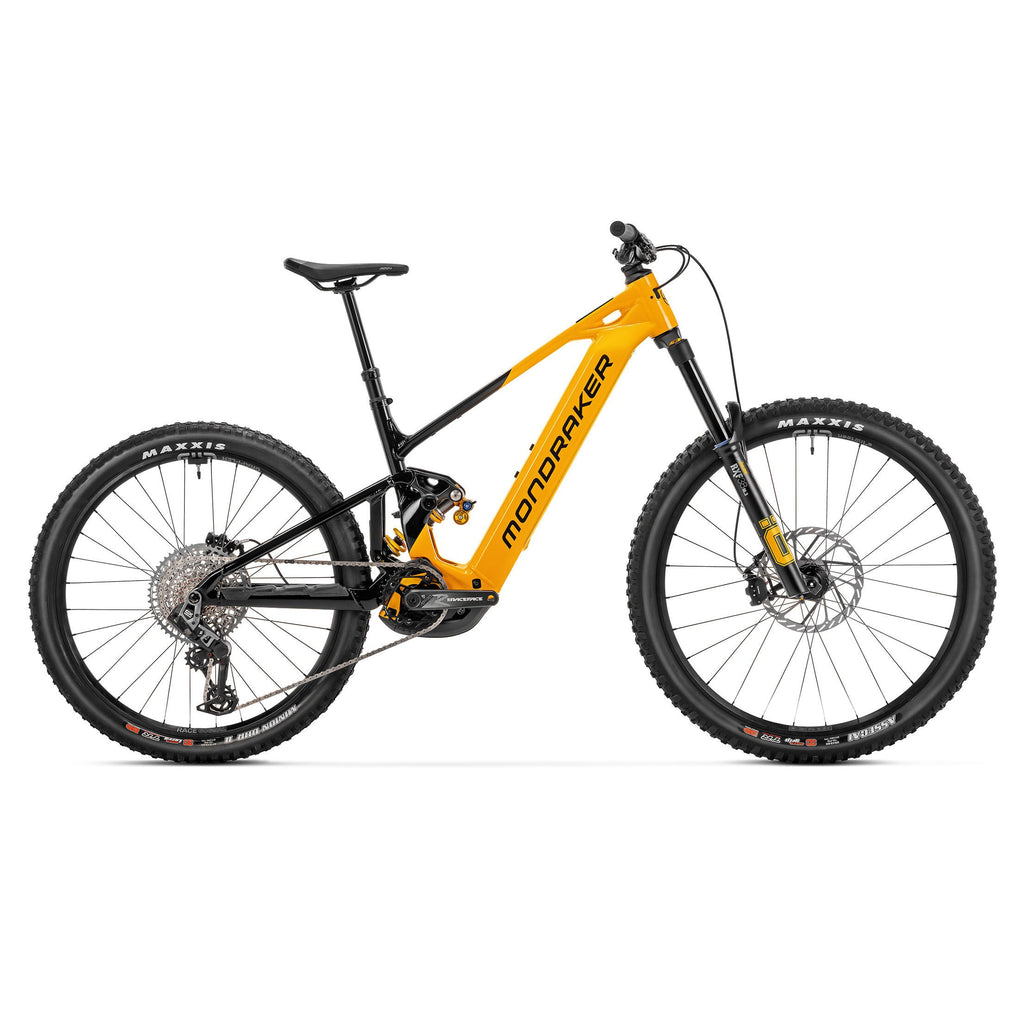

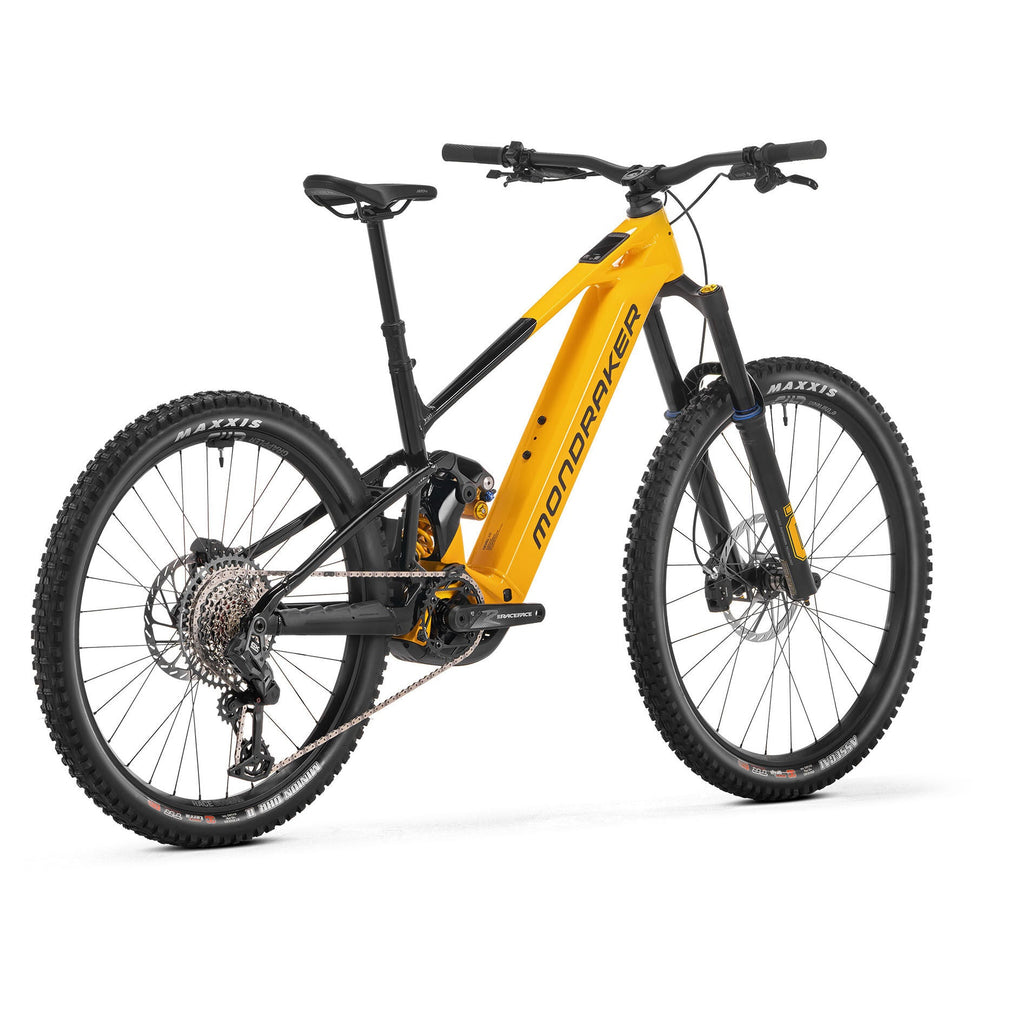

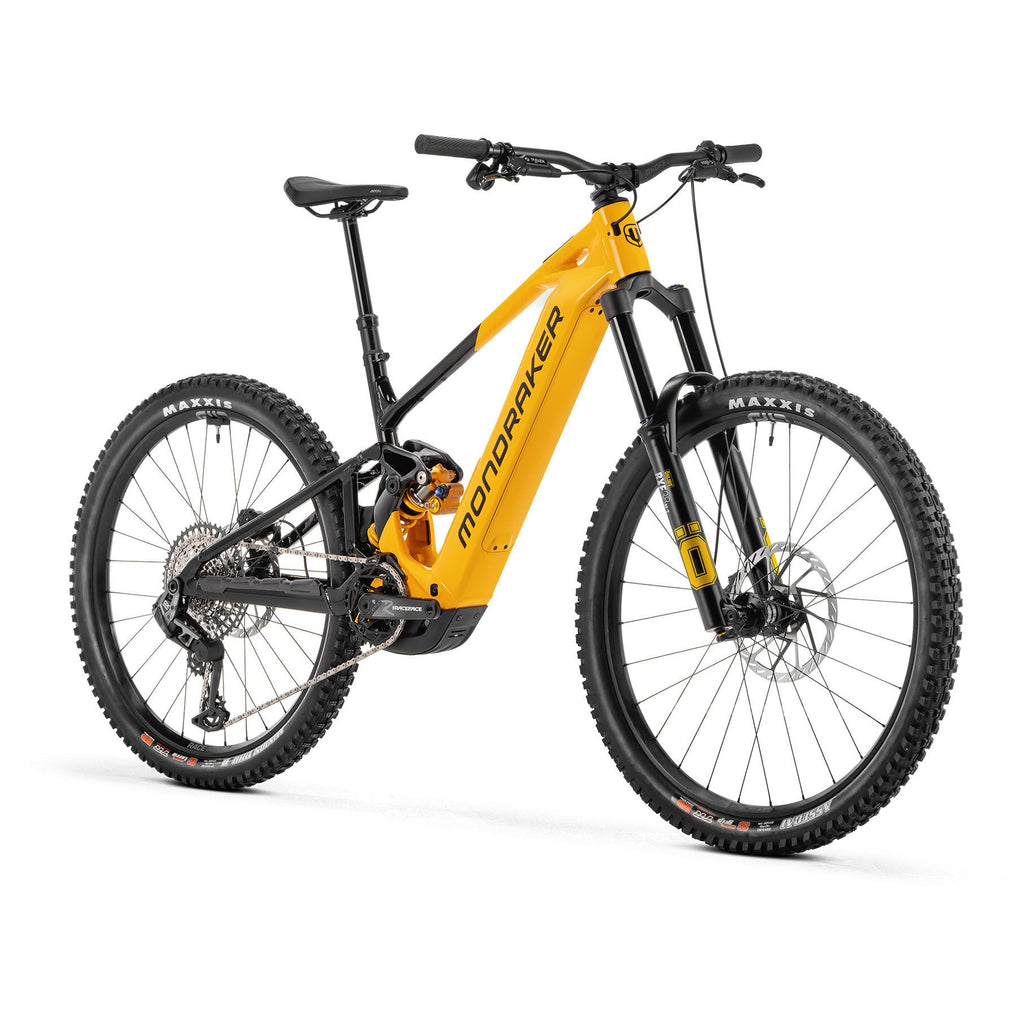

Mondraker MTB Level XR 2026

The top of the Level series stands out for its collaboration with Swedish brand Öhlins, guaranteeing maximum control and adjustability. This model features the RXF 38 fork and TTX22 M.2 shock absorber. Components include SRAM Maven Silver brakes, SRAM GX Eagle AXS T-Type drivetrain with 10-52 gear ratios and a 34-tooth chainring. Like the other models, it is equipped with 29x2.6“ Maxxis Assegai tires at the front and 27.5x2.6” Minion DHR II tires at the rear. A detail that makes it even more exclusive is the 800 mm ONOFF S9 carbon handlebar. The color scheme is Dense Yellow/Superblack.

Tech spec

• Frame: Level 6061 Stealth Evo alloy, optimized Zero Suspension system, Mullet, 170 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, UDH, tapered head tube, monoblock upper link, HHG internal cable routing, sealed MAX capacity bearings, oversized 17 mm axles, exclusive plastic motor covers

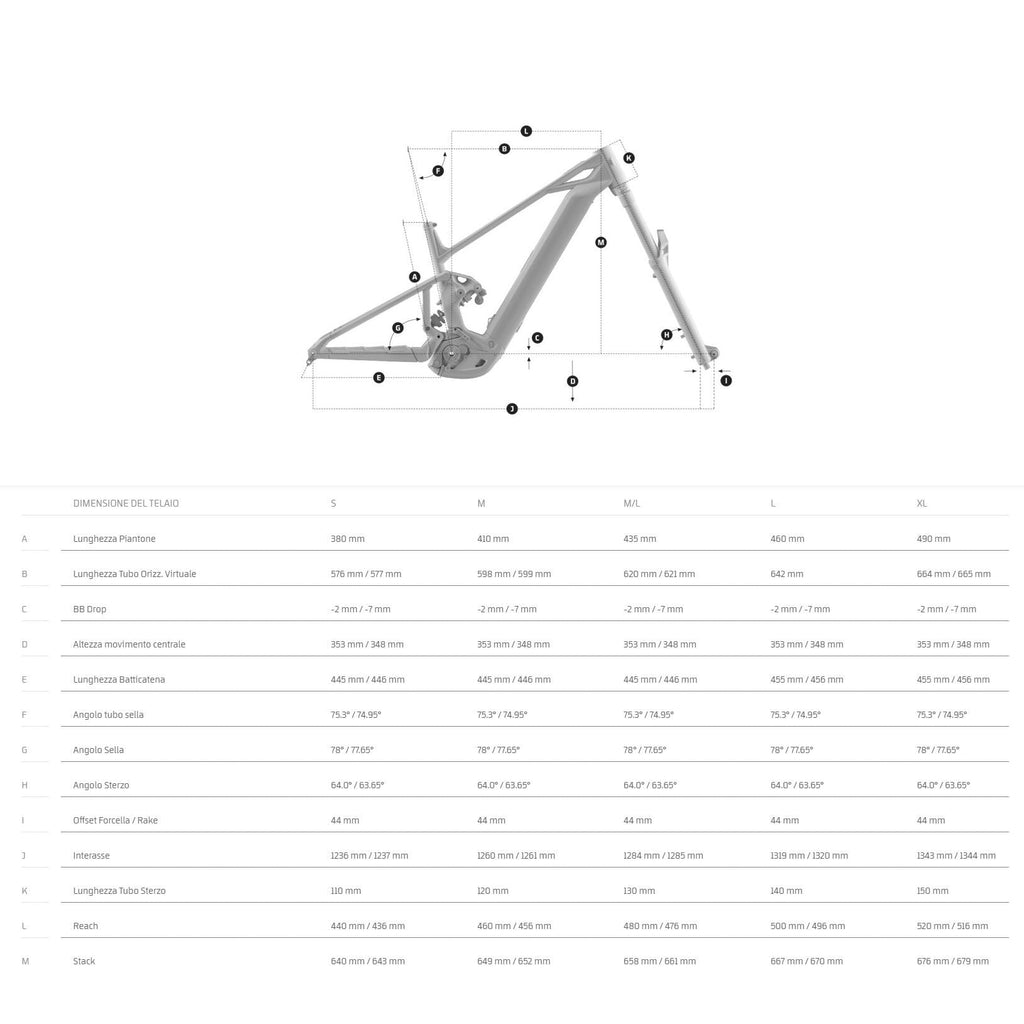

• Sizes: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
• Shock absorber: Öhlins TTX22M.2 205x65 mm. Adjustments: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion upper mount, 30x8 mm lower bushings
• Shock absorber adjustment: Compression C10, rebound R20. Spring rate: size S 343 lbs (155.58 kg), size M 411 lbs (186.42 kg), size L 457 lbs (207.29), size XL 502 lbs (227.7 kg)
• Fork: Öhlins RXF 38 M.2 29, 180 mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110 mm axle, 44 mm offset. Adjustments: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, progressive air chamber
• Steering: Onoff ZS44/ZS56, 1-1/8“, 1.5” head tube, sealed ACB bearings, upper 42x30x7x45ºx45º, lower 52x40x8x45ºx45º
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8 mm steerer
• Handlebar: Onoff S9 1.0 Carbon, rise: 25 mm, width: 800 mm, 8º backsweep, 5º upsweep, 31.8 mm steerer. Size L and XL: 38 mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm. L and XL: thicker size
• Seatpost: Onoff Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size ML: 180-155 mm (468-275 mm), size L: 210-185 mm (528-305 mm) size XL: 210-185 mm (528-305 mm)
• Saddle: FIZIK Terra Aidon X5 145 mm
• Front brake: Sram Maven Silver, 4-piston caliper 18 and 19.5 millimeters, Centerline 220 mm HS2 one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Rear brake: Sram Maven Silver, 4-piston caliper 18 and 19.5 mm, Centerline 200 mm HS2 one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Brake levers: Sram Maven Silver, SwingLink and lever pivot bushings, tool-free reach adjustment
• Rims: e*thirteen Grappler Race, Hookless 6069 Welded Aluminum Internal width 30mm, tubeless ready, spokes 28F front 29, 27.5 rear
• Spokes: e*thirteen Custom J-bend, triple-butted steel, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6 IS bolts
• Rear hub axle: e*thirteen Boost 12x148 mm, triple seal, finished aluminum with 6-degree drive, 6 IS bolts, XD freehub
• Front tire: Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
• Rear tire: Maxxis Minion DHR II 27.5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Cranks: Race Face Aeffect Ebike, all sizes: 160 mm
• Crankset: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: Sram GX Eagle AXS T-Type, 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XS-1275, 10-52T, T-Type 12s
• Producer's weight: 25.9 kg
• Display: Kiox 400C remote control / Bosch Mini
• Motor: Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU 384Y)
• Battery: Bosch Powertube 800Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
