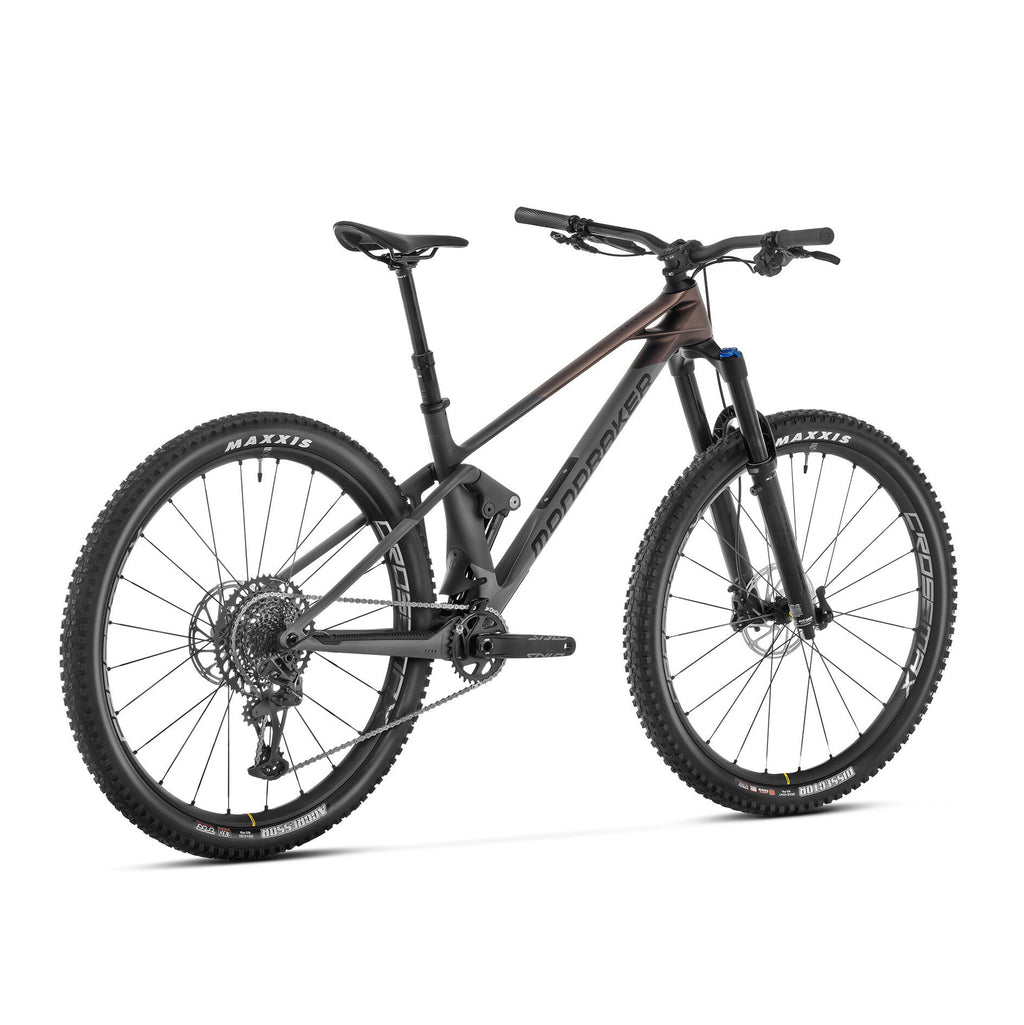

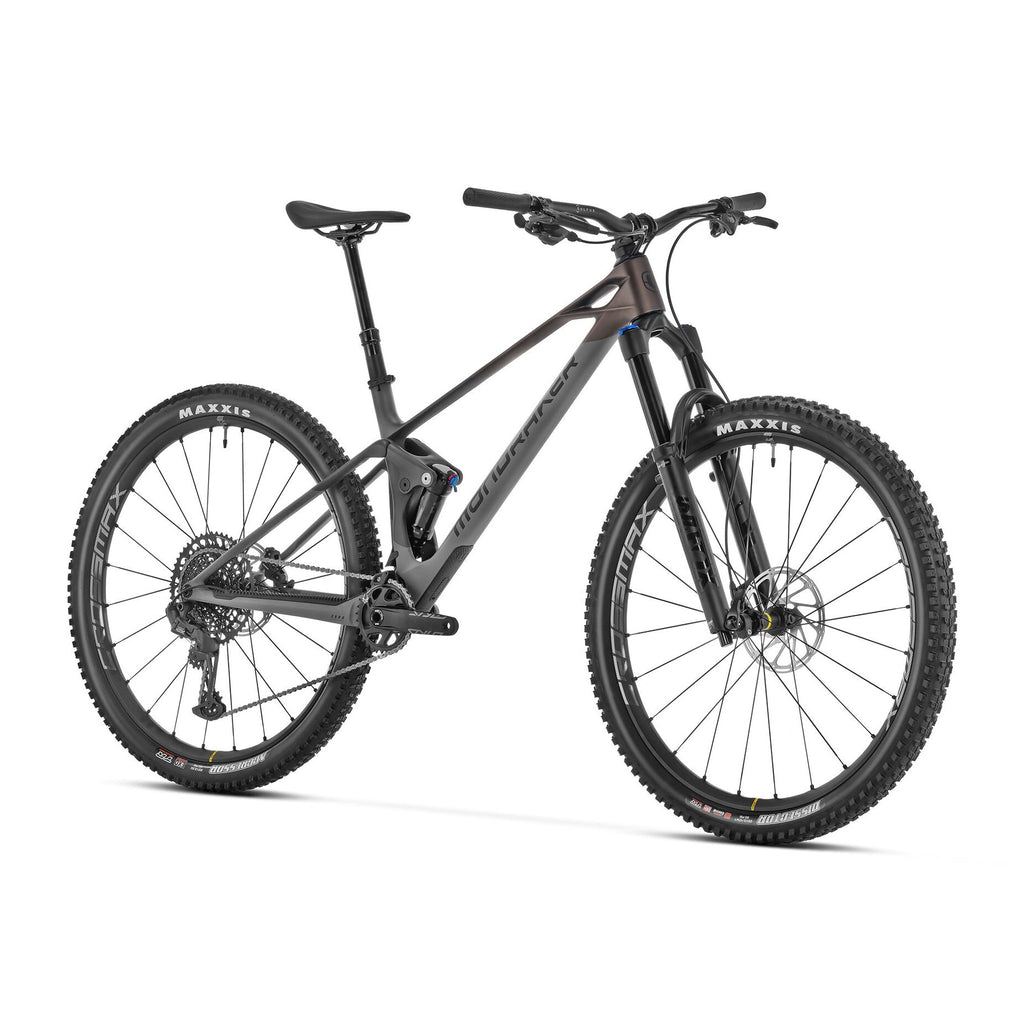

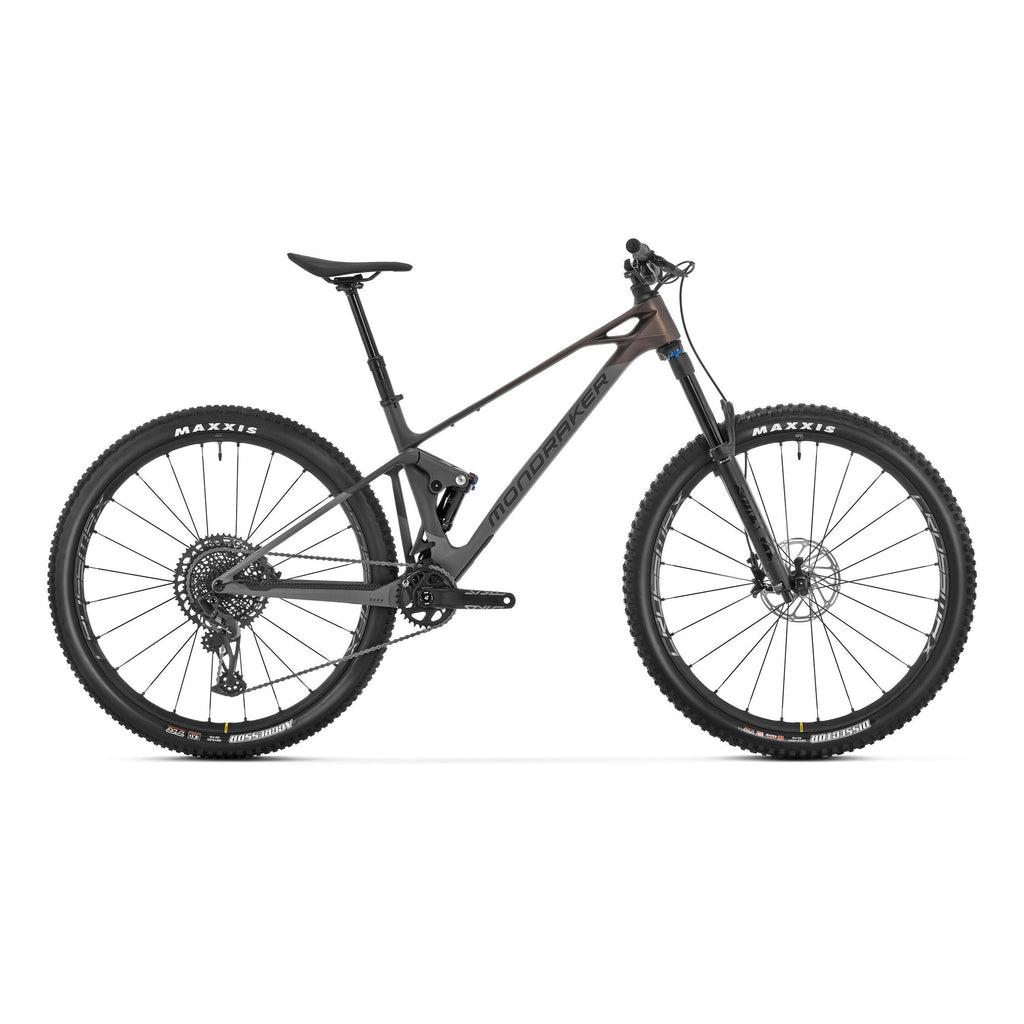

Mondraker MTB Raze Carbon R

The Trail Bike that knows no limits

A concentration of technology and adrenaline: the Mondraker Raze Carbon R is the MTB that redefines the concept of trail riding. Ultra-light full carbon frame, Forward geometry that guarantees absolute control on descents and lightning-fast response on climbs. A bike for those who want to push themselves further every time they get on the saddle.

Tech spec

• Frame: Raze 29 Stealth Air full carbon, Zero Suspension System, 130 mm travel, Forward Geometry, monobloc carbon upper link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock absorber fender, ISCG 05, custom frame guards.

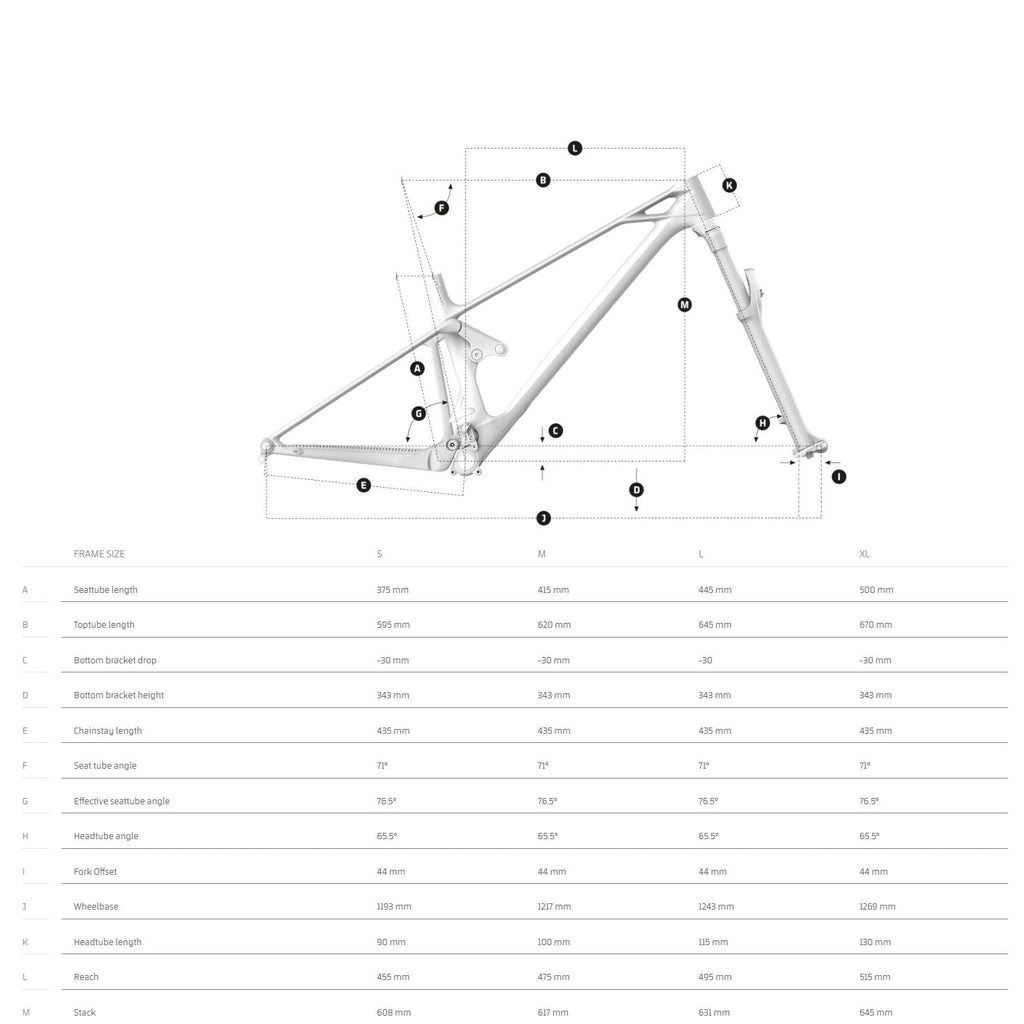

• Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 500 mm
• Shock: Fox Float EVOL Performance, 205x57.5 mm. Settings: 2-position compression (Open/Locked), rebound, air preload. Trunnion top mount, 30x8 mm bottom bushings.
• Shock adjustment: Light compression, light rebound, 0.6 air spring spacer.
• Fork: Fox 36 29 Float GRIP EVOL Performance, 150 mm, tapered steerer tube, Boost 15x110 mm axle, 44 mm offset. Adjustments: 3 positions with micro-adjustable compression, low-speed rebound, air preload
• Steering: Custom Acros for 1-1/2" head tube, 40x52x7 angular contact bearings, internal cable routing system
• Handlebar stem: ONOFF Sulphur FG 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF Sulphur 1.0 double-thickness 6061 alloy, rise: 20 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm bore
• Grips: ONOFF Desert, 1 lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 558x170-200 mm
• Saddle: Fizik Vento Argo X5
• Front brake: SRAM G2 R, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: SRAM G2 R, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: SRAM G2 R, tool-free reach adjustment, lever pivot bushings
• Rims: Mavic CrossMax XL S, 29 Boost internal width 30 mm, hookless, tubeless ready, 24 spokes
• Spokes: 24 double-thickness straight-pull Mavic spokes
• Front hub axle: Mavic Infinity hub, Boost 15x110 mm, 6 IS bolts
• Rear hub axle: Mavic Infinity hub, ID360 freehub technology, Boost 12x148 mm, 6 IS bolts, XD freehub
• Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Cranks: Truvativ Stylo 7k Eagle, Boost, DUB axle, direct mount chainring, size S: 170 mm size M: 170 mm size L: 175 mm size XL: 175 mm size CL 52
• Chainring: 32T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: SRAM DUB BSA, sealed bearings, 73 mm
• Chain: SRAM NX Eagle, 12s, Powerlock
• Rear derailleur: SRAM GX Eagle, Roller Bearing Clutch type 3 technology, cage lockout, 1x12s, X-Actuation 1:1
• Shifters: SRAM NX Eagle shifter, 12s, X-Actuation 1:1
• Cassette: SRAM XG-1275, 10-52T, 12s
• Hanger: SRAM UDH
• Producer's weight: 13.6 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
