Mondraker MTB Sly R

The R version offers RockShox suspension with a 160 mm Psylo Gold RC fork combined with a Rockshox Deluxe Select+ shock absorber; SRAM DB8 Stealth 4-piston brakes to keep everything under control and 29" Mavic E-CrossRide 29 wheels with 30 mm tyres to ensure reliability and durability. Our ONOFF component brand supplies the handlebar, grips and stem from the S3 range, while the Pija seatpost from the S6 range comes in lengths from 140 mm to 210 mm depending on the frame size.

Tech spec

• Frame: Alloy Stealth Evo 6061, optimised Zero Suspension System, 150 mm travel, Forward Geometry, internal battery, Boost 12x148 mm rear axle, tapered head tube, monobloc upper link, HHG internal cable routing, sealed bearings with MAX load capacity, 15 mm oversized axles, exclusive plastic motor covers.

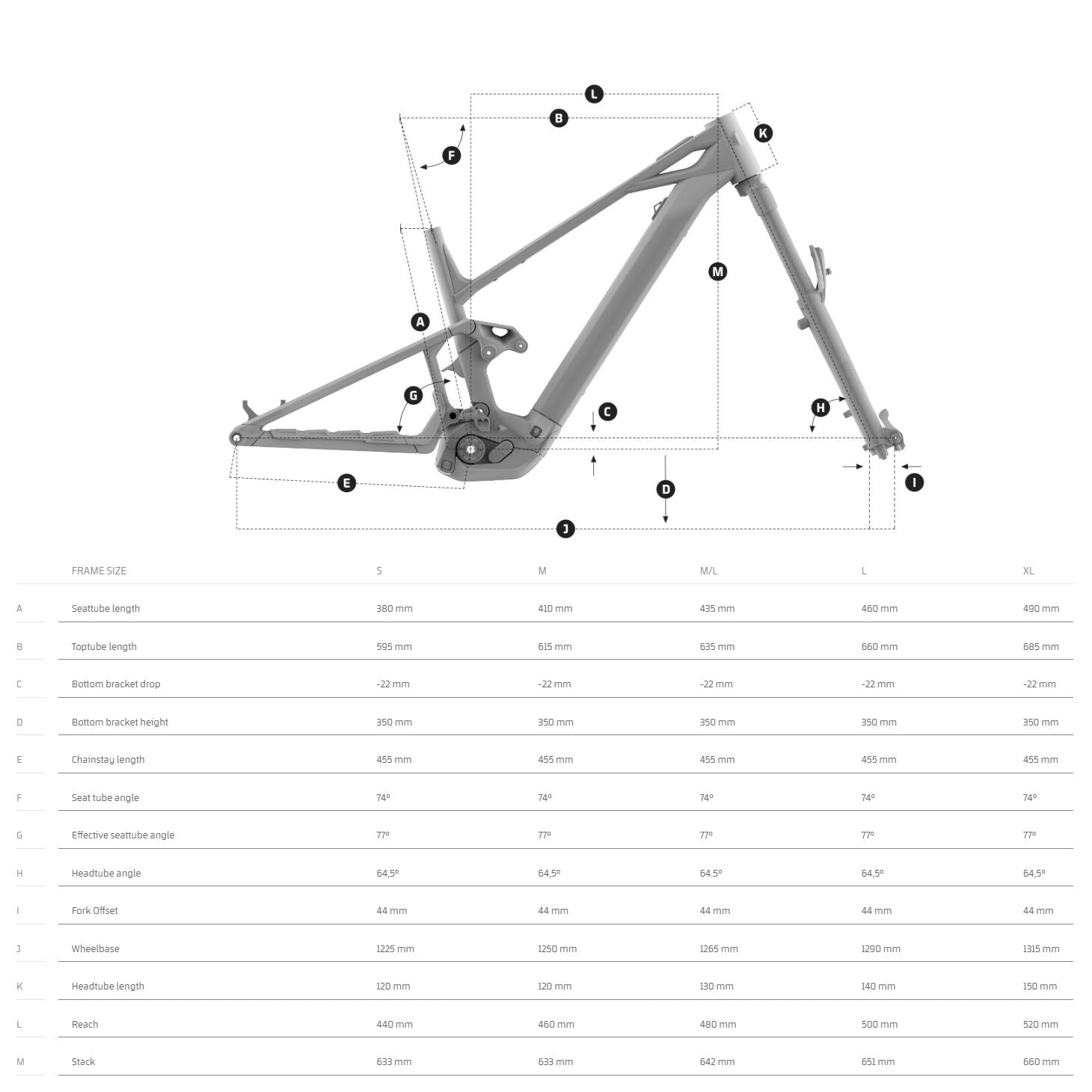

• Sizes: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
• Shock absorber: Rockshox Deluxe Select+, 185x55mm, Trunnion upper mount, 30x8mm lower bushings
• Shock absorber adjustment: L compression, digressive rebound, 4 tokens
• Fork: Rockshox Psylo Gold RC, 160 mm, 3 positions, Debon Air, tapered head tube, Boost 15x110 mm axle, 35 mm steel steerer tube, 44 mm offset. Settings: low-speed compression adjustment to lock out, rebound, air preload
• Steering: Customised Acros IS52/ZS56, 1-1/8‘ head tube, 1.5’, internal cable routing, seal caps without blocklock
• Stem: ONOFF S3 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF S3 1.0 6061 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Sizes L and XL: rise 1.5.
• Grips: ONOFF Forest, CNC lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Saddle: FIZIK Terra Aidon X5 145 mm
• Front brake: Sram DB8 stealth, 4-piston caliper, 200 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram DB8 stealth, 4-piston caliper, 200 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram Code DB8, SwingLink and lever pivot bearings, tool-free reach and contact point adjustment
• Rims: Mavic E-CrossRide 29, 30 mm internal width, welded, PFP, tubeless ready, 28 spokes
• Spokes: Mavic J-bend double thickness, contactless lacing
• Front hub axle: Mavic, Boost 15x110 mm, 6 IS bolts
• Rear hub axle: Mavic, Boost 12x148 mm, Ratchet ID360 ratchet system, 6 IS bolts, XD freehub
• Front tyre: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
• Rear tyre: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
• Cranks: e*thirteen Helix Core E*Spec Plus, all sizes: 160 mm
• Crankset: Sram GX Eagle T-Type, 12s, Powerlock
• Chain: Sram S1000 Eagle AXS T-Type, 12s
• Rear derailleur: Sram XS-1270, 10-52T, T-Type 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Sprocket cassette: Sram XS-1270, 10-52T, T-Type 12s
• Producer's weight: 20.9 kg
• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
• Motor: Bosch Performance Line SX (25 km/h) SMART SYSTEM Diagonal, Wide
• Battery: Bosch Compact Powertube 400 Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
