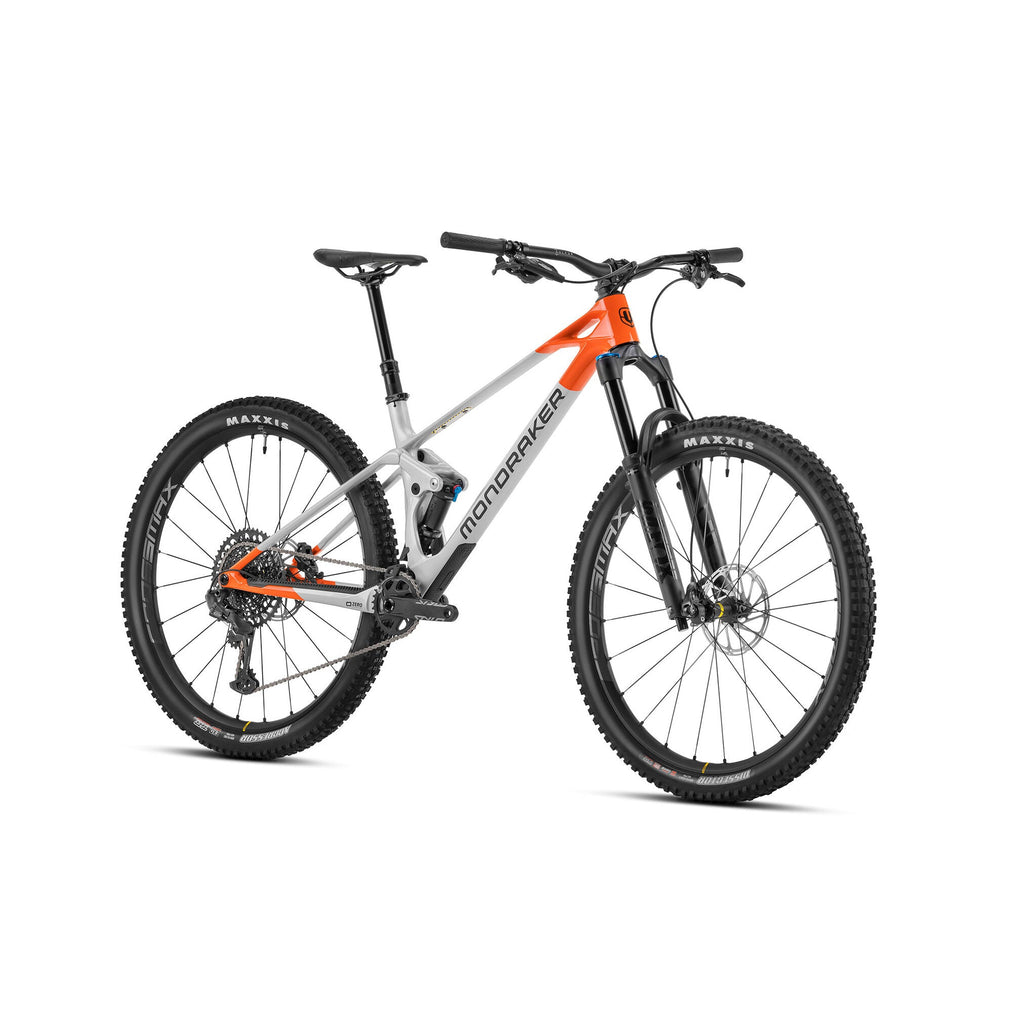

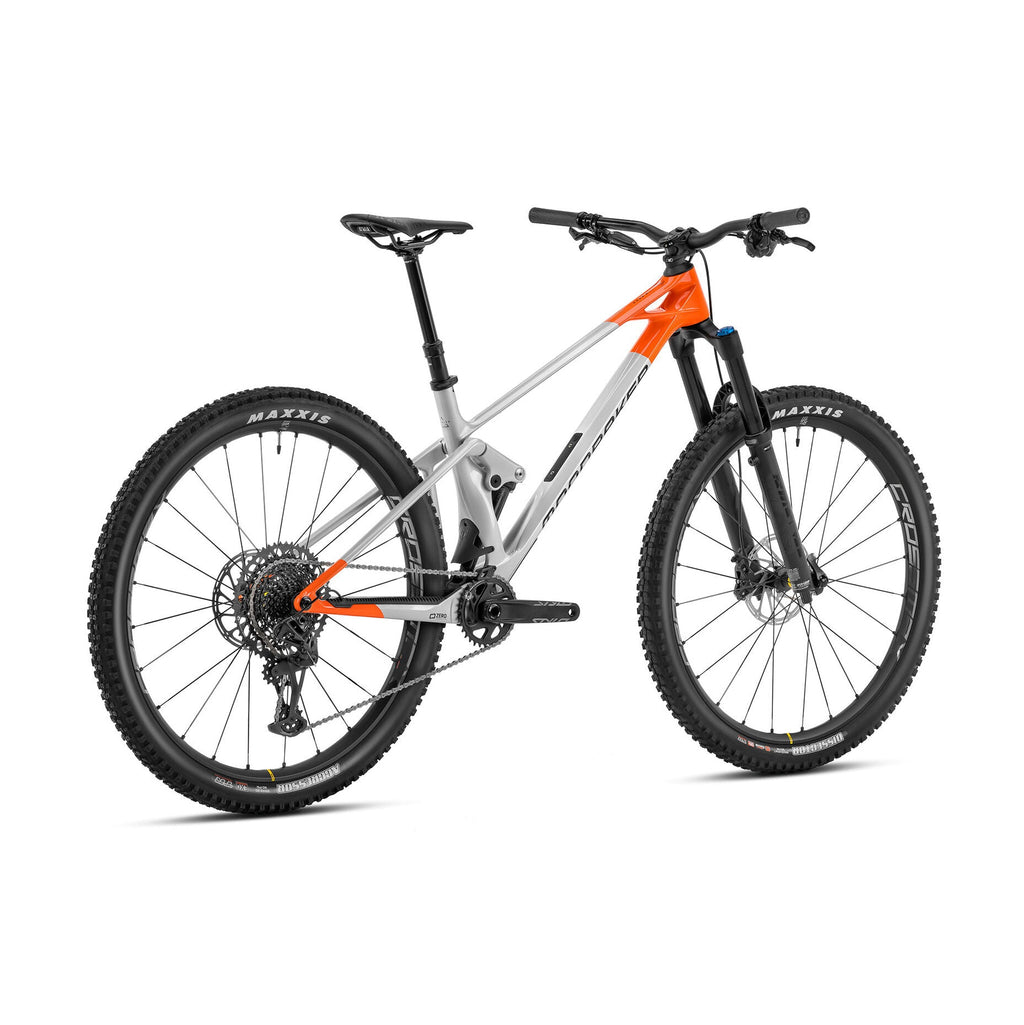

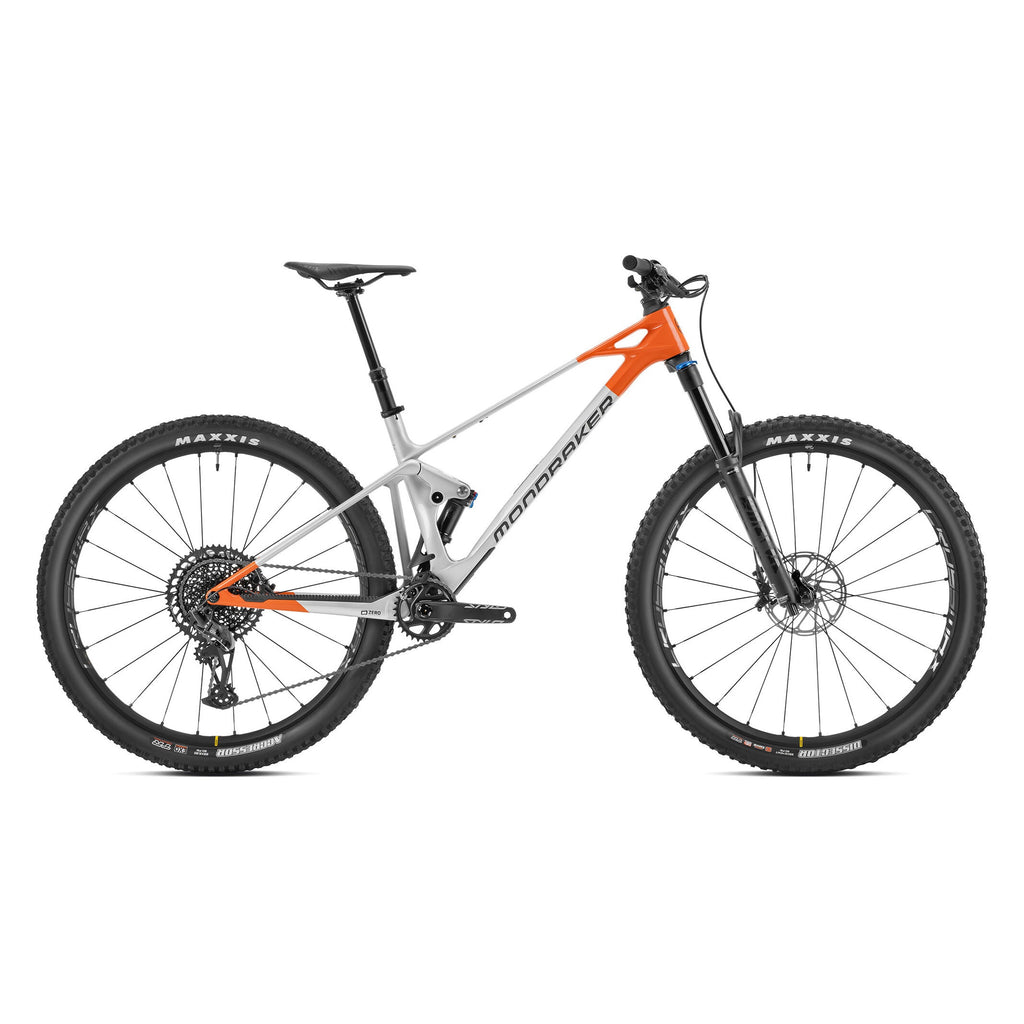

Mondraker Raze Carbon R

An aggressive trail bike that you can ride comfortably

The RAZE CARBON R is the ideal bike if you want an aggressive trail bike that you can ride comfortably. With its great climbing qualities, you can keep going up as long as your legs will carry you. Its climbing efficiency is beyond question. But the best thing is that when it comes to tackling any descent, the response is excellent. Its shock absorption, lightness, and stiffness make it an excellent all-purpose bike. Our exclusive STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY, and MIND technologies are naturally also present in the CARBON R.

Tech spec

• Frame: Raze 29 Stealth Air full Carbon, Zero Suspension system, 130 mm travel, Forward Geometry, carbon monoblock top link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mount fender, ISCG 05, custom frame protectors

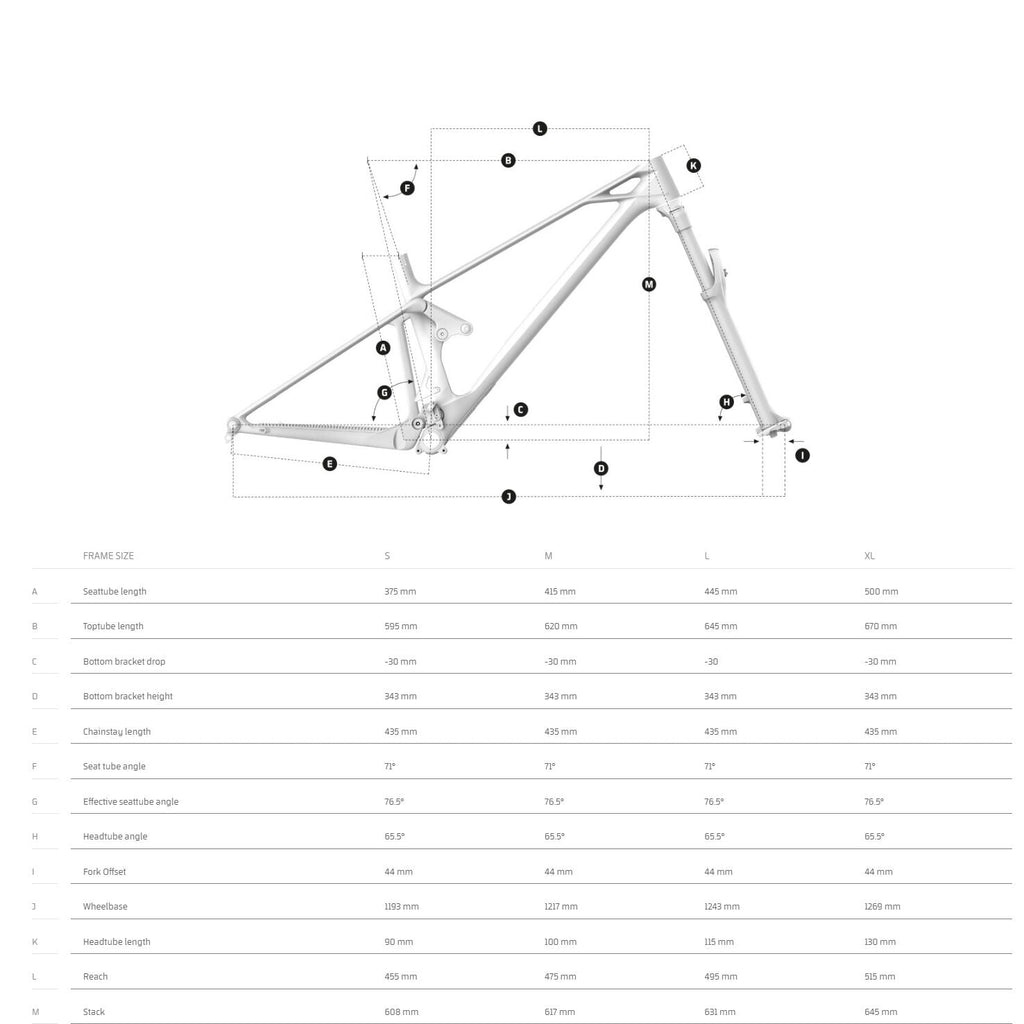

• Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 500 mm
• Shock: Fox Float DPS LV EVOL Performance, 205x57.5 mm. Settings: rebound, 3-position compression adjustment (Open/Medium/Closed), air preload. Trunnion top mount, 30x8 mm lower bushings
• Shock adjustment: Light compression, light rebound, 0.6 air spring spacer
• Fork: Fox 36 29 Float GRIP EVOL Performance, 150 mm, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Settings: 3 positions with micro-adjustable compression, low-speed rebound, air preload
• Headset: Custom Acros for 1-1/2" head tube, 40x52x7 angular contact bearings, internal cable routing
• Stem: ONOFF Sulphur FG 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF Sulphur 1.0 double-thickness 6061 alloy, rise: 20 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm bore
• Grips: ONOFF Desert, 1 lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper seatpost, diameter 31.6 mm, size S: 405x95-125 mm, size M 458x120-150 mm, size L: 498x140-170 mm, size XL: 498x140-170 mm
• Saddle: Fizik Antares R7
• Front brake: Sram G2 R, 4-piston caliper, Centerline 180 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram G2 R, 4-piston caliper, Centerline 180 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram G2, SwingLink, tool-free lever reach adjustment
• Rims: Mavic Crossmax Carbon XL S, 29 Boost internal width 30 mm, hookless, tubeless ready, 24 spokes
• Spokes: 24 double-butted straight-pull spokes
• Front hub axle: Infinity hub, Boost 15x110 mm, 6 IS bolts
• Rear hub: Infinity hub, freewheel technology with ID360 sprockets, Boost 12x148 mm, 6 IS bolts
• Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Cranks: Truvativ Stulo 7k Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170 mm, size L/XL: 175 mm
• Chainring: 32T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm
• Chain: Sram NX Eagle, 12s, Powerlock
• Rear derailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lockout, 1x12s, X-Actuation 1:1
• Shifters: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Cassette: Sram XG-1275, 10-52T, 12s
• Dropout: Sram UDH
• Producer's weight: 13.5 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
