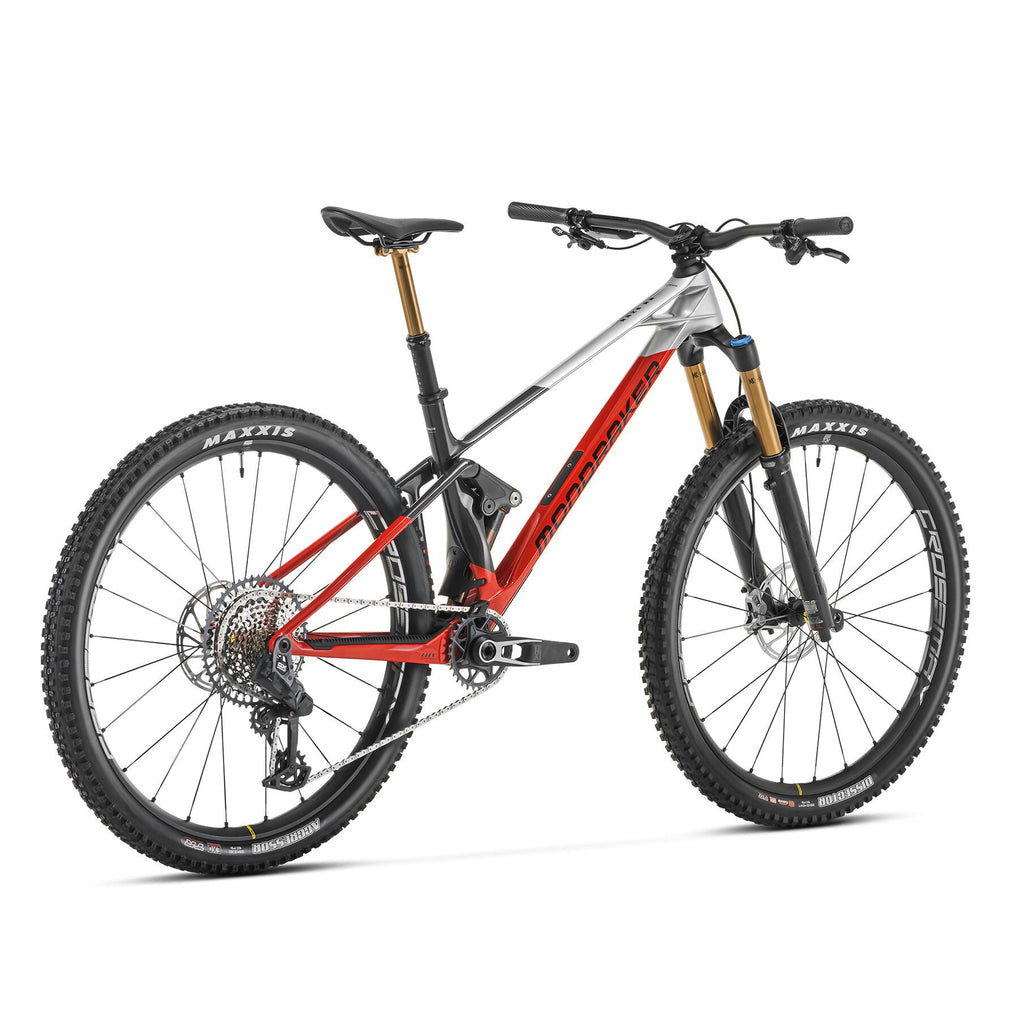

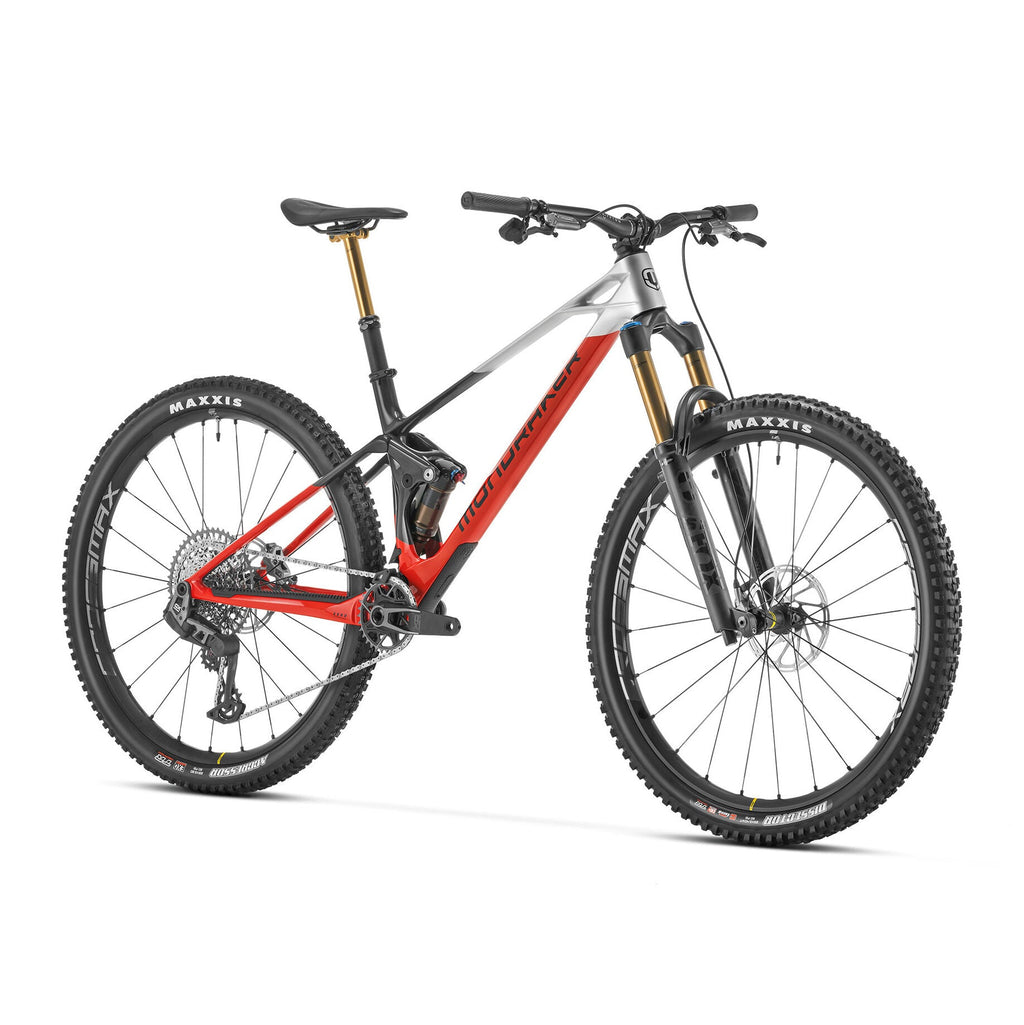

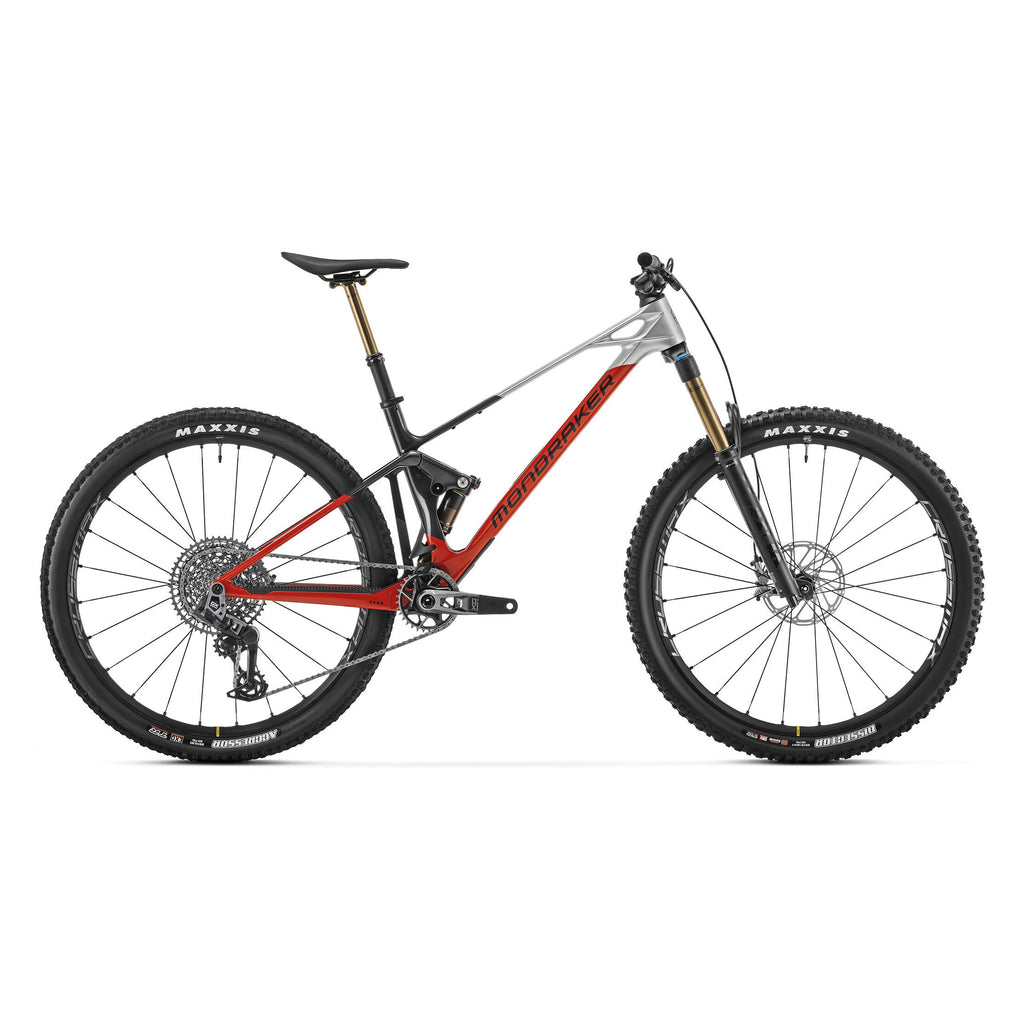

Mondraker Raze Carbon RR

Power, lightness, and absolute precision

The Raze Carbon RR is the perfect synthesis between a climbing bike and a downhill machine. With its Stealth Air Full Carbon frame, Fox Factory Kashima suspension, and Mondraker's Forward Geometry, every detail is designed for one thing: maximizing fun on every trail.

Tech spec

• Frame: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130 mm travel, Forward Geometry, monoblock carbon upper link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing system, Enduro MAX sealed bearings, shock absorber fender, ISCG 05, custom frame guards.

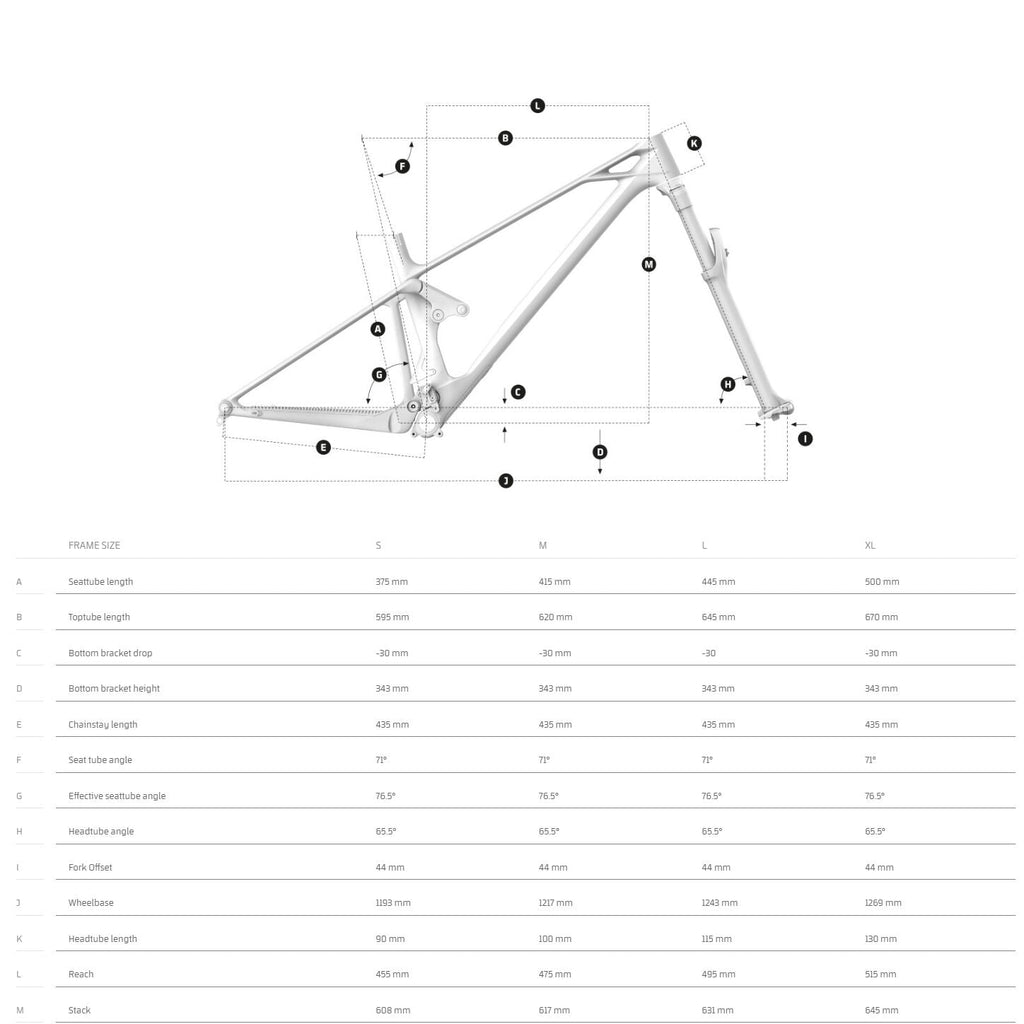

• Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 500 mm
• Shock: Fox Float Factory Kashima EVOL, 205x57.5 mm. Settings: 2-position compression (Open/Locked), rebound, air preload. Trunnion top mount, 30x8 mm bottom bushings.
• Shock adjustment: Light compression, light rebound, 0.6 air spring spacer.
• Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150 mm, tapered steerer tube, 15x110 mm Boost axle, 44 mm offset. Settings: high and low speed compression, high and low speed rebound, air preload
• Steering: Custom Acros for 1-1/2" head tube, 40x52x7 angular contact bearings, internal cable routing system
• Handlebar mount: ONOFF Krypton FG 30 mm, CNC, 31.8 mm bore
• Handlebar: ONOFF Kripton Carbon 1.0, rise: 25 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, bar bore 31.8 mm
• Grips: ONOFF Desert, 1 lock-on, 135 mm
• Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6 mm, size S: 363.5x125 mm, size M: 418.3x150 mm, size L: 475.1x175 mm, size XL: 475.1x200 mm
• Saddle: Fizik Vento Argo X5
• Front brake: SRAM Level Bronze Stealth, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: SRAM Level Bronze Stealth, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: SRAM Level Bronze, tool-free reach adjustment, lever pivot bushings
• Rims: Mavic CrossMax XL S, 29 Boost internal width 30 mm, hookless, tubeless ready, 24 spokes
• Spokes: 24 double-thickness straight-pull Mavic spokes
• Front hub axle: Mavic Infinity hub, Boost 15x110 mm, 6 IS bolts
• Rear hub axle: Mavic Infinity hub, ID360 freehub technology, Boost 12x148 mm, 6 IS bolts, XD freehub
• Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Cranks: SRAM X0 Eagle T-Type, Boost, DUB axle, direct mount chainring, size S: 170 mm size M: 170 mm size L: 175 mm size XL: 175 mm, CL 55
• Chainring: 32T, CNC-machined alloy, T-type
• Chain: SRAM GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: SRAM GX Eagle AXS, T-type Roller Bearing Clutch technology, cage lockout, 1x12s
• Shifters: SRAM Eagle AXS Pod MMX, 12s
• Cassette: SRAM XS-1275, 10-52T, T-Type 12s
• Producer's weight: 13.4 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
