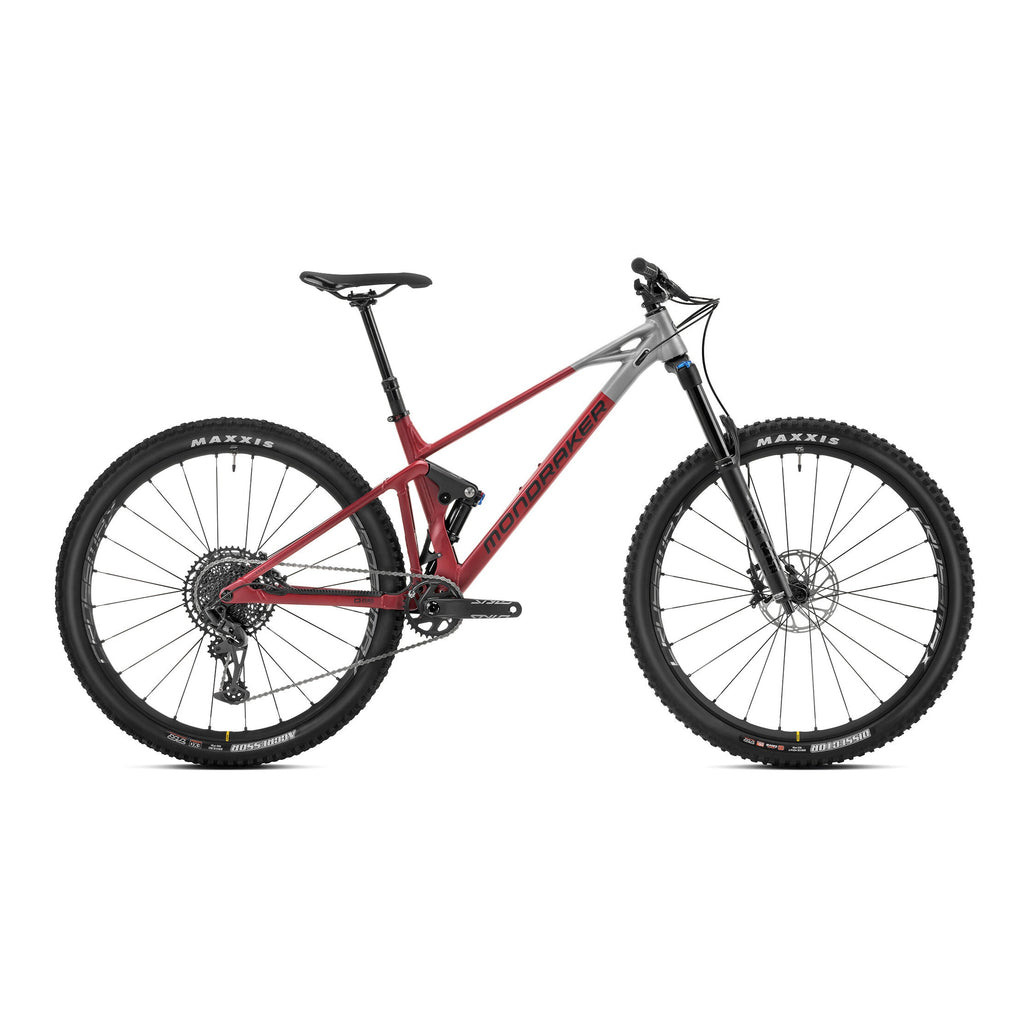

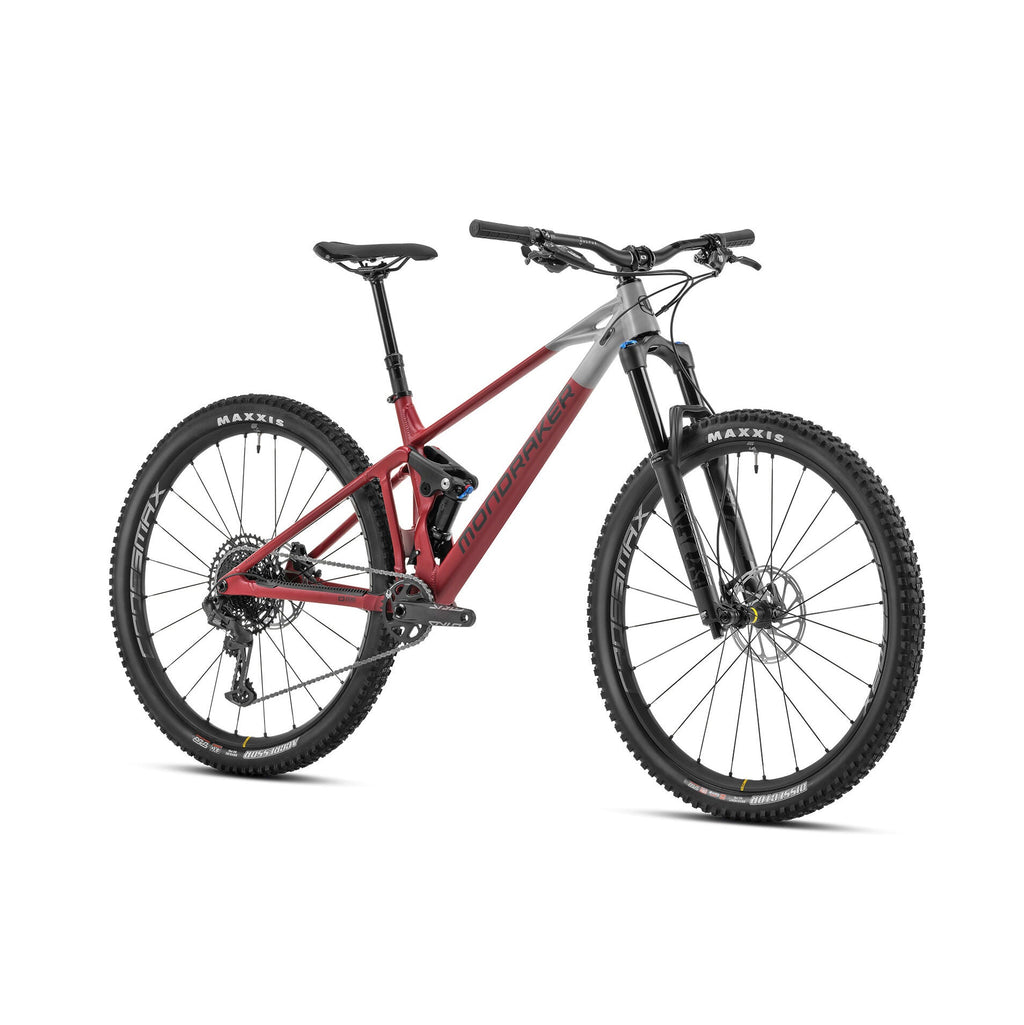

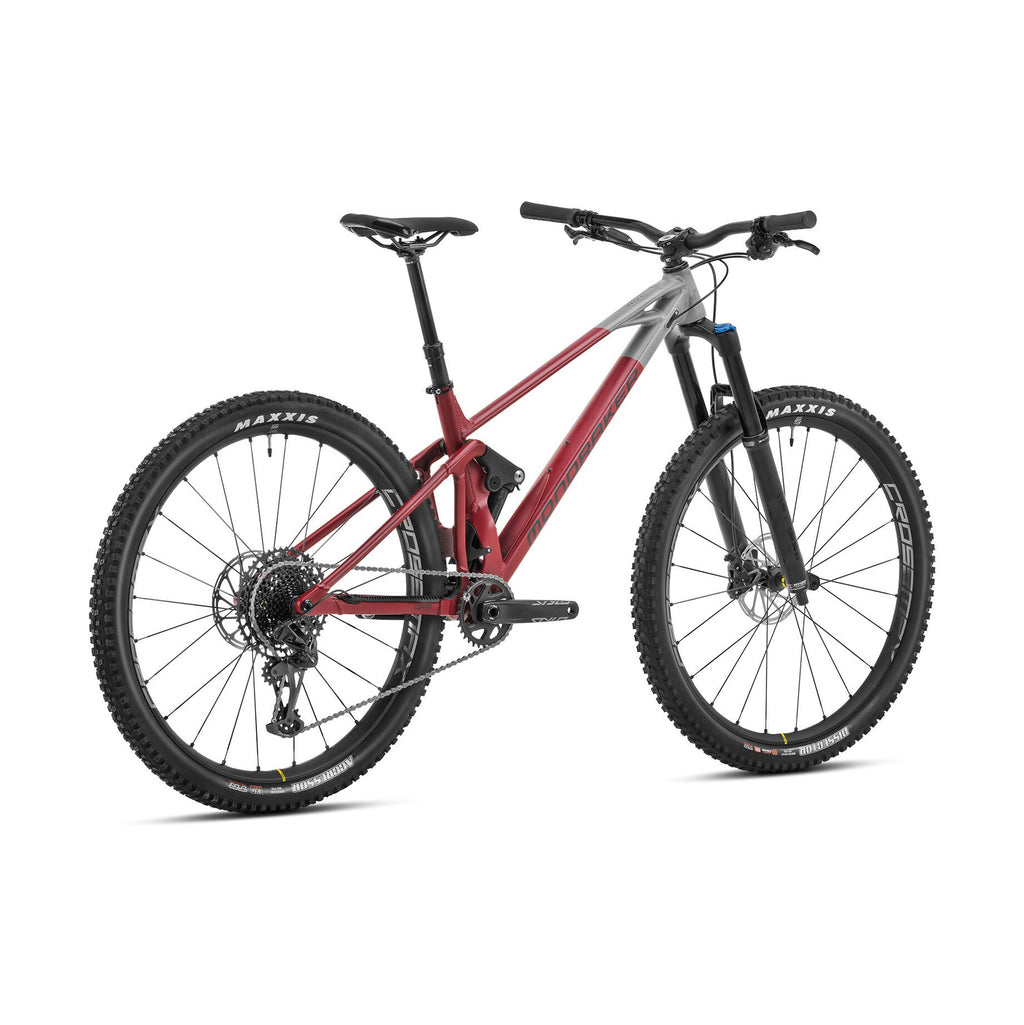

Mondraker Raze R

A new model for this season

The RAZE R has the same features as the CARBON version, but with an aluminum frame. Its great climbing abilities mean that when you go downhill, you'll be surprised by its shock absorption and handling. Fun is undoubtedly one of the RAZE R's strong points. The RAZE R, with 150 mm of front travel and 130 mm of rear travel, features a Fox 36 Float fork and a Fox Float shock absorber; SRAM GX/SRAM NX Eagle 12-speed drivetrain; Mavic Crossmax XL wheels; SRAM G" brakes; and ONOFF components.

Tech spec

• Frame: Raze 29 6061 Alloy Stealth Evo, hydroformed tubes, Zero Suspension system, 130 mm travel, Forward Geometry, monoblock top link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, internal dropper seatpost routing, sealed bearings with MAX load capacity, ISCG 05

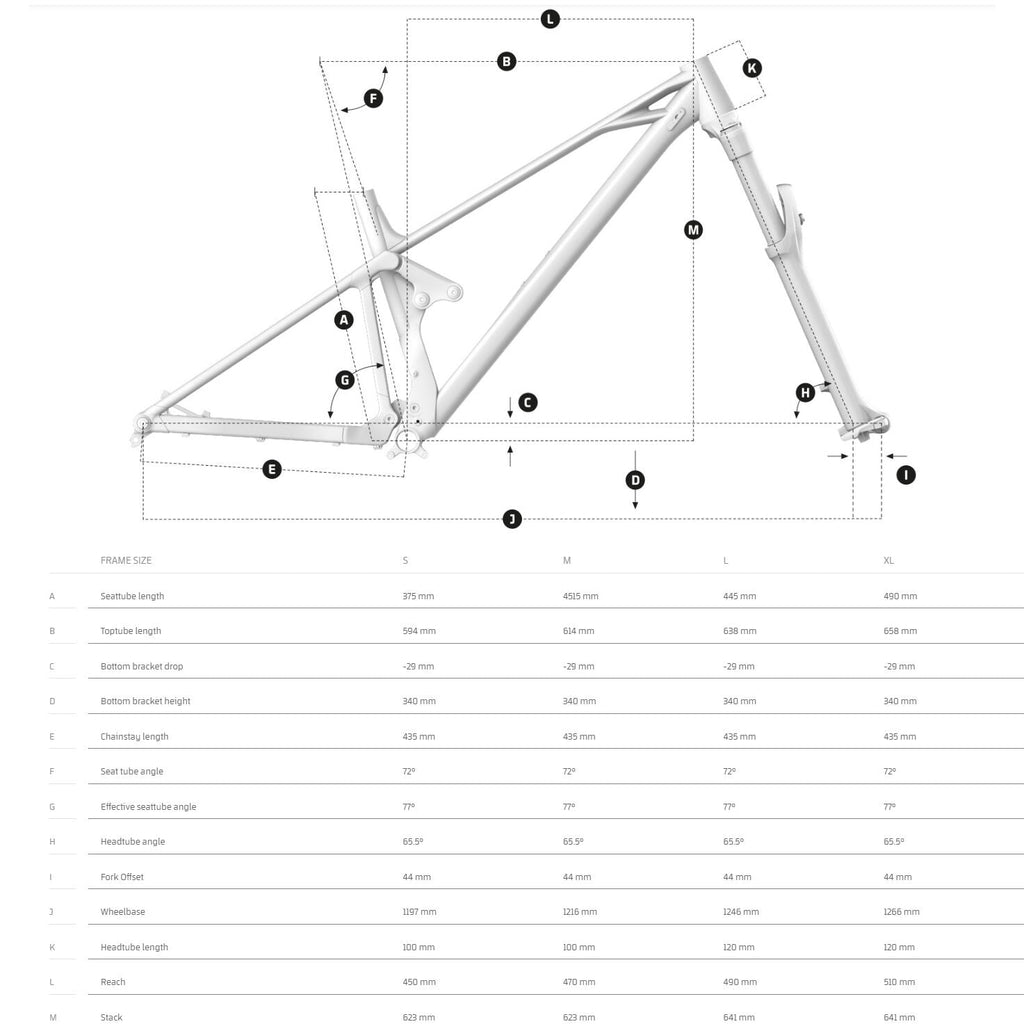

• Sizes: S: 380 mm / M: 420 mm / L: 470 mm / XL: 510 mm
• Shock absorber: Fox Float DPS LV EVOL Performance, 205x57.5 mm. Settings: extension, 3-position compression adjustment (Open/Medium/Closed), air preload. Trunnion top mount, 25x8mm bottom bushings
• Shock adjustment: Light compression, light rebound, 0.6 air spring spacer
• Fork: Fox 36 29 Float GRIP EVOL Rhythm, 150 mm, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Settings: compression extension adjustment, low speed extension, air preload
• Headset: ONOFF Saturn tapered for 1-1/8“ to 1-1/2” head tube, sealed ACB bearings, 41x30.2x7x45ºx45º upper, 51.9x40x8x45ºx45º lower
• Stem: ONOFF Sulphur FG 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF Sulphur 1.0 double-thickness 6061 alloy, rise: 20 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm bore
• Grips: ONOFF Twin, 1 lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper seatpost, diameter 31.6 mm, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 498x140-170 mm
• Saddle: MDK PU 2023 series
• Front brake: Sram G2 R, 4-piston caliper, Centerline 180 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram G2 R, 4-piston caliper, Centerline 180 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram G2 R, tool-free lever opening adjustment
• Rims: Mavic Crossmax Carbon XL S, 29 Boost internal width 30 mm, hookless, tubeless ready, 24 spokes
• Spokes: 24 double-butted straight-pull spokes
• Front hub axle: Infinity hub, Boost 15x110 mm, 6 IS bolts
• Rear hub: Infinity hub, freewheel technology with ID360 sprockets, Boost 12x148 mm, 6 IS bolts
• Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Cranks: Truvativ Stulo 7k Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170 mm, size L/XL: 175 mm
• Chainring: 32T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm
• Chain: Sram NX Eagle, 12s, Powerlock
• Rear derailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lockout, 1x12s, X-Actuation 1:1
• Shifters: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Cassette: Sram XG-1230, 11-50T, 12s
• Dropout: Sram UDH
• Producer's weight: 14.9 kg

Note del produttore: in base alla disponibilità dei componenti, le specifiche sono soggette a cambiamento senza preavviso. Le immagini sono solo a scopo illustrativo.
