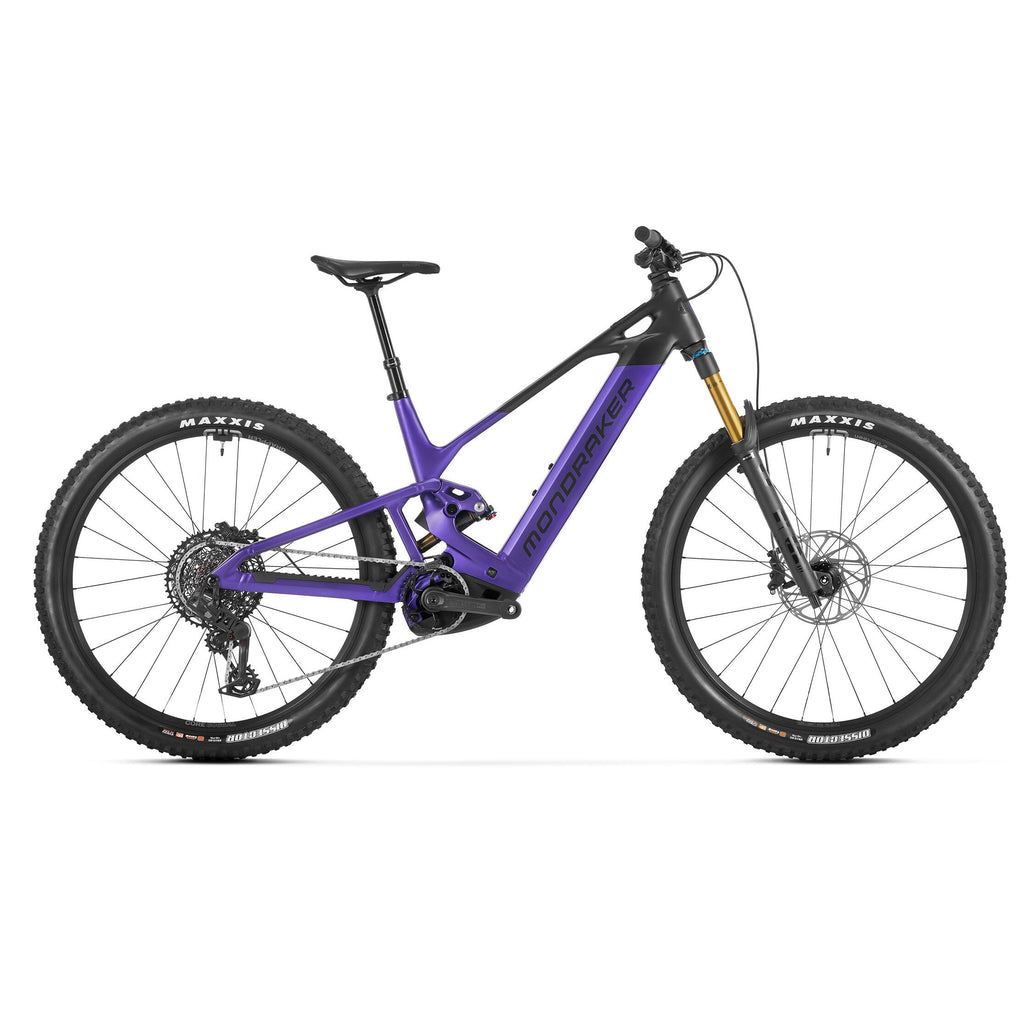

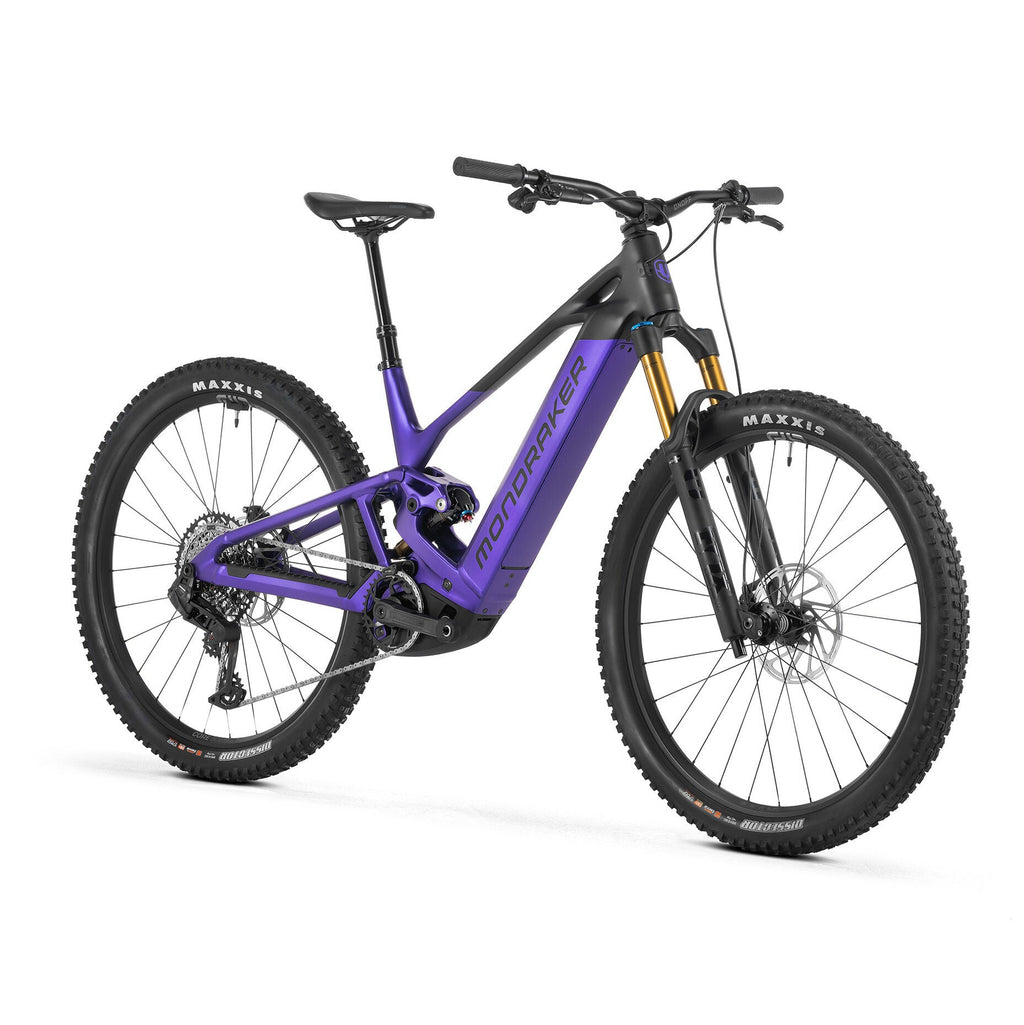

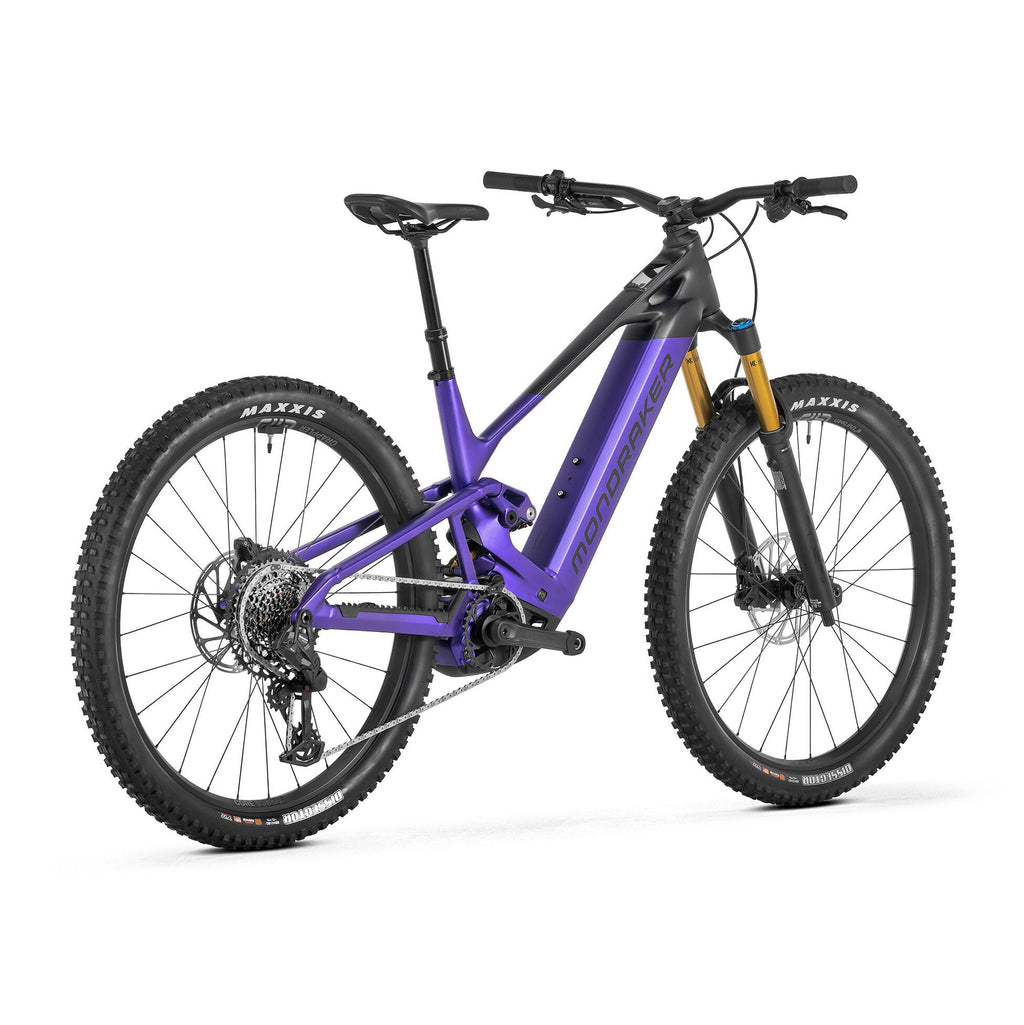

Mondraker Scree RR e-bike

The top of the Scree range

Premium finishes and high-end components for those seeking maximum control, precision, and riding pleasure in this full-power trail category.

All the technology you need, today and tomorrow
In all its versions, Scree offers a precise balance between technology and components. Whether you are consolidating your experience or taking your first steps in the electric world, Scree is designed to support the rider and grow with them, ride after ride.

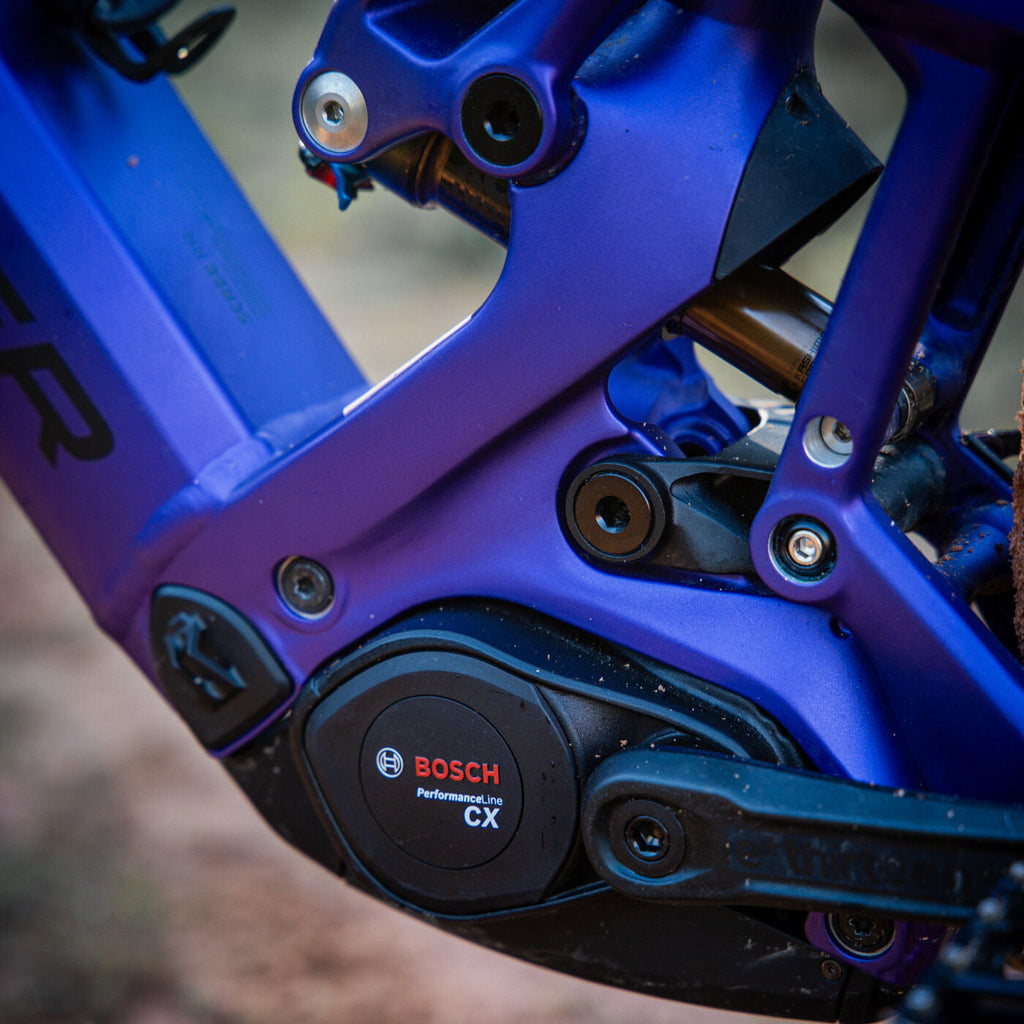

BOSCH CX GEN 5 Natural power, when you need it
The Bosch Performance CX Gen 5 motor invites you to go further, to focus on the path ahead without thinking about the return. Its 100 Nm of torque accompanies your pedaling in a smooth and progressive way, offering support when the trail requires it.

Easy to recharge. Easy to live with.
Scree is equipped with an integrated, removable 800 Wh internal battery (600 Wh for the S600 model) to guarantee the energy you need on every ride. Once home, the battery can be removed and recharged as easily as any everyday device.

KIOX 400 DISPLAY Everything under control
The Kiox 400 display, integrated into the top tube, provides a clear and immediate readout of essential information. Thanks to the dynamic display, there is no need to change screens: data is shown automatically, without taking your hands off the handlebars.

Tech spec

• Frames: SCREE 6061 Stealth Evo, optimized Zero Suspension system, 130 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, UDH, tapered head tube, monoblock upper link, HHG internal cable routing, sealed MAX capacity bearings, oversized 15 mm axles, exclusive plastic motor covers.

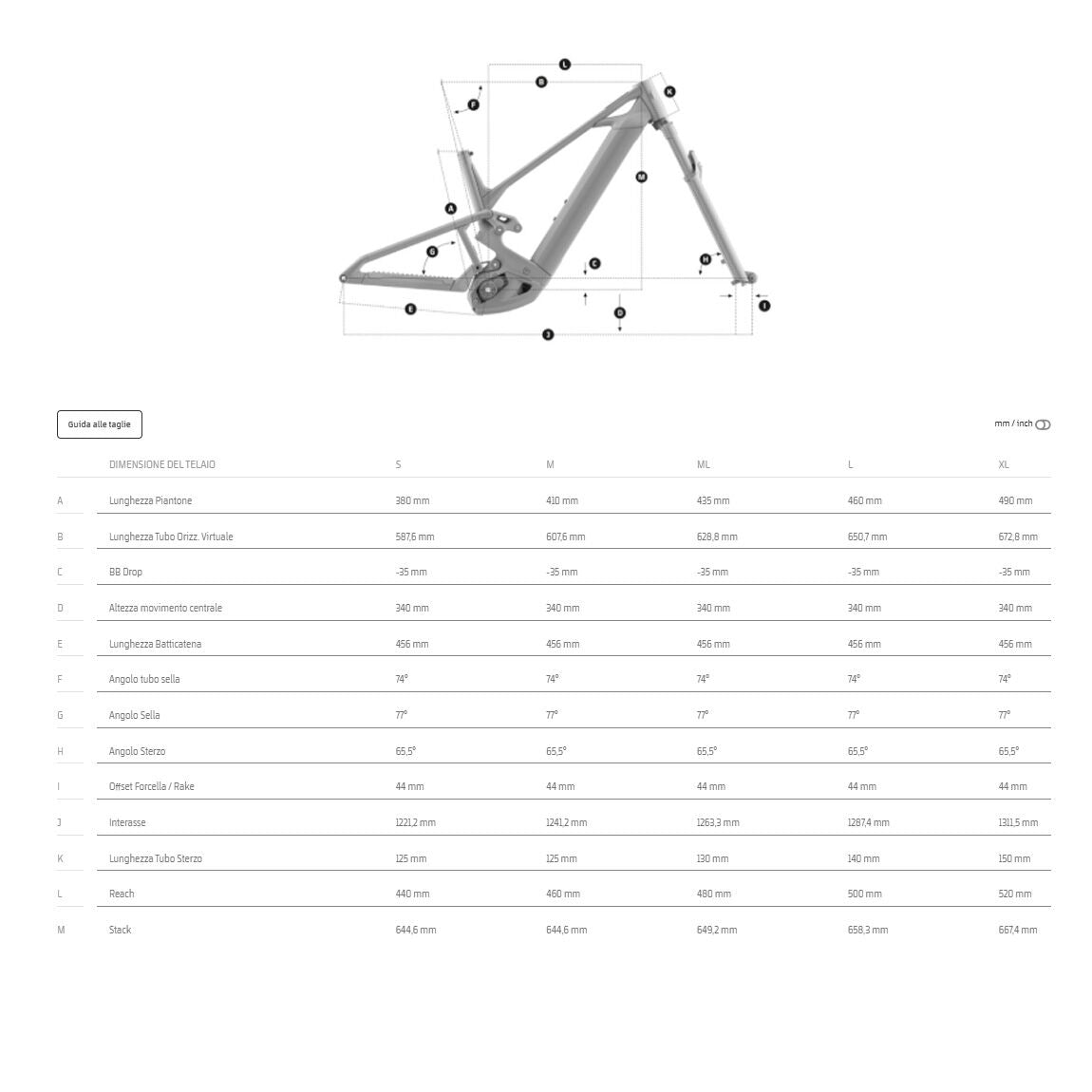

• Sizes: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
• Shock absorber: Fox Float Factory Kashima EVOL 165x45mm. Adjustments: 2-position compression (Open/Locked), rebound, air preload. Trunnion upper mount, 30x8 mm lower bushings
• Shock adjustment: CM compression, SCLRM5 rebound, CMM, 0.6 volume spacer

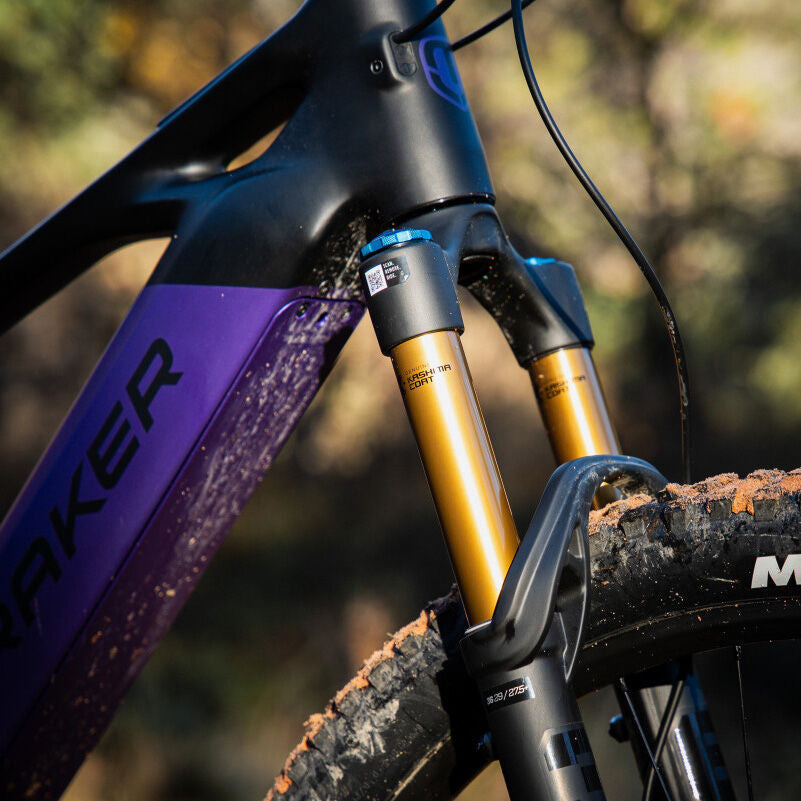

• Fork: Fox 36 29 Float GRIPX2 Factory Kashima, 150 mm, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Adjustments: high and low speed compression, high and low speed rebound, air preload
• Steering: Custom Acros ZS56/ZS56, 1-1/8“, 1.5” head tube, internal cable routing, blocklock-free seal caps
• Stem: Onoff S6 30 mm 0º, forged 6061 alloy + CNC, 31.8 mm bore
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Sizes L and XL: rise 38 mm
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm. L and XL: thicker size
• Seatpost: X-Fusion Manic diameter 31.6 mm, remote lever 1 X, size S: 361 x 125 mm, size M: 425 x 150 mm, size ML: 469 x 170 mm, size L: 521 x 190 mm, size XL: 531 x 200
• Saddle: Ergon SMC10 Gel
• Front brake: Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram DB8 Stealth, reach adjustment with tools, lever pivot bushings
• Rims: e*thirteen Grappler Core, IW30 Hookless, 6066 welded aluminum, 30 mm internal width, tubeless ready, 28 spokes
• Spokes: Custom e*thirteen Hive triple-thickness black alloy, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6 IS bolts
• Rear hub axle: e*thirteen Superboost 12x148 mm, triple seal, fully machined aluminum with 6-degree drive, 6 IS bolts, HG freehub
• Front tire: Maxxis Dissector 29x2.6, tubeless ready, 3C MaxxTerra compound, EXO+ protection, 60TPI, folding bead
• Rear tire: Maxxis Dissector 29x2.6, tubeless ready, 3C MaxxTerra compound, EXO+ protection, 60TPI, folding bead
• Cranks: e*thirteen Helix Core E*Spec Plus, all sizes: 160 mm
• Crankset: Sram Eagle 34T T-Type, direct mount, steel, CL55
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear Derailleur: Sram S1000 Eagle AXS T-Type, 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XS-1270, 10-52T, T-Type 12s
• Producer's weight: 25.4 kg (without pedals)
• Display: Kiox 400C Remote Control / Bosch Mini
• Motor: Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800 Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
