Mondraker Scree S e-bike

The top of the Scree range

Premium finishes and high-end components for those seeking maximum control, precision, and riding pleasure in this full-power trail category.

All the technology you need, today and tomorrow
In all its versions, Scree offers a precise balance between technology and components. Whether you are consolidating your experience or taking your first steps in the electric world, Scree is designed to support the rider and grow with them, ride after ride.

BOSCH CX GEN 5 Natural power, when you need it
The Bosch Performance CX Gen 5 motor invites you to go further, to focus on the path ahead without thinking about the return. Its 100 Nm of torque accompanies your pedaling in a smooth and progressive way, offering support when the trail requires it.

Easy to recharge. Easy to live with.
Scree is equipped with an integrated, removable 800 Wh internal battery (600 Wh for the S600 model) to guarantee the energy you need on every ride. Once home, the battery can be removed and recharged as easily as any everyday device.

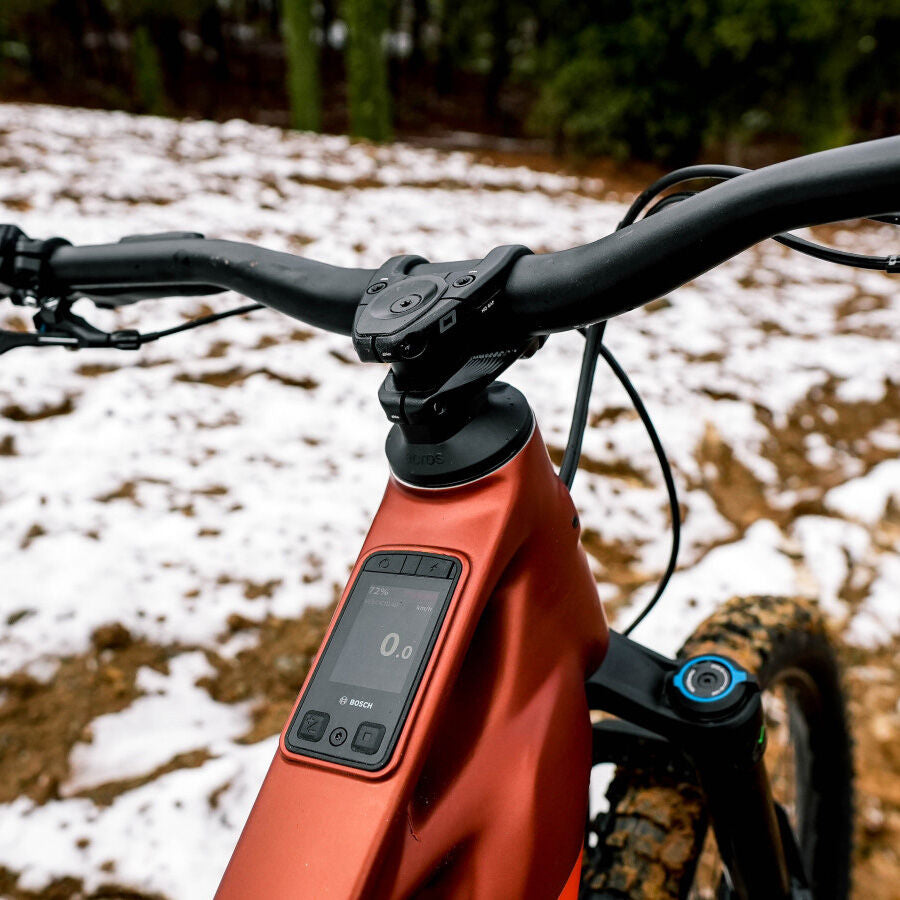

KIOX 400 DISPLAY Everything under control
The Kiox 400 display, integrated into the top tube, provides a clear and immediate readout of essential information. Thanks to the dynamic display, there is no need to change screens: data is shown automatically, without taking your hands off the handlebars.

Tech spec

• Frame: SCREE 6061 Stealth Evo, optimized Zero Suspension system, 130 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, UDH, tapered head tube, monoblock upper link, HHG internal cable routing, sealed MAX capacity bearings, oversized 15 mm axles, exclusive plastic motor covers.

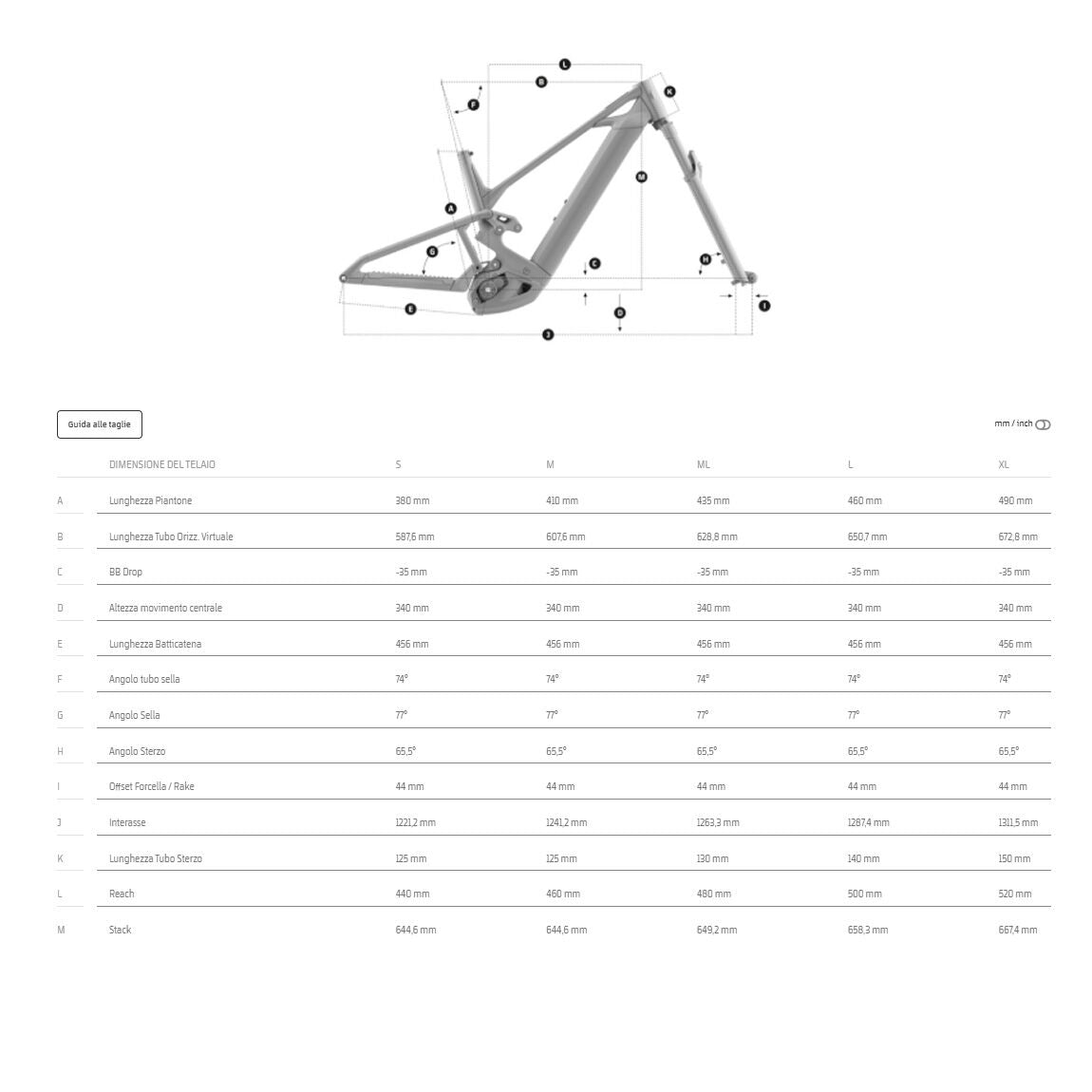

• Sizes: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
• Shock absorber: RockShox Deluxe Select DebonAir, 165x45 mm. Adjustments: low speed extension, air preload. Trunnion upper mount, 30x8 mm lower bushings
• Shock absorber adjustment: C37 compression, R85 rebound, 4 Tokens
• Fork: RockShox Psylo Silver RC 29, 150 mm, motion control shock absorber, Solo Air, tapered head tube, Boost 15x110 mm axle, 35 mm steel stays, 44 mm offset. Adjustments: low speed compression adjustment to lock, rebound, air preload
• Steering: Custom Acros ZS56/ZS56, 1-1/8“, 1.5” head tube, internal cable routing, blocklock-free seal caps
• Stem: Onoff S6 30 mm 0º, forged 6061 alloy + CNC, 31.8 mm bore
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Size L and XL: 38 mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm. L and XL: thicker size
• Seatpost: X-Fusion Manic diameter 31.6 mm, remote lever 1 X, size S: 361 x 125 mm, size M: 425 x 150 mm, size ML: 469 x 170 mm, size L: 521 x 190 mm, size XL: 531 x 200
• Saddle: Ergon SMC10 Gel
• Front brake: Sram DB6, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram DB6, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram DB6, reach adjustment with tools, lever pivot bushings
• Rims: WTB Sportterra Tough, 6061 welded aluminum, 30 mm internal width, tubeless ready, 28 spokes
• Spokes: WTB constant section spokes and black brass locking nipples
• Front hub axle: WTB Frequenzy Sport Boost 15x110 mm, fully machined aluminum, 6 IS bolts
• Rear hub axle: WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, 6 IS bolts, HG freehub
• Front tire: Maxxis Dissector 29x2.6, tubeless ready, 3C MaxxTerra compound, EXO+ protection, 60TPI, folding bead
• Rear tire: Maxxis Dissector 29x2.6, tubeless ready, 3C MaxxTerra compound, EXO+ protection, 60TPI, folding bead
• Cranks: e*thirteen Helix Core E*Spec Plus, all sizes: 160 mm
• Crankset: Sram Eagle 34T T-Type, direct mount, steel, CL55
• Chain: Sram 70 T-Type, 12s Flattop, PowerLock
• Rear derailleur: Sram 70 Eagle, T-Type, 12s
• Shift controls: Sram 70 trigger, 12s, T-Type drive
• Sprocket cassette: Sram XS-1270, 10-52T, 12s
• Weight without pedals: 25.8 kg
• Display: Kiox 400C remote control / Bosch Mini
• Motor: Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800 Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
