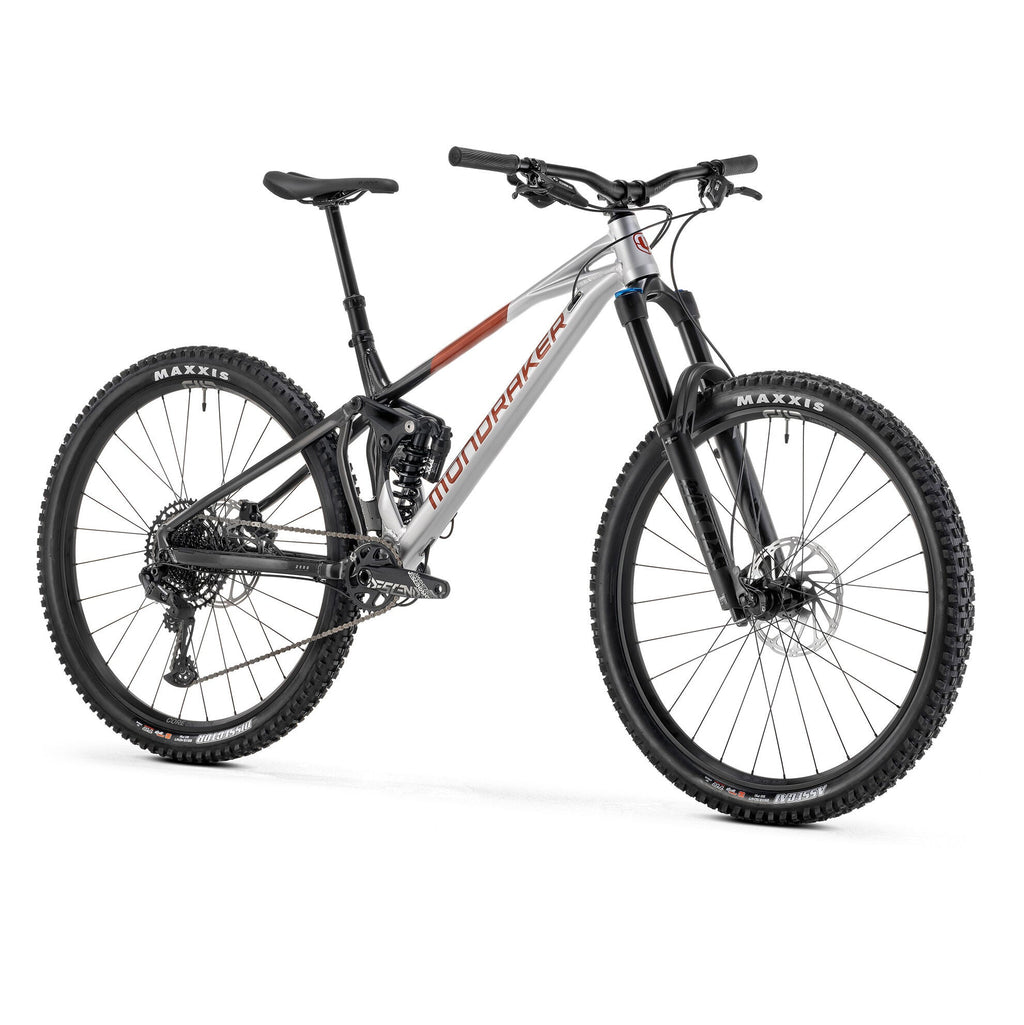

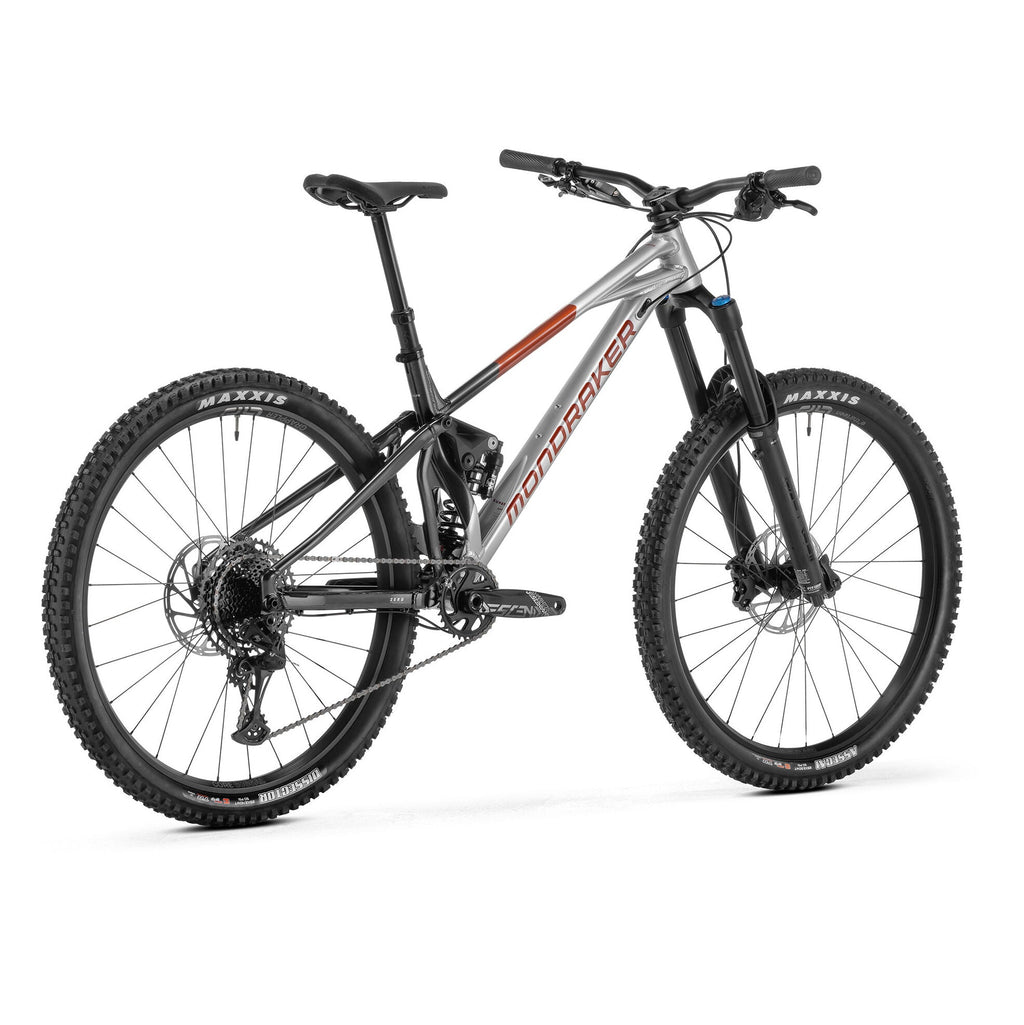

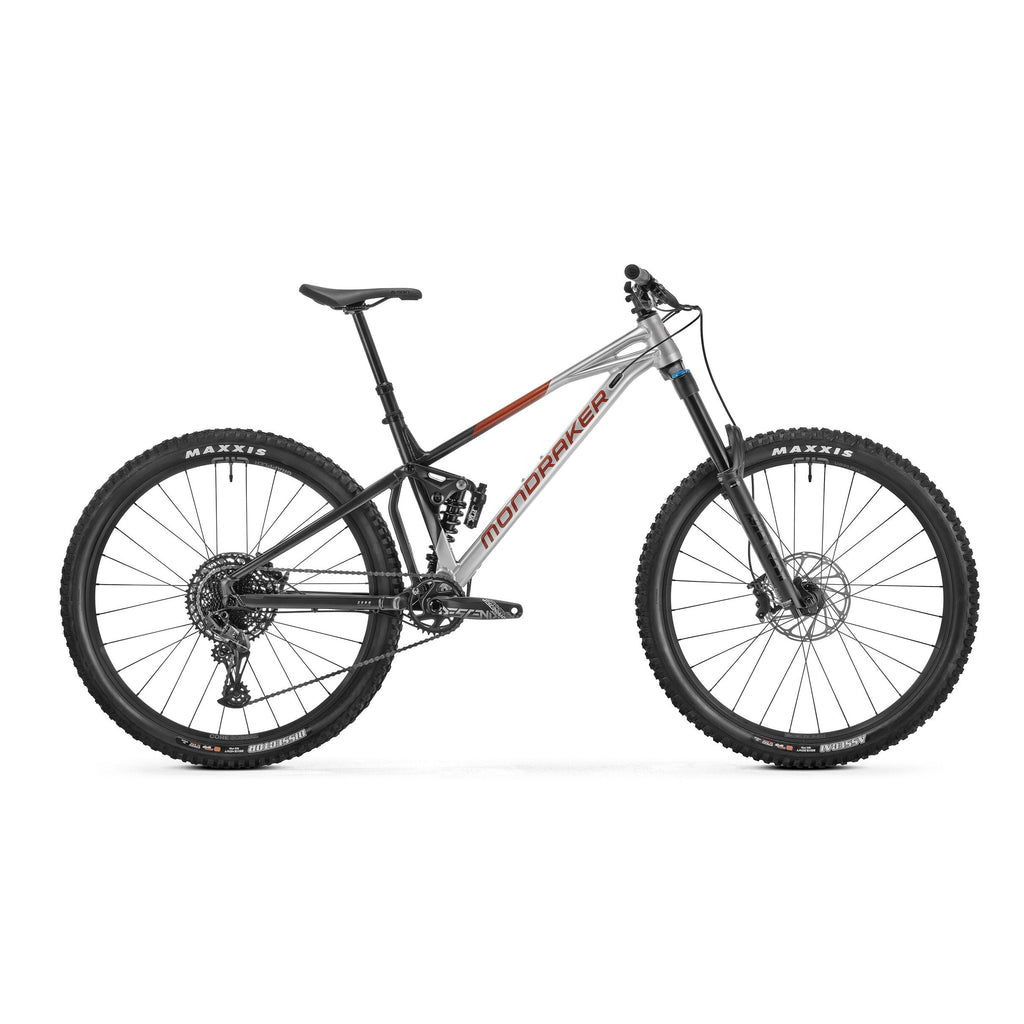

Mondraker Superfoxy

Discover pure thrills

Perfect for those who live for the descent but don't want to give up pedaling to the summit, the Superfoxy is a statement of speed, control, and passion. If you want a bike that's as gritty as it is elegant—its Racing Silver color isn't just beautiful, it's a promise of performance—this is your trail companion.

Tech spec

• Frame: SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubes, Zero Suspension System, 160 mm travel, Forward Geometry, monoblock upper link, SuperBoost 12x157 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1X drivetrain design, internal cable routing dropper seatpost, sealed bearings with maximum load capacity, ISCG 05
• Sizes: S: 380 mm / M: 420 mm / L: 470 mm / XL: 510 mm
• Shock absorber: Fox DHX Performance, 205x65mm. Settings: 2P compression, low speed rebound, spring preload. Trunnion top mount, 22.2x10 mm bottom bushings
• Shock absorber adjustment: C40 compression, RL50 rebound, LMM, B40. Spring calibration: size S 350 lbs (158.75 kg), size M 400 lbs (181.43 kg), size L 450 lbs (204.11 kg), size XL 500 lbs (226.79 kg)
• Fork: Fox 38 29 Float FIT GRIP RHYTHM, 170mm, tapered head tube, Boost 15x110mm axle, 44mm offset. Adjustments: 3 positions with micro-adjustment compression, rebound adjustment, air preload
• Steering: ONOFF ZS44/ZS56, 1-1/8“, 1.5” head tube, sealed ACB bearings, upper 42x30x7x45ºx45º, lower 52x40x8x45ºx45º
• Stem: ONOFF S3 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF S3 1.0 6061 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Sizes L and XL: rise 1.5.
• Grips: ONOFF Beehive, 1 lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
• Front brake: Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram DB8, reach adjustment with tools, lever pivot bushings
• Rims: e*thirteen Grappler Core, IW30 Hookless, 6066 welded aluminum, 30 mm internal width, tubeless ready, 28 spokes
• Spokes: Custom e*thirteen Hive triple-thickness black alloy, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6 IS bolts
• Rear hub axle: e*thirteen Superboost 12x157 mm, triple seal, finished aluminum with 6-degree offset, 6 IS bolts, HG free hub
• Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH guard, 60x2TPI, folding bead
• Rear tire: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH shield, 60x2TPI, folding bead
• Cranks: Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, direct mount chainring, all sizes: 170 mm, CL 56.5
• Chainring: 32T, CNC machined steel, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm, SuperBoost
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear derailleur: Sram SX Eagle, 12s
• Shifters: Sram SX Eagle, 12s, X-Actuation 1:1
• Cassette: Sram PG-1210, 11-50T, 12s
• Dropout: Mondraker M068
• Producer's weight: 17.6 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
