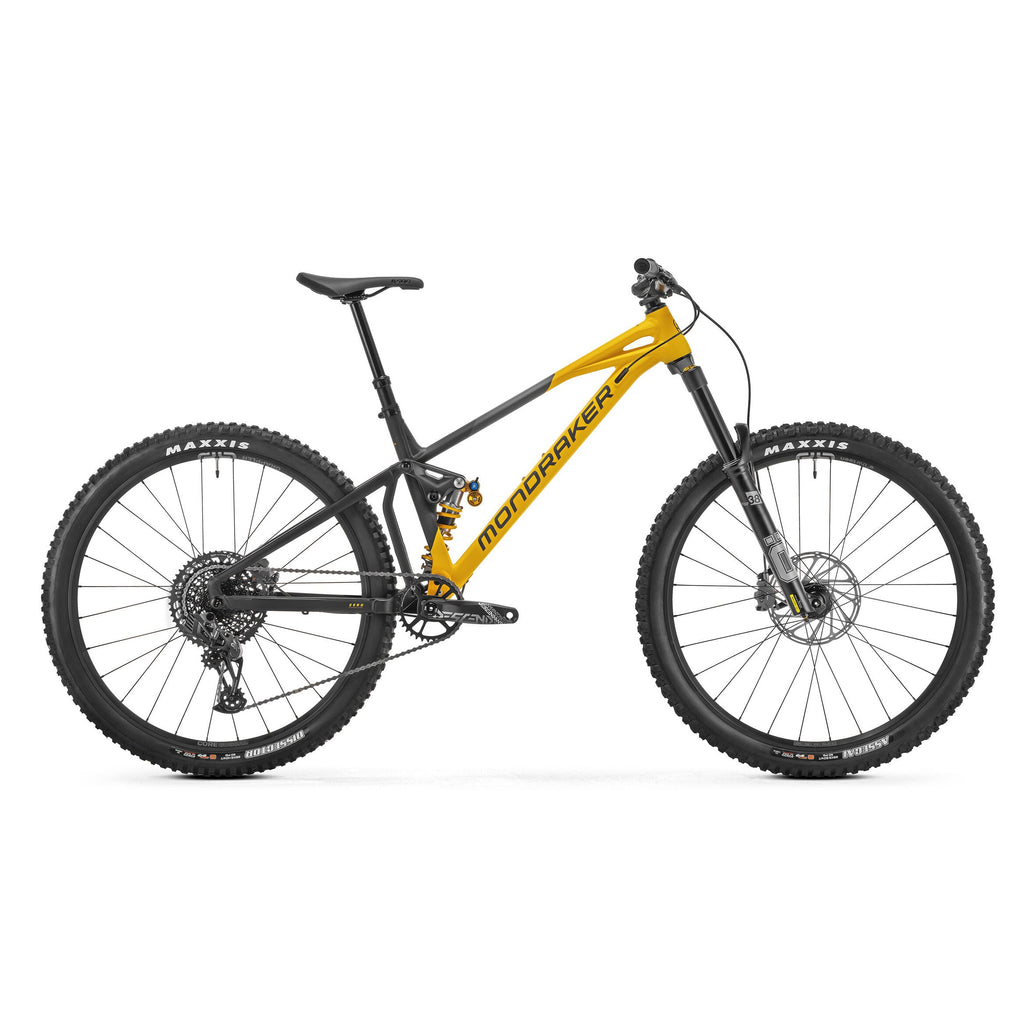

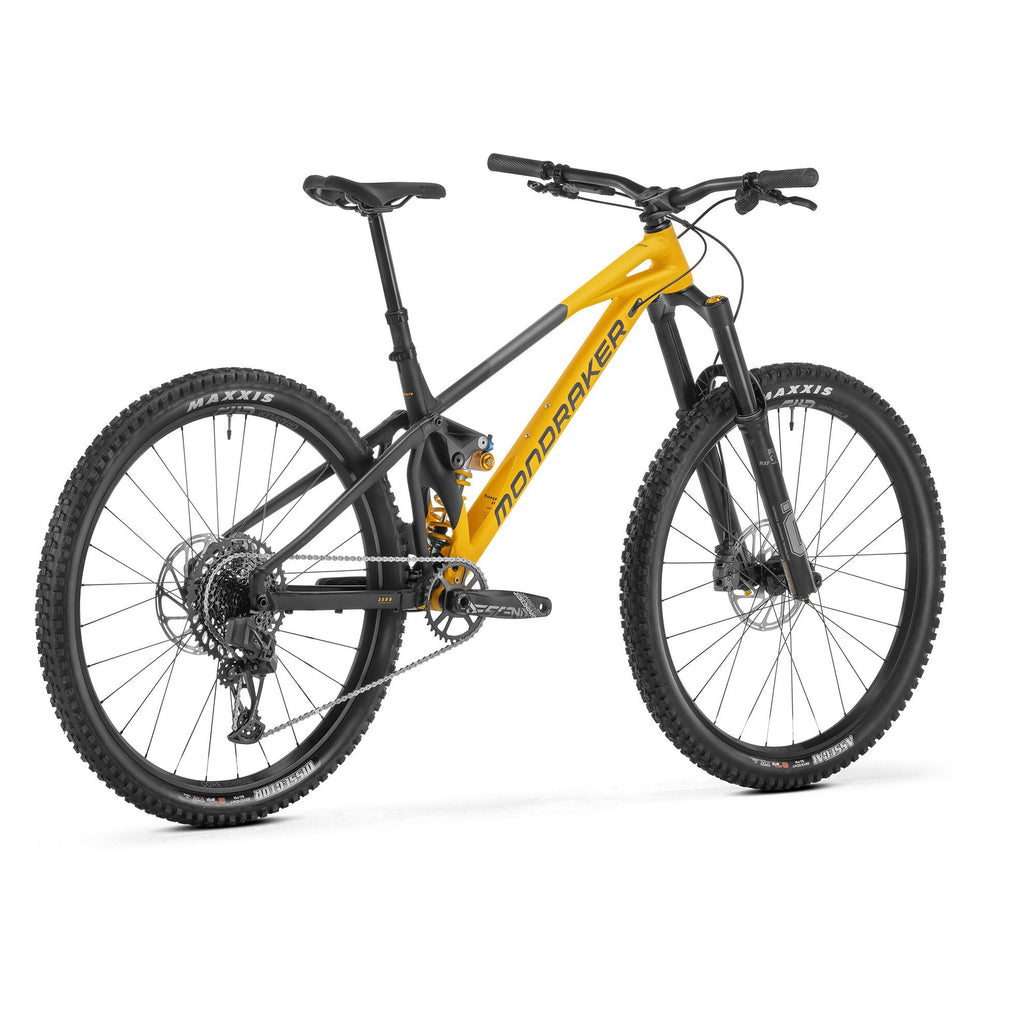

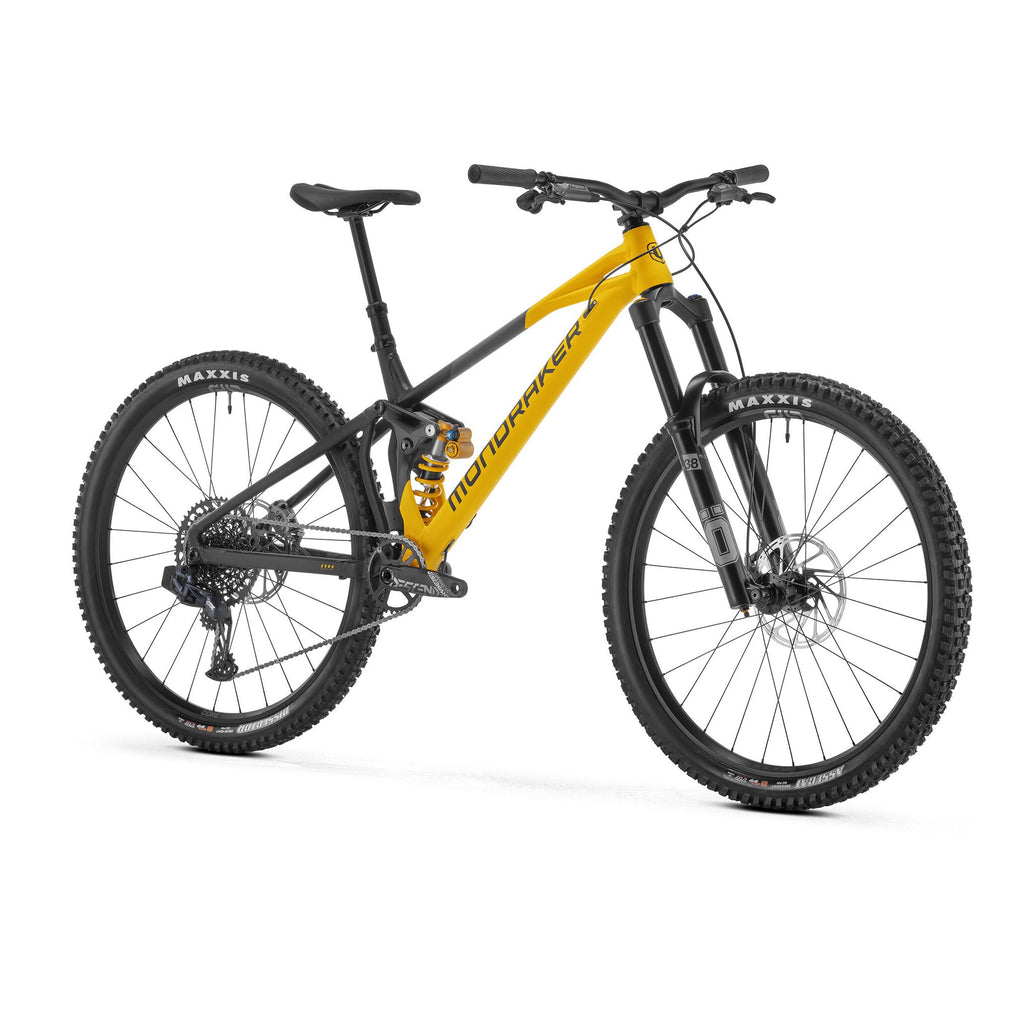

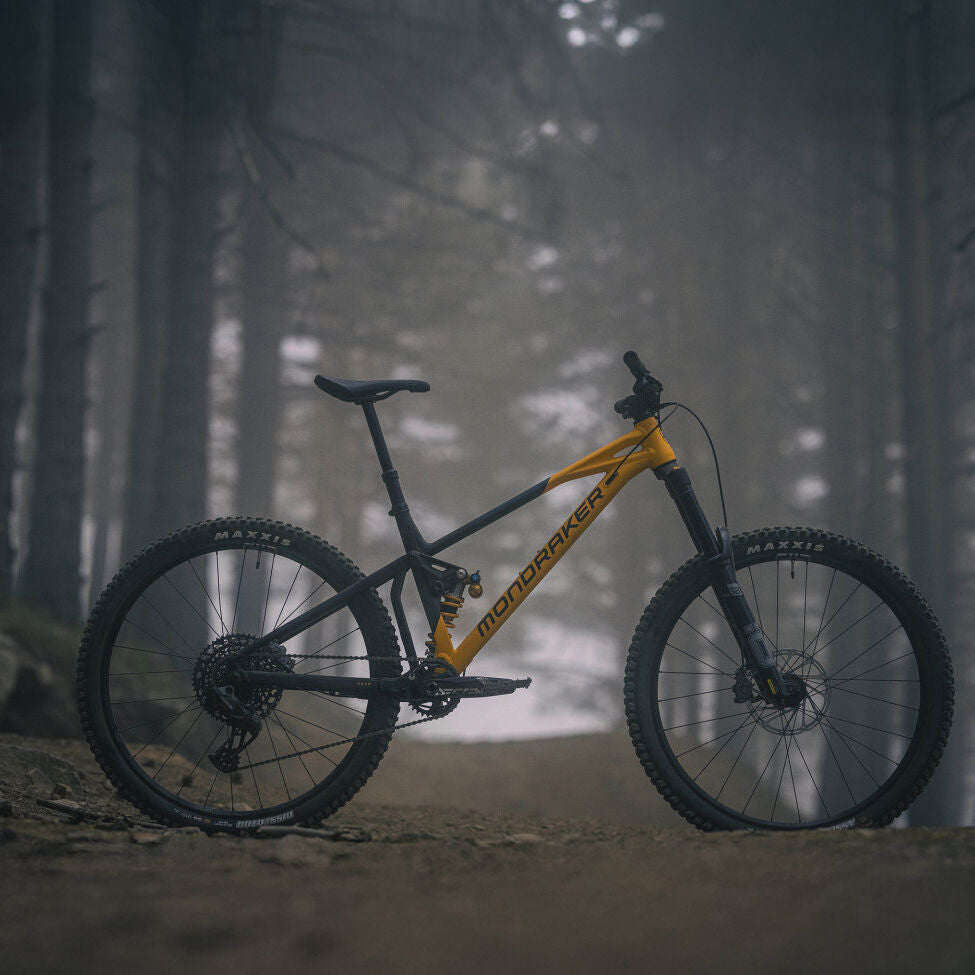

Mondraker Superfoxy XR

Enjoy every descent to the fullest

If you want a Mondraker super enduro bike with the best components to enjoy every descent to the fullest, but a carbon frame is not one of your priorities, then the SUPERFOXY R is the bike for you. Once again, it has the best components, starting with Öhlins suspension, ONOFF components, e*thirteen Grappler Core wheels... Not to mention the frame, which is spectacular because it is made from the best STEATH ALLOY aluminum we can produce. Spectacular design, beautiful colors, and designed as a whole to maximize its capabilities, without limits.

Tech spec

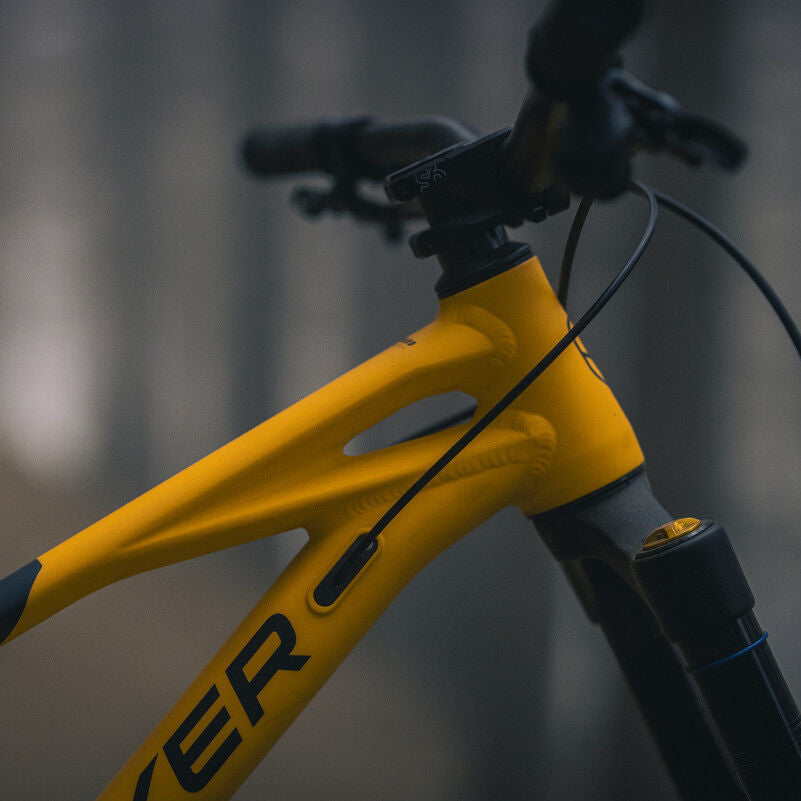

• Frame: SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubes, Zero Suspension System, 160 mm travel, Forward Geometry, monoblock upper link, SuperBoost 12x157 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1 X drivetrain design, internal cable routing, dropper seatpost, sealed bearings with maximum load capacity, ISCG 05

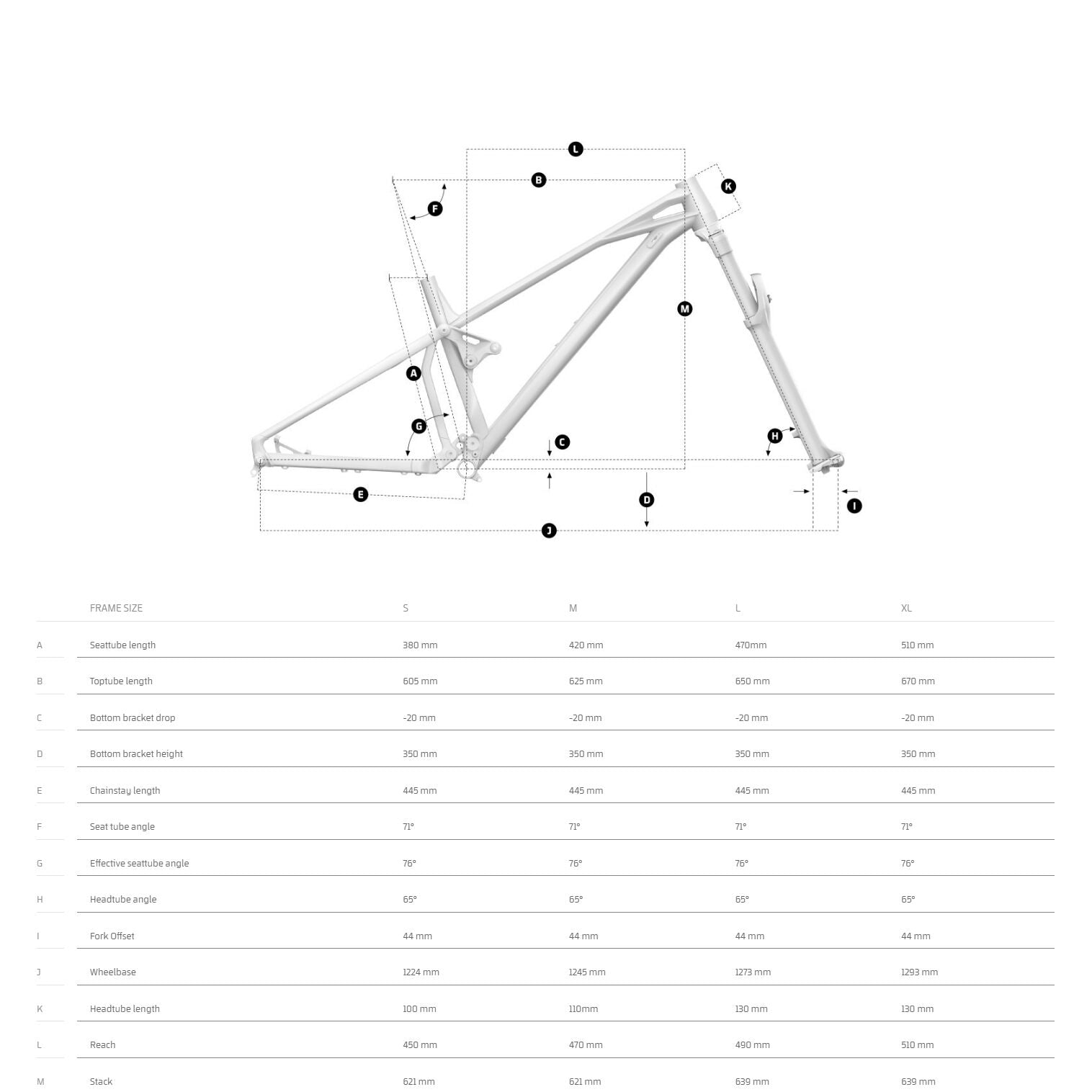

• Sizes: S: 380 mm / M: 420 mm / L: 470 mm / XL: 510 mm

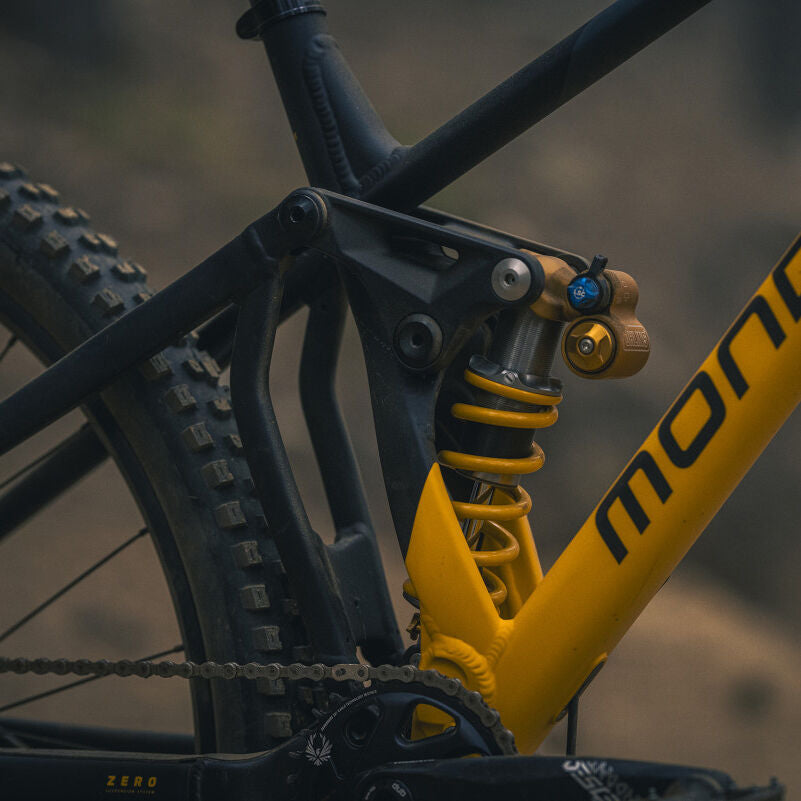

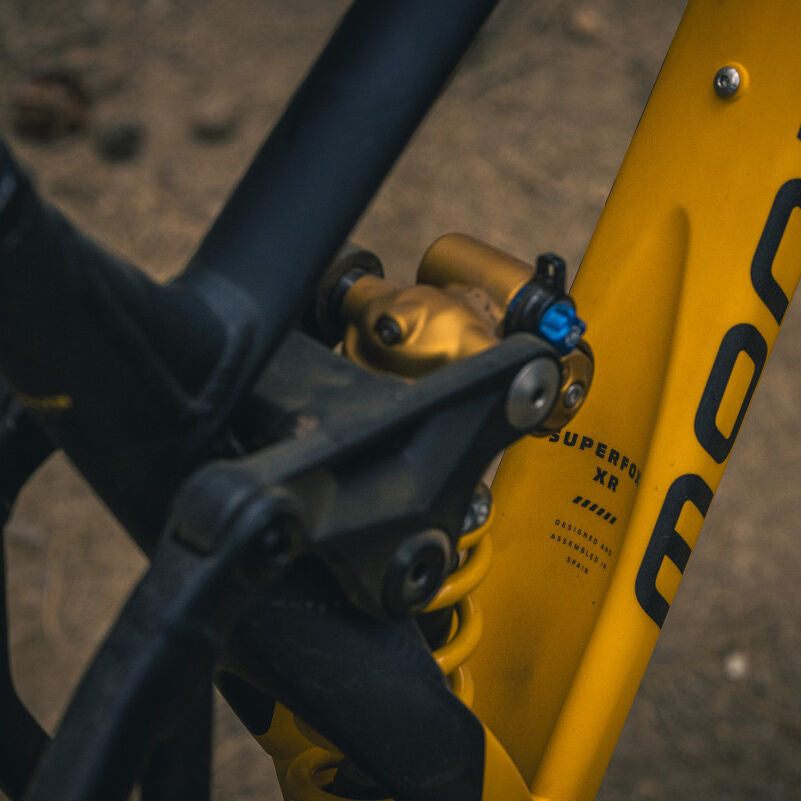

• Shock absorber: Öhlins TTX 22M 205X65mm coil. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion upper mount, 22.2x10 mm lower bushings
• Shock absorber adjustment: Compression C10, rebound R20. Spring rate: size S 343 lbs (155.58 kg), size M 411 lbs (186.42 kg), size L 457 lbs (207.29), size XL 502 lbs (227.7 kg)
• Fork: Öhlins RXF 38 M.2 29, 170 mm, TTX18 Twin Tube cartridge, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, air chamber ramp
• Steering: ONOFF ZS44/ZS56, 1-1/8“, 1.5” head tube, sealed ACB bearings, upper 42x30x7x45ºx45º, lower 52x40x8x45ºx45º

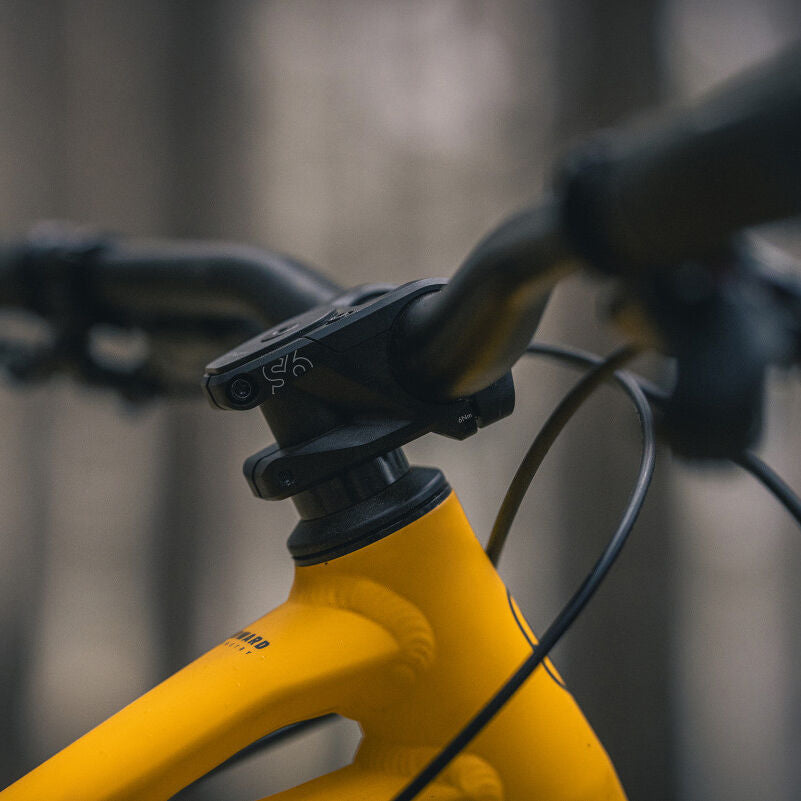

• Stem: ONOFF S9 30mm 0º, Full CNC, 31.8 mm bore

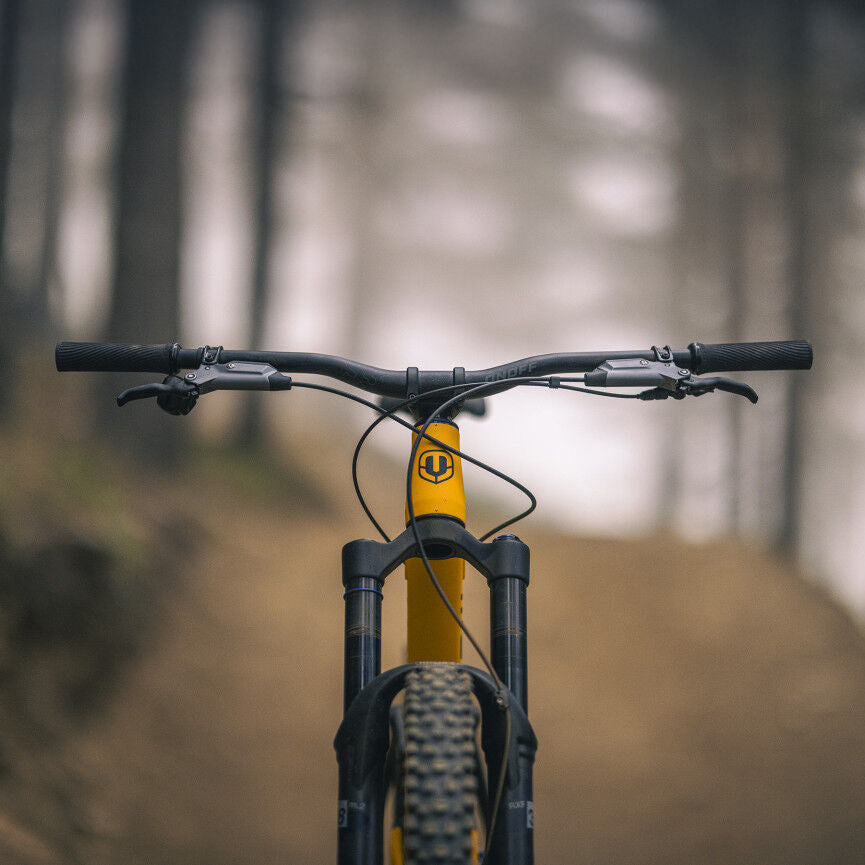

• Handlebar: ONOFF S6 1.0 7050 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Size L and XL: rise 1.5.
• Grips: ONOFF Desert Pro, CNC lock-on, 135 mm. L and XL: larger size
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
• Front brake: Sram Maven Bronze, 4-piston caliper 18 and 19.5 mm, Centerline 200 mm one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Rear brake: Sram Maven Bronze, 4-piston caliper 18 and 19.5 mm, Centerline 200 mm one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing

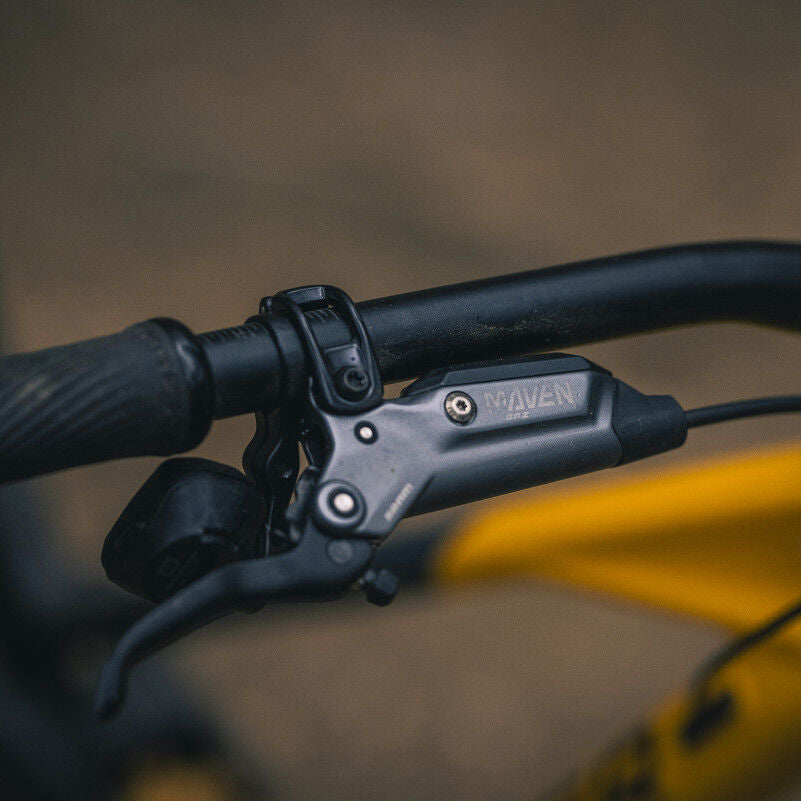

• Brake levers: Sram Maven Bronze, SwingLink and lever pivot bushings, tool-free reach adjustment
• Rims: e*thirteen Grappler Core, IW30 Hookless, 6069 welded aluminum, 30 mm internal width, tubeless ready, 28 spokes
• Spokes: Custom e*thirteen Hive triple-thickness black alloy, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6 IS bolts
• Rear hub axle: e*thirteen Superboost 12x157 mm, triple seal, finished aluminum with 6-degree offset, 6 IS bolts, XD freehub
• Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH guard, 60x2TPI, folding bead
• Rear tire: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH shield, 60x2TPI, folding bead
• Cranks: Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, direct mount chainring, all sizes: 170 mm, CL 56.5
• Chainring: 32T, CNC machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm, SuperBoost
• Chain: Sram NX Eagle, 12s, Powerlock
• Rear derailleur: Sram GX Eagle, 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XG-1275, 10-52T, 12s
• Dropout: Mondraker M068
• Producer's weight: 17.2 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
