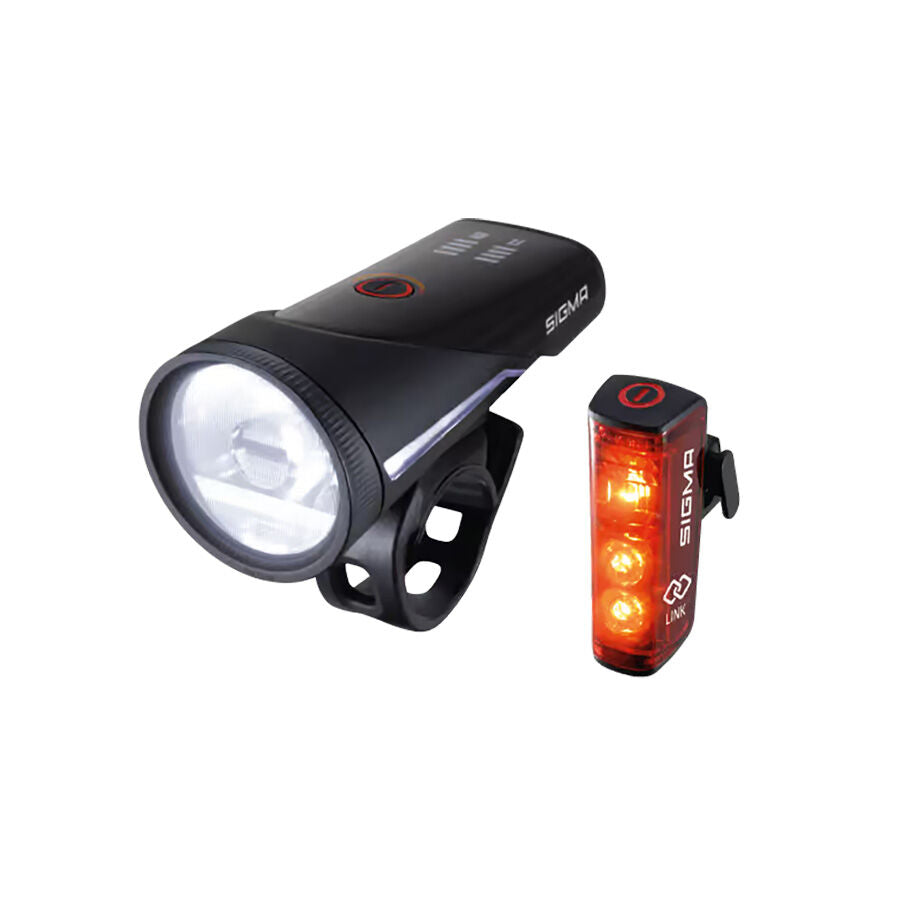

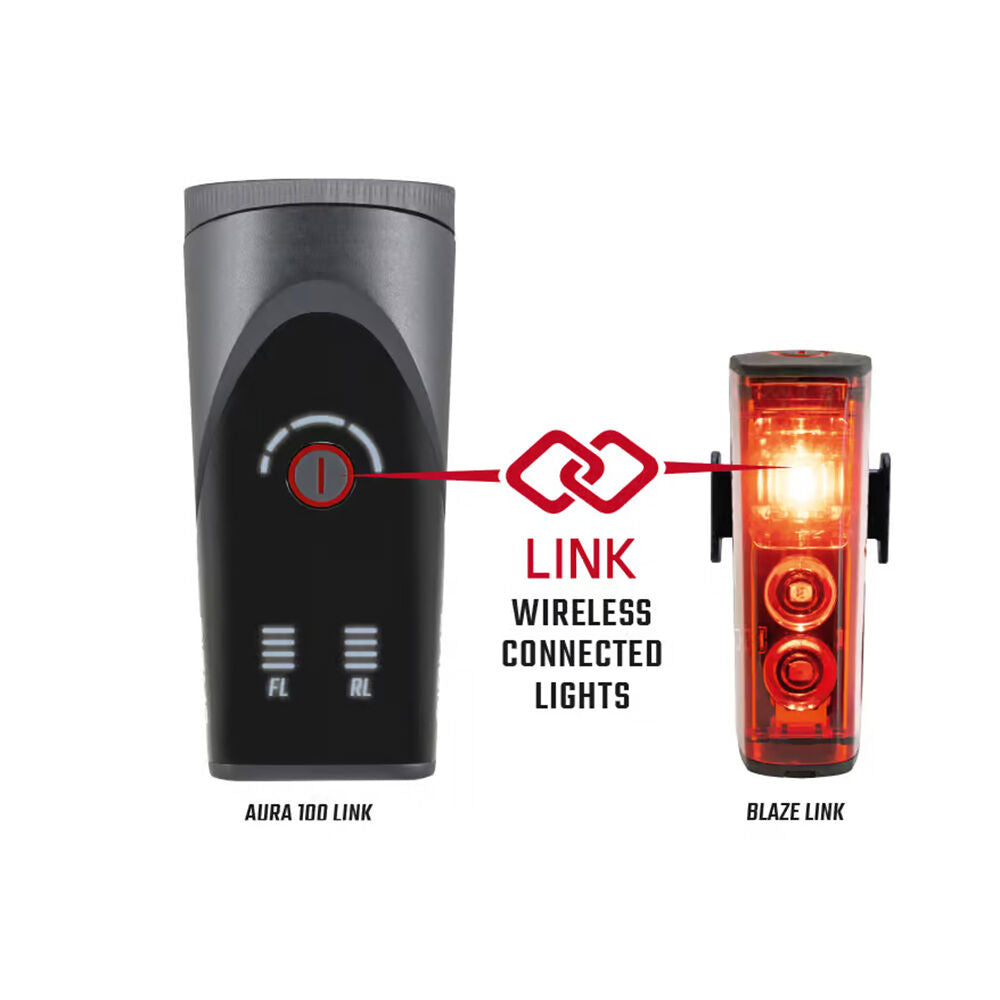

Sigma Aura 100 Blaze front and rear light kit

Connected lights –easier to use than ever before

The AURA 100/BLAZE LINK light set allows front and rear bike lights to be controlled and experienced in a completely new way. The key is the innovative link function that quickly couples the two lights. Once the front and rear light are connected to each other, they can be operated with ease from the front light. Approved for road cycling, the AURA 100 LINK has 100 lux of lumination and and a range of 110 meters (360 feet) to light up even the darkest trail, and the BLAZE LINK with its brake light function ensures maximum visibility.

Intelligent light function
It couldn’t be easier: the AURA 100/BLAZE LINK set’s two lights can be connected via Bluetooth for convenient and intuitive control from the front light. A double click activates the bike’s front and and rear lights, and a long button push switches them off again.

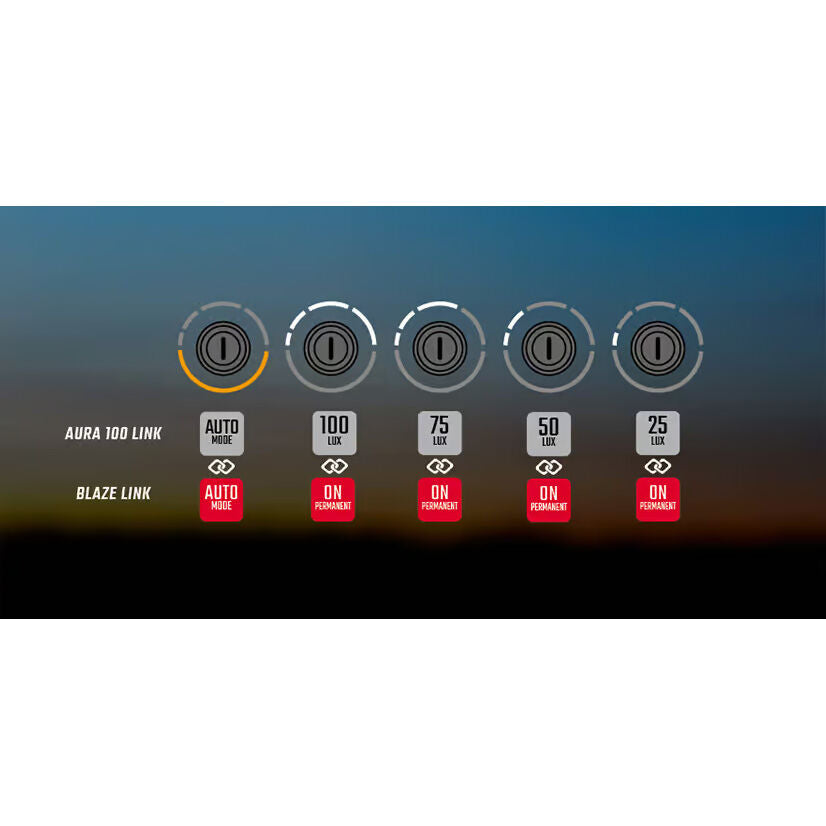

Five-level mode display
The five different modes give you a lot of options when you’re riding with the AURA 100/BLAZE LINK set. The AURA 100 LINK display always shows what mode the lights are in and how much lighting power they have on. When fewer bars light up, less battery power is being used. This makes for simple and convenient operation.

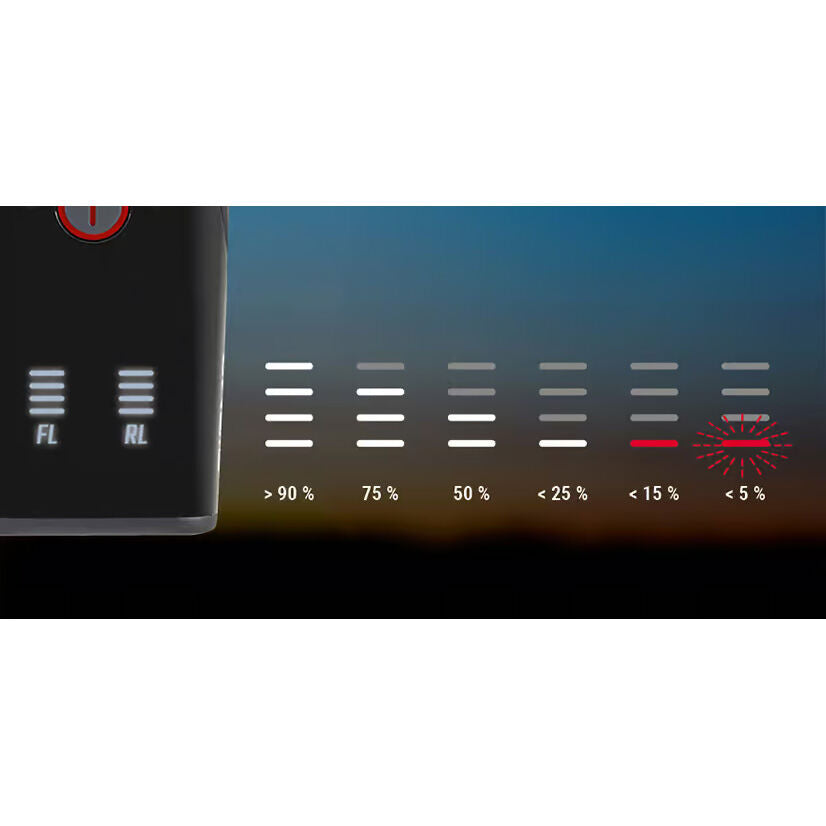

Battery level – always up to date
The AURA 100 LINK’s LED indicator always shows the battery level for the front and rear lights. Its five levels always let you know when the AURA 100 or BLAZE LINK needs to be hooked up to the USB charging cable again. Charging progress is also displayed.

Automatically well-lighted
Always visible when you need to be: The integrated brightness sensor detects the ambient light and automatically switches the front and rear light on and off as needed. This saves battery charge and is ideal for situations such as passing through tunnels or riding on dark forest roads.

Powerful battery
AURA 100 and BLAZE LINK both have a lithium ion battery. They charge via a micro USB port. The AURA 100 LINK needs 4.5 hours to fully charge and can also be charged easily from a power bank during operation. The BLAZE LINK is completely charged after just three hours.

Protected from rain
The AURA 100 and the BLAZE LINK are resistant to splash water in accordance with the international IPX4 standard and light your way to work and back home again reliably even when it’s raining.

Mounted in seconds
No tools are required to mount AURA 100 and BLAZE LINK to your bike. There are two versions of AURA 100 LED front light, either with a silicone strap or a screw mount that both attach to the handlebar. Fixing the LED Taillight to the seatpost by a silicone strap is just like breeze.

Flexible and safe
Five different light modes provide safety and flexibility for the AURA 100 LINK. In auto mode, the light adjusts its lighting output as needed, according to the sensor. In standard mode, the light gives you full power (100 lux) for up to three hours, or you can select medium or low mode so that you can extend your AURA 100 LINK’s lighting duration according to the lighting situation. In Eco mode, you can keep riding with sufficient bike lighting for as long as 12 hours.

• Standard: LIGHT OUTPUT: ≤ 100 LUX, BURN TIME: ≤ 3 h
• Mid: LIGHT OUTPUT: ≤ 75 LUX, BURN TIME: ≤ 4 h
• Low: LIGHT OUTPUT: ≤ 50 LUX, BURN TIME: ≤ 6 h
• Eco: LIGHT OUTPUT: ≤ 25 LUX, BURN TIME: ≤ 12 h
• Auto: off/ on

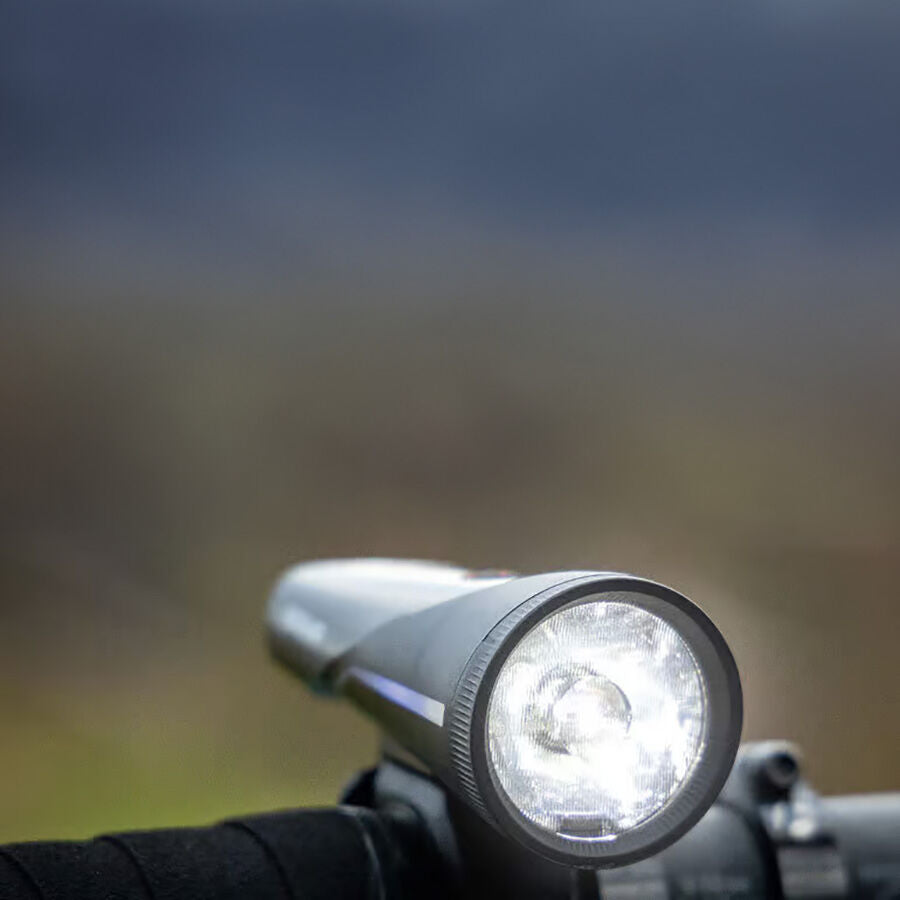

Light guide for safety and visibility
The lateral Light Guide on the front light (which complies with German road traffic regulations (StVZO)) is not just cosmetic. It also provides significantly higher visibility from the side, enhancing safety in road traffic with its two additional LEDs.

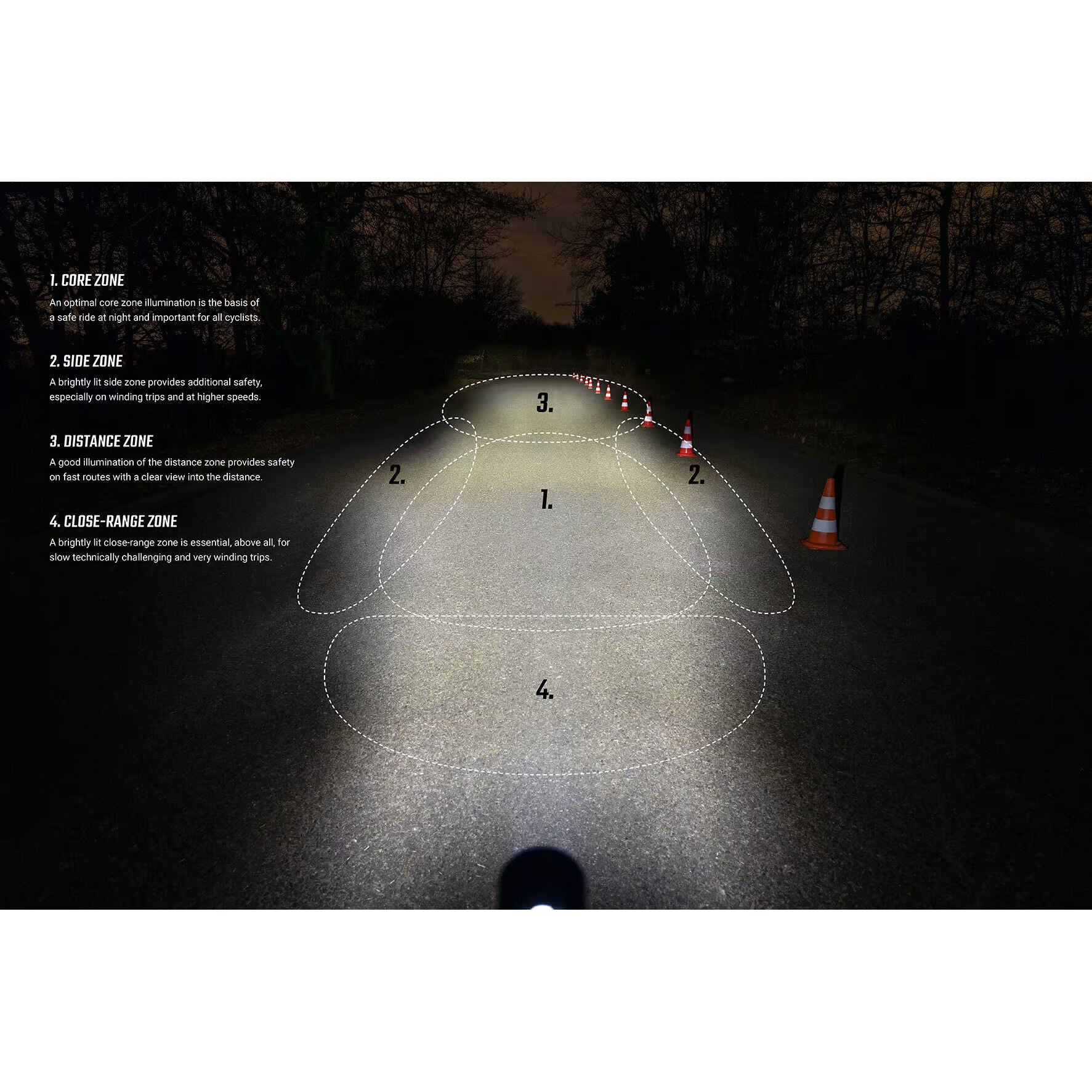

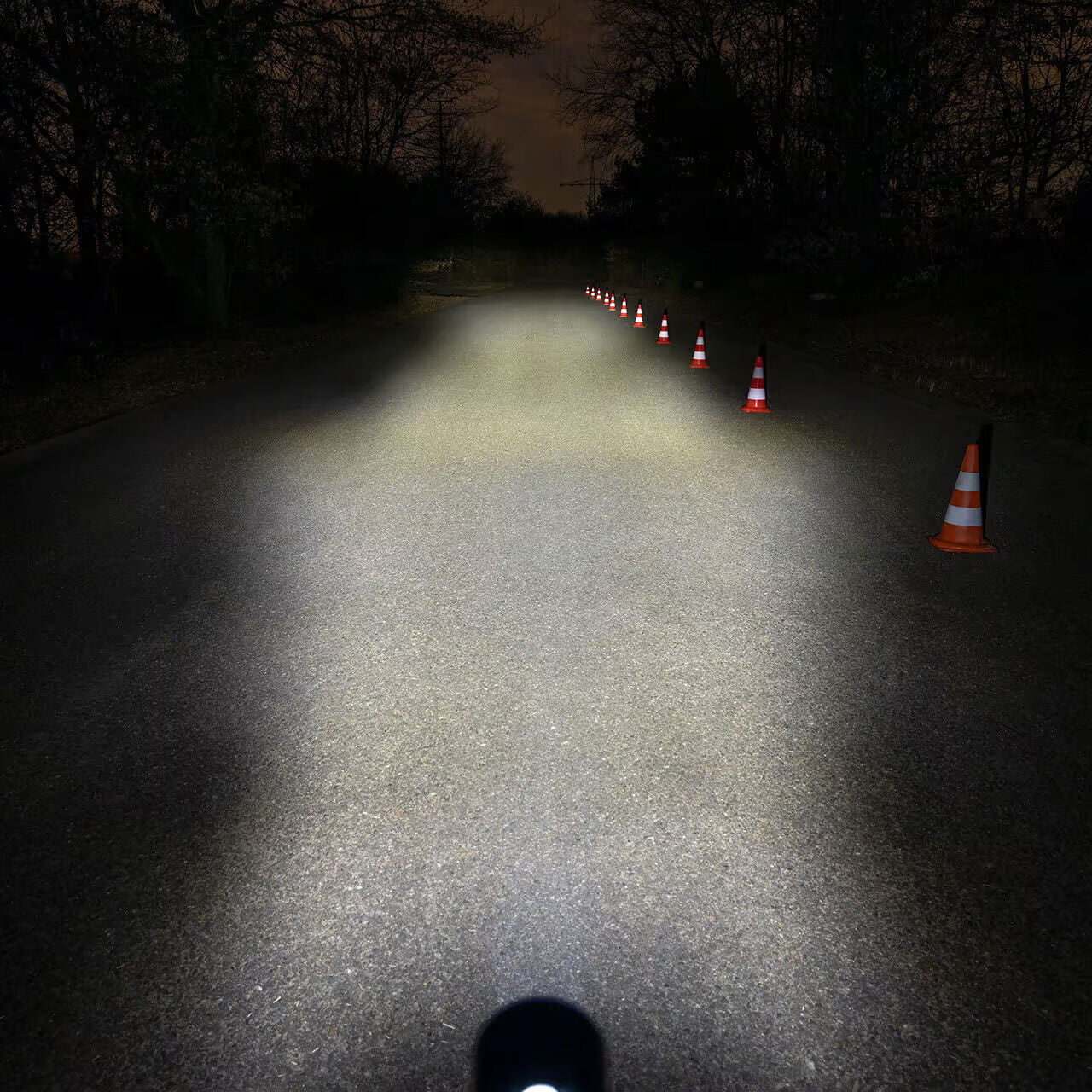

Ideal light distribution
The high-quality, high-power Osram LED and the converging lens developed specially by SIGMA gives the AURA 100 LINK even light distribution across all light zones.

Switch-on protection: you decide
You activate the AURA 100 LINK with a double click. This prevents you from inadvertently switching the light on when it’s in your jersey pocket, for instance. A long press on the control button shuts the light off again.

Quick Release
The AURA 100 comes in in two mounting options, which differ in the attachment of the lamp to the handlebar. One option is mounting on the handlebar with a screw mount and the 3D Rubber Pads. In this case, the LED front light can be aligned three-dimensionally as required and also sits perfectly on curved handlebars. The mount is suitable for handlebars with a diameter of 22-35 mm. As an alternative to the screw mount, the lighting is also available with a silicone strap, which is easy to install and quick and easy to remove.

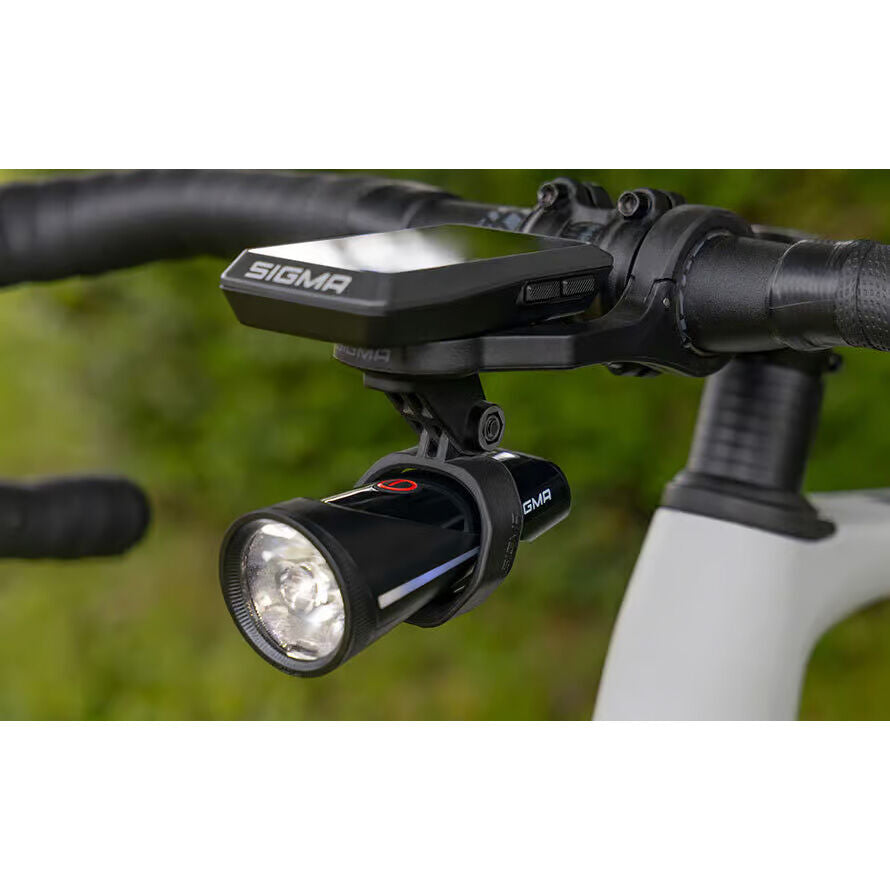

A mount for all occasions
Do you value a tidy cockpit and do you like travelling with your action cam? With the AURA 100 OUT FRONT MOUNT WITH GOPRO ADAPTER, you can mount your AURA 100 or optionally your Action Cam smoothly and elegantly underneath your GPS bike computer. The Out Front Mount handlebar adapter is mounted underneath your Long or Short Butler and replaces the AURA handlebar mount. Now you can either conveniently click your front light into the ring mount or attach your action cam. Works with all GoPro models.

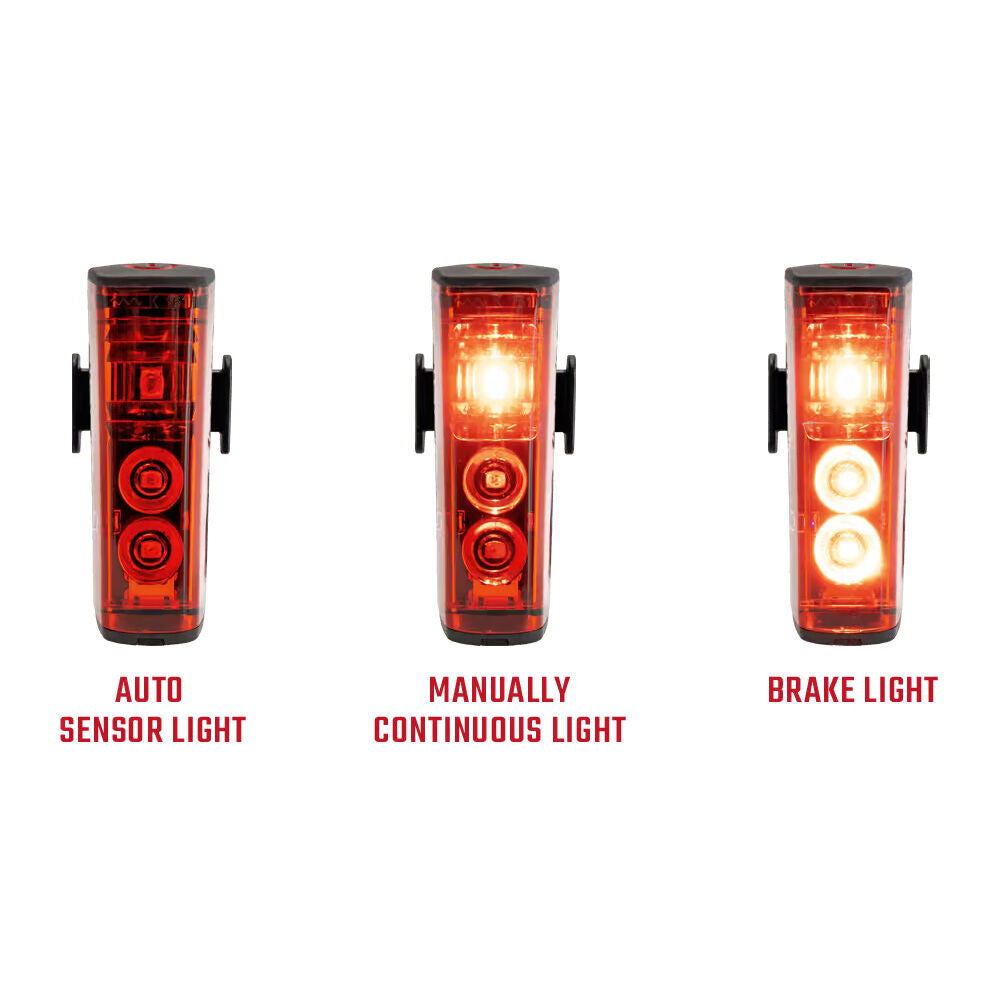

Two light modes with brake light
You can select between the BLAZE LINK’s automatic sensor light, which activates itself in the dark, and a continuous light. For both options, the acceleration sensor triggers the brake light as soon as you slow down.

Brake light for day and night
Three bright LEDs signal braking to others on the road for about three seconds thanks to the integrated acceleration sensor. The brake light may not need to be continuously lit during the day, and the brake light gives you more visibility in road traffic. It is also an extremely helpful feature for group rides as well.

Tech Specs

• Beam range: AURA 100 LINK: 110 m
• Visibility range: BLAZE LINK: 500 m
• Run time: AURA 100 LINK: 3 h in Standard mode, 4 h in Mid mode, 6 h in Low mode, 12 h in Eco mode, BLAZE LINK: 7 h
• Charge time: AURA 100: 4,5 h, BLAZE LINK: 3 h
• Effectiveness: AURA 100 LINK: 100 lux (75 lux in Mid mode, 50 lux in Low mode and 25 lux in Eco mode)
• Charge indicator: AURA 100 LINK: 4-level battery charge display, AURA 100 LINK: 5-level battery indicator, BLAZE LINK: Battery indicator
• Integrated charge function: AURA 100 LINK: Charging possible during operation, Micro USB charge function
• Mode indicator: Mode indicator for AURA 100 / BLAZE LINK
• 3 LED brake light function: BLAZE LINK
• Brightness sensor
• Lighting type: AURA 100 LINK: ams-OSRAM LED
• Side visibility: AURA 100 LINK: Light Guide for excellent side visibility, BLAZE LINK: Improved side visibility
• Splash resistant: In accordance with IPX4
• Adjustable bracket 360°: AURA 100 LINK: mount with quick release
• Tool-free mounting
• Switch on protection: AURA 100 LINK: double click for ON
• Producer's weight: AURA 100 LINK: 115 g (incl. bracket), BLAZE LINK: 22 g
• Dimension (W x L x H): AURA 100 LINK: 43,5 x 96,4 x 43,4 mm (without bracket), BLAZE LINK: 24,5 x 30,5 x 63 mm
