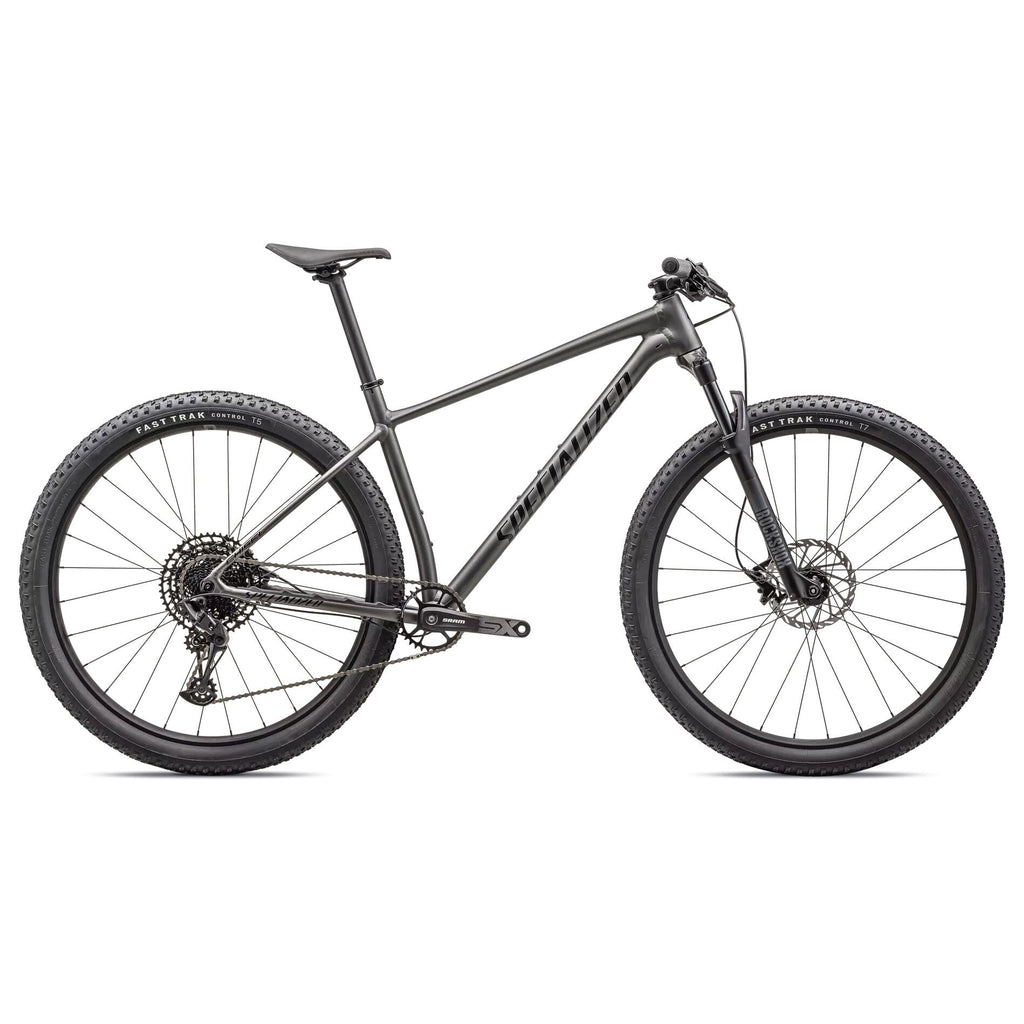

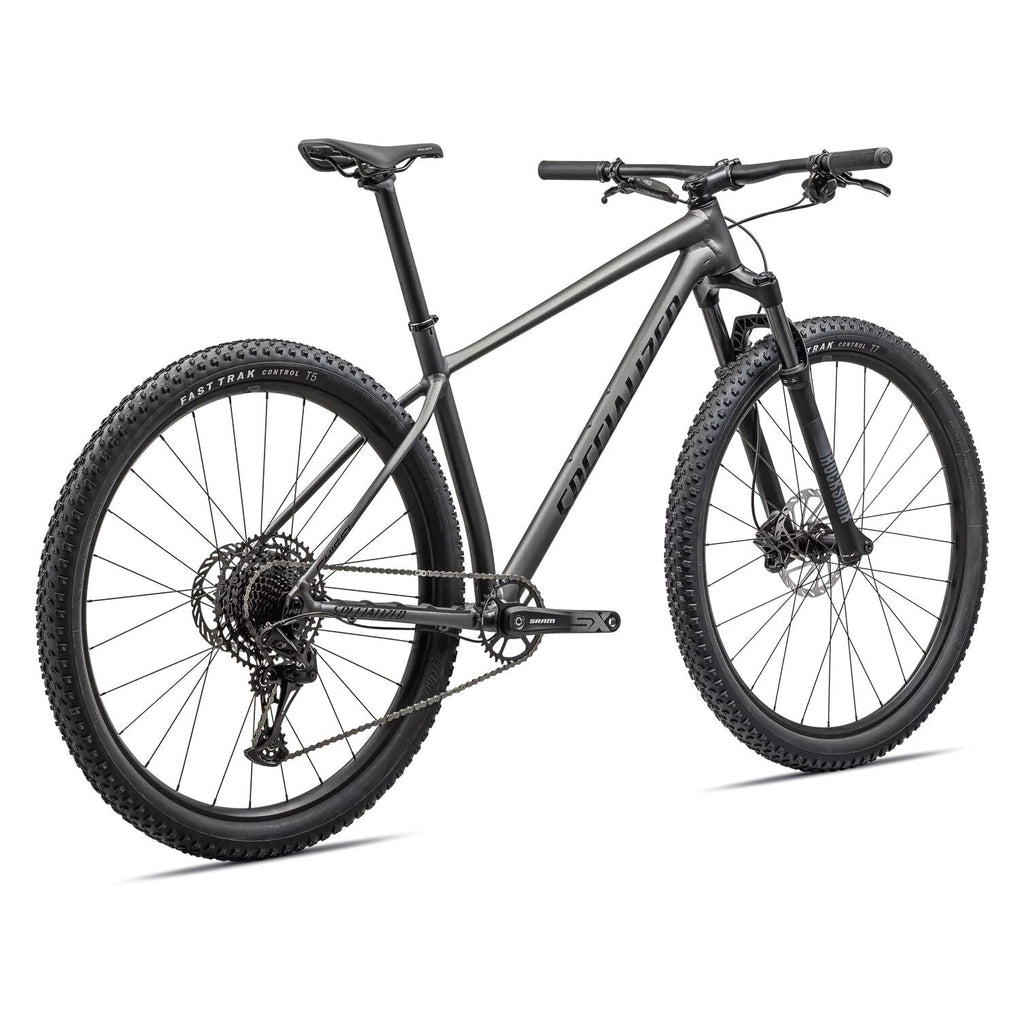

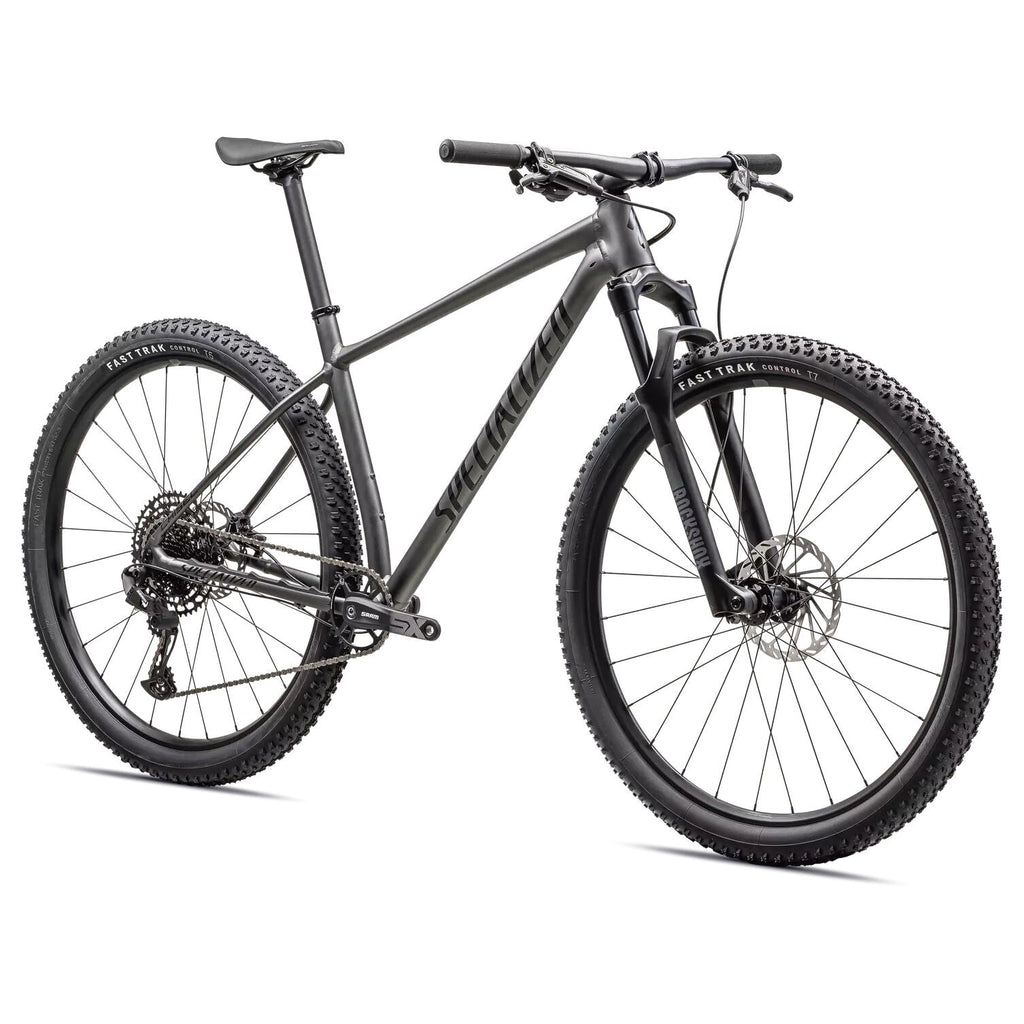

Specialized Chisel HT

The Chisel is a cross country hardtail, perfect for modern trails and race courses

It shares many of the racing features of the Epic Hardtail, in a more affordable configuration. The Chisel features SRAM Eagle 1x12 drivetrain, Level T hydraulic disc brakes, RockShox Judy Silver fork and alloy wheels with 2.3’ Fast Trak Control tyres. With DSW (D'Aluisio Smart Welding) technology, the welding is moved away from the area of greatest stress, making the frame stronger, lighter and more rigid, qualities that are indispensable for cross country. Among alloy hardtail frames, the Chisel's frame with a weight of only 1350 grams is among the lightest, and at the same time the stiffness is perfect and calibrated for each size. The Chisel has all the features you would expect from a modern cross country bike, such as progressive geometry with a head angle of 68 degrees, a longer reach, internal cable routing, threaded bottom bracket, boost, compatibility with 30.9mm telescopic seatpost and single crown only setup.

Tech Specs

• Saddle clamp: Specialized Alloy, 34.9 mm
• Frame: Specialized D'Aluisio Smartweld M5 Alloy, hydroformed tubes, progressive XC geometry, internal cable routing, BB BSA, 12x148 mm wheelbase, compatible with 30.9 mm dropout
• Fork: RockShox Judy Silver, TurnKey shock, Solo Air, 42 mm offset, 15x110 mm thru axle, 100 mm travel (XS - 80 mm travel)
• Front brake: SRAM Level T, hydraulic disc, 160mm/180mm Centerline Rotor
• Rear brake: SRAM Level T, hydraulic disc, 160mm centreline rotor
• Sprocket Pack: SRAM PG-1210 Eagle, 11-50t
• Bottom Bracket: SRAM Powerspline
• Rear derailleur: SRAM SX Eagle, 12-speed
• Crankset: SRAM SX Eagle, Powerspline
• Shifters: SRAM SX Eagle, trigger, 12-speed
• Chain: SRAM SX Eagle, 12-speed
• Rear hub: Alloy, sealed cartridge bearings, thru-axle 12x148mm, 32h
• Rims: Specialized Alloy, hookless, Tubeless ready, 25mm inner width
• Rear tyre: Specialized Fast Trak, Control carcass, T5 compound, 29x2.35
• Front tyre: Specialized Fast Trak, Control carcass, T7 compound, 29x2.35
• Front hub: Specialized alloy front disc, sealed cartridge bearings, 6 bolts, 15x110 mm thru axle, 32h
• Inner tubes: Standard, Presta valve
• Spokes: Inox, 14g
• Seatpost: Alloy, 2-bolt clamp, 30.9 mm
• Saddle: Body Geometry Power Sport, steel rails
• Handlebars: Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
• Grips: Specialized Trail Grips
• Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
• Manufacturer's weight: 12.5kg (27 lb, 8.9 oz)
• Weighted measurement: LG

Manufacturer's Notes: Weights based on production painted frames as shown. Actual weights will vary based on colour, frame size and component variation. Specifications are subject to change without notice.
