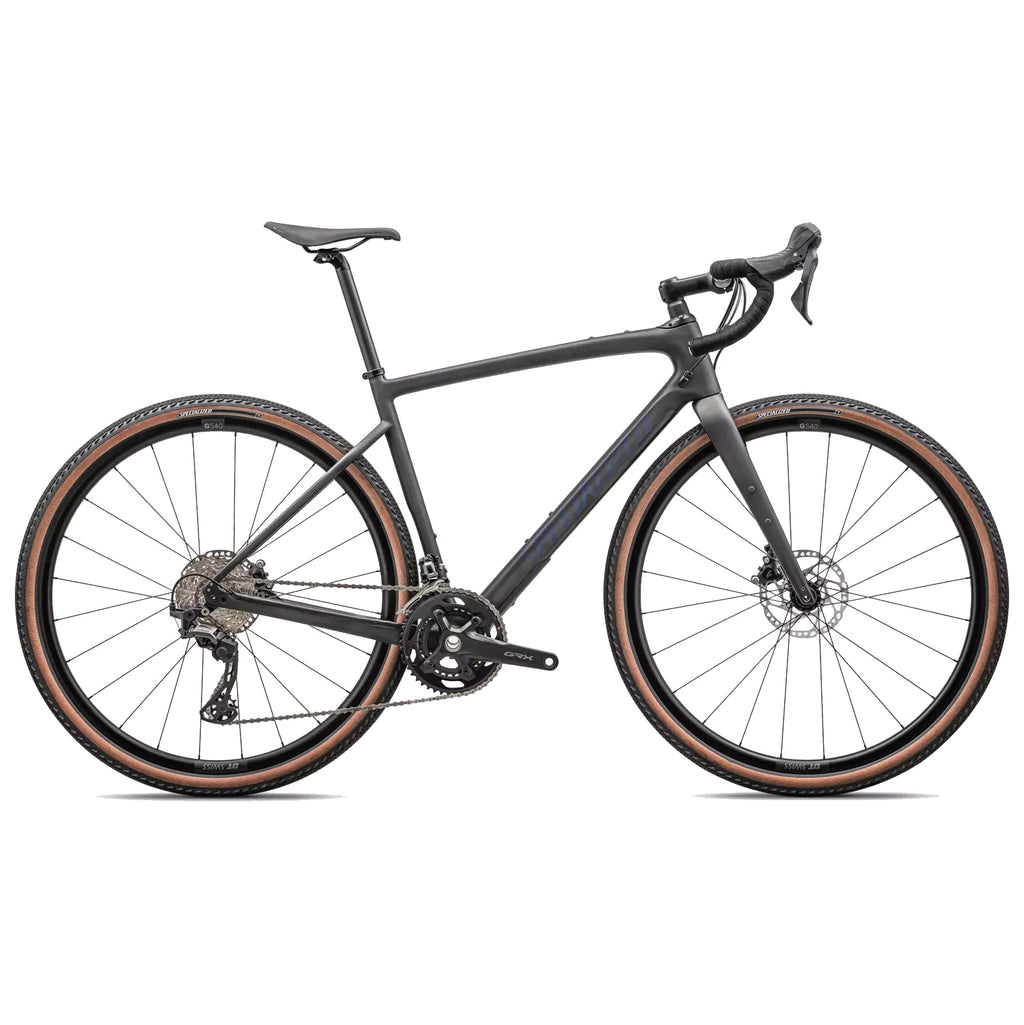

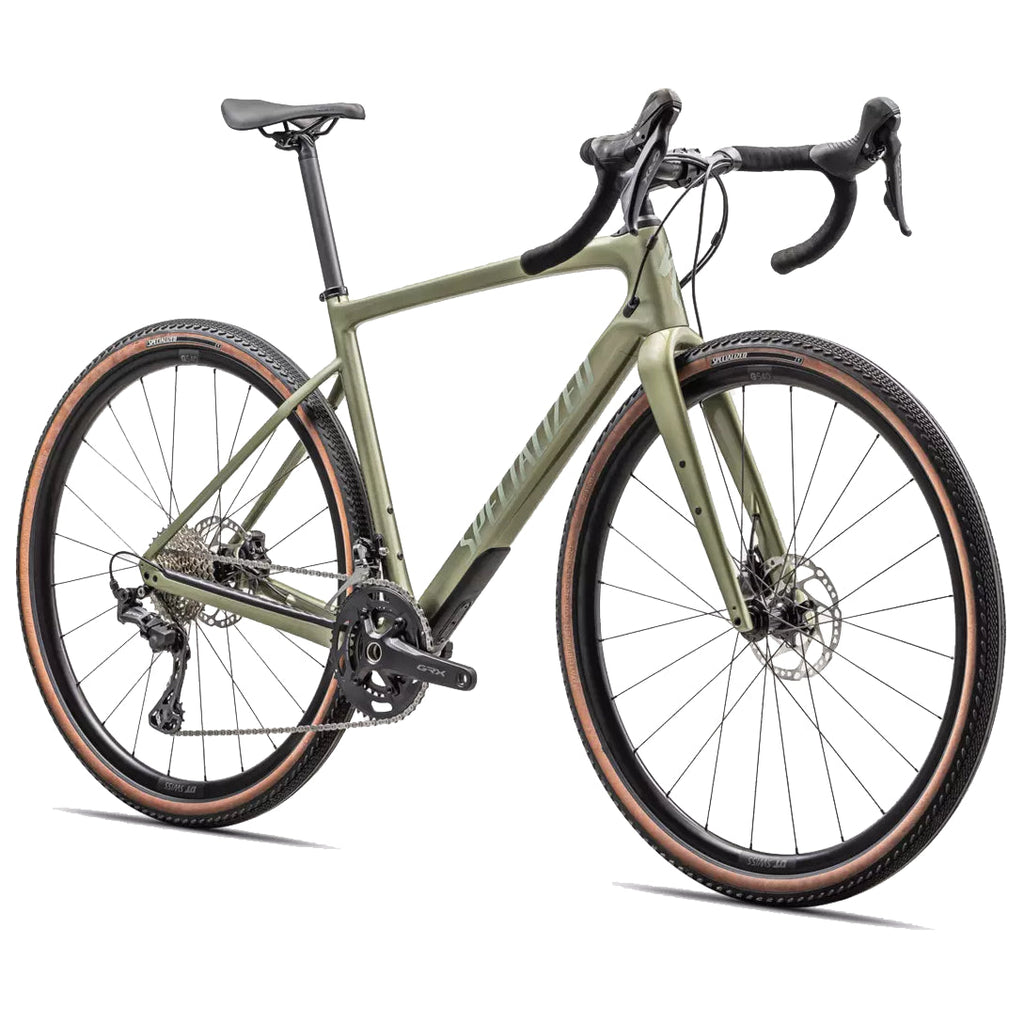

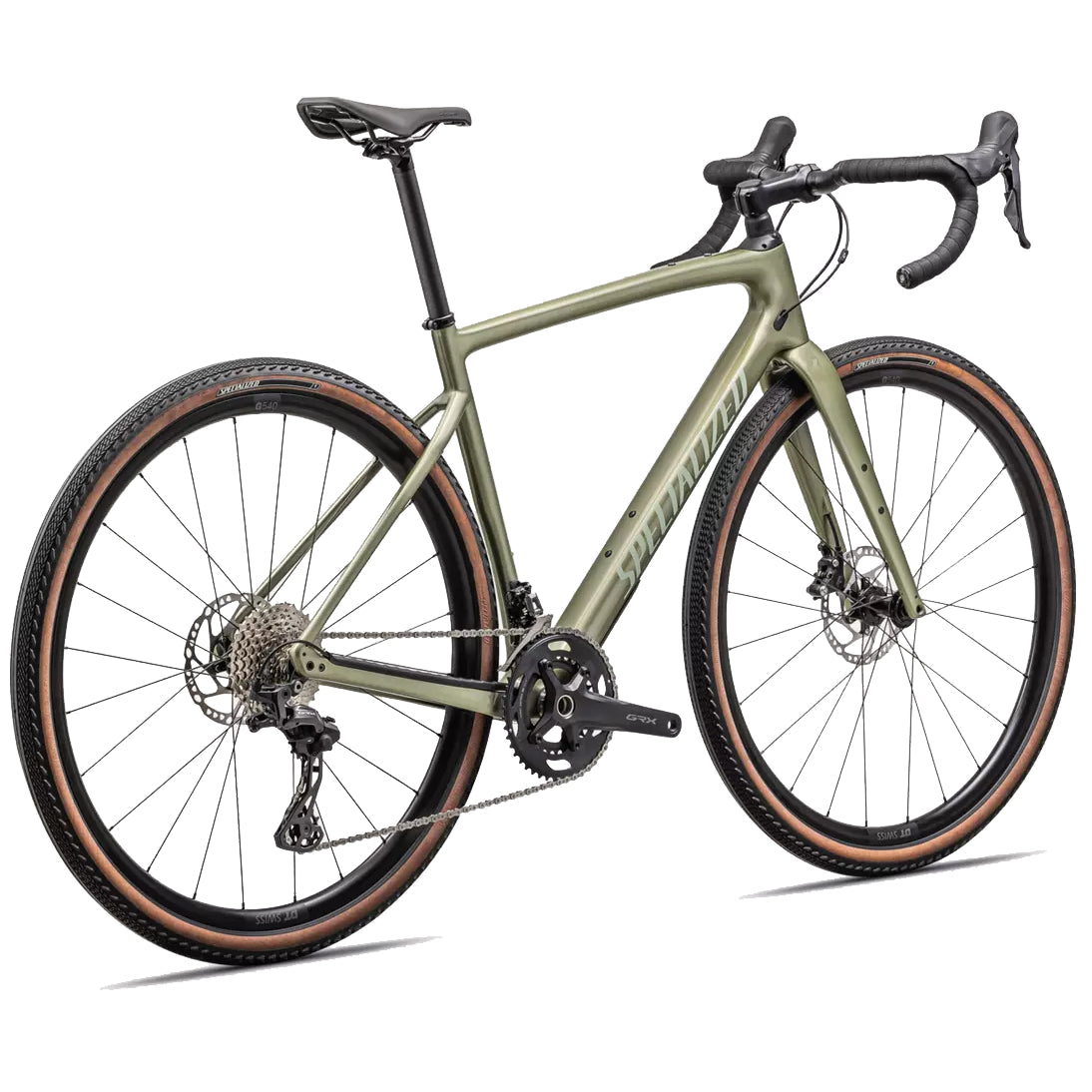

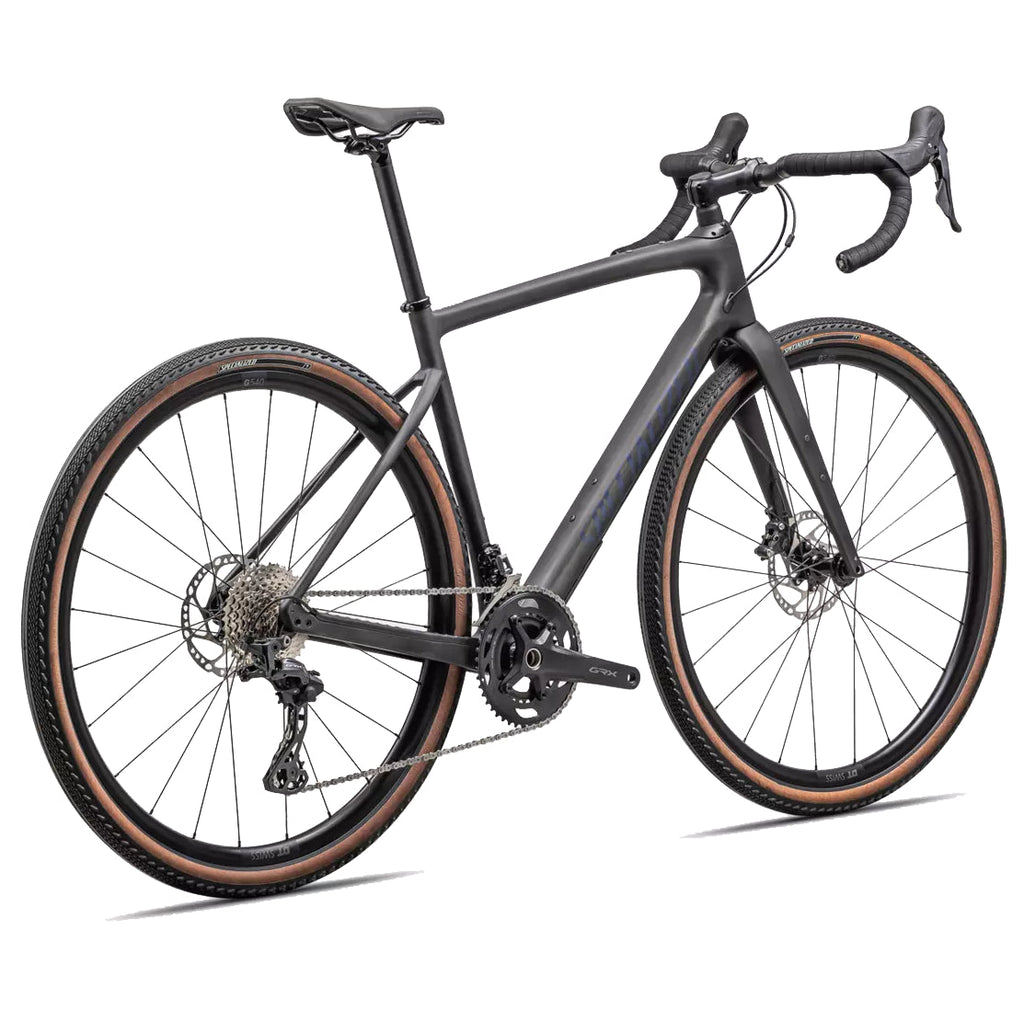

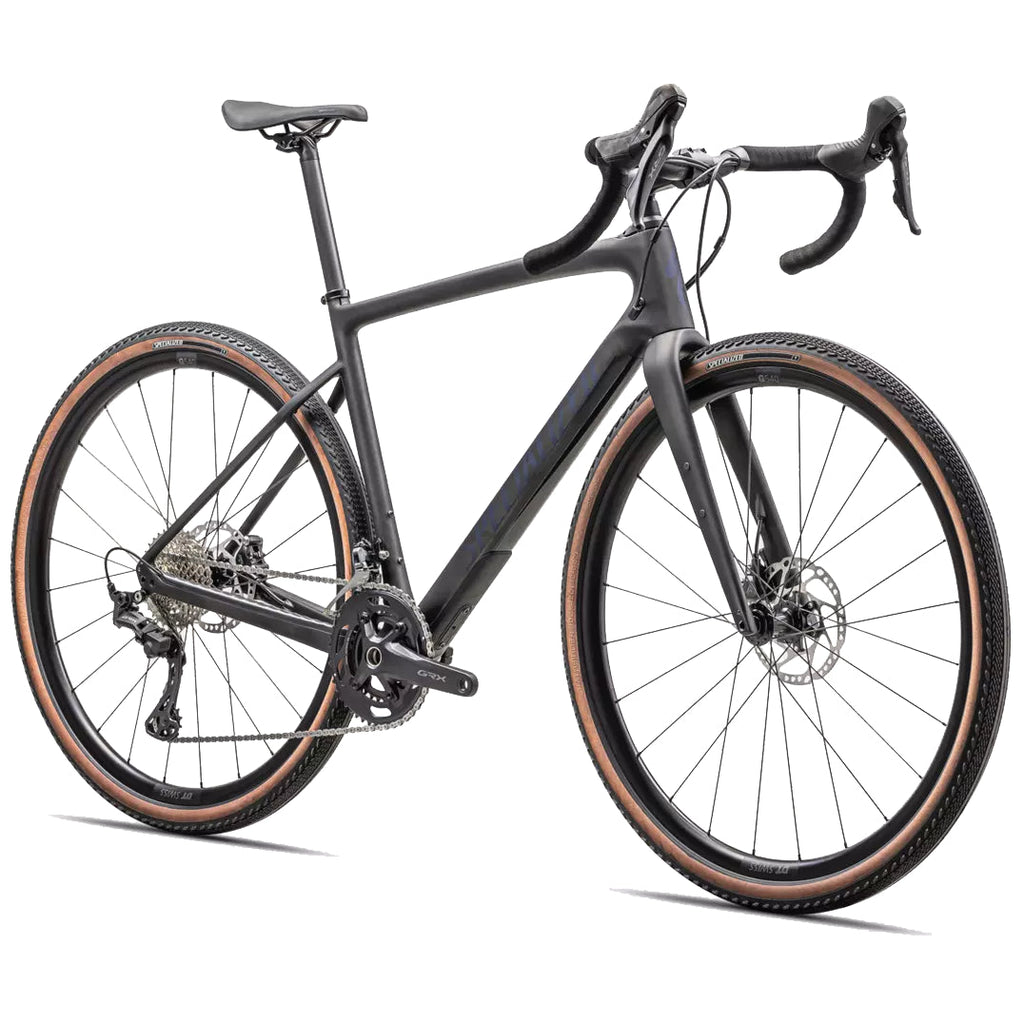

Specialized Diverge Sport Carbon

For escaping on country trails, away from traffic and people, but also for going all out in your favourite gravel race, the Diverge Sport Carbon is perfect. The fastest, most capable and fun gravel bike Specialized has ever produced. It's snappy and agile under stress, stable and secure if the terrain gets challenging. It has Future Shock 1.5, gravel geometry, and ample tyre clearance. Everything they learnt about road and off-road has been used to make the Diverge, which is set to write a new chapter in the gravel category.

The Diverge Sport Carbon has a FACT 8r carbon fibre frame and features the Future Shock 1.5 device. It rides on Specialized Pathfinder Pro tyres for optimum performance on road, gravel and even dirt. Thanks to the FACT 8r carbon fibre frame, the Diverge Carbon is a light and capable bike, ready for you to improve your KOMs and grind your way to the top on uphill trails in your region.

Speed, control and confidence - the Future Shock 1.5 represents the best technology available to the gravel rider. With 20 mm of travel you'll be able to maintain perfect control and avoid touching the brakes on bumpy trails or uncompacted gravel. At the same time you won't strain your hands, arms and neck.

Specialized engineers decided to break with classic gravel geometry. The new Diverge has the most progressive geometry ever created for a bike with road handlebars, creating a bike that is capable and stable off-road, but snappy and agile on the road. The reach has been increased, a more relaxed head tube introduced and a fork with a larger offset adopted. A shorter stem keeps the length of the front end contained for a lively ride. A low bottom bracket has been provided for greater stability, while retaining the option of fitting 650b tyres if you prefer them.

The frame is prepared with rack mounts, including attachments on the fork and top tube, to facilitate transport for any long-distance trip. Increased capacity means pedalling with more safety and confidence, which is why the large contact surface area of the 47c tyres on the 700 wheel or 2.1" on the 27.5 wheel has been included.

Technical specifications

Telaio

• Collarino Sella: Lega Specialized, 30,8 mm
• Telaio: Specialized Diverge FACT 8r carbon, sospensione Future Shock, BB filettato, routing interno, perno passante 12x142mm, disco piatto

Trasmissione

• Ingranaggi: 46/30T
• Pacco Pignoni: Shimano 105 12 velocità 11-36
• Guarnitura: Shimano GRX RX610
• Deragliatore anteriore: Shimano GRX RX820
• Cambio posteriore: Shimano GRX RX820, 12 velocità
• Movimento centrale: Shimano Threaded BSA BB
• Comandi cambio: Shimano GRX RX610, 2x12 velocità
• Catena: Shimano SLX, M7100, 12 velocità

Pozzetto

• Sella: Body Geometry Power Sport, binari in acciaio
• Reggisella: Carbonio, a bullone singolo, 27,2 mm
• Attacco Manubrio: Attacco Manubrio Future, Comp
• Nastro Manubrio: Roubaix S-Wrap
• Curva Manubrio: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Ruote e pneumatici

• Ruota anteriore: cerchio DT Swiss G540, larghezza interna 24 mm, tubeless ready, 24h, mozzo Specialized con perno passante a cuscinetti sigillati, disco centerlock, raggi DT Swiss Champion 14G in acciaio inox, nippli DT Swiss in ottone
• Ruota posteriore: cerchio DT Swiss G540, larghezza interna 24 mm, tubeless ready, 24h, mozzo Specialized con perno passante a cuscinetti sigillati, disco centerlock, raggi DT Swiss Champion 14G in acciaio inossidabile, nippli DT Swiss in ottone
• Camere d'aria: 700x28/38mm, valvola Presta da 48mm
• Pneumatico anteriore: Pathfinder Pro 2BR, fianco Tan, 700x42
• Pneumatico posteriore: Pathfinder Pro 2BR, fianco Tan, 700x42

Sospensioni

• Forcella: Future Shock 1.5 c/Smooth Boot, carbonio FACT, perno passante 12x100 mm, montaggio piatto

Brakes

• Front brake: Shimano GRX RX400
• Rear brake: Shimano GRX RX400

Weight

• Producer weight (size 56): 10.05Kg (22 lb, 2.5 oz)

Weights based on production painted frames as shown. Actual weights will vary based on colour, frame size and component variation. Specifications are subject to change without notice.
