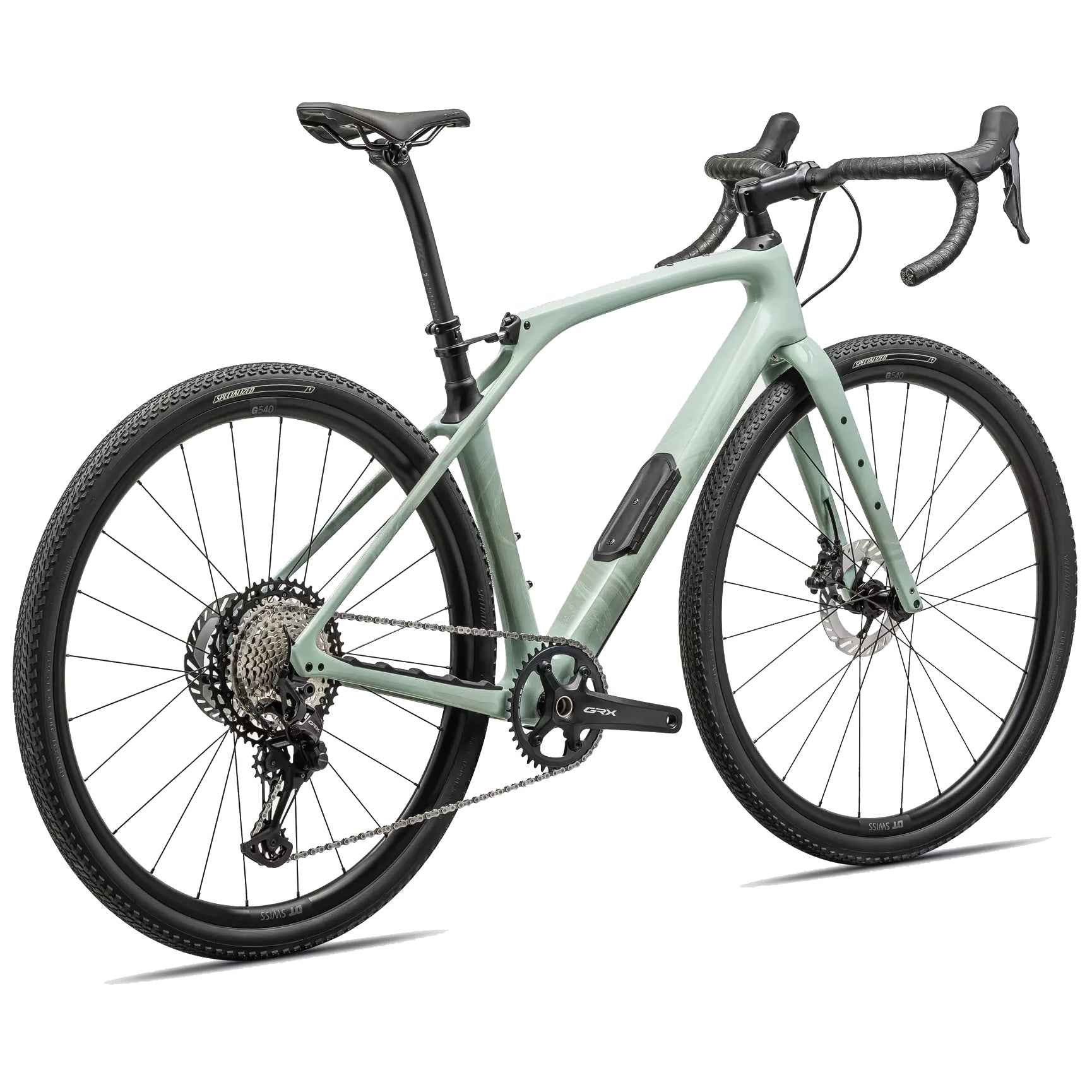

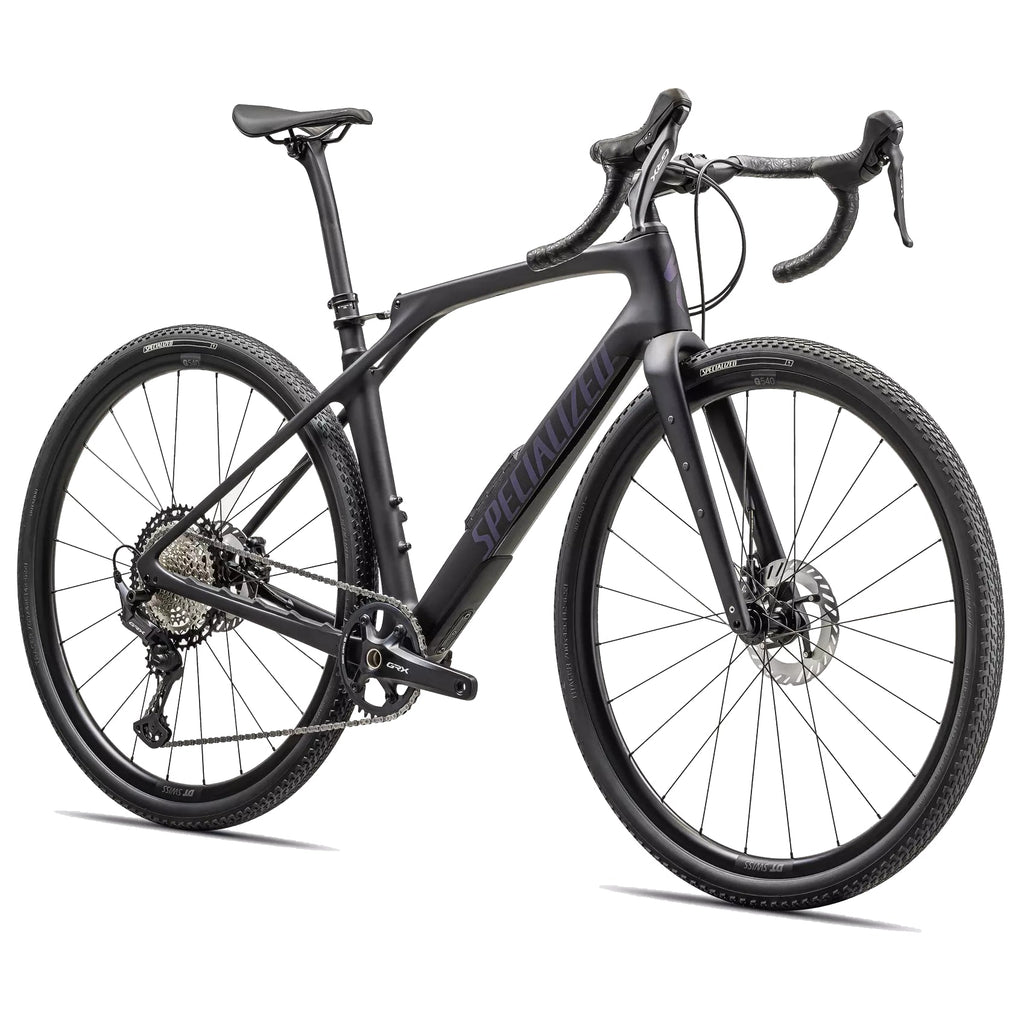

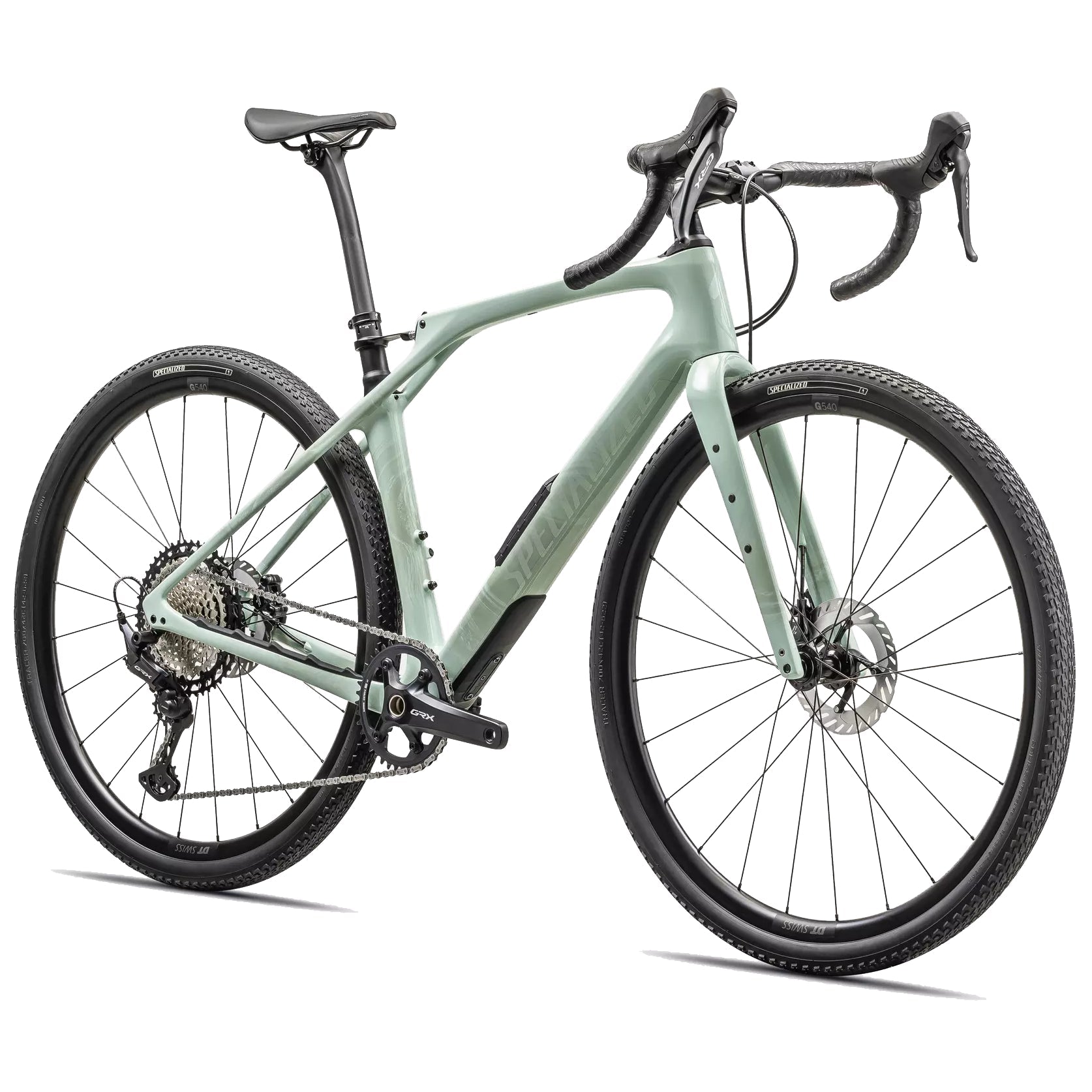

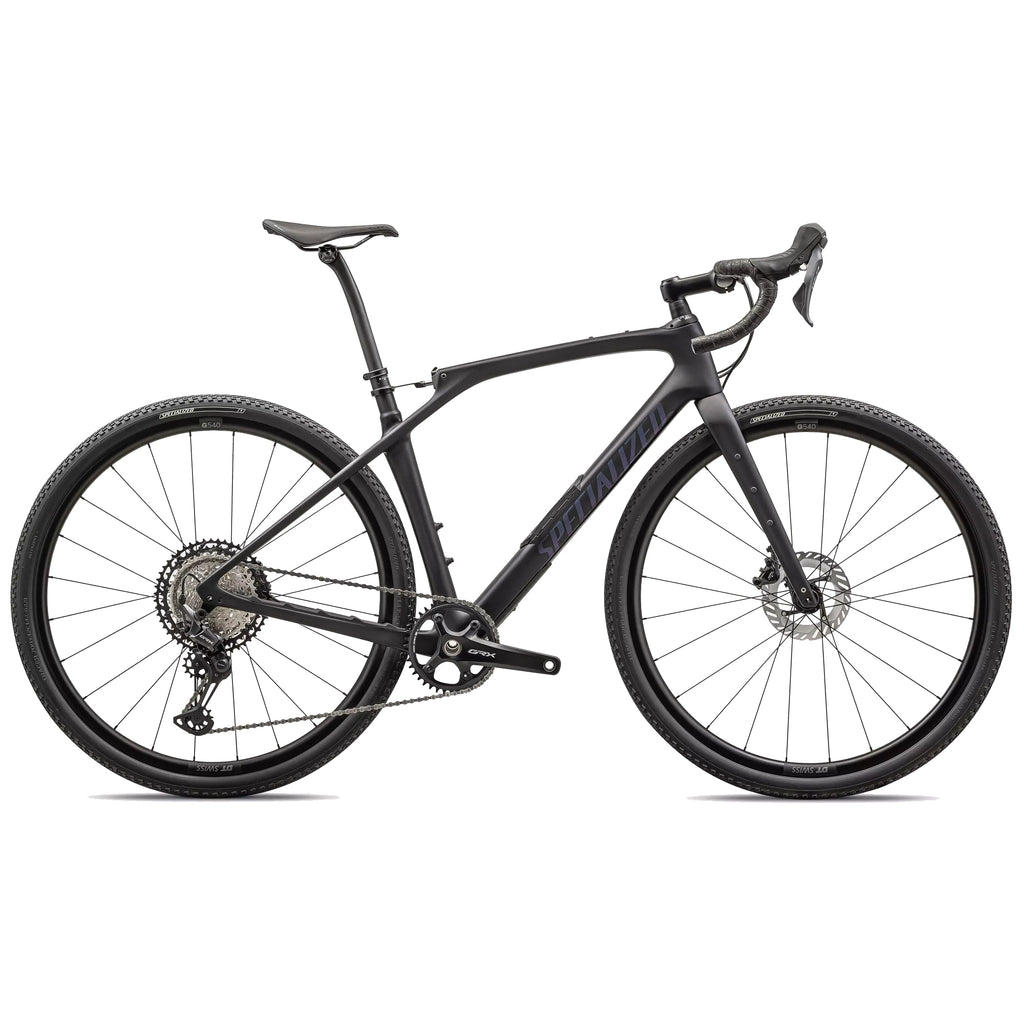

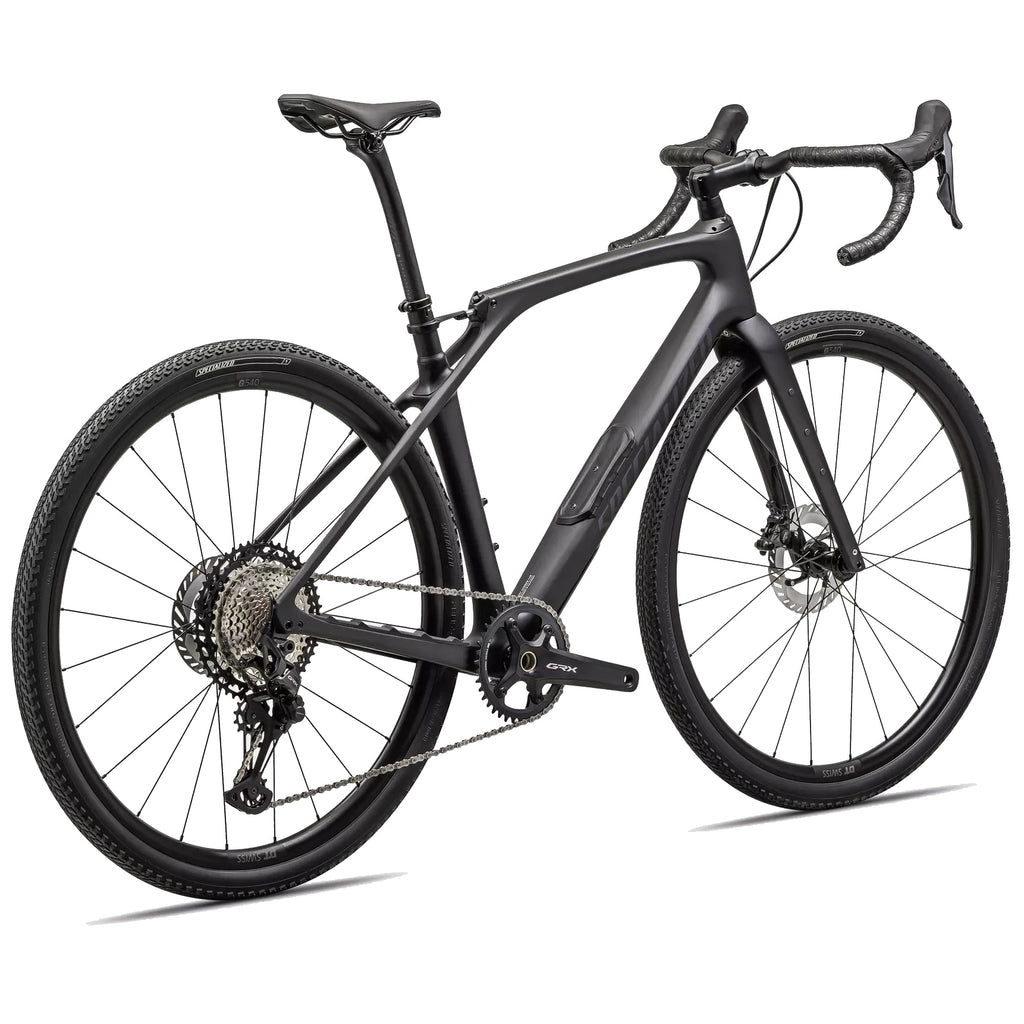

Specialized Diverge STR Comp

The new Diverge STR with Future Shock front and rear suspension is comfortable without compromising performance. By absorbing small shocks, control and efficiency are improved and, at the same time, fatigue is reduced, so you can pedal longer and faster. The Diverge STR Comp has a FACT 11r carbon-fibre frame and is fitted with the new Shimano GRX 820 groupset with 10-51 sprocket set, DT G540 wheels with Specialized Tracer Pro 42mm tyres, S-Works Carbon seatpost, alloy Adventure Gear handlebar, and Power Sport saddle.

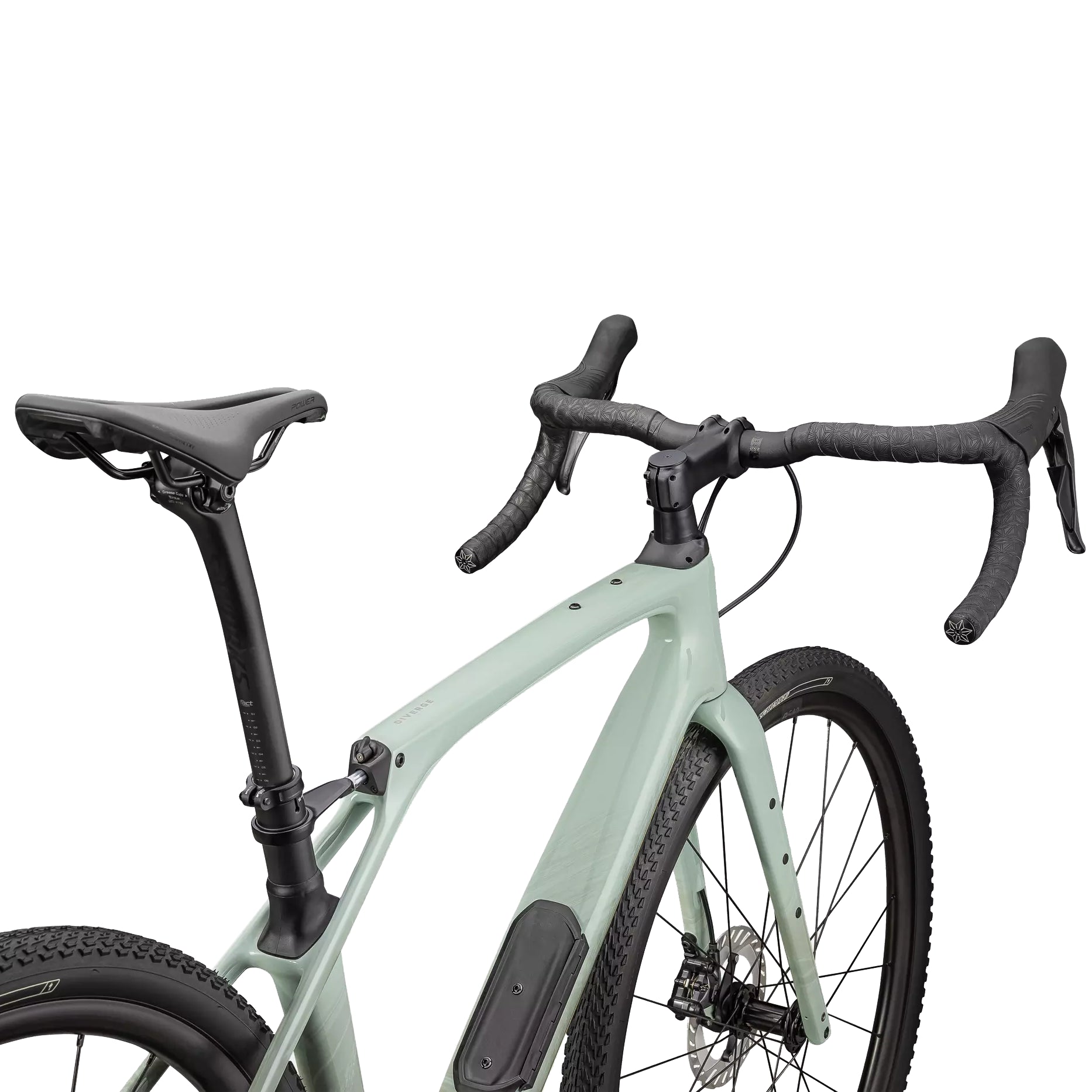

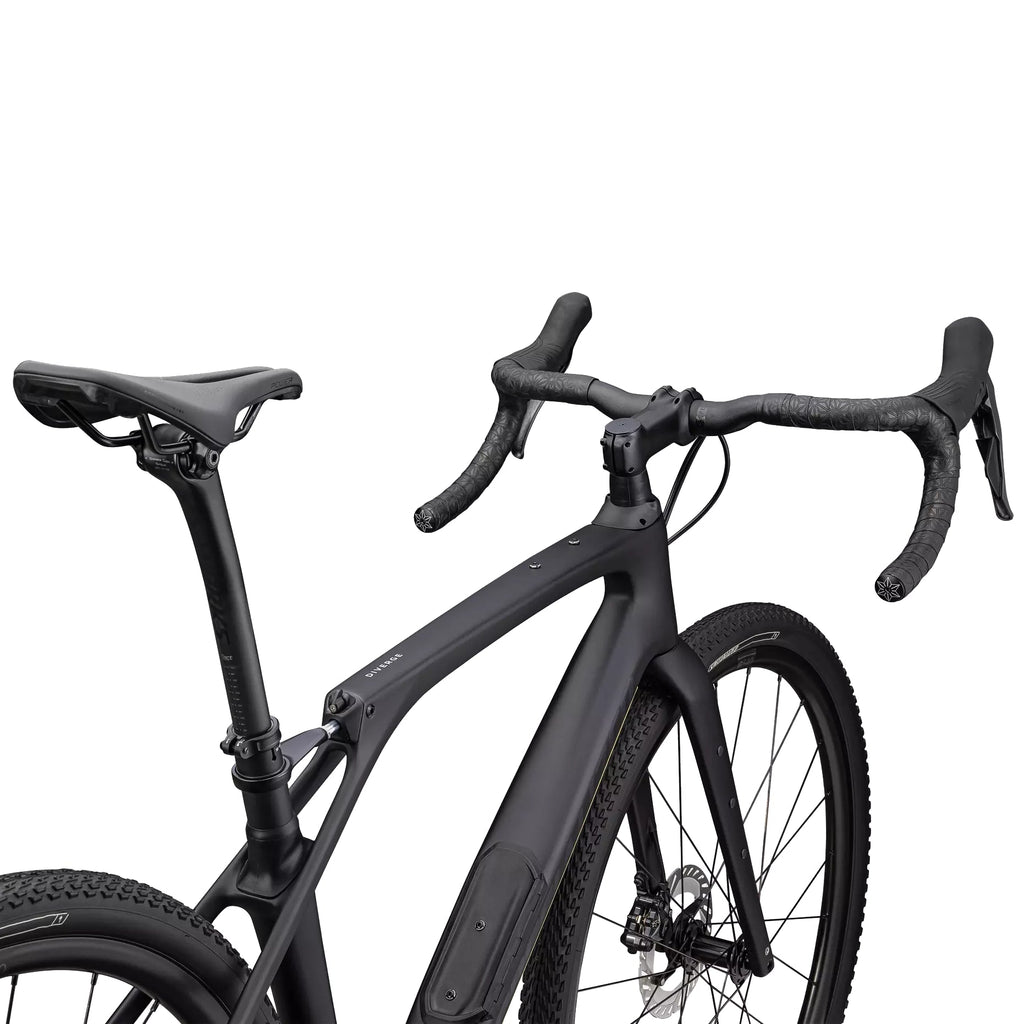

The 20mm travel on the front wheel and 30mm on the rear wheel absorbs shocks and improves control, efficiency and responsiveness. In terms of power transfer, however, it is entirely similar to a rigid bike. The hydraulic damping of the new Diverge STR prevents 'bobbing' under stress. You won't catapult out of the saddle when you hit an obstacle on the trail, and pedalling efficiency remains intact.

Future Shock is the latest development in the 'Smoother is Faster' philosophy of Comfort and Performance. It was created to cope with cobblestones and is perfectly suited for gravel. The 20mm of front travel spares your hands, arms and shoulders, and allows you to pedal with greater comfort. More capacity means pedalling with more confidence and security. With the large contact area of the 47c tyres on the 700 wheel or 2.1" on the 27.5 wheel, the Diverge STR is the most capable gravel bike we have ever made.

Technical Specifications

Transmission

• Chainrings: 40T
• Shifters: Shimano GRX RX820, 1x12-speed
• Crankset: Shimano GRX RX820
• Rear derailleur: Shimano GRX RX822-SGS, 12-speed
• Sprocket Set: Shimano XT, 12-speed, 10-51t
• Bottom Bracket: Shimano Threaded BSA BB
• Chain: Shimano XT M8100, 12-speed w/ quick link

Cockpit

• Saddle: Body Geometry Power Sport, steel rails

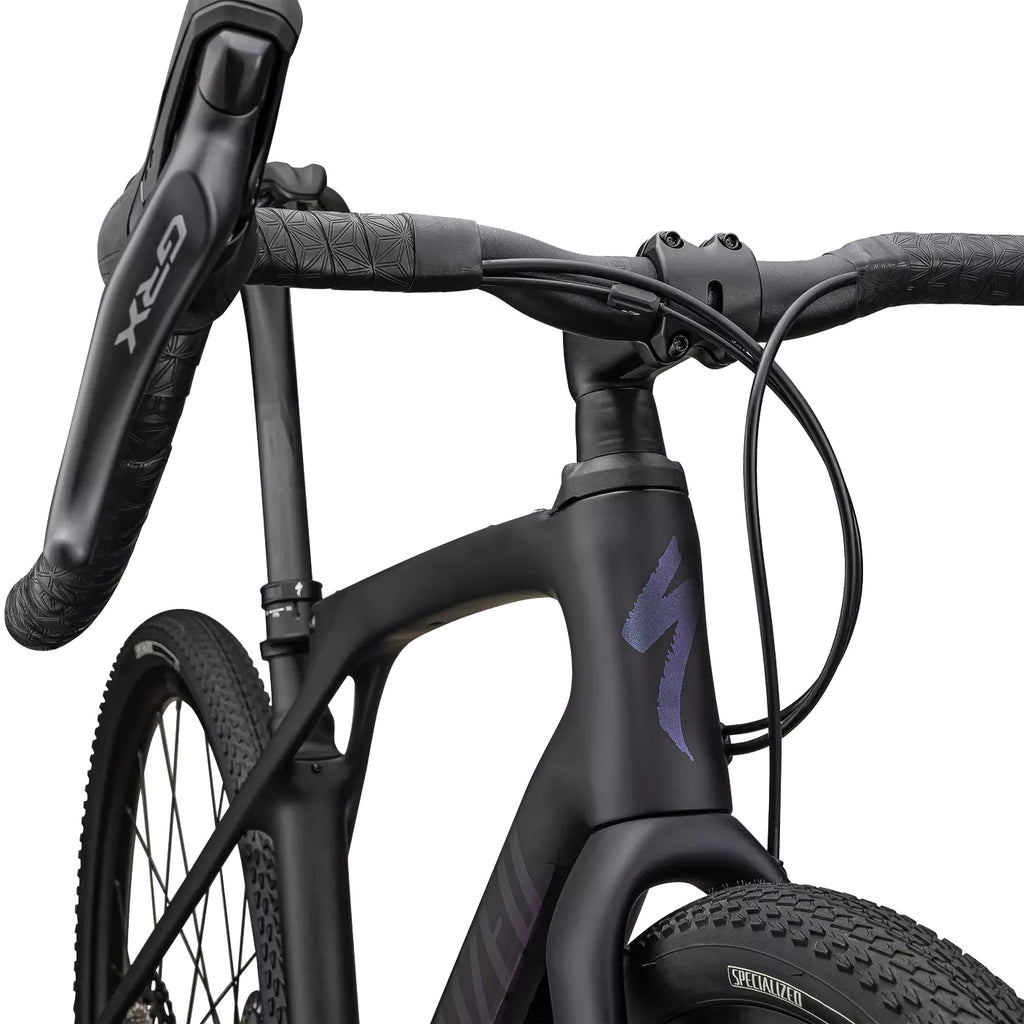

• Handlebar stem: Future Stem, Comp
• Seatpost: S-Works FACT carbon 27.2mm, 20mm offset

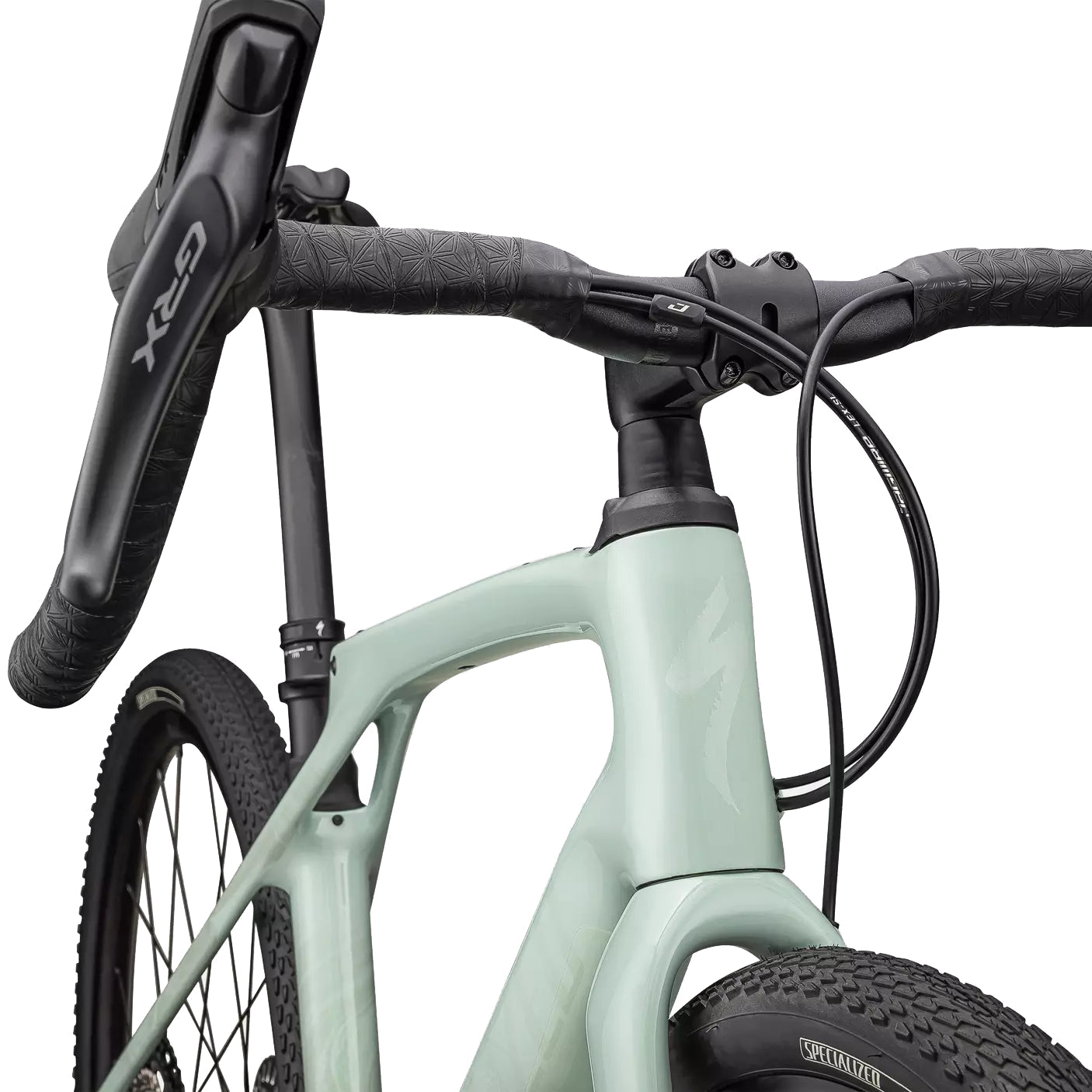

• Handlebar stem: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
• Saddle clamp: Specialized Alloy, 33.3mm
• Handlebar Tape: Supacaz Super Sticky Kush

Wheels & Tyres

• Front wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
• Rear wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centrelock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
• Inner tubes: 700x28/38mm, 48mm Presta valve
• Tyre front: Tracer Pro 2BR, 700x42
• Rear tyre: Tracer Pro 2BR, 700x42

Suspension

• Fork: Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

Frame

• Frame: Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Accessories

• SWAT: Integrated SWAT door, internal storage system

Brakes

• Front brake: Shimano GRX RX820
• Rear brake: Shimano GRX RX820

Weight

• Producer weight (size 56): 9.88kg (21 lb, 12.5 oz)

Weights based on painted production frames as shown. Actual weights will vary based on colour, frame size and component variation. Specifications are subject to change without notice.
