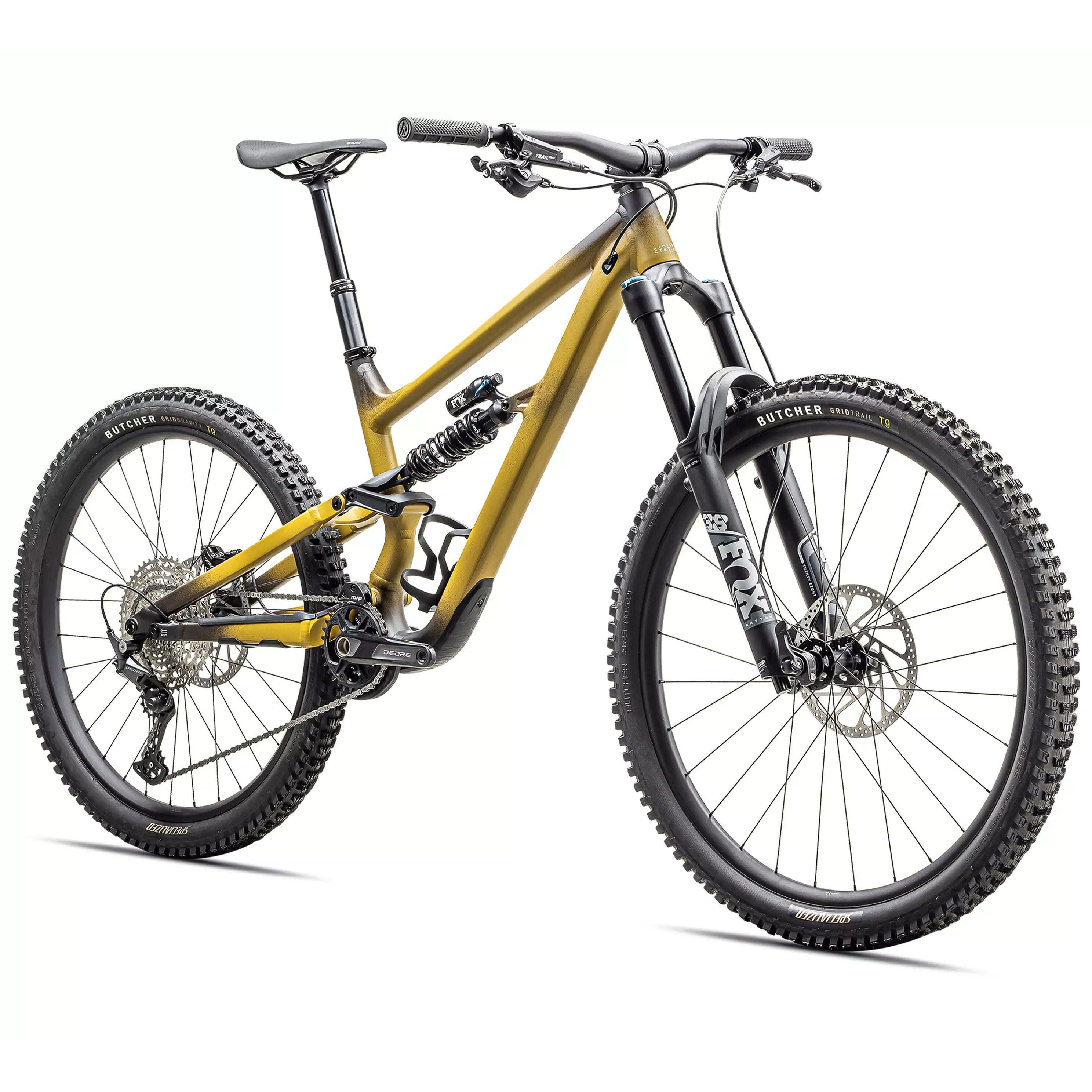

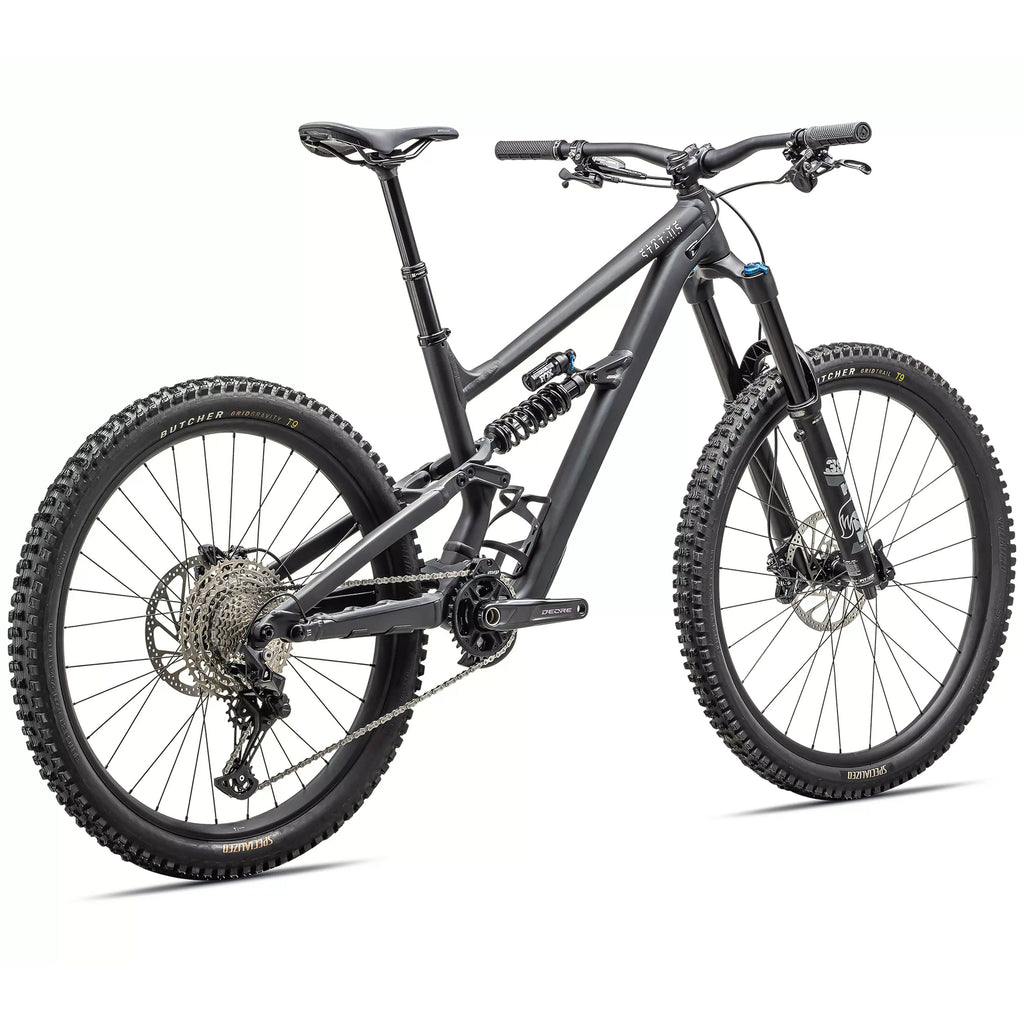

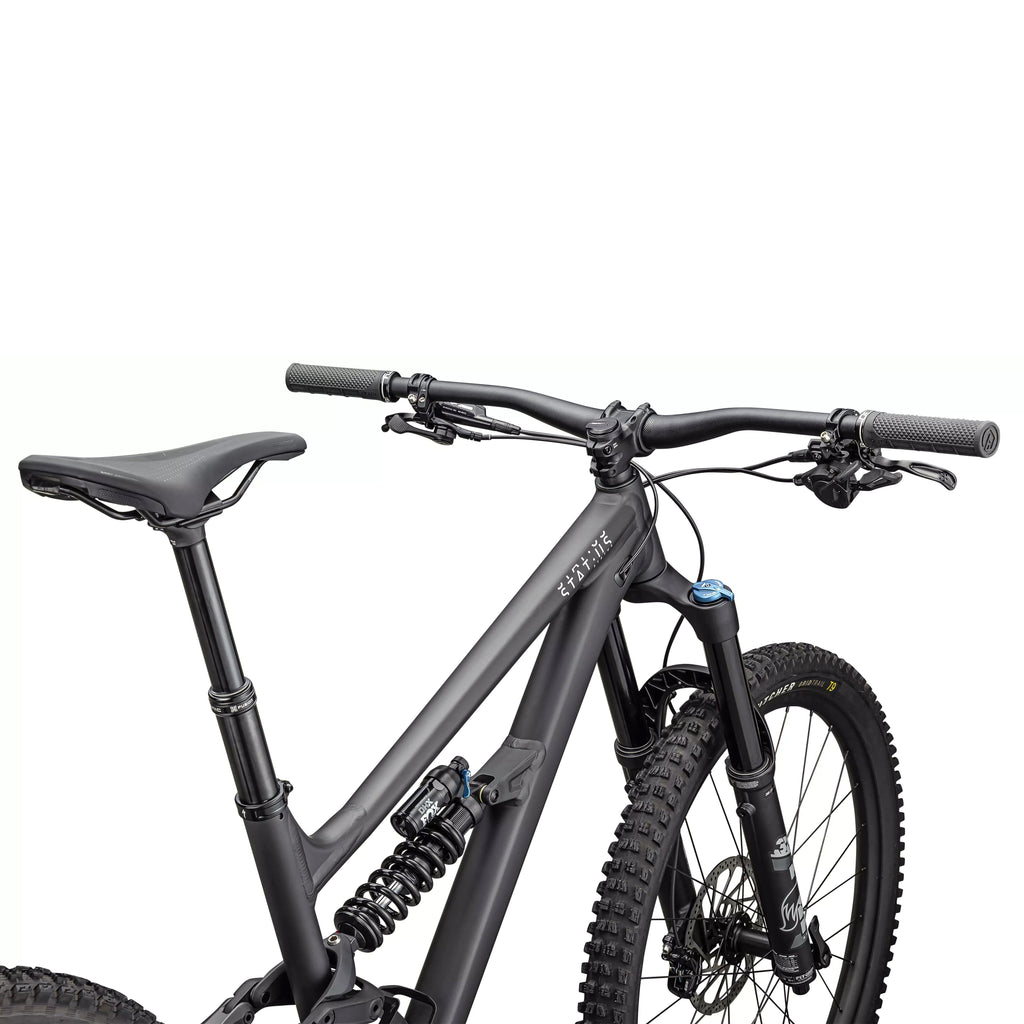

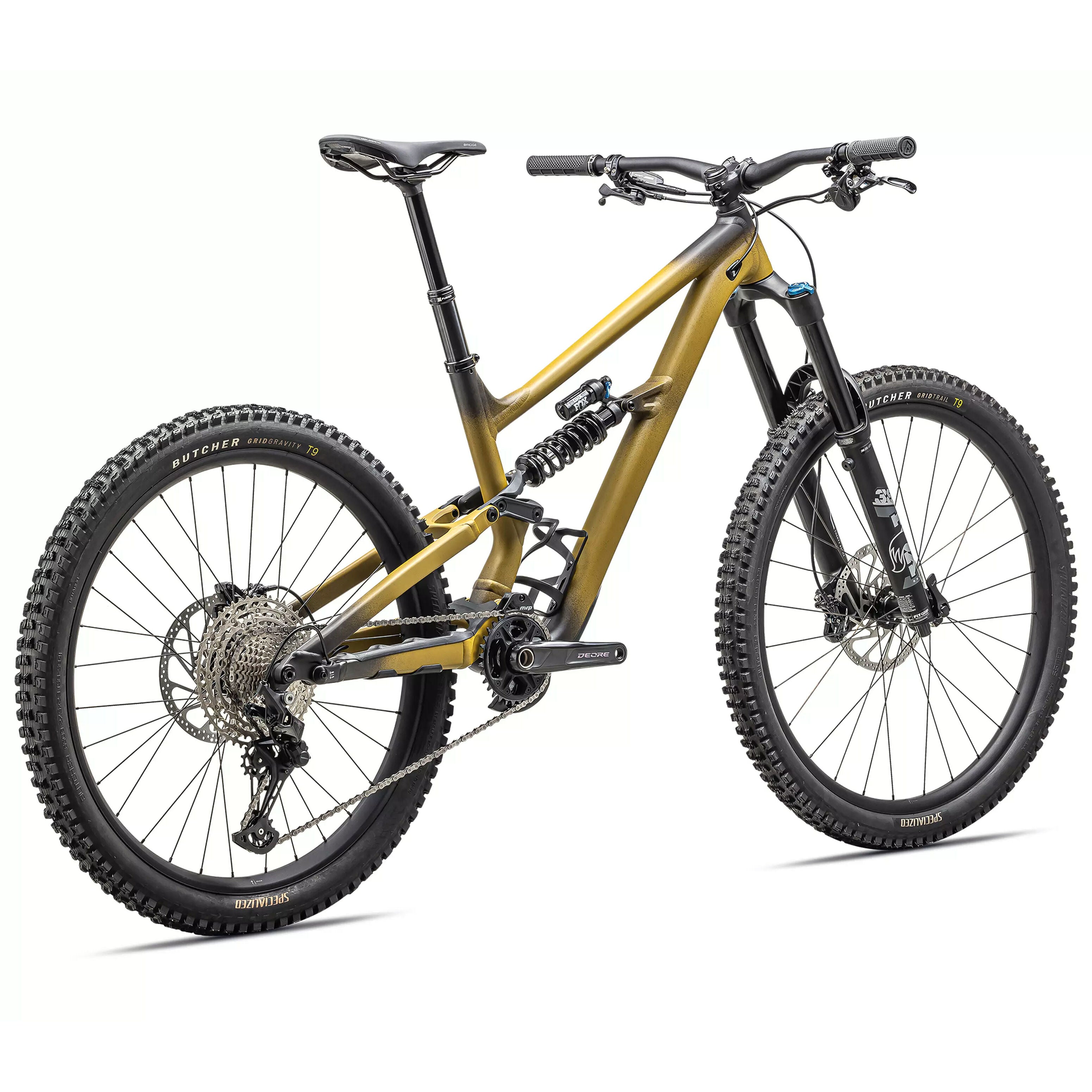

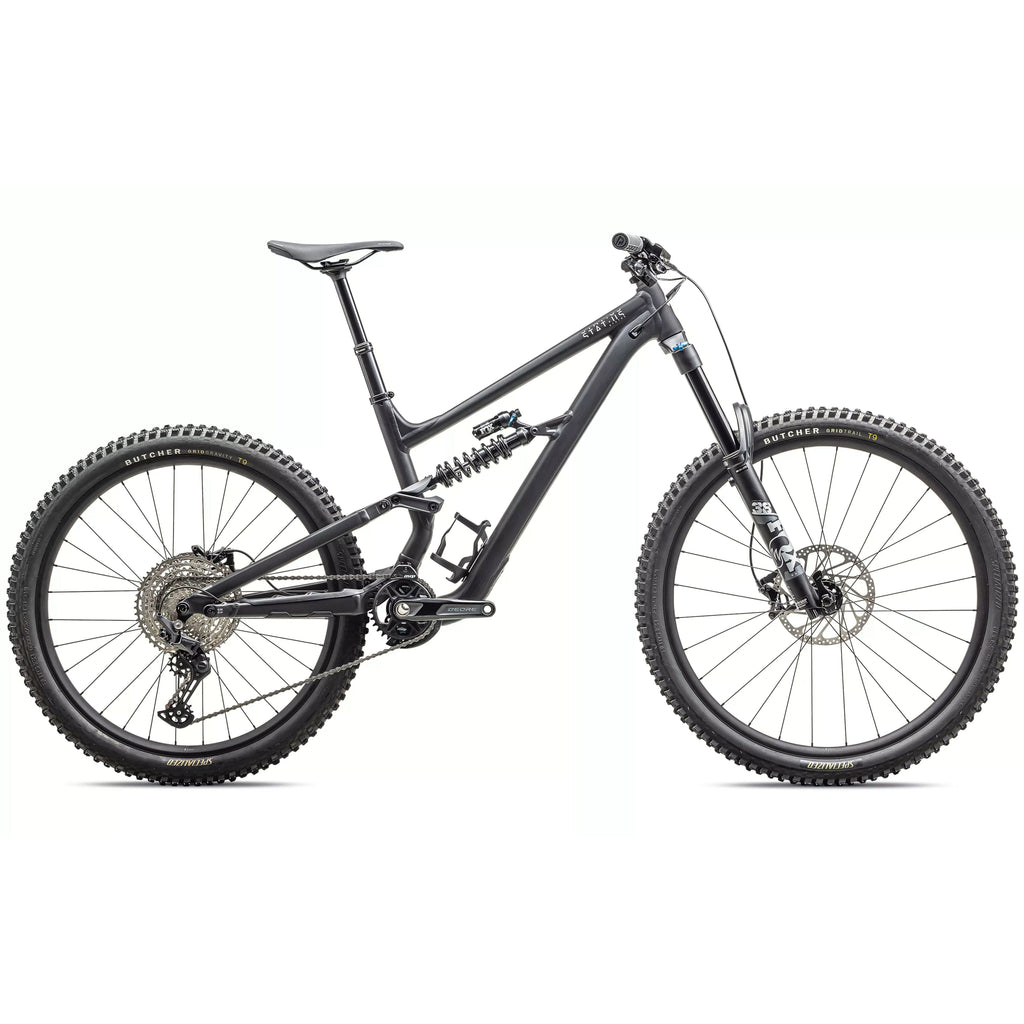

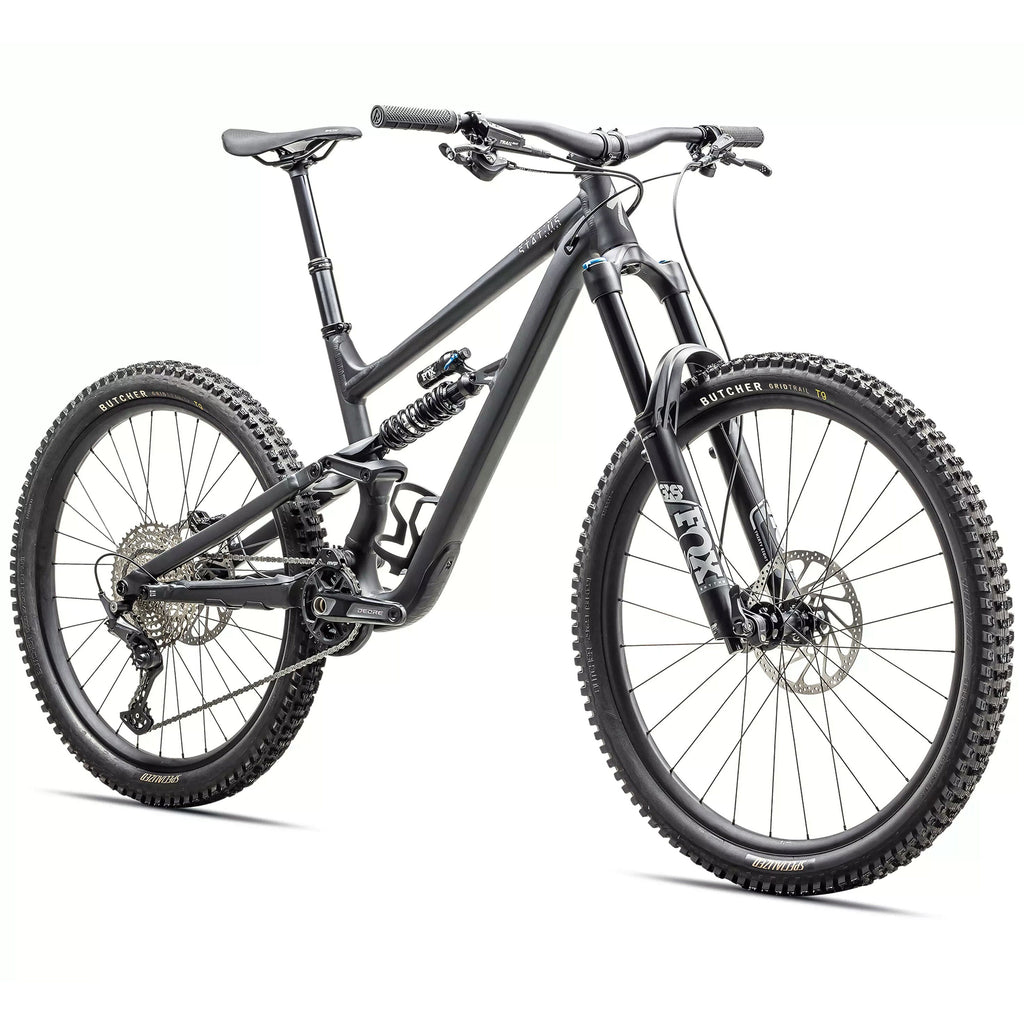

Specialized Status 170 2 Base

STATUS 2 finds the boundaries of mountain bikes and pushes past them

Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride. Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

Built by riders
Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

Ride dynamics tuned
Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

Let’s get personal
Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

Simplicity
STATUS 2 170 was designed to be dead simple and ready to deliver, regardless of terrain. The Ride Dynamics team developed the kinematics and dialed in the geo to deliver a snappy, poppy bike that’s at home on both technical singletrack and gapping a set of stairs.

Durability
Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage.

Ride Quality
With updated, aggressive trail geometry and impressively short but scaling chainstays, STATUS 2 170 is just flat-out fun on the gnarliest terrain. There’s plenty of composure when you need it on big hits and chunk—with the freedom to do your thing when you want it.

Features

• 100% Redesigned durable alloy chassis
• New, more durable alloy rims
• Horst Link geometry adjust flip chip
• Updated geometry for more usability
• Curated parts spec for your desired ride experience

Tech spec

Frameset

• Frame: M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
• Seat Binder: Alloy, 38.6mm

Suspension

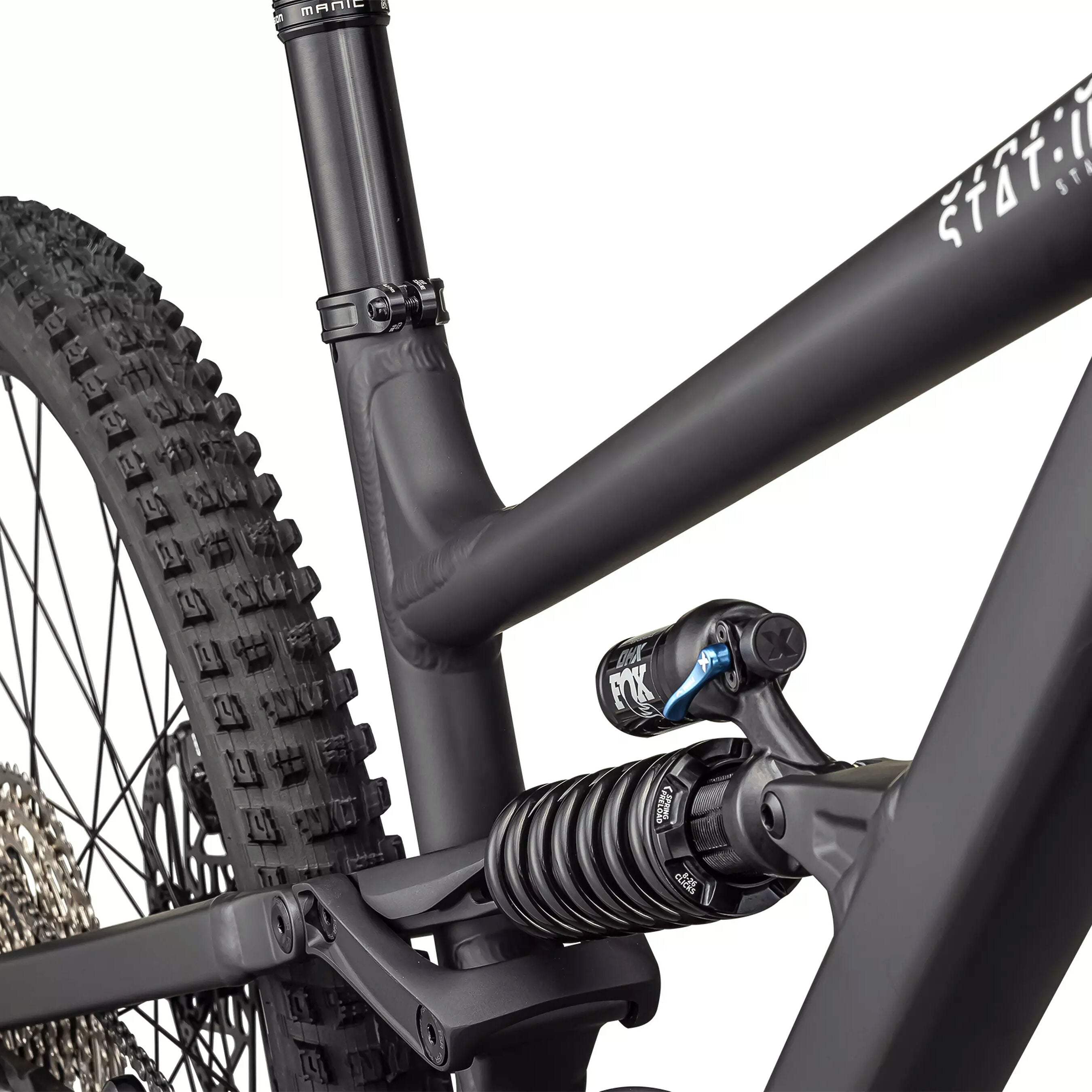

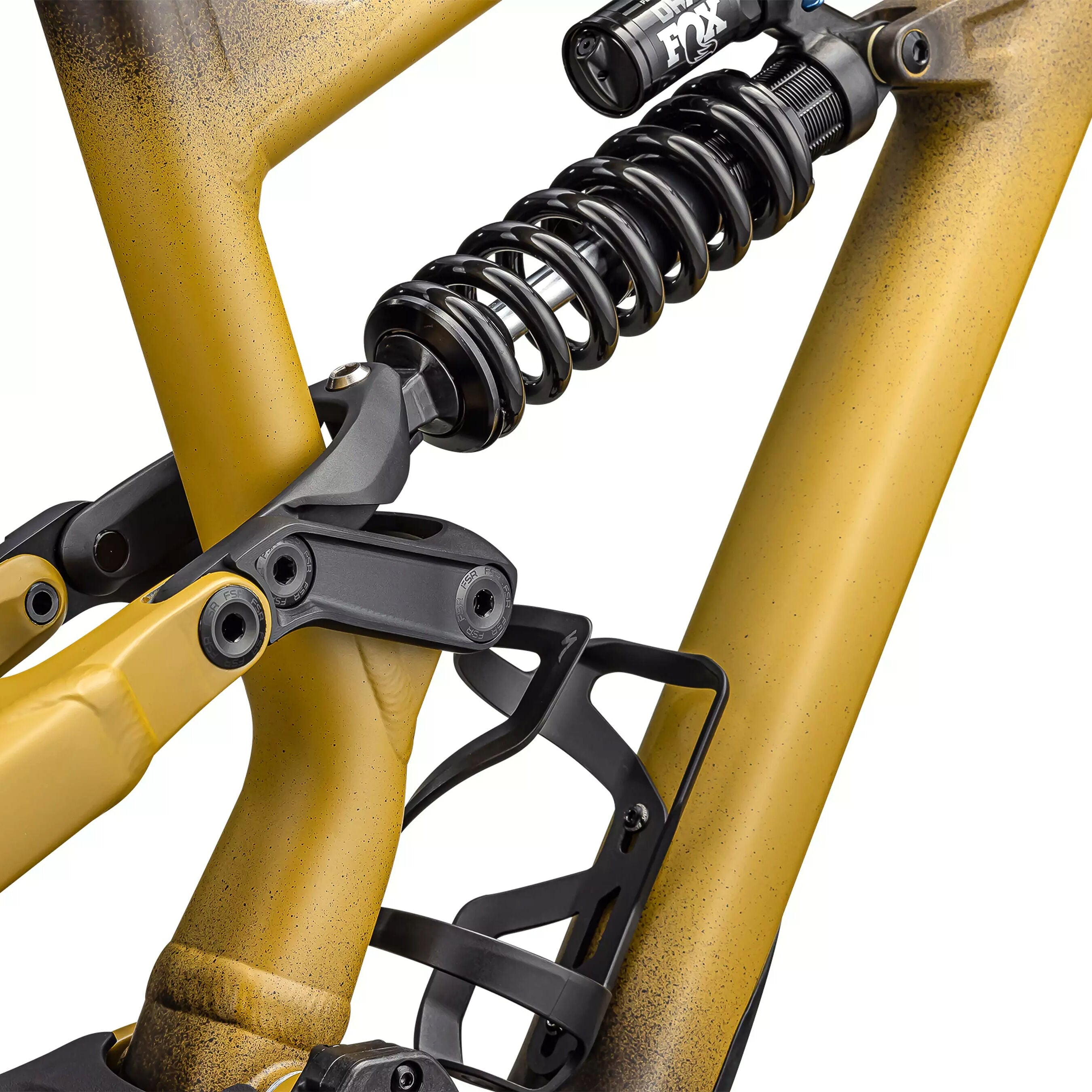

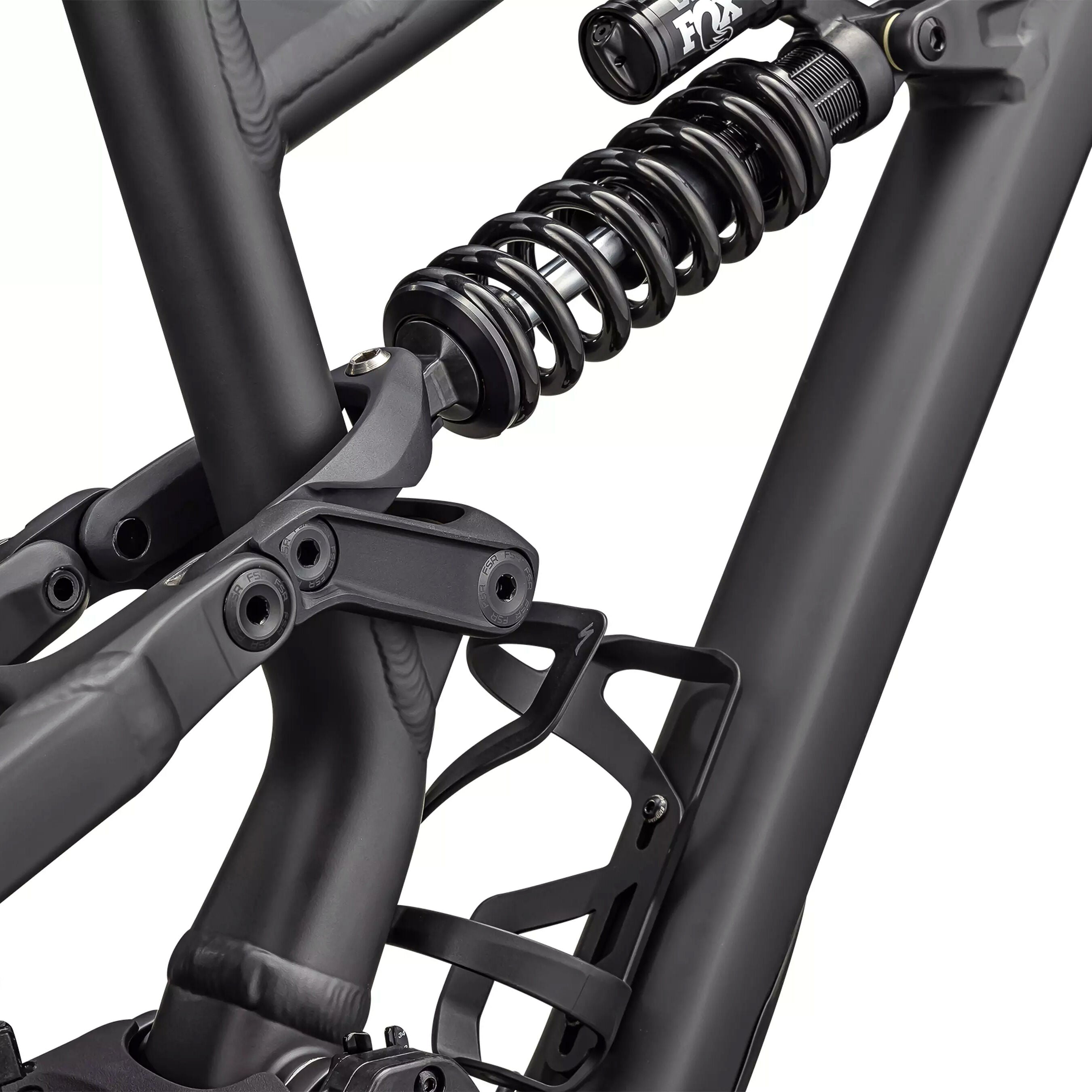

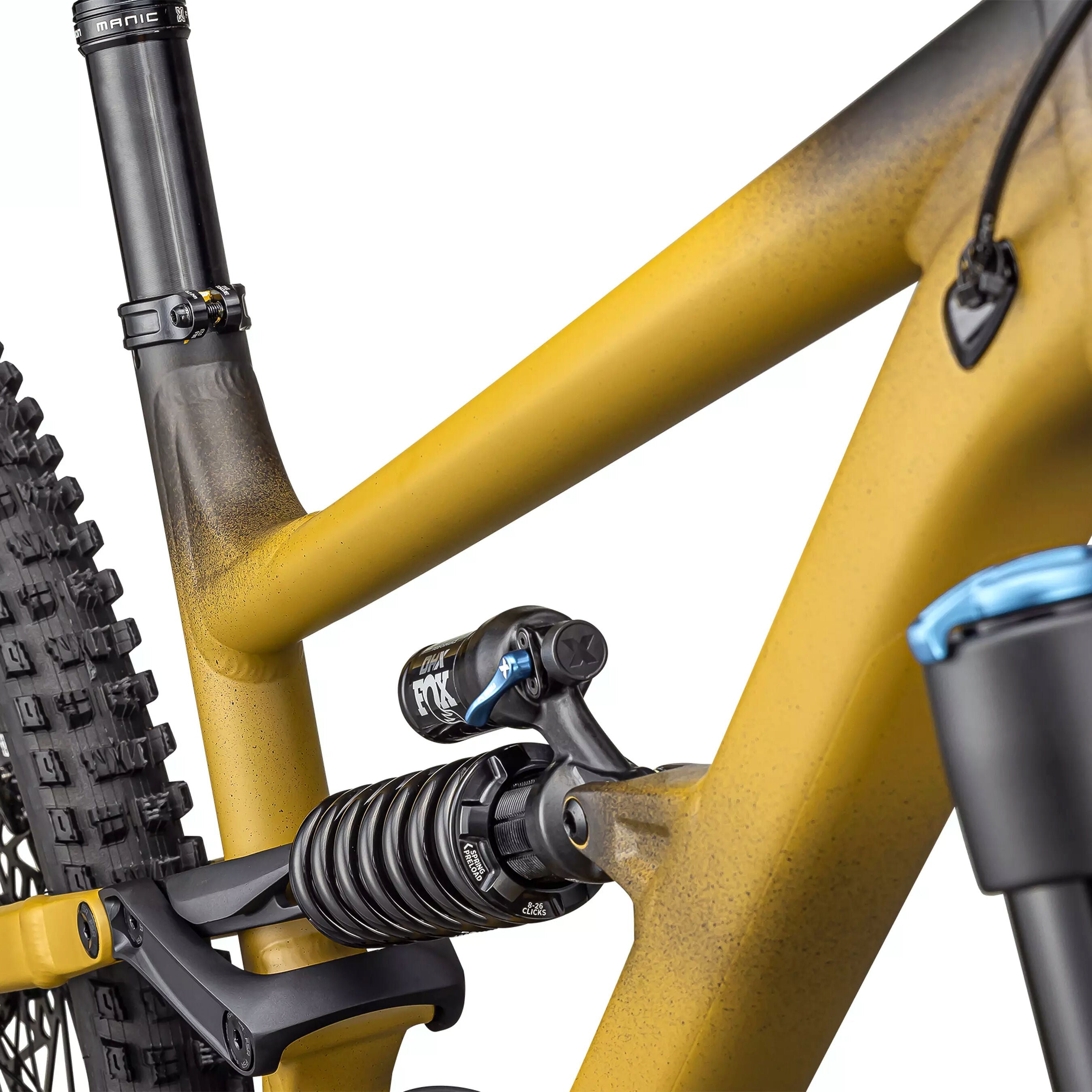

• Rear Shock: FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm
• Fork: FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel

Brakes

• Front Brake: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
• Rear Brake: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Drivetrain

• Shift Levers: Shimano Deore, M6100, I-Spec EV, 12 speed
• Rear Derailleur: Shimano Deore, M6100, 12pd, Shadow Plus
• Cassette: Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
• Chain: Shimano Deore M6100, 12spd
• Crankset: Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm

Wheels & Tires

• Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
• Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
• Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
• Spokes: DT Swiss Industry
• Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
• Inner Tubes: Standard, Presta valve

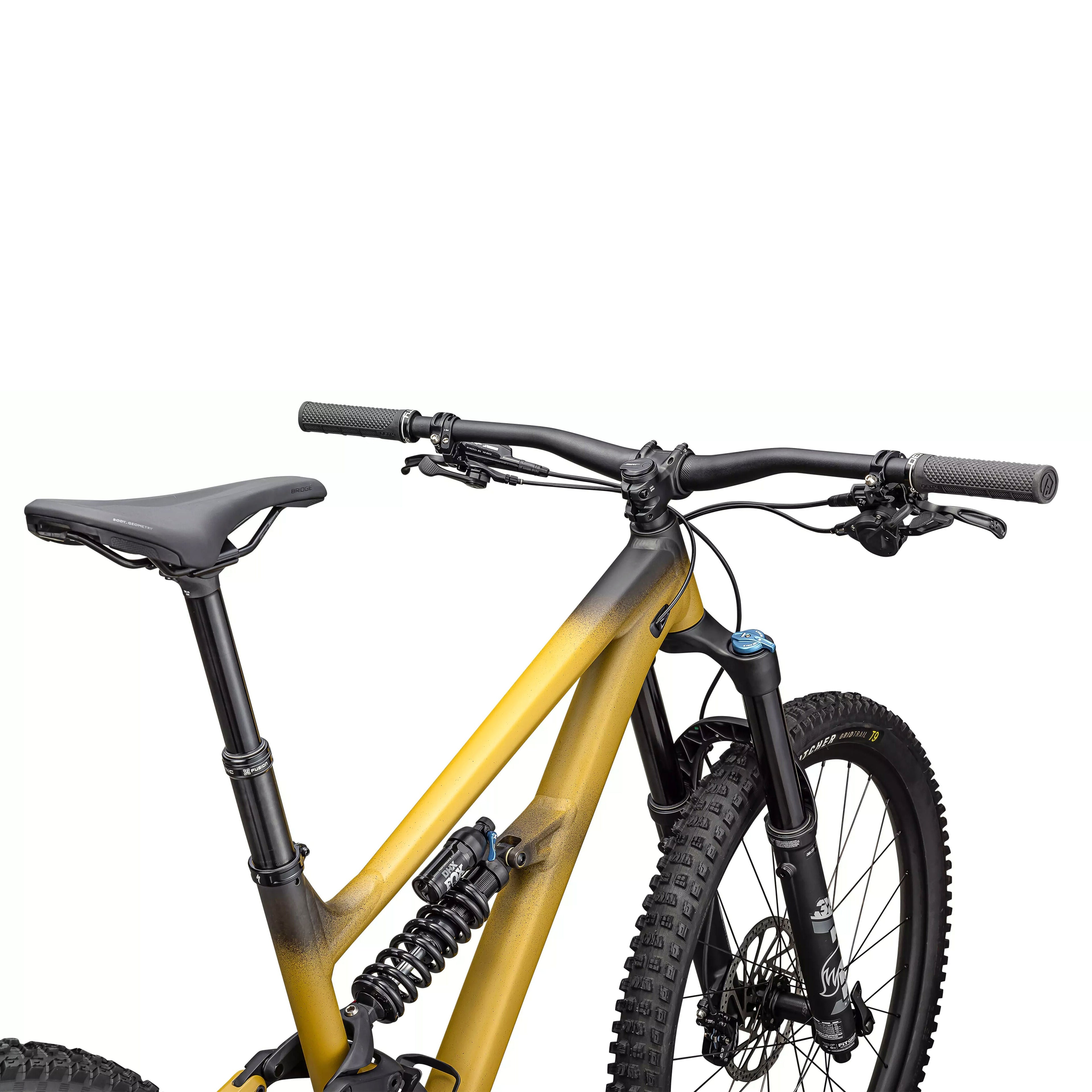

Cockpit

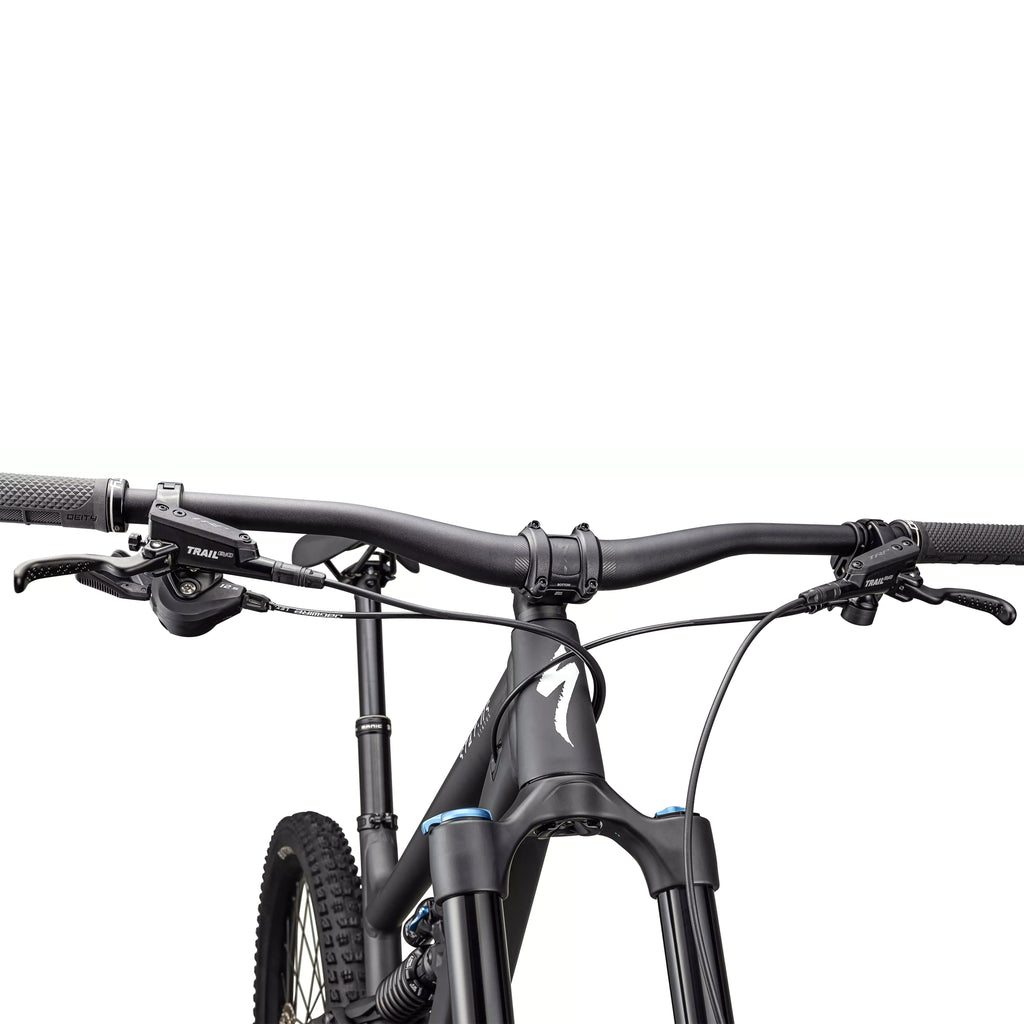

• Stem: Alloy Trail Stem, 35mm bar bore

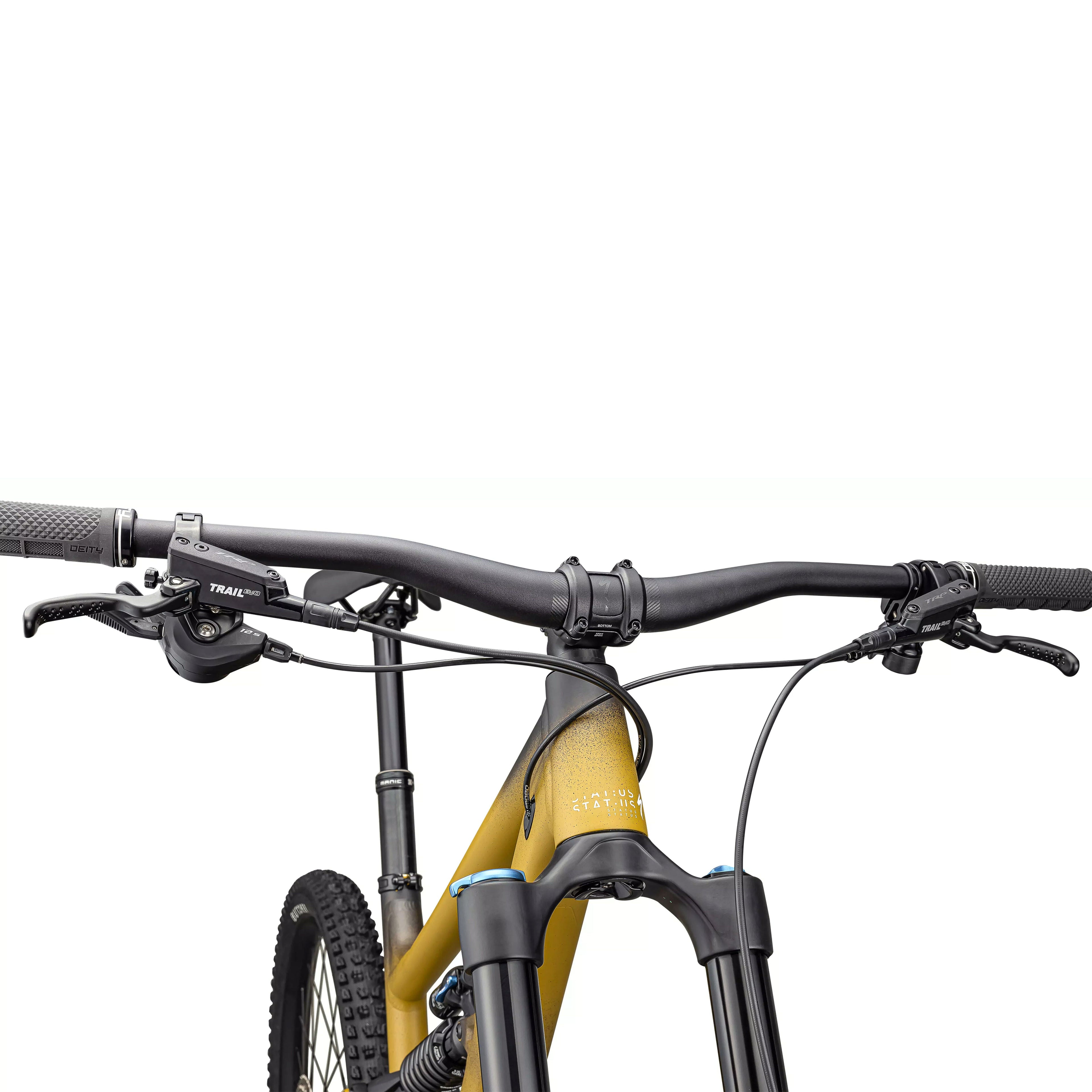

• Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
• Grips: Deity Knuckleduster
• Saddle: Bridge Comp, Hollow Cr-mo rails, 143mm
• SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm

Producer's weight: 17.28 kg

Producer's weight: Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
