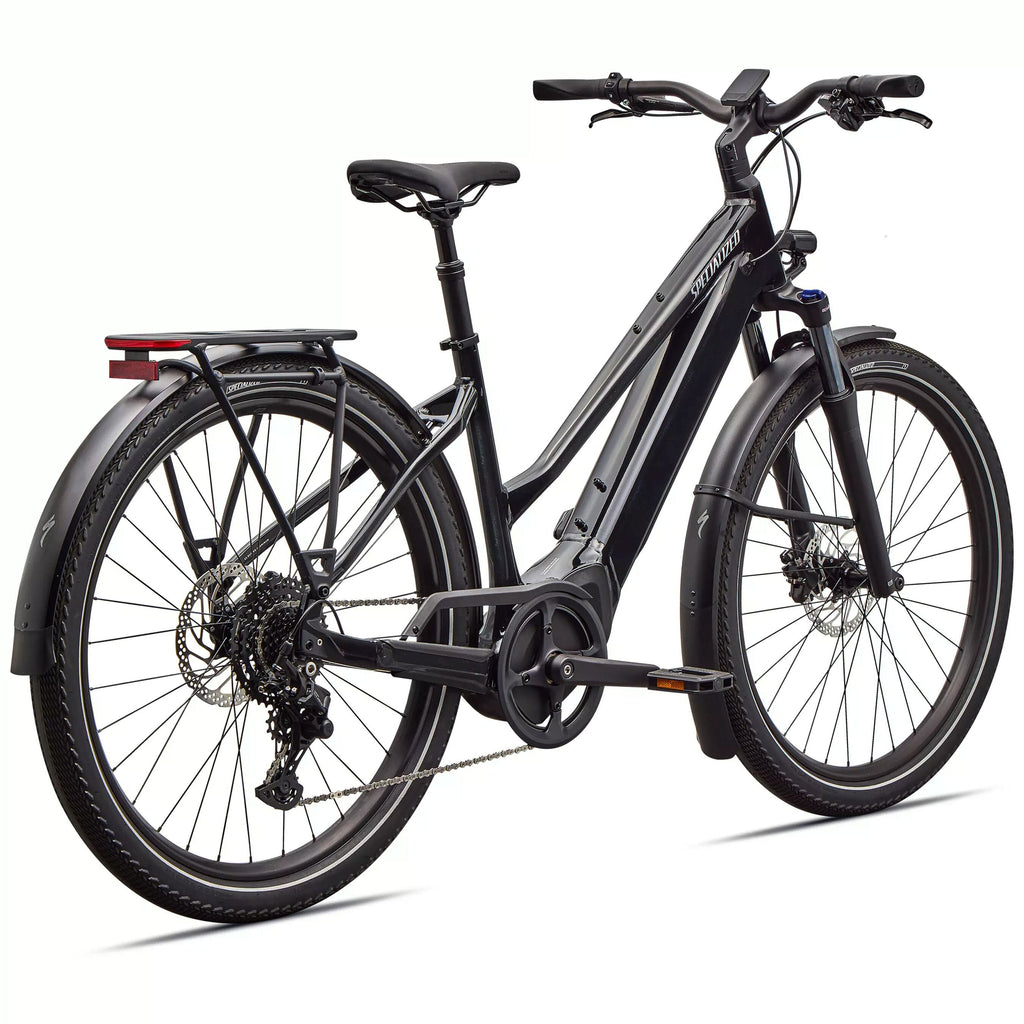

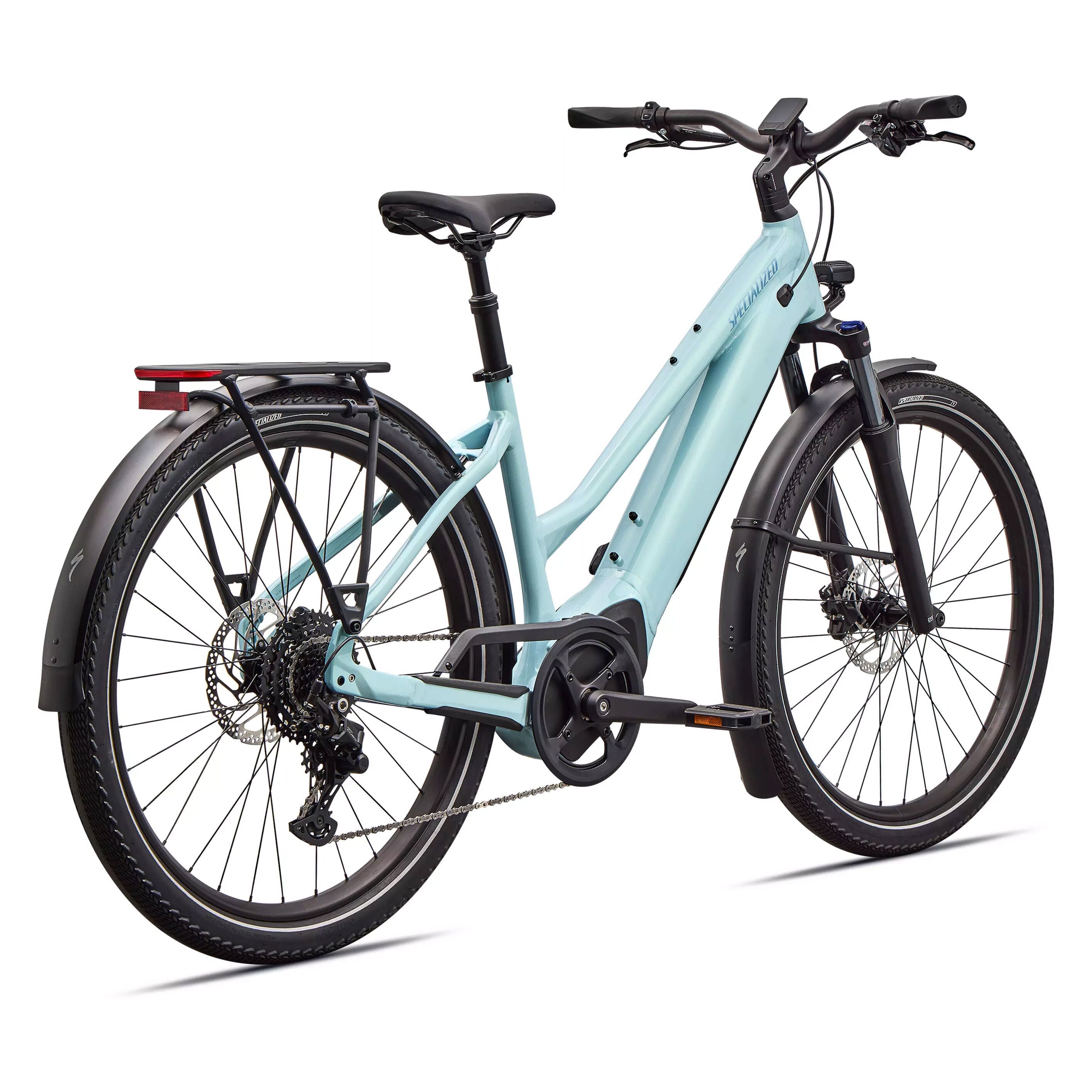

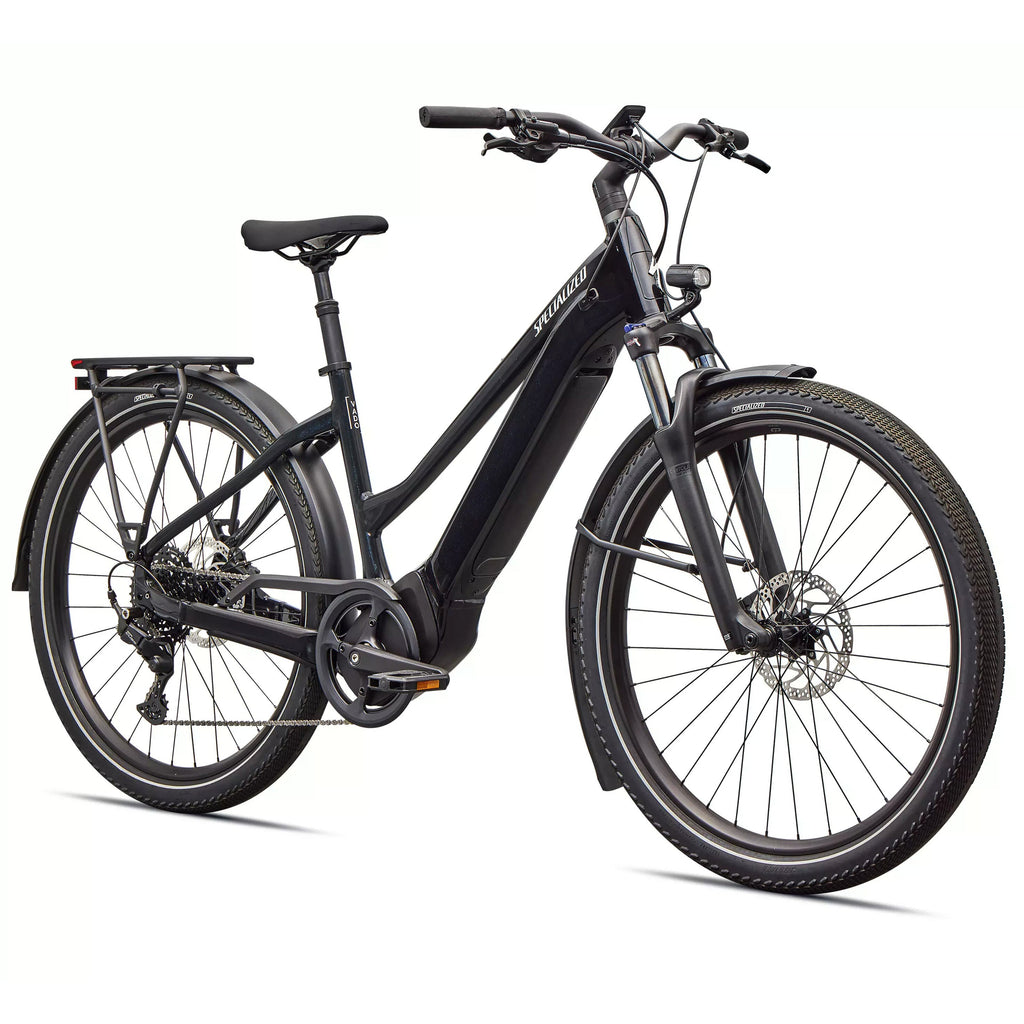

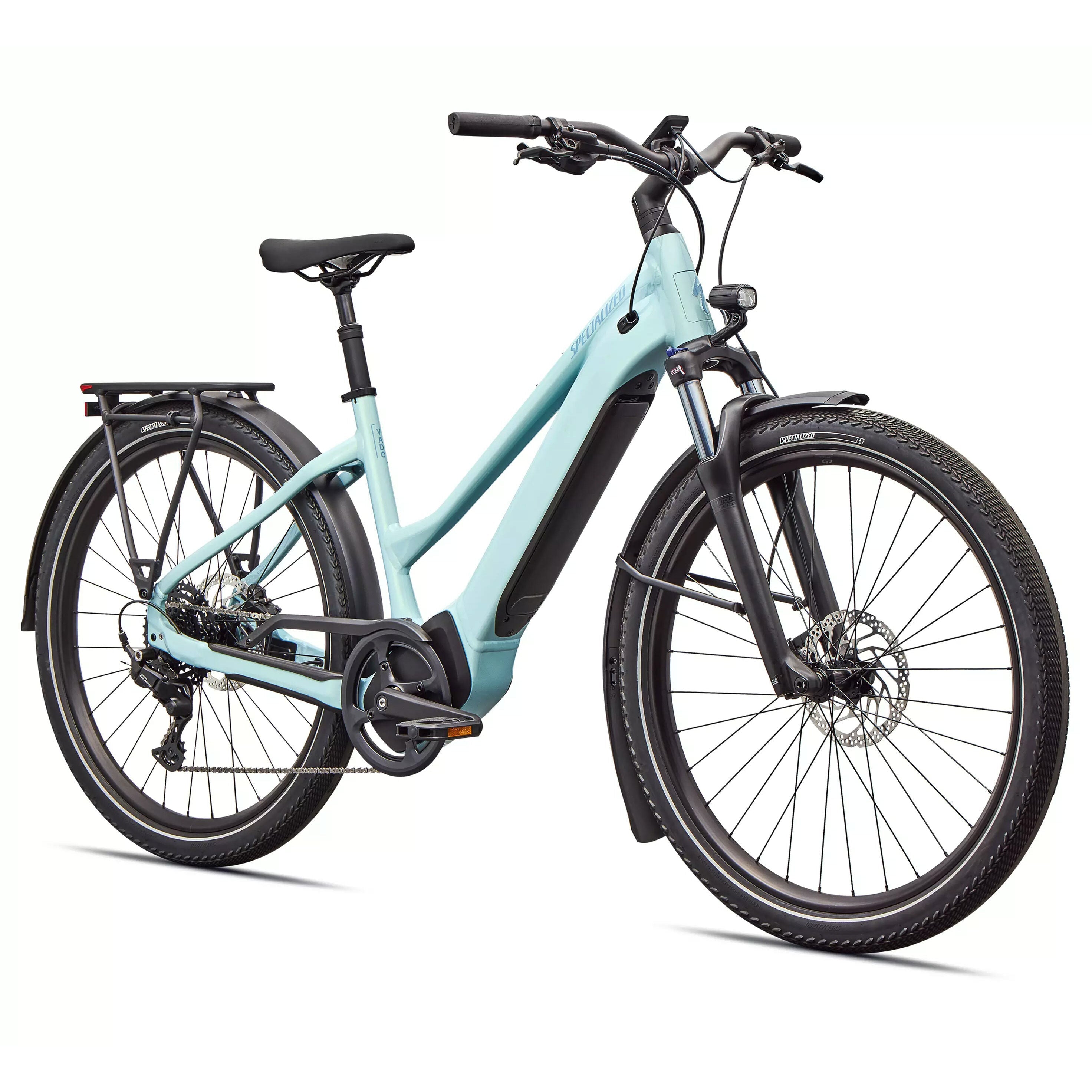

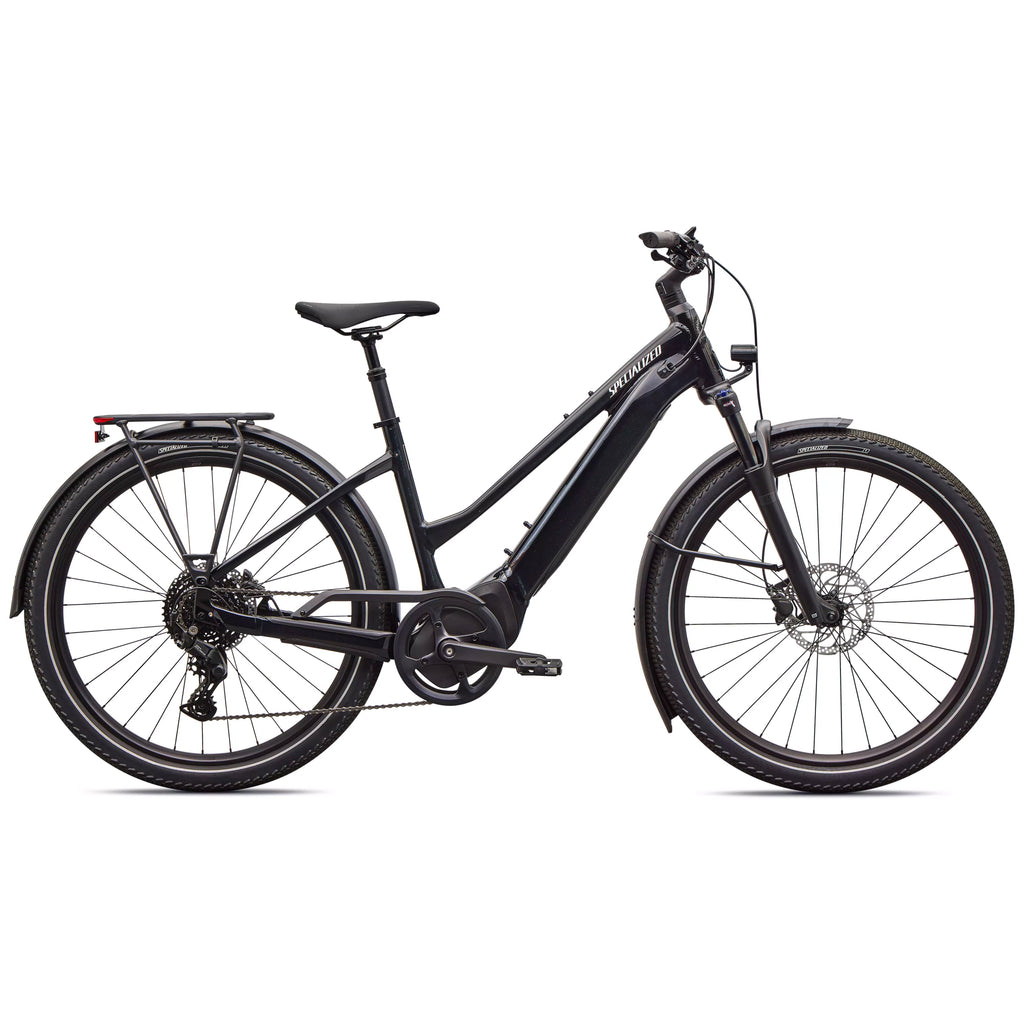

Specialized Turbo Vado 4.0 Step Through

The Turbo Vado is a fast, reliable and safe E-Bike that allows you to carry lots of things. Use it to go to work or to the gym; it will take you wherever you want to go in no time.

Turbo
Turbo technology is at the heart of the Vado. An advanced, integrated e-bike system that is powerful, provides natural pedalling assistance, has anti-theft features, a multifunctional display and a range of up to 150 km.

Powerful
It's you, only faster. The Turbo Full Power system amplifies your pedalling effort fourfold. Climbs will seem to disappear as if by magic.

Comfort and confidence
The riding position and handling ensure unparalleled comfort, perfect control and maximum confidence. Powerful disc brakes allow you to brake even when pedalling at speed, while wide tyres provide maximum traction when cornering. The 80mm travel suspension fork absorbs vibrations and small bumps.

Security
You can disable the motor so that no one can reactivate it without your phone with the Specialised App or your personal PIN. If someone tries to move your bike, an alarm will sound. For extra protection, lock the battery to the bike or take it with you.

Proven efficiency and smoothness
They have created a mechanism to analyse shocks even at the lowest frequencies in order to improve comfort and vision. This precision, combined with a telescopic seat post, high-volume tyres and an 80mm travel suspension fork, will smooth your ride.

Turbo System Lock
With the Specialized App, you can deactivate your bike's motor and activate the motion sensor with the alarm. Once locked, the motor cannot be started by anyone other than the owner.

Features

• The Turbo Full Power 2.0 motor with 710 Wh battery provides smooth and quiet assistance, amplifying your efforts up to 25 km/h.
• The system reacts to your input on the pedals, resulting in a very natural and intuitive feel.
• MasterMind and Specialised App - The MasterMind display shows all the data related to your ride, allowing you to adjust the assistance levels in real time.
• The MasterMind integrates seamlessly with the Specialised App, which provides tools for optimising range, fine-tuning, system diagnostics and more.
• The battery is fully integrated into the down tube, is lockable and removable, making it easy to charge.
• Supplied complete with DRYTECH mudguards, front and rear LED lights and HD rear rack with 27kg capacity, compatible with child seats.
• Trailers with thru-axles can be used.
• Range of 145 km or 6.5 hours on a single charge in eco mode.

Tech Specs

Electronics

• Motor: Specialized 2.0, torque 70 Nm, custom motor, 250 W nominal
• Battery: Specialized U2-710, integrated battery, charge status indicator, 710 Wh, UL
• User interface/remote control: MasterMind TCD, with handlebar remote control, integrated anti-theft function, Bluetooth® connectivity, customisable display pages

E-bike

• Charger: custom charger, 42V4A with Rosenberger plug, 100-240V
• Electronic wiring: custom wiring

Frame

• Frame: E5 aluminium, mid-drive motor, fully integrated and lockable battery in down tube, internal cable routing, wheel lock mount and compatible with front rack
• Handlebar stem: alloy, bolt-on type, 34.9 mm
• Fork: SR Suntour MobieA32, 80 mm travel, lockout, mudguard mounts, integrated light mount

Brakes

• Front brake: Shimano BR-MT200, hydraulic disc, 180 mm
• Rear brake: Shimano BR-MT200, hydraulic disc, 180 mm

Drivetrain

• Shifters: Shimano, SL-U4000-9R, CUES, right, 9-speed Rapidfire, with optical gear display
• Rear derailleur: Shimano, RD-U4000, CUES, Gs 9-speed, Top Normal, Shadow Design, direct mount
• Cassette: Shimano, CS-LG300-9, CUES, 9-speed, 11-41T
• Chain: Shimano LG500
• Crankset: Custom alloy forged cranks
• Chain guard: Specialized chain guard

Wheels

• Rims: 650b disc, double-walled alloy, fixed with pins, 32h
• Front hub: Shimano Centre Lock Disc 32H, 15mm thru-axle, 100mm
• Rear hub: Shimano Freehub, Centre Lock Disc, 8-11 speed, 12 mm thru-axle, 32H, 148 mm
• Spokes: DT Swiss Elemental
• Front tyre: Pathfinder Sport Reflect, 650Bx2.3
• Rear tyre: Pathfinder Sport Reflect, 650Bx2.3
• Inner tubes: Standard 40mm SV 650Bx1.75-2.4

Cockpit

• Stem: Specialised Flowset, 3D forged alloy, 20-degree rise, 31.8mm clamp
• Handlebar: Specialized, alloy, 15-degree rearward rake, 46mm rise, 31.8mm
• Saddle: Bridge Sport, steel rails, 155mm
• Seatpost: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
• Grips: Specialized Body Geometry

Accessories

• Pedals: Specialized Commuter with anti-slip tape and reflectors
• Front light: Lezyne, Ebike Mini Stvzo E300+, 300 lumens, 160 cm cable, with reflector
• Rear light: Spanninga, Stvzo, Commuter Glow With Brake XEr
• Rack: Specialised rack, MIK HD interface, integrated pannier mounts, maximum load 27 kg
• Lock: Turbo System Lock
• Mudguards: Specialised DRYTECH mudguards, width 65 mm, aluminium mudguard mounts
• Kickstand: Specialised kickstand, 40 mm attachment
• Bell: Simple bell

Weight

• Manufacturer's weight: 26.85 kg (59 lb, 3.1 oz)
• Weight measurement: MD

Manufacturer's note: Weights based on painted production frames as shown. Actual weights will vary depending on colour, frame size and component variation. Specifications are subject to change without notice.
