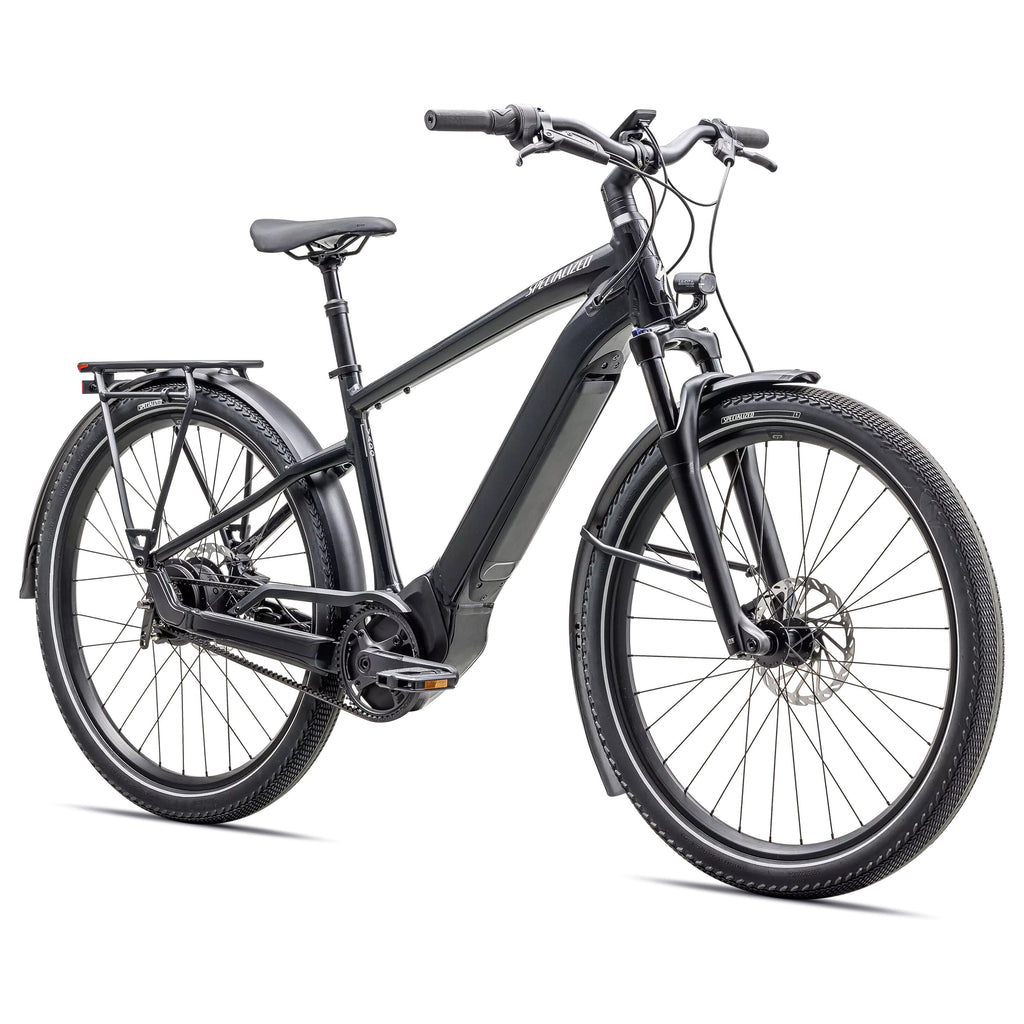

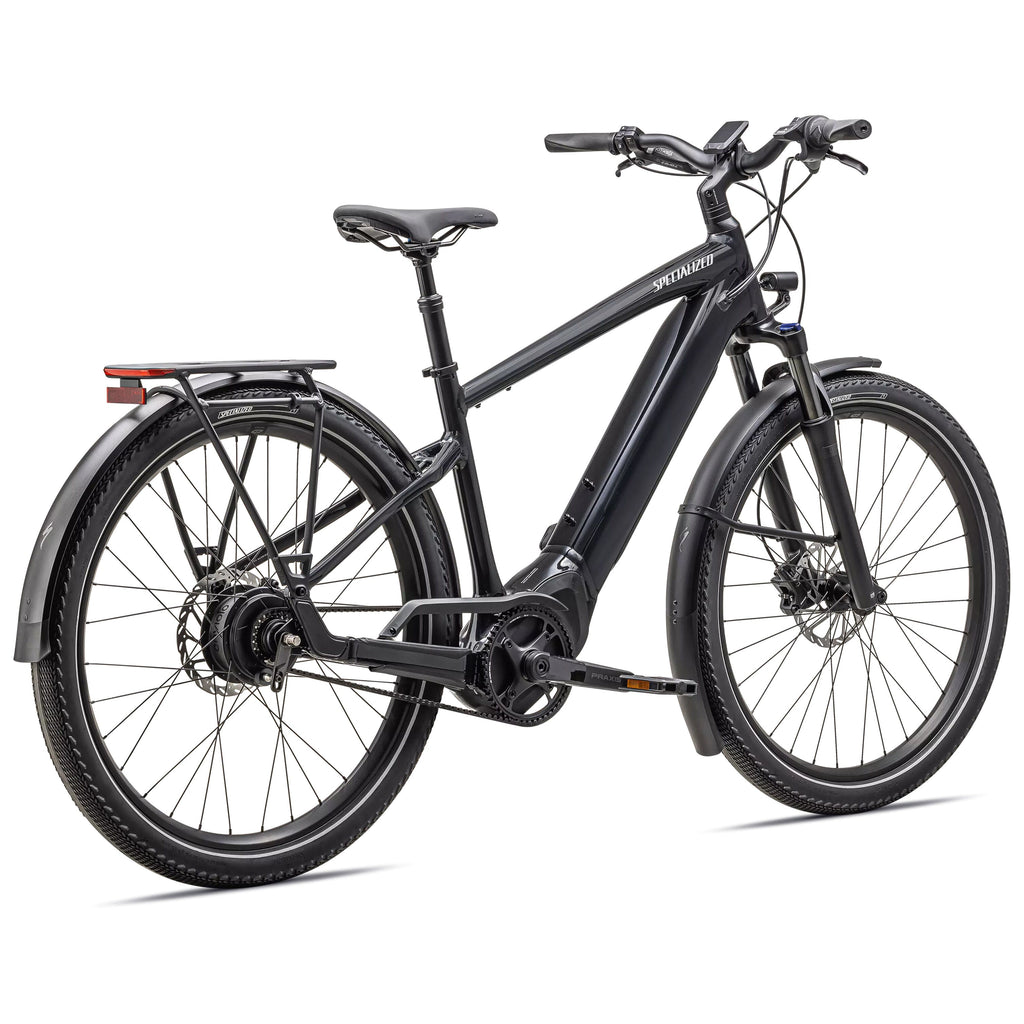

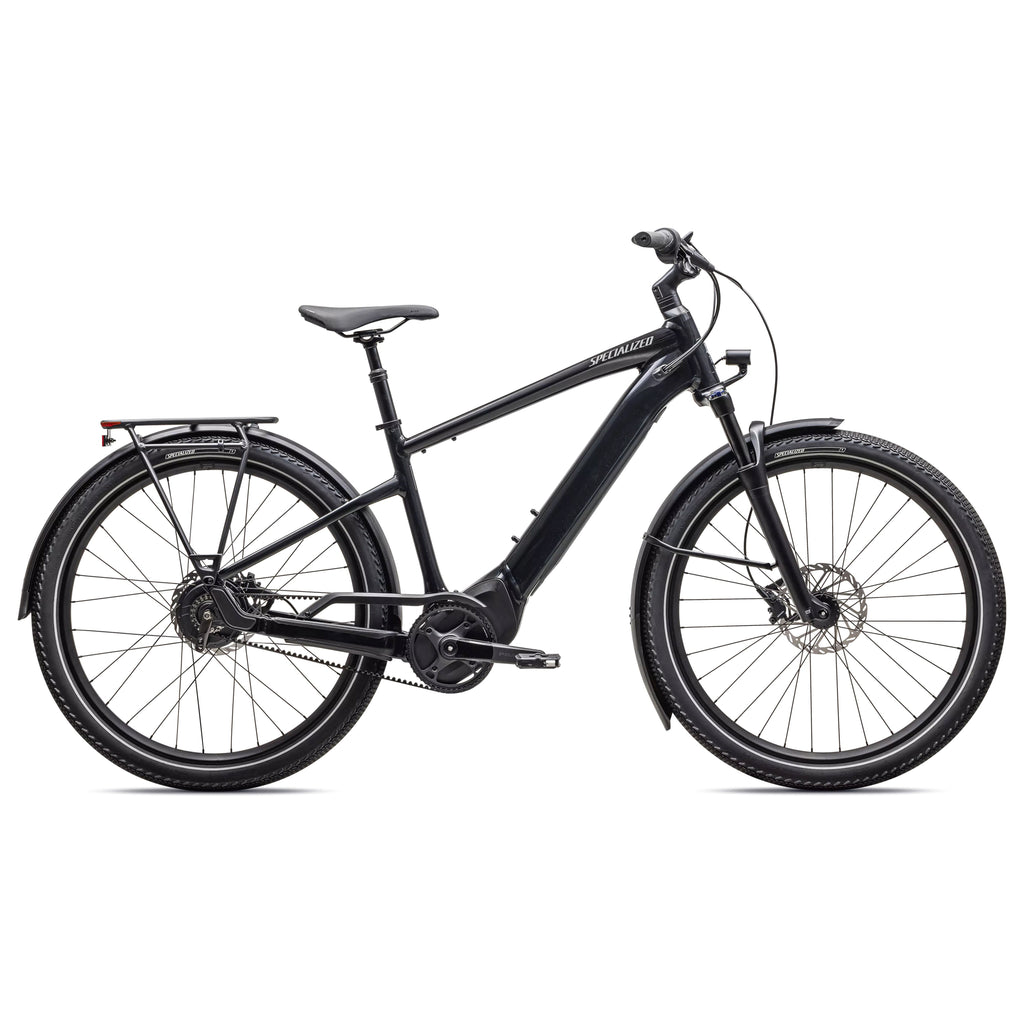

Specialized Turbo Vado SL 4.0 IGH

The Turbo Vado is a fast, reliable and safe E-Bike that allows you to transport many things. Use it to go to work, to go to the gym, it will get you where you want to go in no time. The speed at which the motor stops the assistance may vary depending on the country, as per local legislation. This can affect the range: a higher speed limit will result in a shorter range.

Turbo
Turbo technology is at the heart of the Vado. An advanced, integrated E-bikes system that is powerful, provides natural pedalling assistance, has anti-theft functions, and a multifunctional display.

Powerful
It's you, only faster. The Turbo Full Power system amplifies the effort exerted on the pedals by a factor of four. Climbs will level out as if by magic.

Comfort and confidence
The saddle position and handling guarantee unparalleled comfort, perfect control and maximum confidence. Powerful disc brakes allow you to brake even when pedalling at speed, while wide-section tyres provide maximum traction when cornering. The suspension fork with 80 mm travel absorbs vibrations and minor shocks.

Safety
You can disable the motor operation so that no one can reactivate it without your phone with the Specialized App or your personal pin. If someone tries to move your bike, an alarm will go off. For careful protection, lock the battery in the bike or take it with you.

Features

• The Turbo Full Power 2.0 motor and 710 Wh battery provide smooth and quiet assistance, amplifying your efforts up to 25 km/hour. The system reacts to your input on the pedals and the result is a very natural and intuitive feel.
• MasterMind and Specialized App - The MasterMind display shows all the data relating to your ride, allowing you to adjust your assistance levels in real time. The MasterMind integrates seamlessly with the Specialized App, which provides tools for range optimisation, fine tuning, system diagnostics and more.
• The Enviolo City Internal Gear Hub (IGH) is a dedicated internal gear hub with matching controller. The stepless manual technology is as simple as adjusting the volume of a radio. This allows cyclists to concentrate on the important aspects of a bike ride, such as traffic or the view.
• Proven efficiency and smoothness - We have created a mechanism for analysing shocks even at the lowest frequencies to improve comfort and vision. This precision, combined with a telescopic seatpost, high air volume tyres and a suspension fork with 80mm travel, will pave the way.
• Turbo System Lock - With the Specialized App you can disable the motor of your bike and activate the motion sensor with the alarm. Once locked, the motor cannot be started by anyone other than the owner.
• The battery is fully integrated in the down tube and is lockable and removable, making it easy to charge.
• Supplied complete with DRYTECH mudguards, front and rear LED lights and HD rear rack with 27kg load capacity, compatible with child seats. Towing trolleys with through-axle can be used.
• Autonomy 100 km or 4.5 hours on a single charge, in eco mode.

Tech Specs

Electronics

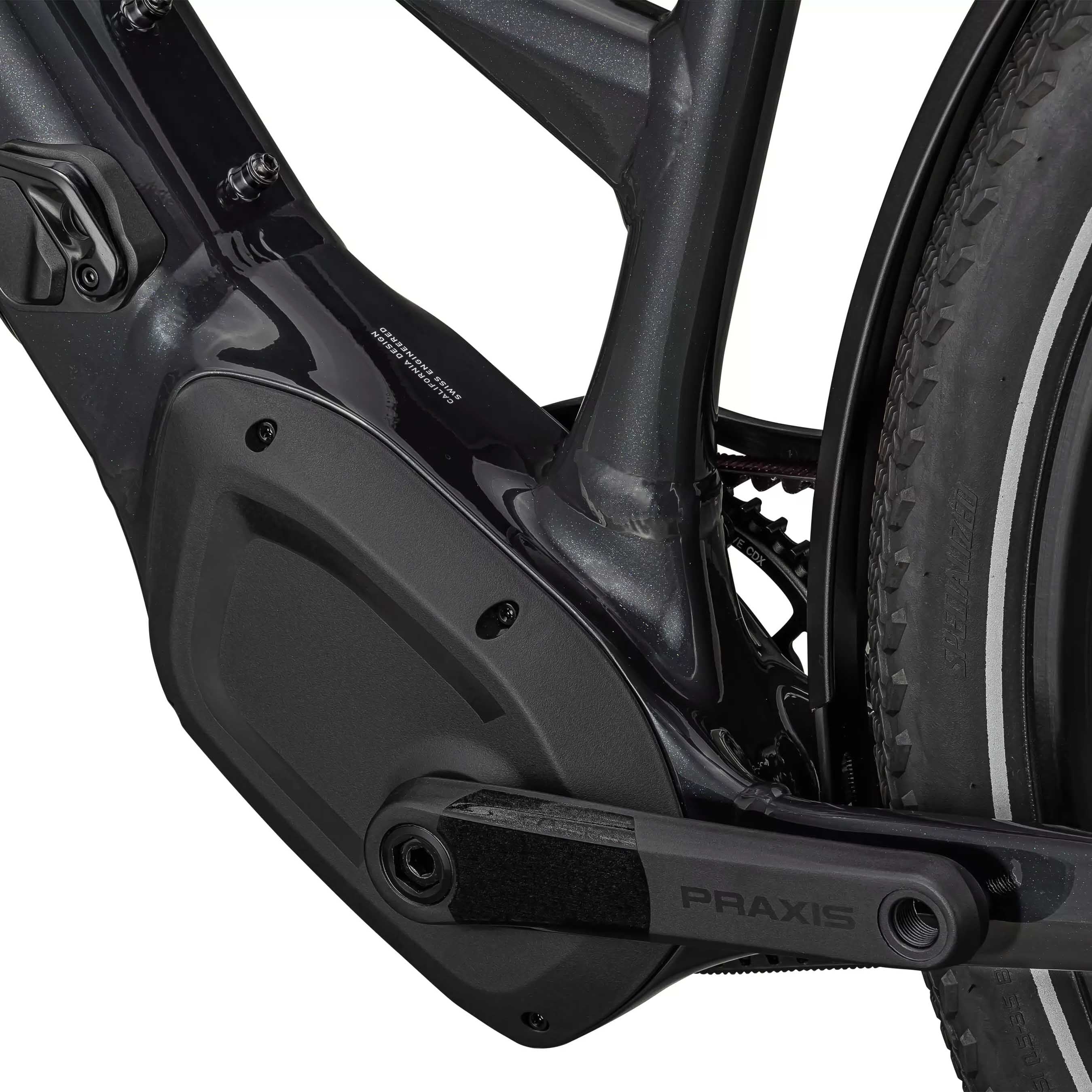

• Motor: Specialized 2.0, torque 70Nm, custom motor, 250W nominal
• User interface/remote control: MasterMind TCD, with handlebar remote control, built-in anti-theft device, Bluetooth® connectivity, customisable display pages

E-Bike

• Battery: Specialized U2-710, alloy casing, charge status display, 710Wh
• Charger: Custom charger, 42V4A with Rosenberger plug, 100-240V
• Wiring: Customised wiring

Chassis

• Frame: Aluminium E5, motor mount with bottom bracket, fully integrated and lockable downtube battery, internal cable routing, lock and rack front mounting, sliding dropout
• Fork: SR Suntour MobieA32, 80 mm travel, lockout, mudguard mounts, integrated light mount
• Saddle clamp: Alloy, bolt type, 34.9 mm

Brakes

• Brakes, front: SRAM Level, 2-piston caliper, hydraulic disc, 180 mm
• Brakes, rear: SRAM Level, 2-piston caliper, hydraulic disc, 180 mm

Transmission

• Rear derailleur: enviolo CVP Multi-Turn
• Shifting controls: enviolo Twist Display Pure
• Sprocket set: Gates Carbon Drive CDX 22t sprocket, silver
• Chain: Gates Carbon Drive CDX 122t chainring, black
• Crankset: Custom alloy forged crankset, 170 mm
• Chainrings: Gates Carbon Drive CDX 50T chainring, black
• Crankcase: Customised chain cover

Wheels

• Rims: 650b disc, double-wall alloy, with studs, 32h
• Front hub: Specialized alloy front disc, sealed bearings, 6 bolts, 15x110mm thru axle, 32h
• Rear hub: Trekking stud, 380% travel, 6 bolts, 10x135mm, 32h
• Spokes: DT Swiss Industry
• Front tyre: Pathfinder Sport Reflect

Cockpit

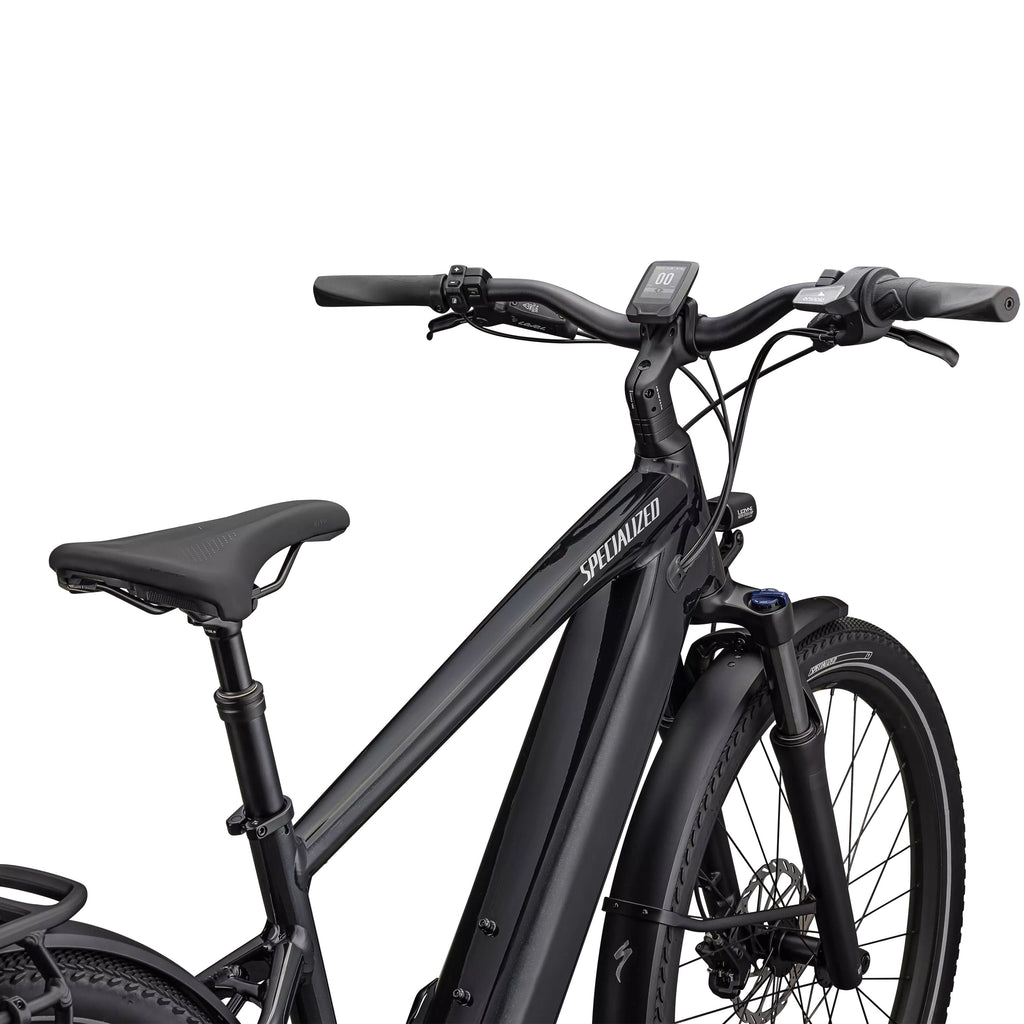

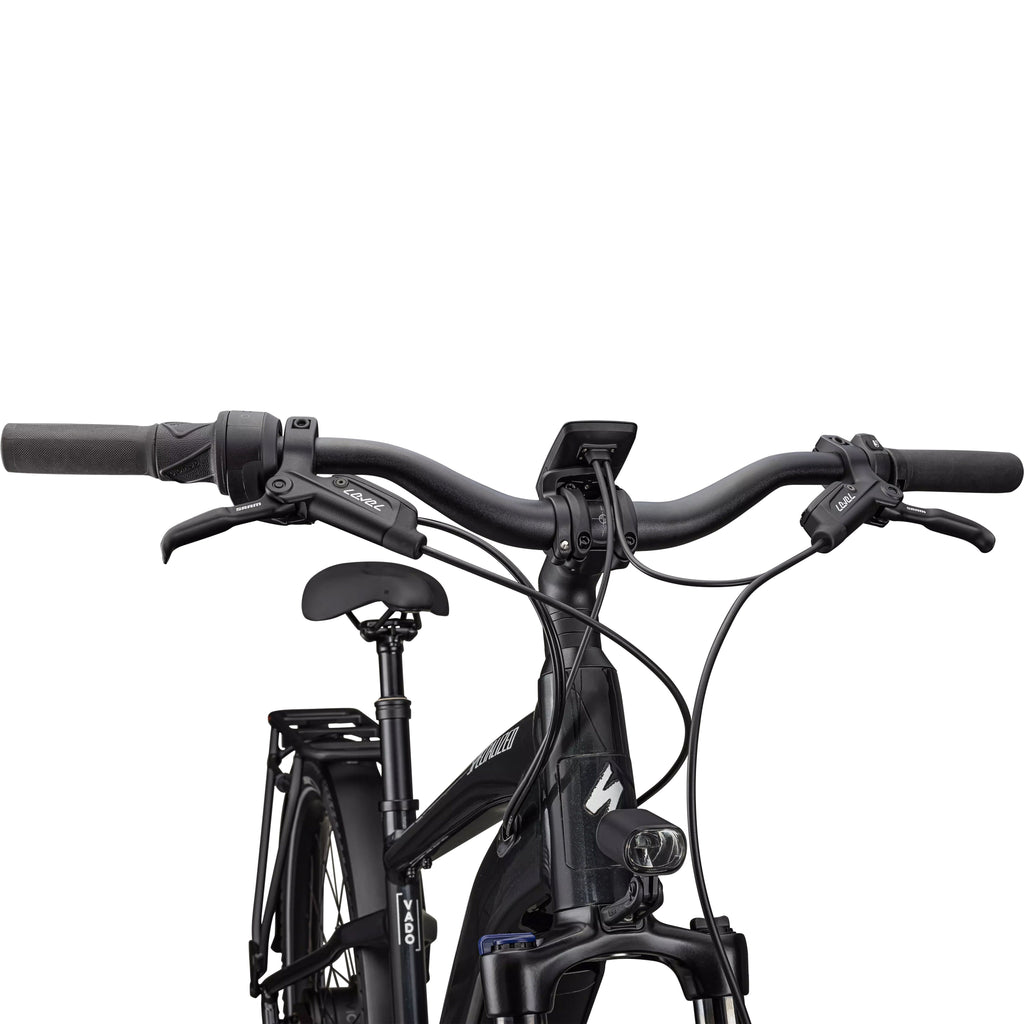

• Handlebar stem: Specialized Flowset, 3D forged alloy, 20 degree rise, 31.8 mm clamp
• Handlebar: Specialized, alloy, 15 degrees rearward tilt, 46 mm travel, 31.8 mm
• Grips: Specialized Body Geometry Contour, lock-on
• Saddle: Bridge Sport, steel rails, 155 mm
• Seatpost: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm s

Accessories

• Pedals: Specialized Commuter with tape and reflectors
• SWAT accessories: Handlebar mirror, aluminium
• Front Light: Lezyne, Ebike Hecto Stvzo E350+, 350 Lumen, 160Cm Wire, With Reflector
• Rear light: Spanninga, Stvzo, Commuter Glow With XEr Brake
• Kickstand: Specialized kickstand, 40 mm mount

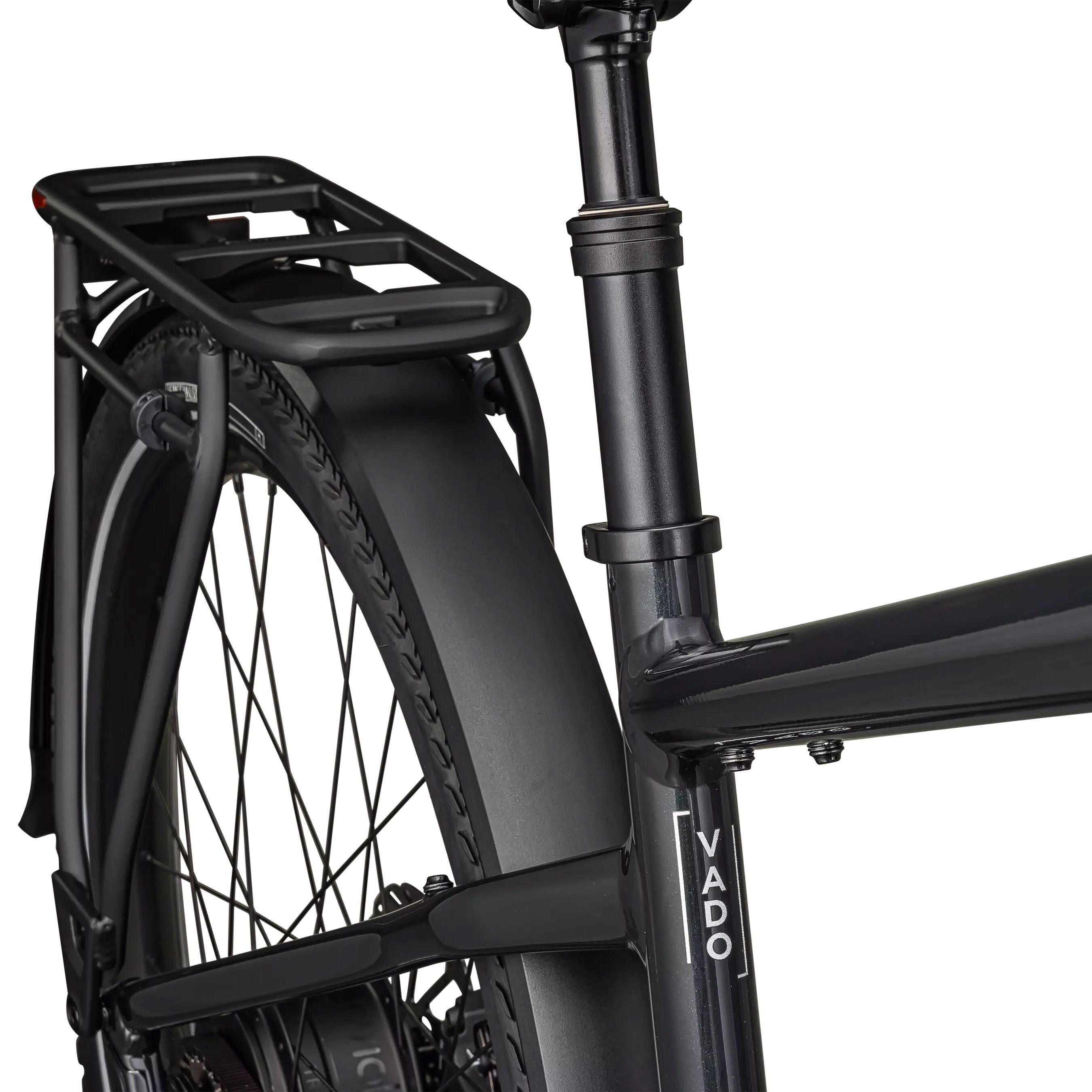

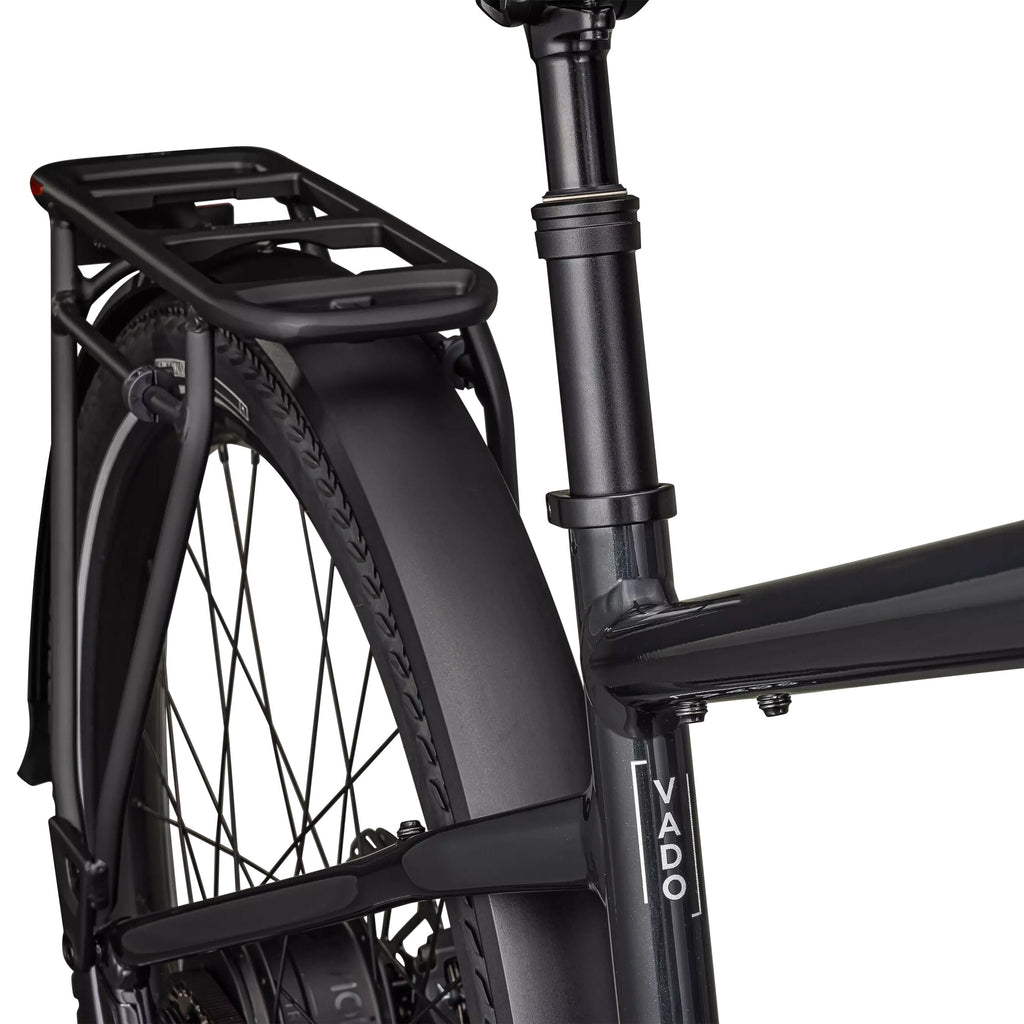

• Luggage rack: Specialized luggage rack, MIK HD interface, integrated pannier attachments, 27 kg maximum load capacity
• Mudguards: Specialized DRYTECH mudguards, 65 mm wide, aluminium mudguards
• Padlock: Turbo Locking System
• Bell: Specialized bell

Weight

• Manufacturer's weight: 28.25 kg (62 lb, 4.5 oz)
• Weighed measurement: MD

Manufacturer's notes: Due to component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
