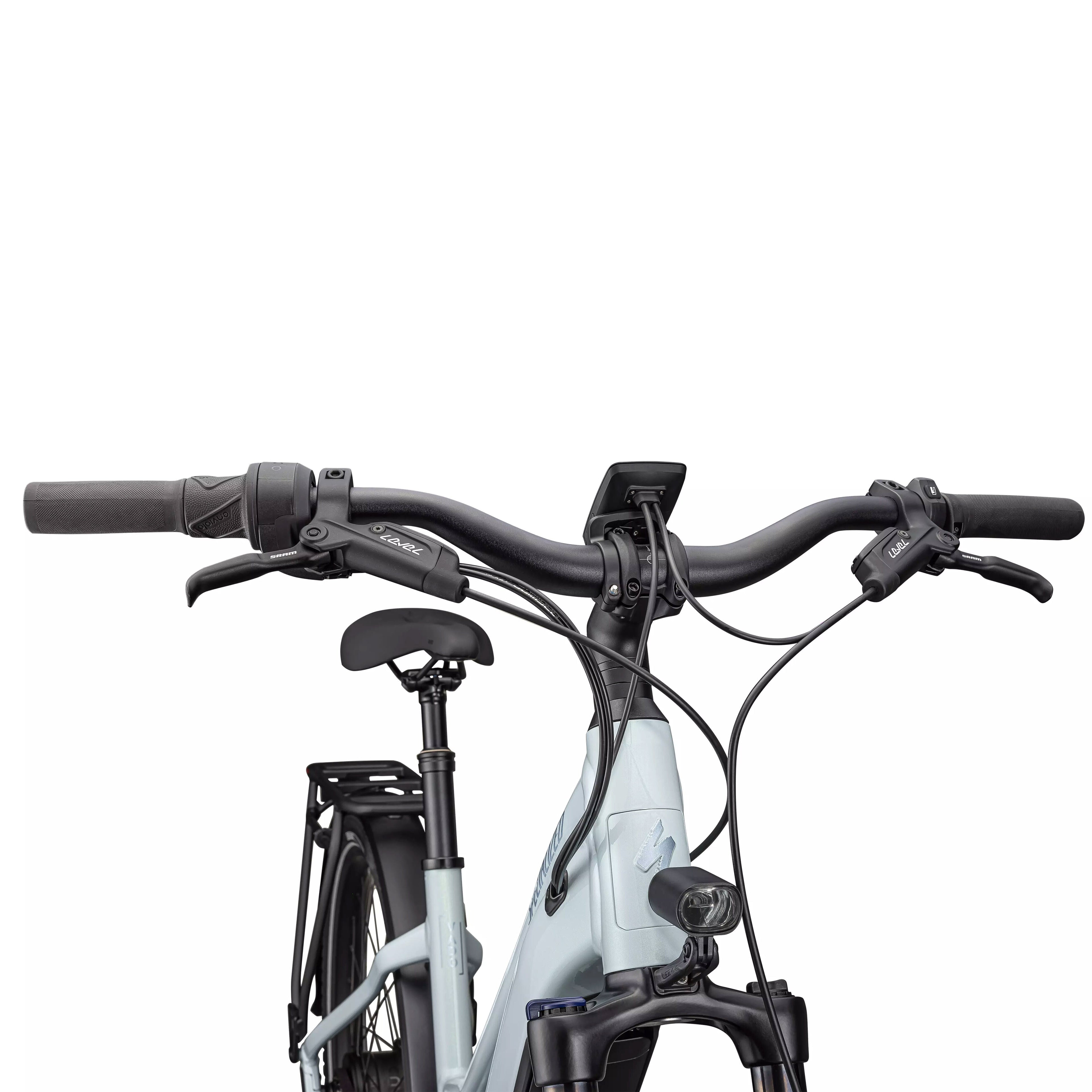

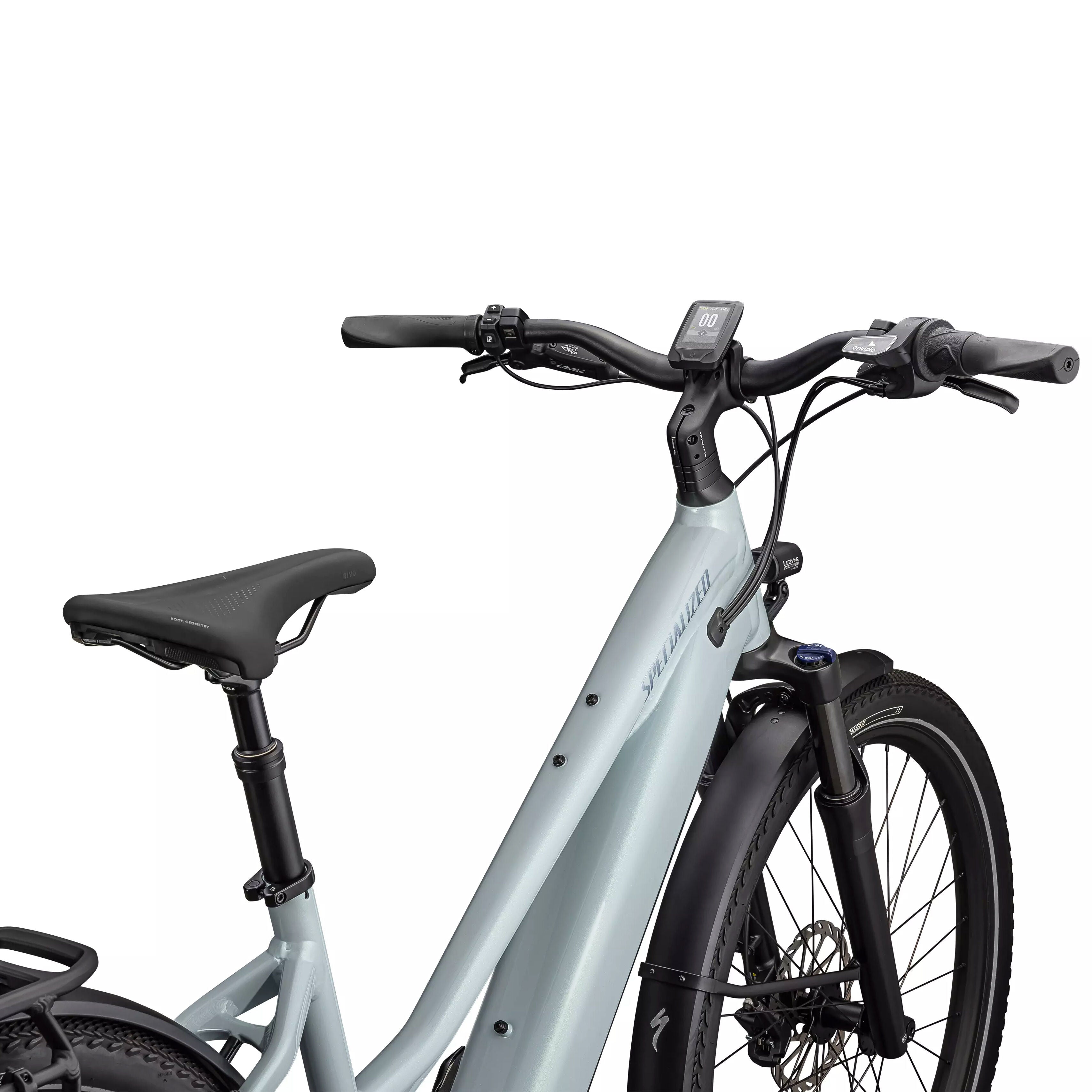

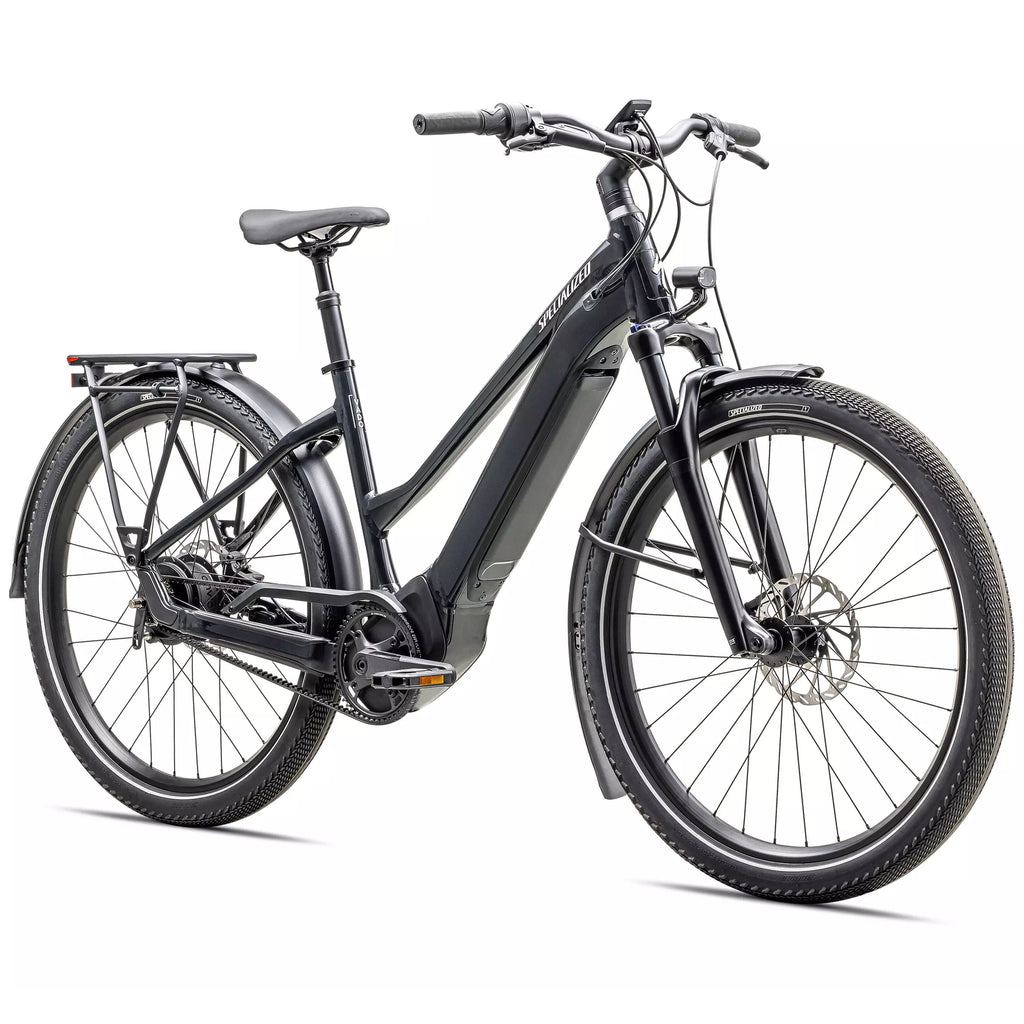

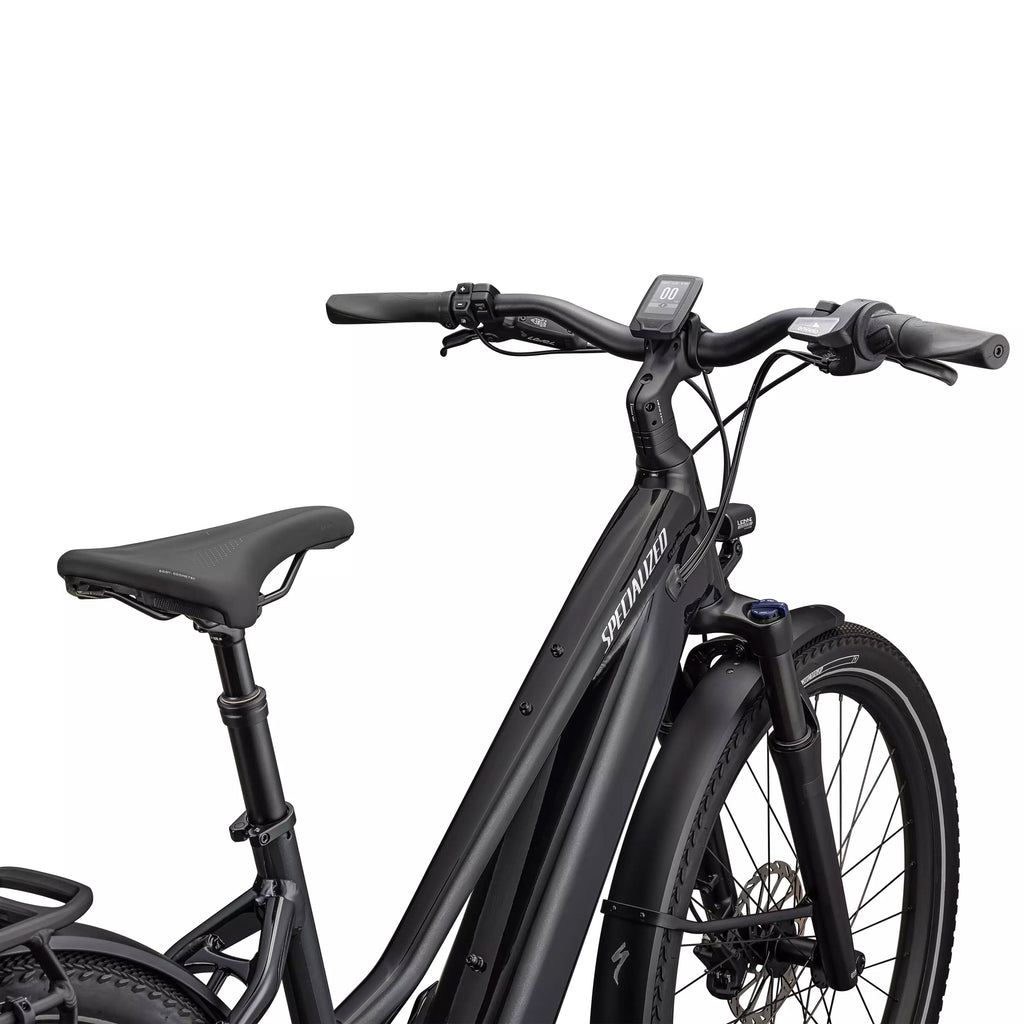

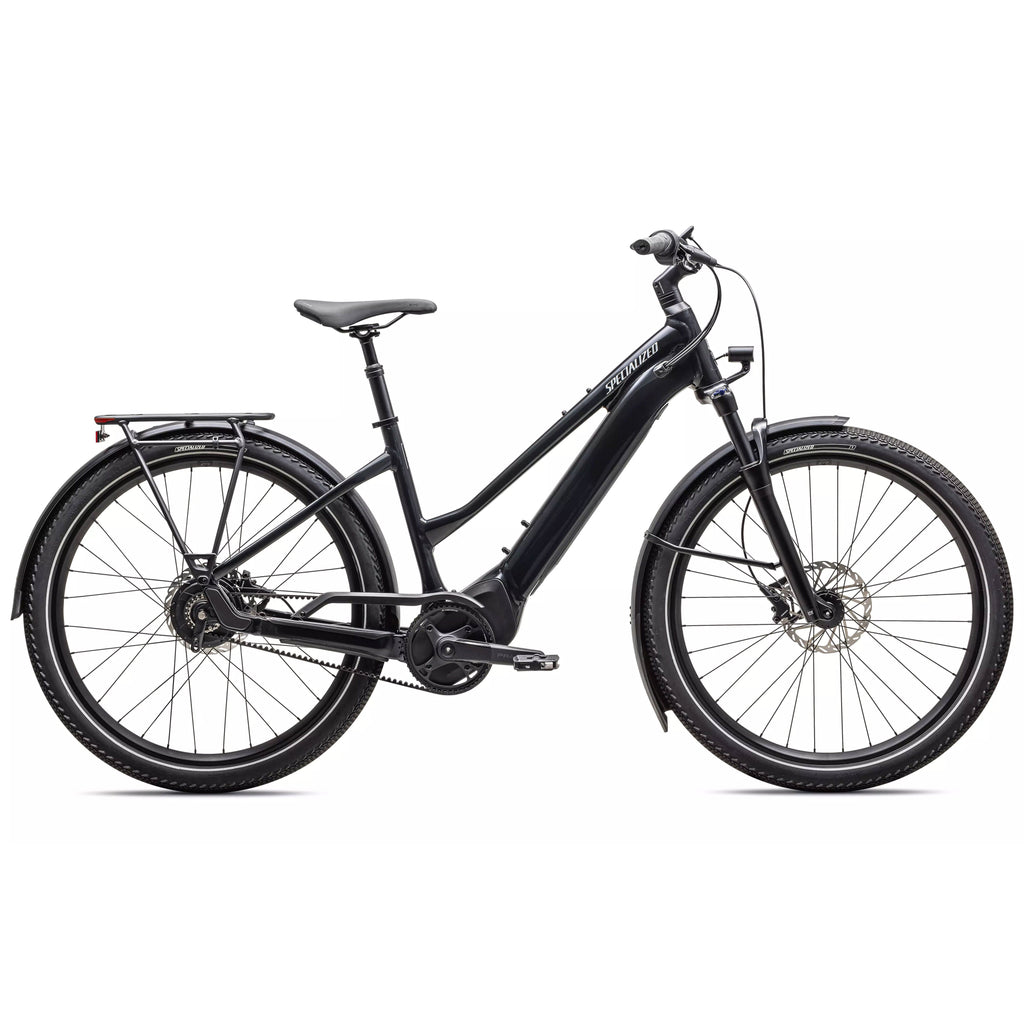

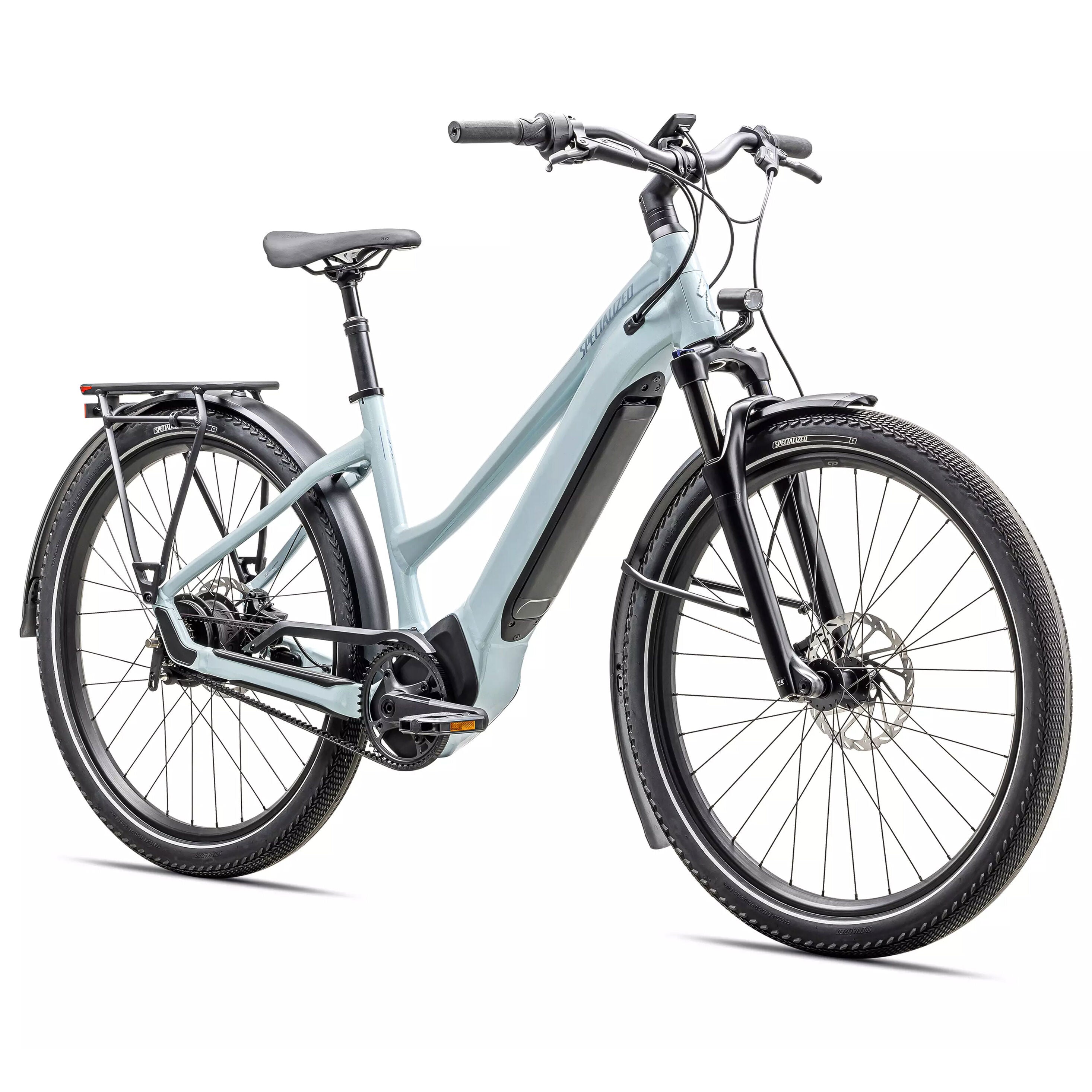

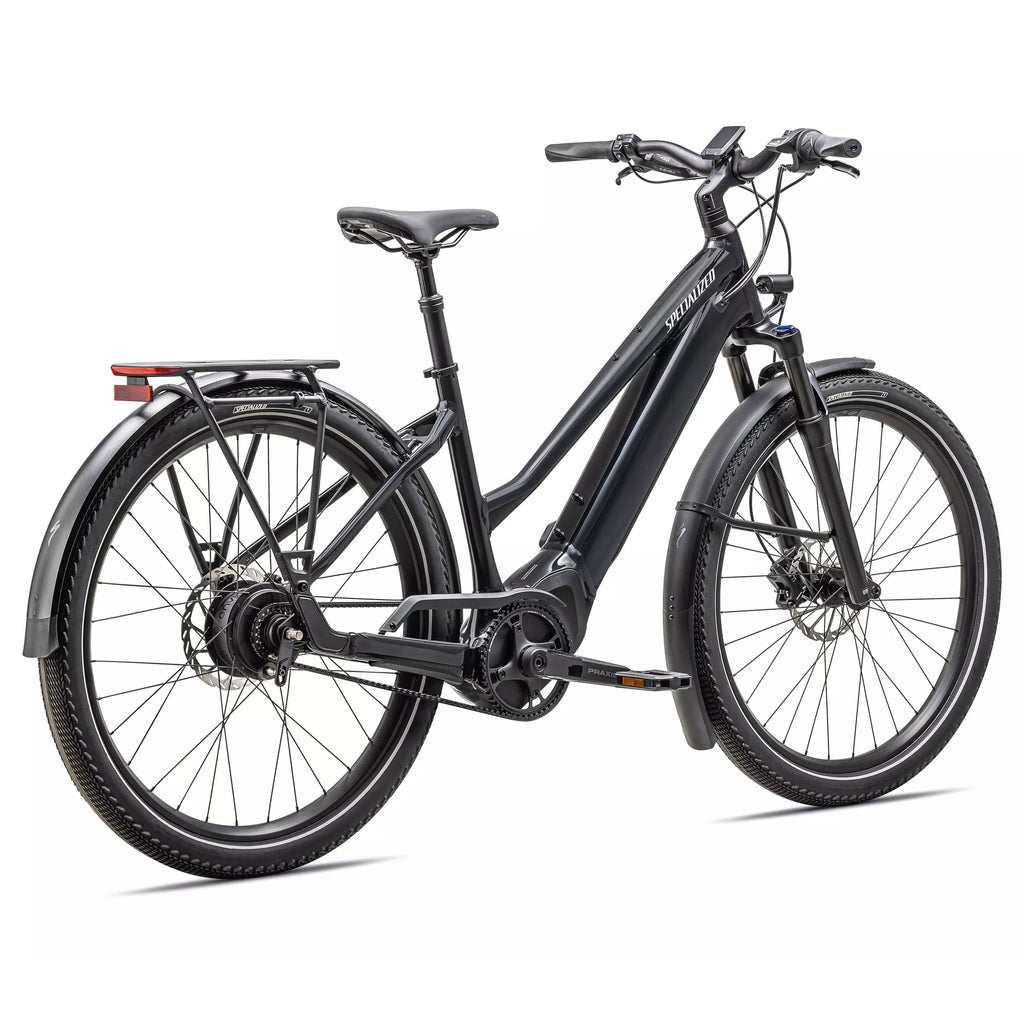

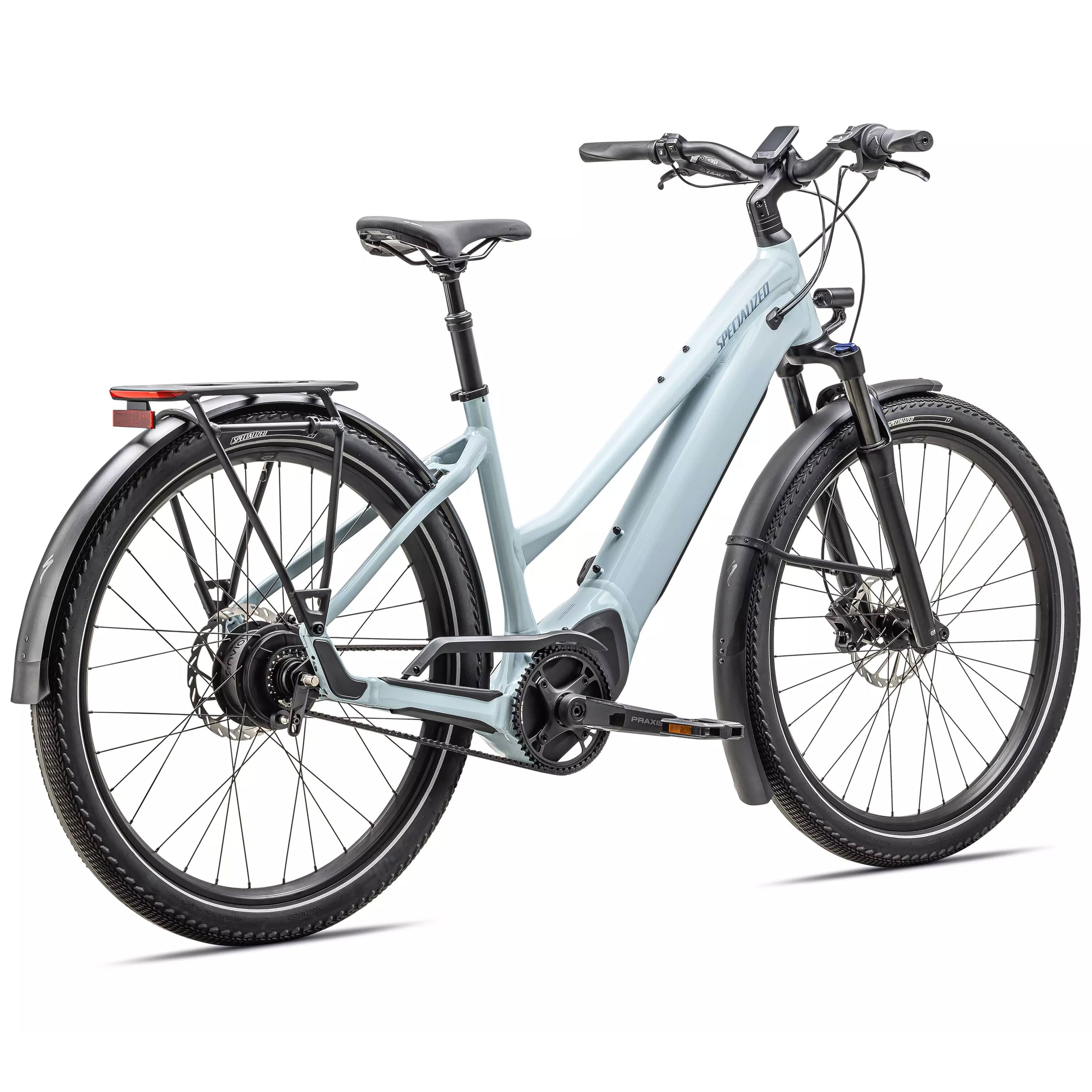

Specialized Turbo Vado SL 4.0 IGH Step-Through

The Turbo Vado is a fast, reliable and safe E-Bike that allows you to carry many things. Use it to go to work, to go to the gym, it will get you where you want to go in no time. The speed at which the motor cuts off assistance may vary by country, as per local legislation. This can affect the range: a higher speed limit will result in a shorter range.

Turbo
Turbo technology is at the heart of the Vado. An advanced, integrated E-bikes system that is powerful, provides natural pedaling assistance, has anti-theft functions, and a multifunctional display.

Powerful
It's you, only faster. The Turbo Full Power system amplifies the effort expressed on the pedals by four times. Climbs will level out like magic.

Comfort and Confidence
The saddle position and handling provide unparalleled comfort, perfect control and maximum confidence. Powerful disc brakes allow you to brake even when pedaling at speed, while wide-section tires provide maximum traction in corners. The shock-absorbing fork with 80mm travel absorbs vibrations and small bumps.

Safety
You can disable motor operation so no one can reactivate it without your phone with the Specialized App or your personal pin. If someone tries to move your bike, an alarm will go off. For careful protection, lock the battery in the bike or take it with you.

Features

• The Turbo Full Power 2.0 motor with 710 Wh battery provide smooth and quiet assistance, amplifying your efforts up to 25 km/hour. The system reacts to your input on the pedals and the result is a very natural and intuitive feel.
• MasterMind and Mission Control - The MasterMind display shows all your output data, allows real-time adjustment of your assistance levels, and is the conduit for over-the-air updates so you can continuously improve your bike. The MasterMind integrates seamlessly with the Mission Control App, which provides tools for range optimization, fine tuning, system diagnostics and more.
• The Enviolo City Internal Gear Hub (IGH) is a dedicated internal shifter with a matched controller. The stepless manual technology is as simple as adjusting the volume of a radio. This allows cyclists to focus on the important aspects of a bike ride, such as traffic or scenery.
• Proven efficiency and smoothness-We created a mechanism to analyze shocks even at the lowest frequencies in order to improve comfort and vision. This precision, combined with a telescopic seatpost, high air volume tires, and an 80mm travel suspension fork, will pave the way for you.
• Turbo System Lock - With the Specialized App you can disable your bike's motor and activate the motion sensor with the alarm. Once locked, the motor cannot be started by anyone other than the owner.
• The battery is fully integrated into the down tube, is lockable and removable, so easy to charge.
• Comes complete with DRYTECH fenders, front and rear LED lights and HD rear rack with 27kg capacity, compatible with child seats. It is possible to use tow dollies with through-axle.
• Autonomy 100km or 4.5 hours on a single charge, in eco mode.

Tech Specs

Electronics

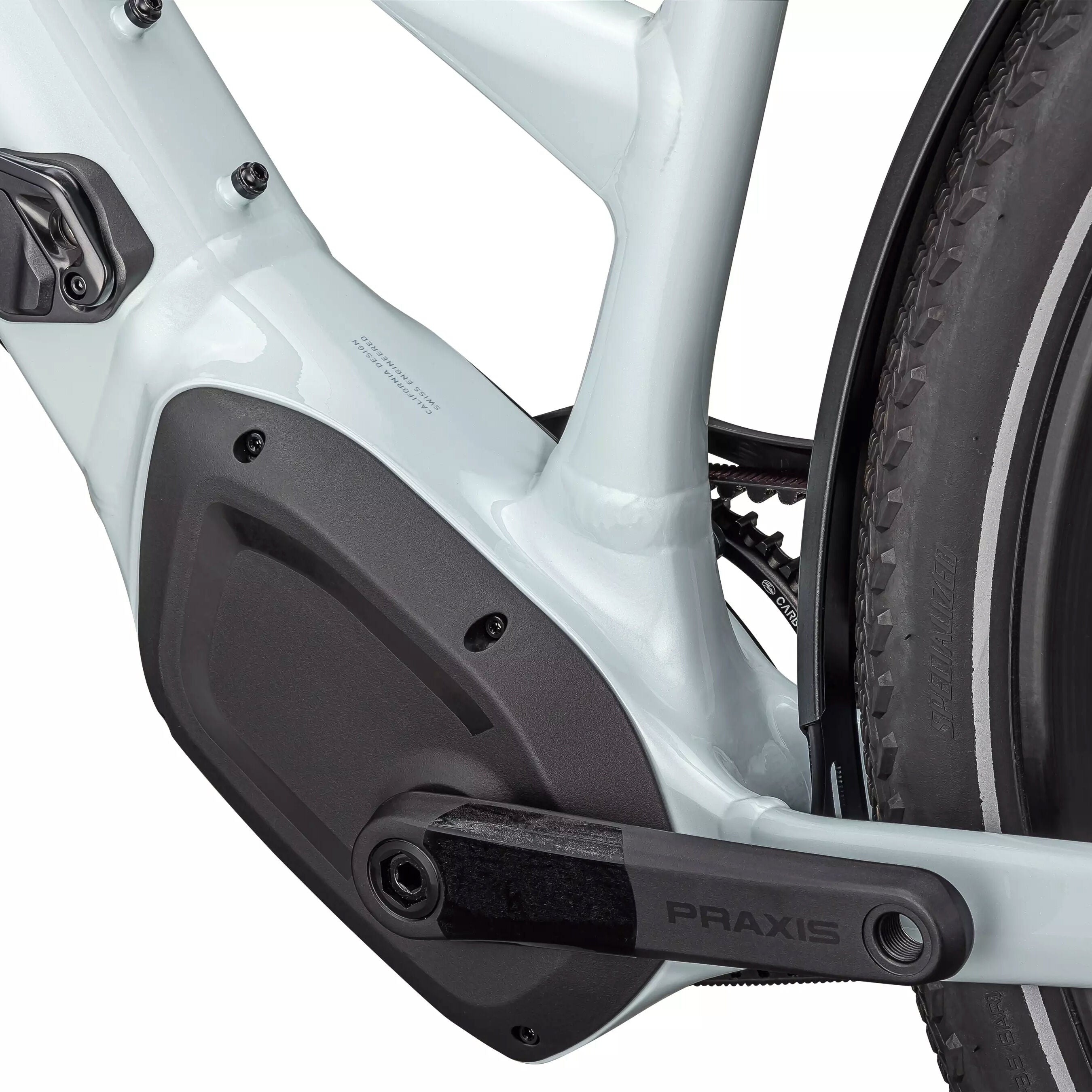

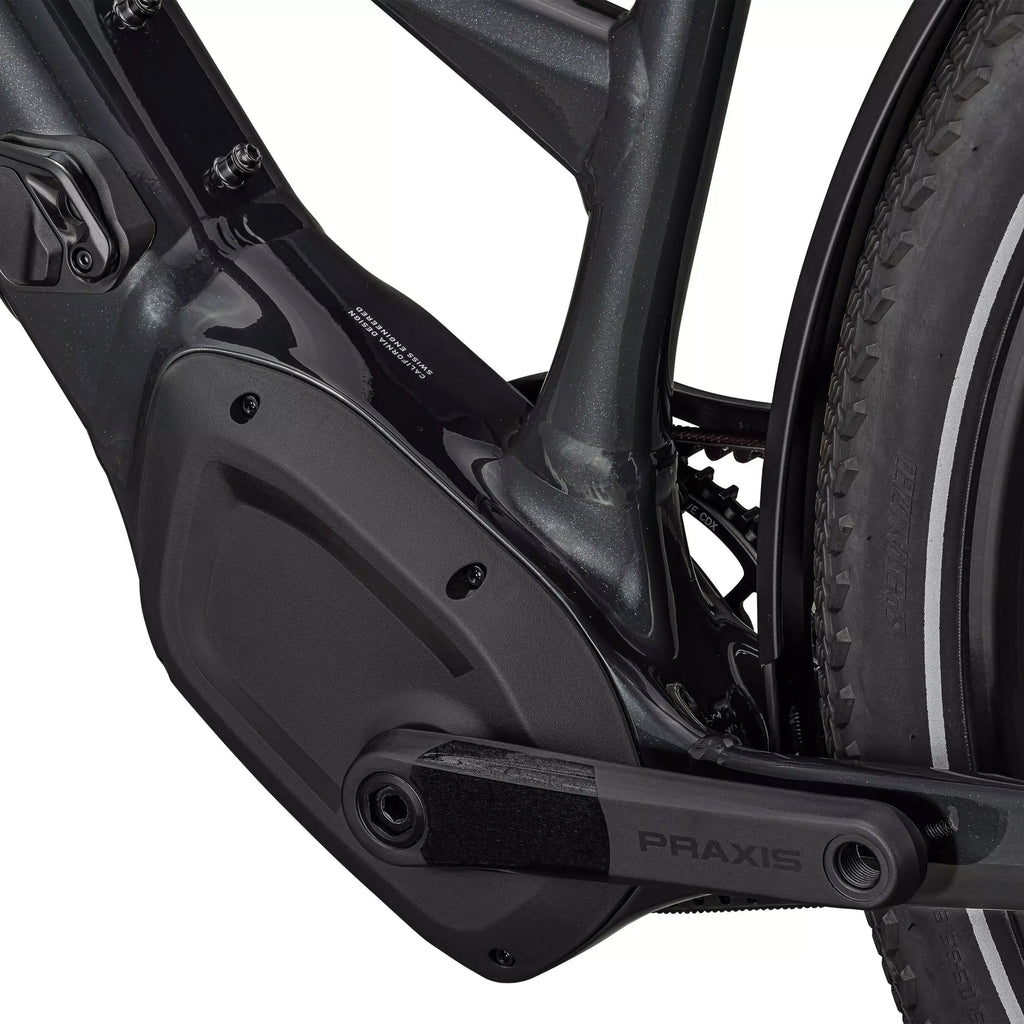

• Motor: Specialized 2.0, torque 70Nm, custom motor, 250W nominal
• User interface/remote control: MasterMind TCD, with handlebar remote control, built-in anti-theft, Bluetooth® connectivity, customizable display pages

E-Bike

• Battery: Specialized U2-710, alloy casing, charge status display, 710Wh
• Charger: Custom charger, 42V4A with Rosenberger plug, 100-240V
• Wiring: Custom wiring

Chassis

• Frame: E5 aluminum, motor mount with bottom bracket, fully integrated and lockable down tube battery, internal cable routing, lock and rack front mount, sliding dropout
• Fork: SR Suntour MobieA32, 80 mm travel, lockout, fender mounts, integrated light mount
• Saddle Collar: Alloy, bolt-on type, 34.9 mm

Brakes

• Front brake: SRAM Level, 2-piston caliper, hydraulic disc, 180 mm
• Rear brake: SRAM Level, 2-piston caliper, hydraulic disc, 180 mm

Transmission

• Gear shifters: enviolo Twist Display Pure
• Rear derailleur: CVP Multi-Turn tool
• Sprocket Pack: Gates Carbon Drive CDX 22t sprocket, silver
• Chain: Gates Carbon Drive CDX 122t belt, black
• Crankset: Custom alloy forged crankset, 170mm
• Chainrings: Gates Carbon Drive CDX 50T chainring, black
• Crankcase: custom chain cover

Wheels

Rims: 650b disc, double-wall alloy, with pivots, 32h
Front hub: alloy Specialized front disc, sealed bearings, 6 bolts, 15x110mm thru axle, 32h
Rear hub: enviolo Trekking, 380% travel, 6 bolts, 10x135mm, 32h
Spokes: DT Swiss Industry
Front tire: Pathfinder Sport Reflect

Cockpit

• Stem: Specialized Flowset, 3D forged alloy, 20-degree rise, 31.8mm clamp
• Handlebar: Specialized, alloy, 15-degree rearward tilt, 46-mm rise, 31.8 mm clamp
• Knobs: Specialized Body Geometry Contour, lock-on
• Saddle: Bridge Sport, steel rails, 155 mm

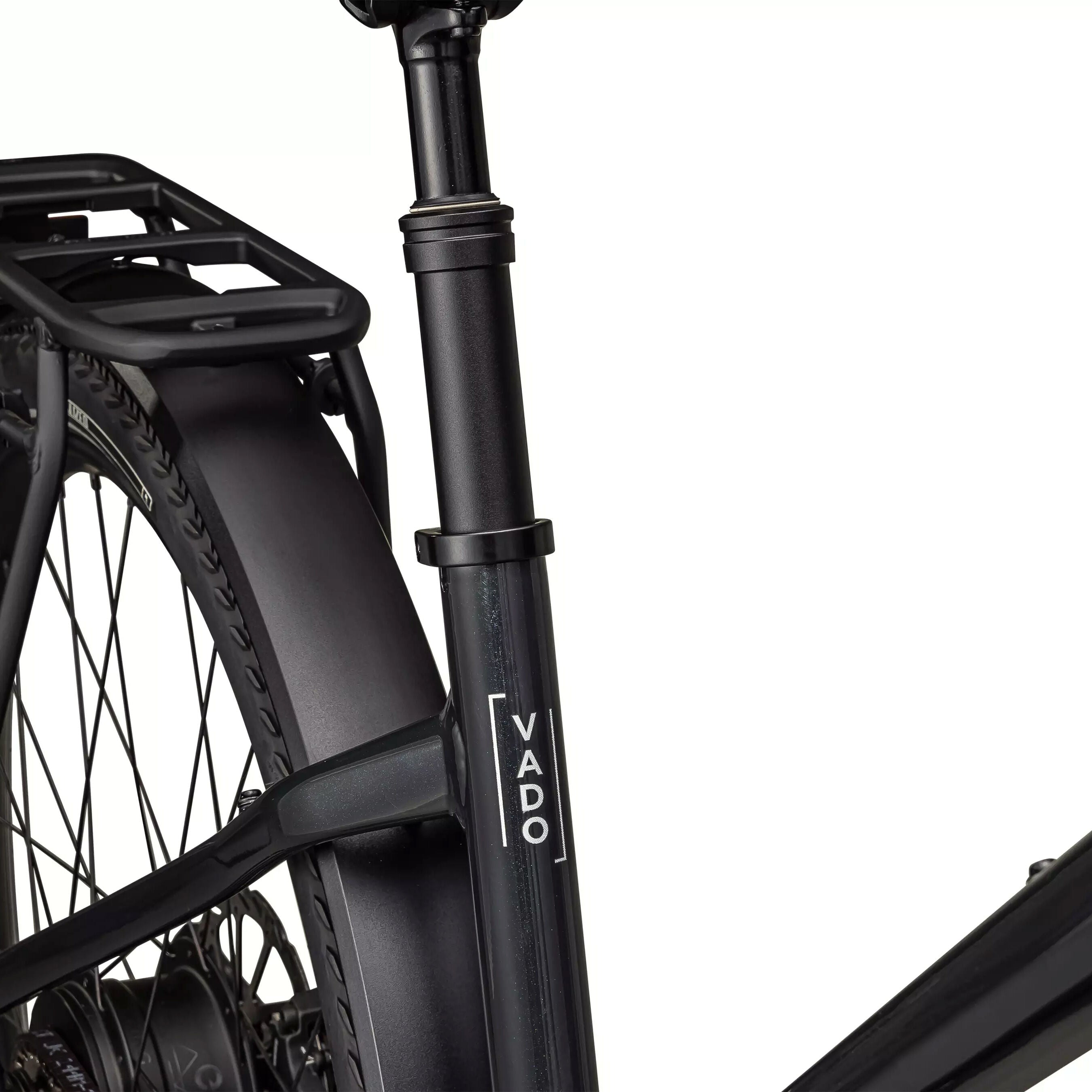

• Seatpost: Spring suspension, alloy, 40 mm travel, 30.9 mm, 2-bolt clamp, 34.9 mm sleeve

Accessories

• Pedals: Specialized Commuter with tape and reflectors
• SWAT Accessories: Handlebar rearview mirror, aluminum
• Front Light: Lezyne, Ebike Hecto Stvzo E350+, 350 Lumen, 160Cm Wire, With Reflector
• Rear Light: Spanninga, Stvzo, Commuter Glow With Brake XEr

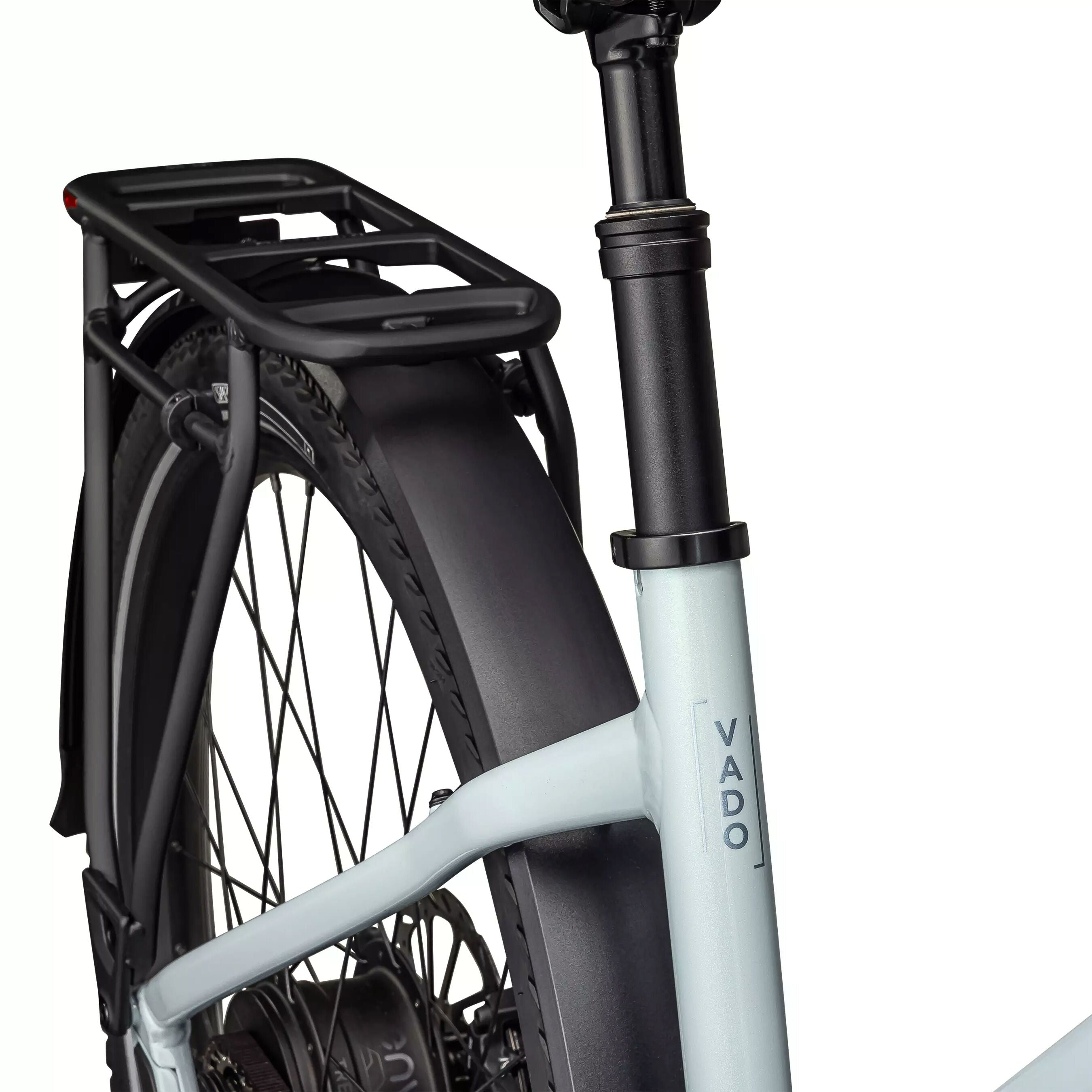

• Rack: Specialized rack, MIK HD interface, integrated pannier mounts, 27kg maximum load capacity
• Lock: Turbo locking system
• Fenders: Specialized DRYTECH fenders, 65 mm wide, aluminum fenders
• Kickstand: Specialized kickstand, 40 mm mount
• Bell: Specialized bell

Weight

• Manufacturer's weight: 28.25 kg (62 lb, 4.5 oz)
• Weighted measurement: MD

Manufacturer's Note: Due to component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
