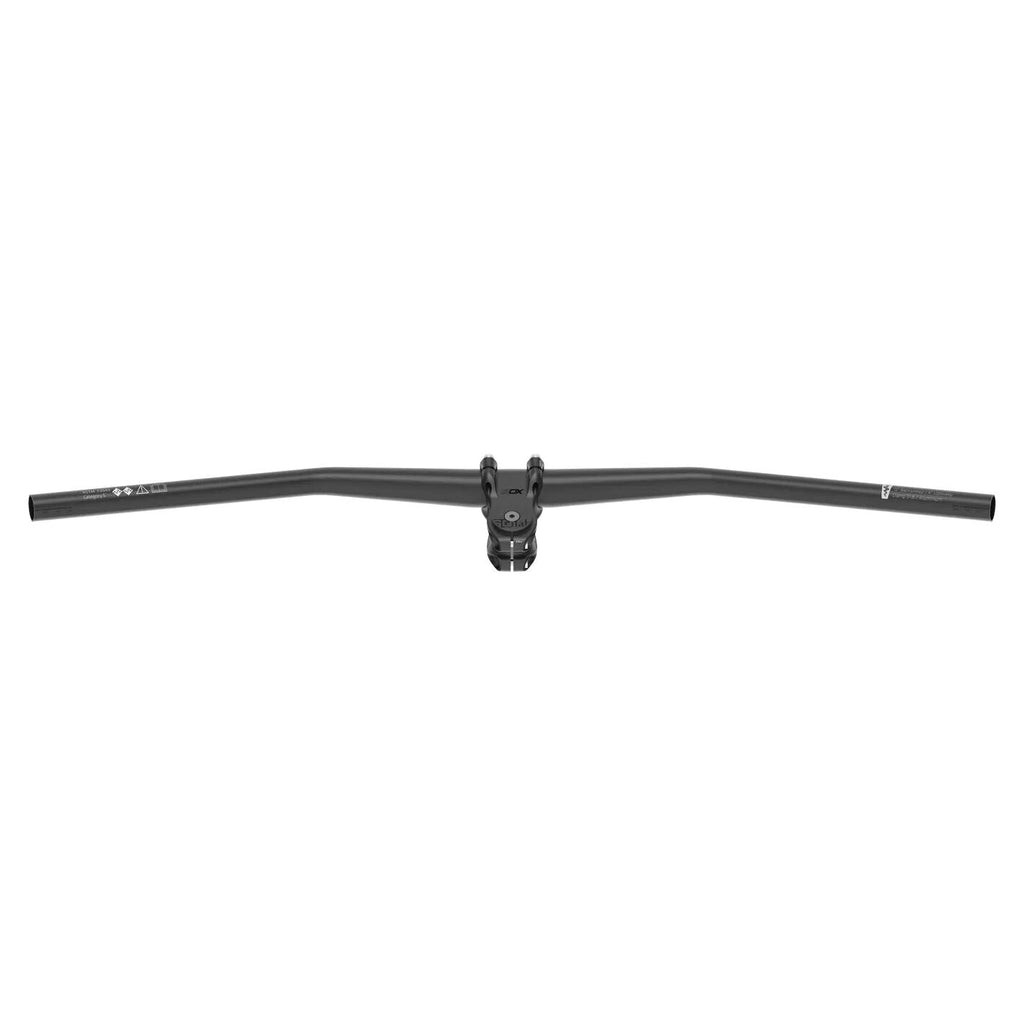

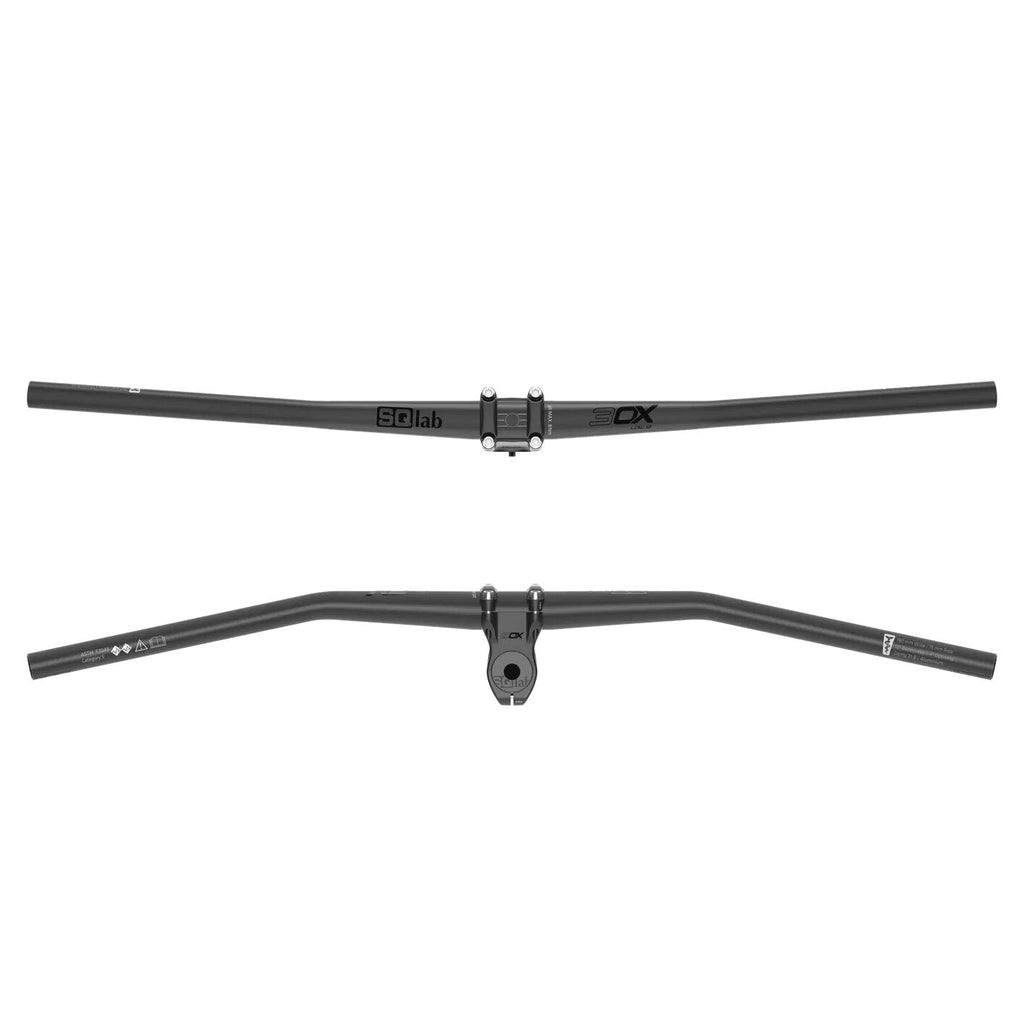

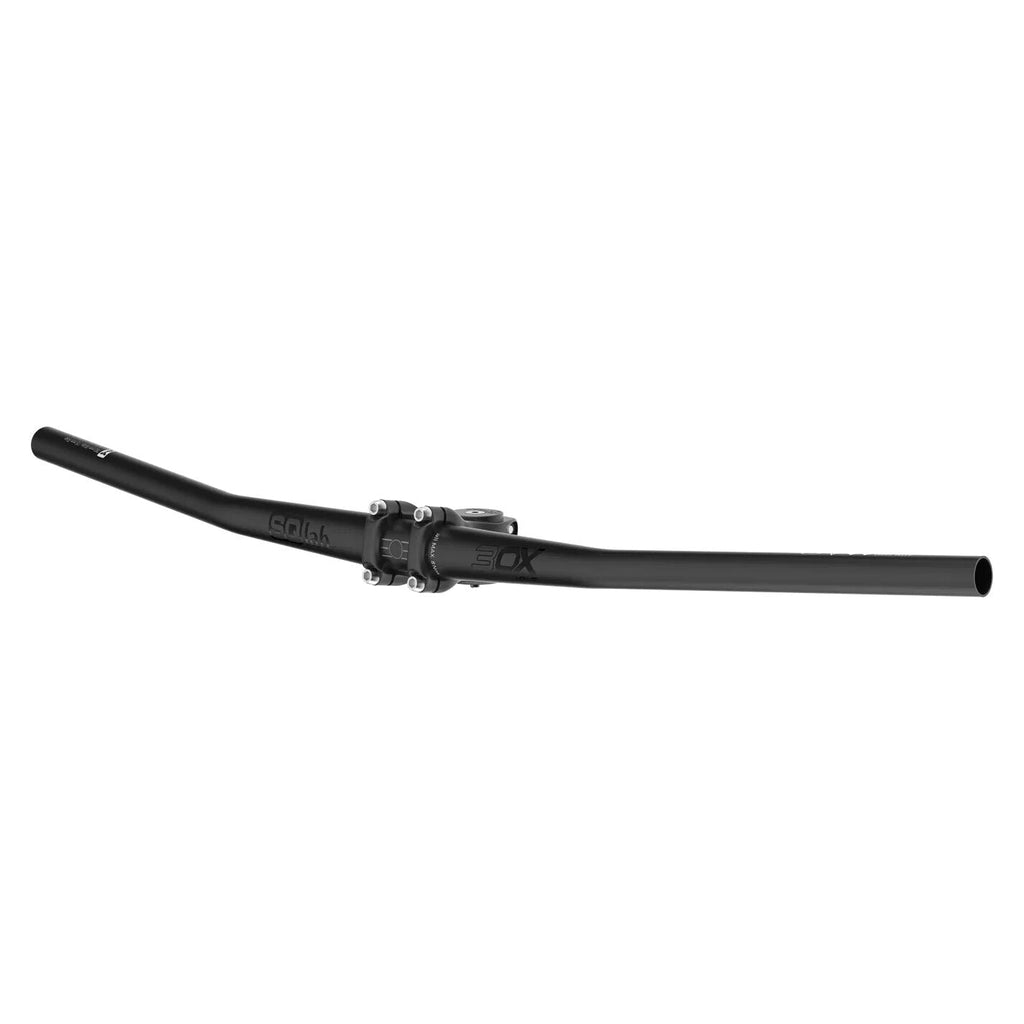

SQlab 30x 12° handlebar

The 3OX 12 Alu is the powerful all-mountain and enduro handlebar for demanding riders. With its combination of 12° backsweep and 4° upsweep, it brings wrists and elbows into a natural, relaxed position while simultaneously reducing the strain on shoulders and neck – for more control on technical trails. The 15 mm rise offers additional height adjustment in the cockpit and is particularly suitable for setting the cockpit slightly lower. Made from high-quality 7050-T6 aluminum, the handlebar offers an optimal balance of stability, weight, and flexibility.

Features

• 12° backsweep for an ergonomic hand position
• 4° upsweep for better elbow position
• 15 mm rise for a lower cockpit
• High-strength 7050-T6 aluminum handlebar
• ASTM Category 4 – suitable for enduro and bike park
• Width: 780 mm (can be cut)
• Clamp diameter: 31.8 mm

Tech spec

• Area of use: All Mountain & Enduro
• Producer's weight: 325 g (15 mm) / 330 g (30 mm) / 335 g (45 mm)
• Material: Aluminum 7050
• Width: 780 mm
• Maximum cutting width: 720 mm
• RISE: 15 / 30 / 45 mm
• Backsweep: 12 °
• Upsweep: 4°
• Clamp diameter: 31.8 mm
• Clamping width stem: Min. 46 - Max. 58
• Maximum torque: 8 Nm
• Maximum system weight allowed: 120 kg
• E-Bike ready: Yes

Rise 15 mm / Colour Black

Rise 30 mm / Colour Black

Rise 45 mm / Colour Black
