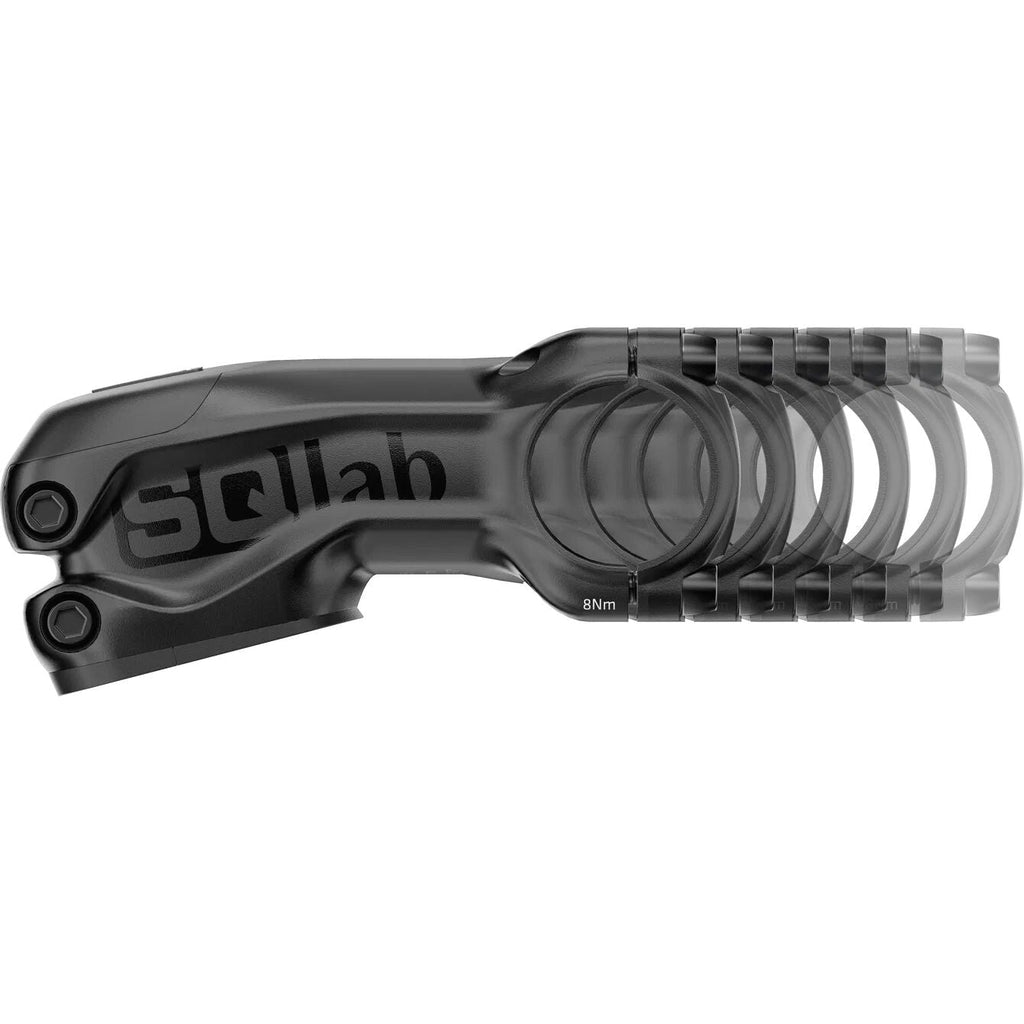

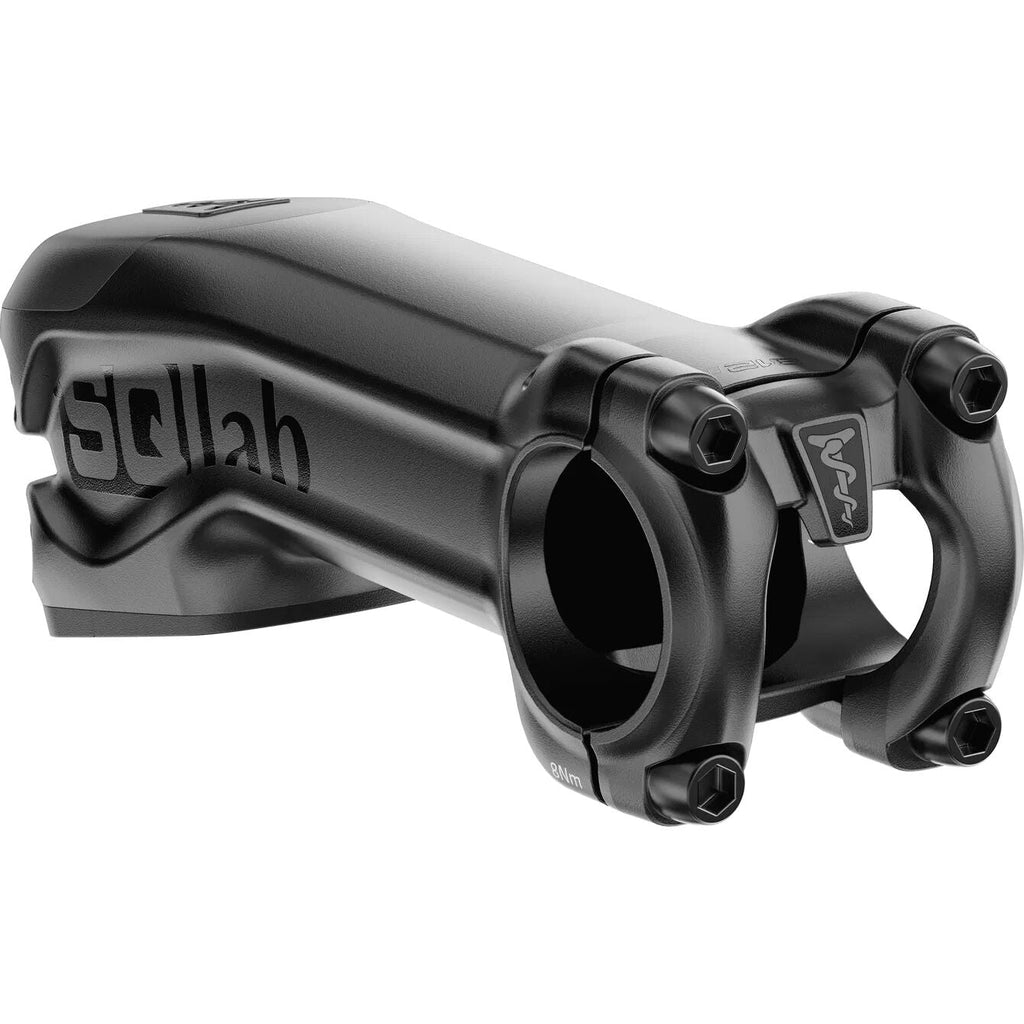

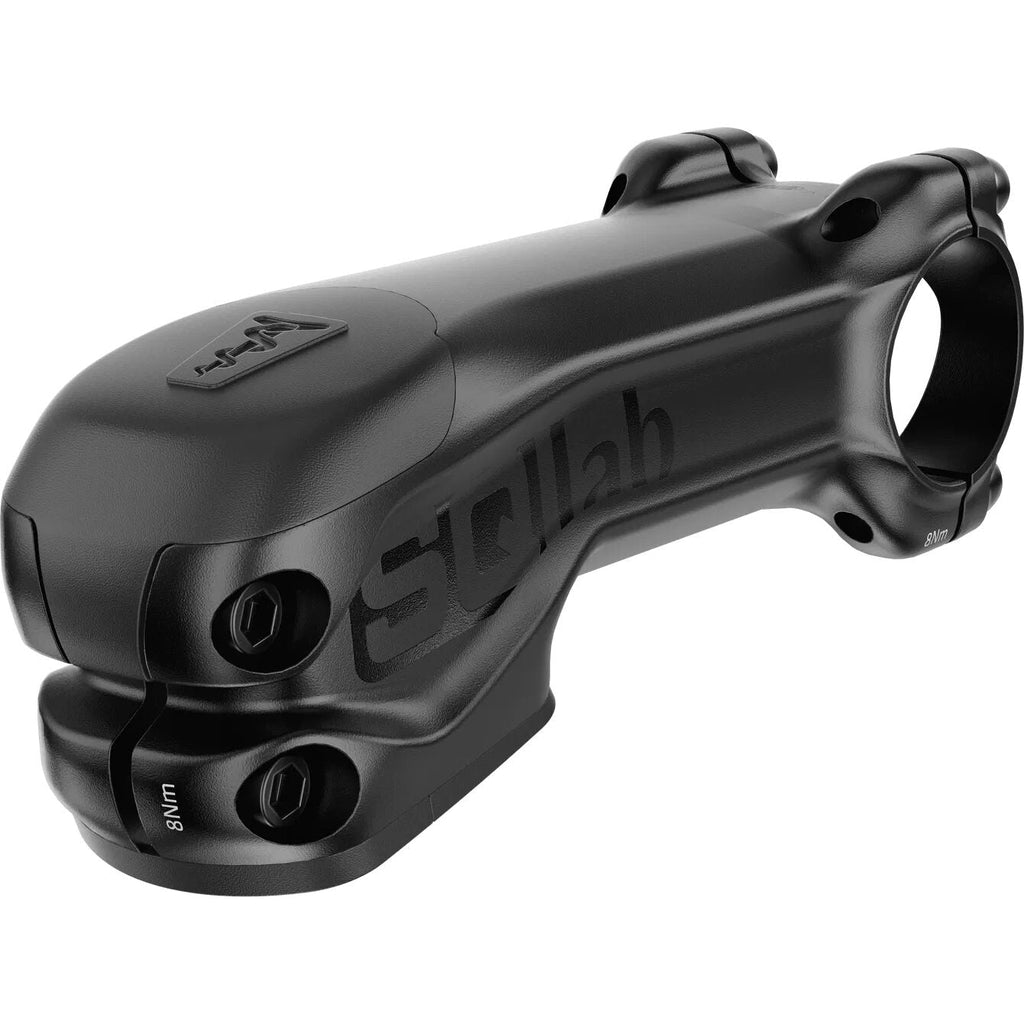

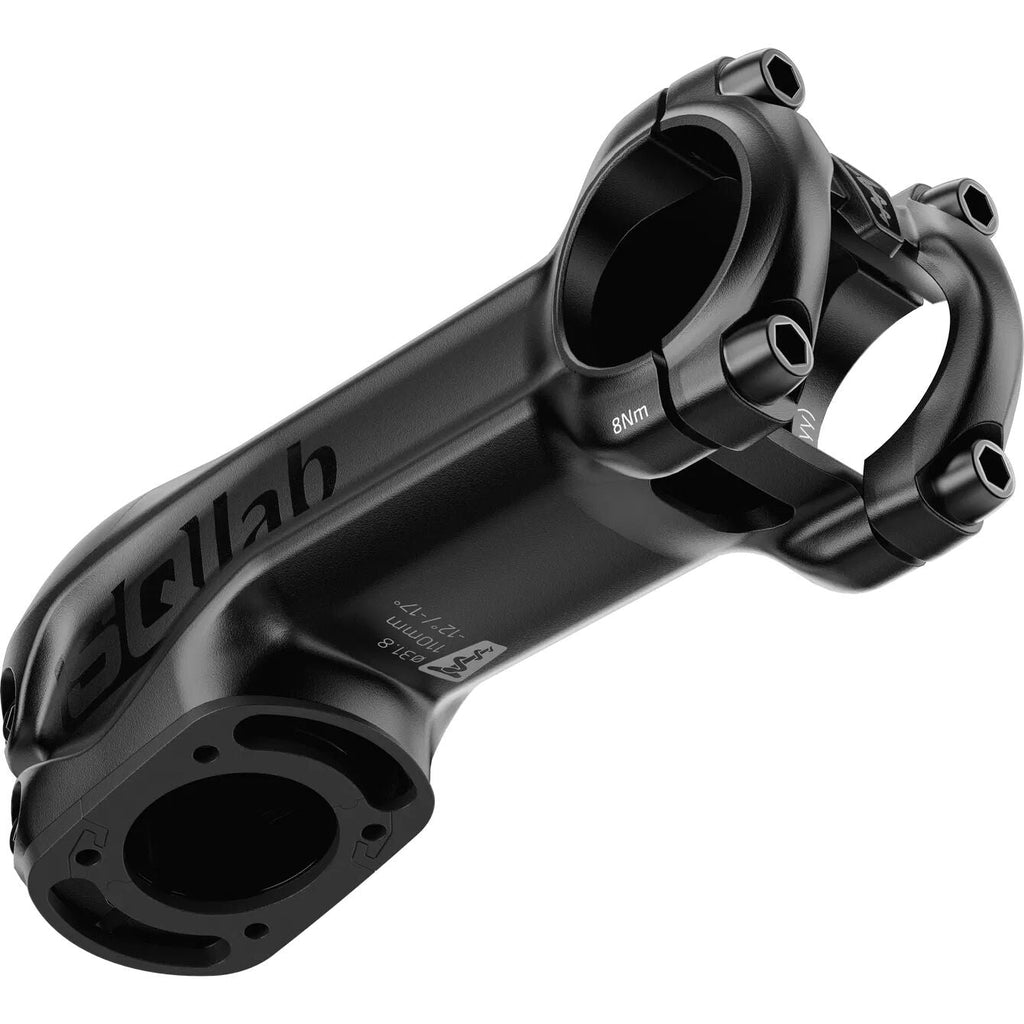

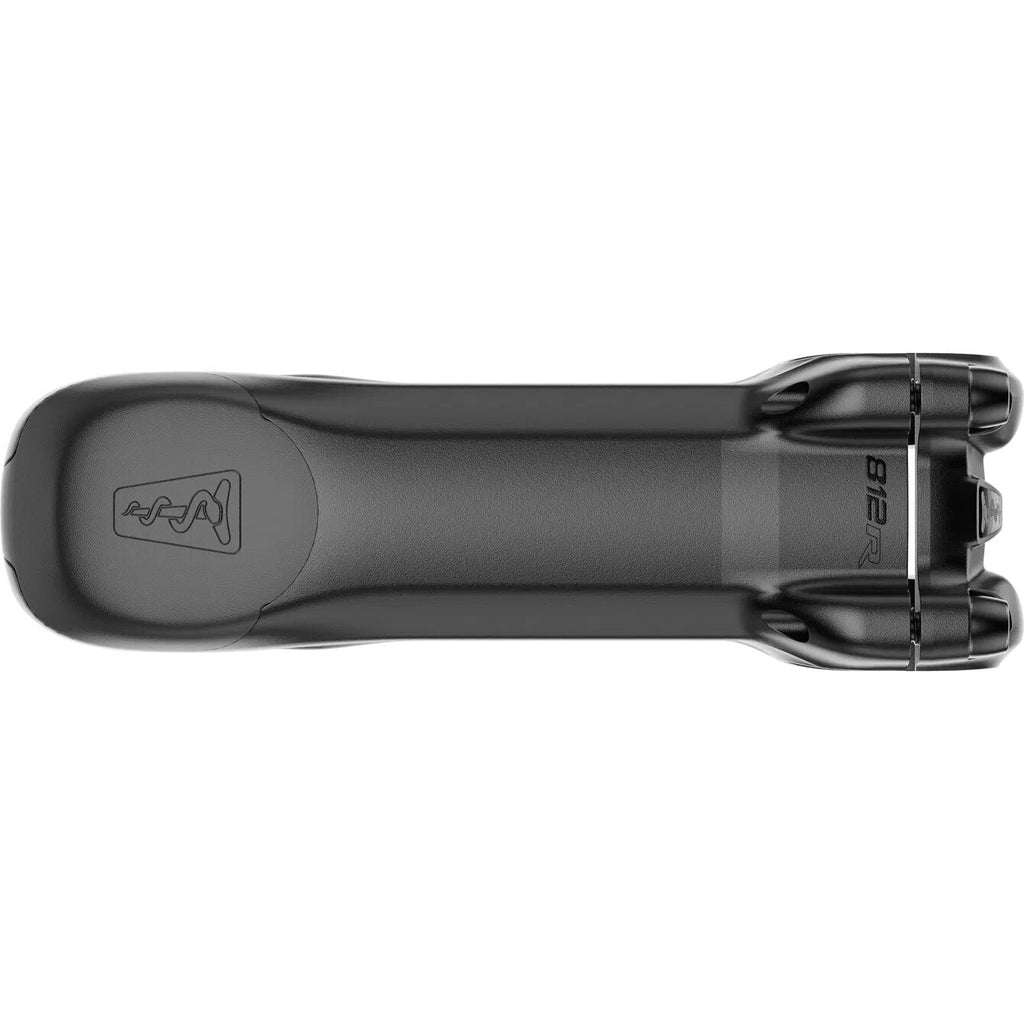

SQlab 812 R Steam

The SQlab 812 R was developed for use in the ambitious road sector. With an adjustable angle of -12° or -17°, the seating position can be optimized for aerodynamics and performance. The option for fully integrated cable routing ensures a clean cockpit – both technically and visually. In combination with the 312 R Carbon handlebar, a well-thought-out ergonomic unit is created that reduces pressure and increases efficiency. Developed for long distances, high speeds, and maximum control.

Features

• Adjustable angle (-12°/-17°) for individual aerodynamics and seating position
• Fully integrated cable management possible
• Optimized for combination with the 312 R Carbon handlebar for ergonomic unity
• Optimal compatibility with FSA headsets, 31.8 mm clamp diameter
• Available in 80 / 90 / 100 / 110 / 120 / 130 mm lengths

Tech spec

• Area of use: Road Race
• Producer's weight: 251 g (80 mm) / 256 g (90 mm) / 262 g (100 mm) / 270 g (110 mm) / 279 g (120 mm) / 286 g (130 mm)
• Material: Aluminum 6061 + N66GF30
• Material screws: Steel
• Stem angle: -12 / -17 °
• Legnth: 80 / 90 / 100 / 110 / 120 / 130 mm
• Clamp diameter handlebar: 31.8 mm
• Clamp width handelbar: 50 mm
• Clamp diameter head tube: 28.6 (1 1/8") mm
• Clamp height head tube: 35 mm
• Minimum head tube overlap: 30 mm
• Maximum torque: 8 Nm
• E-Bike ready: Yes

Length 80 mm / Colour Black

Length 90 mm / Colour Black

Length 100 mm / Colour Black

Length 110 mm / Colour Black

Length 120 mm / Colour Black

Length 130 mm / Colour Black
