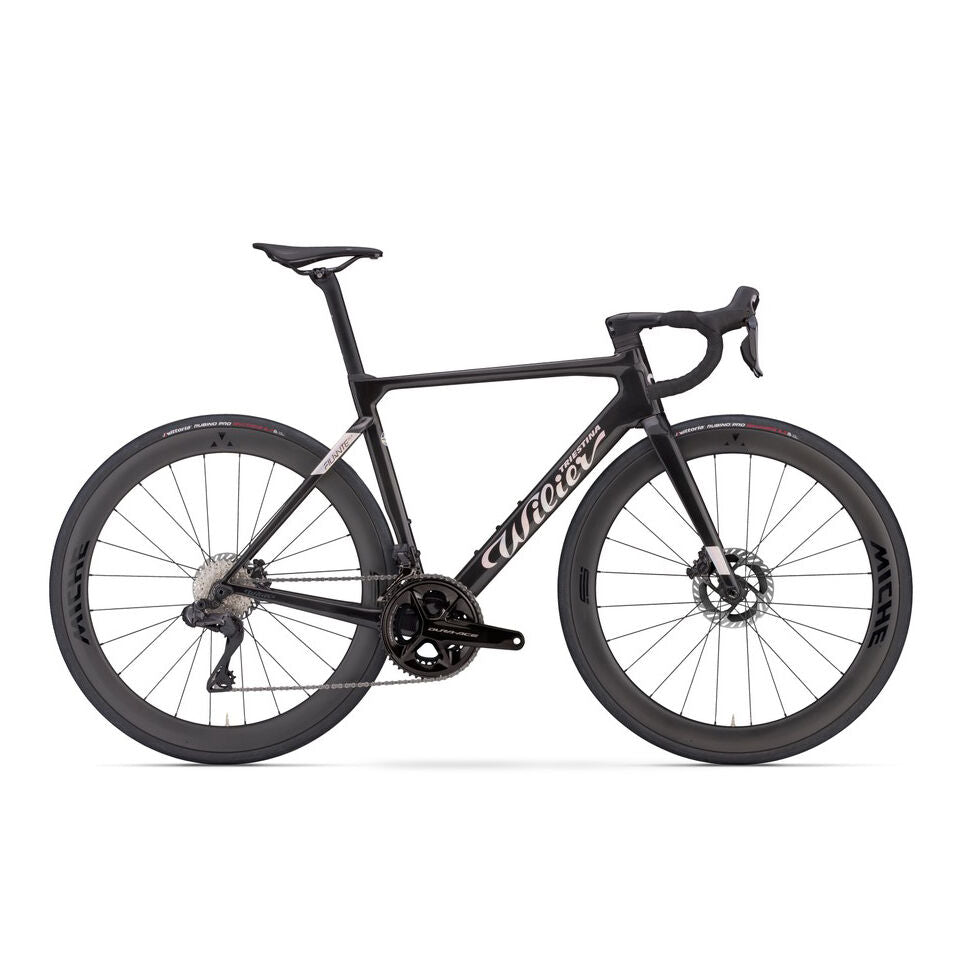

Wilier Triestina Filante SLR Dura Ace Di2 Power Meter + Miche Serie S bike

The benchmark for aero bikes

The natural evolution of the high-end aerodynamic product used by professionals. Filante SLR is an extremely lightweight aero bike that significantly improves the stiffness-to-weight ratio.

Aerodynamic
Filante SLR was designed to maximise aerodynamic performance in real environmental conditions. The design was based on data recorded in the wind tunnel (where the wind is very clean for homogeneous empirical results) while also taking the real world into account. In this way, Wilier not only evaluate typical wind tunnel data (yaw angles from -20° to + 20°), but also consider environmental turbulence that impacts the bike for many different reasons. That’s why Wilier redesigned the profiles, starting with the standard NACA airfoils/ KAMM tail that no longer have sharp edges on the back. The softened angles improve performance even when the airflow is disturbed. The inside of the front fork has been widened by 7 mm, making it 13.6% wider than the Cento10PRO. In doing so, Wilier moved the fork blades away from the wheel, reducing turbulence and improving aerodynamics.

240 Fittings available
Since the fork steerer tube is no longer bevelled, Wilier can install up to 35 mm of spacers under the handlebar. By combining frame sizes, handlebar sizes, and spacers, Wilier can achieve 240 different fittings, with no overlap between combinations. This doubles with the two available seat posts, with a 15 mm or 0 mm setback.

Lightweight and Responsive
The new aerodynamically optimised profiles helped us eliminate extra weight in the frame’s construction. The shape has no sharp edges and, therefore requires less material and less resin in the corners. This improves the homogeneity of the inside, reducing the frame’s weight to a mere 870 grams. The assembled bike with top-of-the-range specifications weighs 6.8 kg. Thanks to the different types of carbon Wilier used in combination with the Liquid-Crystal Polymer, the unique fibre positioning and the construction technology, Wilier has reached an absolute level of lightness and stiffness. The lower overall weight compared to the exceptional stiffness increases STW by 12.5%. This improvement is clearly felt with the steering precision and the feeling of safety at high speeds.

Handlebar and integrated cables
In addition to being lightweight, (350 grams for the 101x42 size) the integrated carbon monocoque Filante Bar handlebar houses the brake and derailleur cables, directing them toward the inside of the frame. Its design is very simple, with sinuous and rounded lines for maximum grip ergonomics.

Balanced Design
Six sizes, one feeling. The sections of the tubes of various sizes were designed to maintain consistent rigidity, handling quality and comfort on every frame size.

Easy-fit spacer
The spacers between the frame headset and the handlebar are made of a high-stiffness composite material, with a special cavity for the cables. They are composed of two parts for quick assembly and disassembly without interfering with the cables running from the handlebar to the frame.

Speed release thru axle system
Another new feature is the Mavic Speed Release thru axle system that enbles the wheel to be quickly removed from the frame. In this way the axle does not need to be totally extracted from the wheel hub. This solution significantly reduces wheel release and insertion time. During races, this solution cuts wheel change times by 7 seconds on average compared to a traditional thru axle system.

Tech spec

• Frame: FILANTE M CARBON IRIDIUM FRAME
• Fork: FILANTE CARBON IRIDIUM FORK
• Handlebar: WILIER F-BAR SLR 101 BLK MATT
• Seatpost: FILANTE SEATPOST -15 OFFSET
• Groupset: SHIMANO DURA ACE R9270 DI2 2X12 PWMETER
• Wheels: MICHE WSET SERIES S COP. SH OEM
• Crankset: SHIMANO CR. D.ACE FCR9200 PM 52-36
• Cassette: SHIMANO CASSETTE D.ACE 12S 11-34
• Controls: SHIMANO BRAKE DACE ST-R9270+BR-R9270 155, SHIMANO BRAKE DACE ST-R9270+BR-R9270 090
• Rotors: SHIMANO ROTOR RT-CL900 S 160MM, SHIMANO ROTOR RT-CL900 SS 140MM
• Front derailleur: SHIMANO FRONT DER.DACE FDR9250 12S DS BR
• Specifications: FC 52/36 - CS 11/34
• Rear derailleur: SHIMANO REAR DER.DACE RDR9250 12S SHADOW
• Bottom bracket: SHIMANO BB BB72 P-FIT41 ROAD
• Chain: SHIMANO CHAIN CNM9100 114L HG 12S
• Axle/thru axle: MICHE PER 12X118 2P1 ANT BLACK, MICHE PERNO POST M12X2 1X66.5 BLK
• Tires: VITTORIA TIRE RUBINO V 28-622 FOLD OEM
• Saddle: SELLE SHORTFIT 2.0 OPEN-FIT NARR
• Bar tape: WILIER BAR TAPE AM BOX SIXNE004B.BLACK

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
