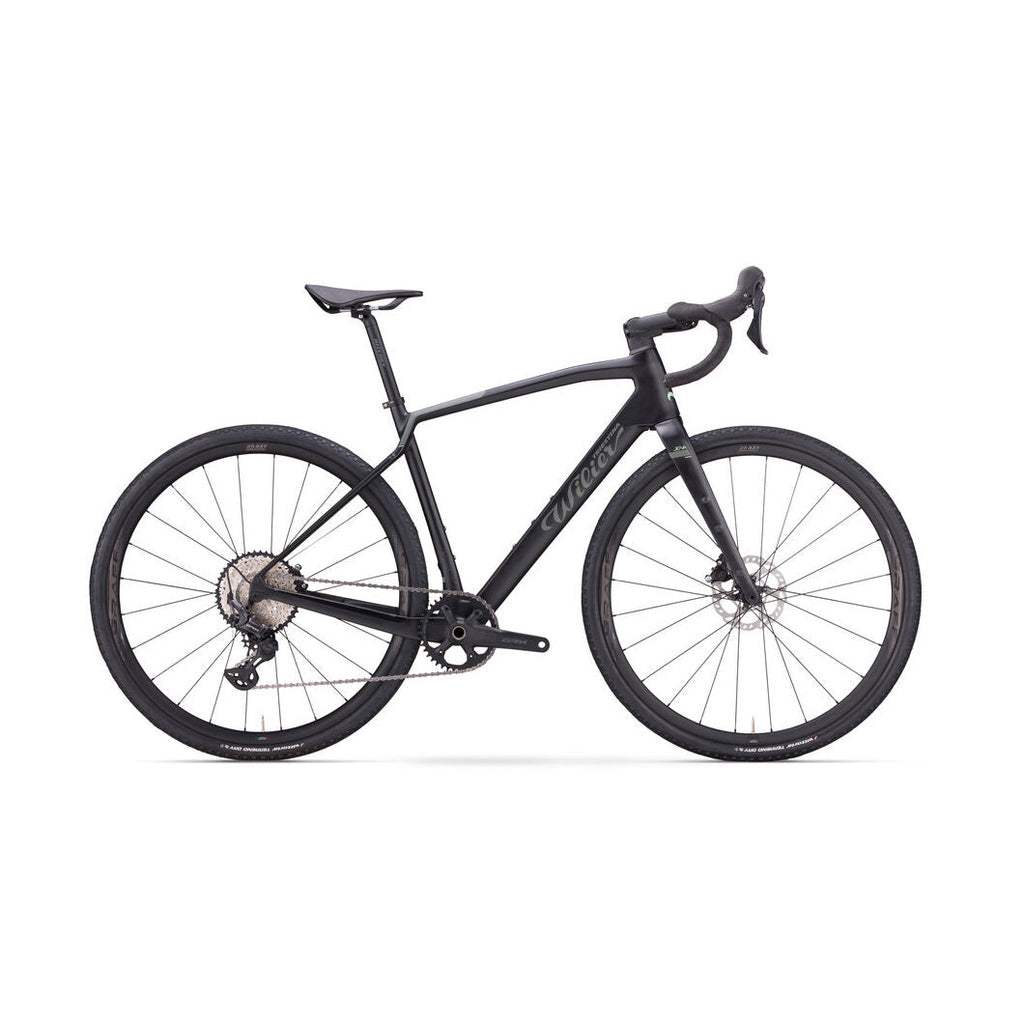

Wilier Triestina Jena Shimano GRX 1x11 + Miche Contact

Free to choose

Jena is a carbon gravel bike, designed to give you more freedom of choice when you go out for a ride. Jena was designed to satisfy any of your needs, whether it is performance on dirt roads and single track, or adventure, exploration, and bikepacking. Jena is a light, reactive, and easy-to-handle bike with racing-comfort geometries, and able to adapt to the multiple uses required of a gravel bike.

Usability
There are no limits on Jena usability and to the available configurations. The span between frame / fork and wheels allows you to install generous tyres on 28” wheels or MTB wheels with a 650B diameter. With 28” wheels you can install tyres up to 44 mm wide, whereas in case of 650B MTB wheels, you can even install 48 mm wide tyres, which is equivalent to 1.95” (tested on Vittoria tyre). There are numerous available supports that allow the installation of bottle holders, bags, carriers or mudguards. On the front fork, for example, you can install two bottle holders or one lowrider carrier for bags.

Flatmount disc brakes
Jena is available only with flat mount disc brake. The standard installed rotor has a 160 mm diameter. The wheel through pins have a 12mm diameter, 100mm long on the front fork and 142mm on the rear one.

Removable derailleur support
The derailleur support can be removed in case of single ring group, which is a transmission widely used by gravel enthusiasts. In any moment, you can choose a solution with double or single crankset, without compromising on the bike look.

Kamm tail design
An aerodynamic oblique tube was developed for Jena. This gives the classic truncated tail shape of Wilier's aerodynamic frames.

Tech spec

• Frame: FRAME JENA INT.CABLE M BLACK GREY MATT
• Fork: FORK JENA BLACK GREY MATT
• Stem: WILIER STEMMA S2 ALU STEM 100 BLACK
• Handlebar: RITCHEY H-BAR ROAD CMP ERGOMAX ALU BBK42
• Seatpost: RITCHEY SEATPOST RL1 BBK 2B 27.2X350
• Groupset: SHIMANO GRX 1X11
• Wheels: MICHE WSET CONTACT GR SH
• Crankset: MICHE CRANK GRAFF ONE 38D
• Cassette: SHIMANO CASSETTE DEORE XT 11S 11-42
• Brakes: SHIMANO BRAKE KIT RX4002 750MM FRONT SHIMANO BRAKE KIT RX4001 RIGHT/REAR
• Rotors: WILIER ROTOR DISC 160MM 6INTL
• Specifications: MICHE FC
• Rear derailleur: SHIMANO REAR DER. RD-RX812 GRX 11S
• Bottom bracket: MICHE BB PRESSFIT 86.5-41
• Chain: MICHE CHAIN 11S MTB-H 1/2 11/128 138 AFT
• Axle/thru axle: MICHE PER 12X171 1P1.5 POST BLACK, MICHE PER 12X125 1P1.5 ANT BLACK
• Headset: RITCHEY HEADSET TOP CAP BLK, RITCHEY HEADSET 5MM SPACER BLK
• Tyres: VITTORIA T.TERRENO ZERO 40-622 RIGID BLK
• Saddle: SELLE ITALIA MODEL X EVO SF
• Bar tape: WILIER BAR TAPE AM BOX SIXNE004B.BLACK

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
