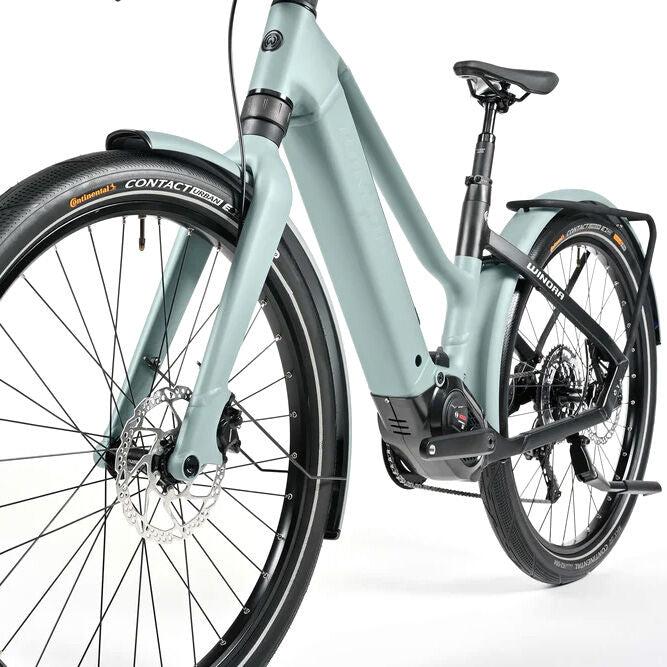

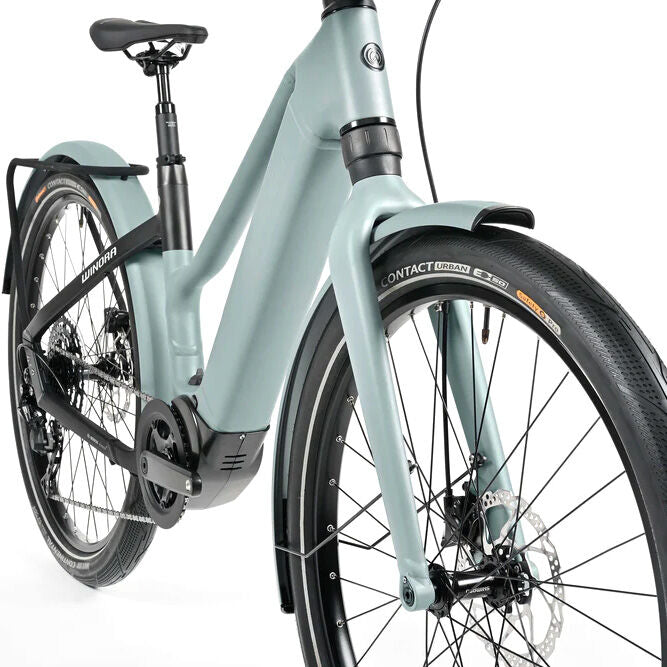

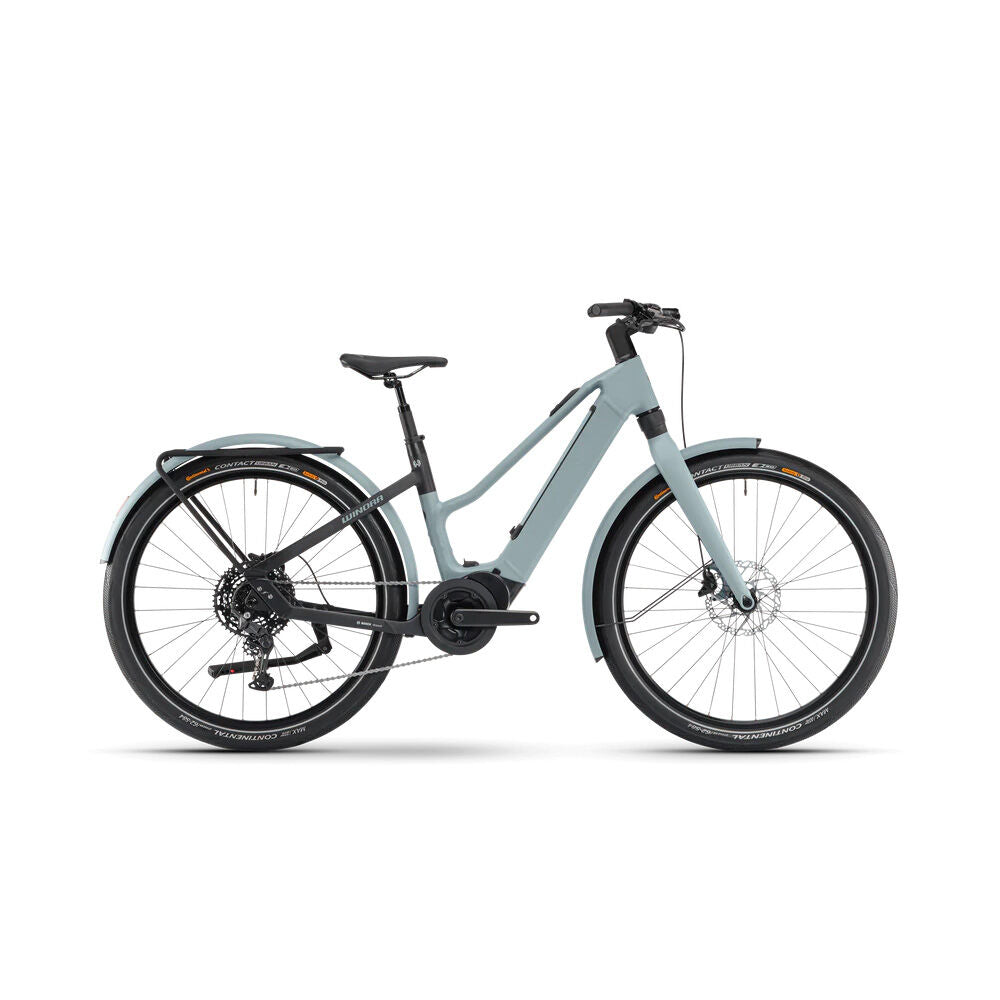

Winora Iride Pure X10 Mid e-bike

Pure riding sensation meets pure joie de vivre

The Winora iRide Pure X10 is your sporty eLight commuter bike for the city. This eBike stands out with its particularly purist and elegant design, integrated cable routing and sporty frame geometry. It deliberately dispenses with unnecessary frills, while still guaranteeing a comfortable and safe ride.
When accelerating, you are supported by the compact and powerful Bosch Performance SX motor system, combined with a removable 400 Wh battery. Whether going uphill or downhill, you will always find your comfort zone thanks to the smooth and versatile 10-speed Shimano gear system. And when the terrain becomes rougher, the front suspension absorbs the bumps with ease.
In short: the iRide Pure X10 is an eBike that brings movement into your everyday life and will give you pure riding pleasure even when running your daily errands.

Tech spec

E-System

• Battery: Bosch PowerTube 400Wh
• Charger: Bosch Charger 2A 220-240V
• Display: Bosch System Controller + Mini Remote

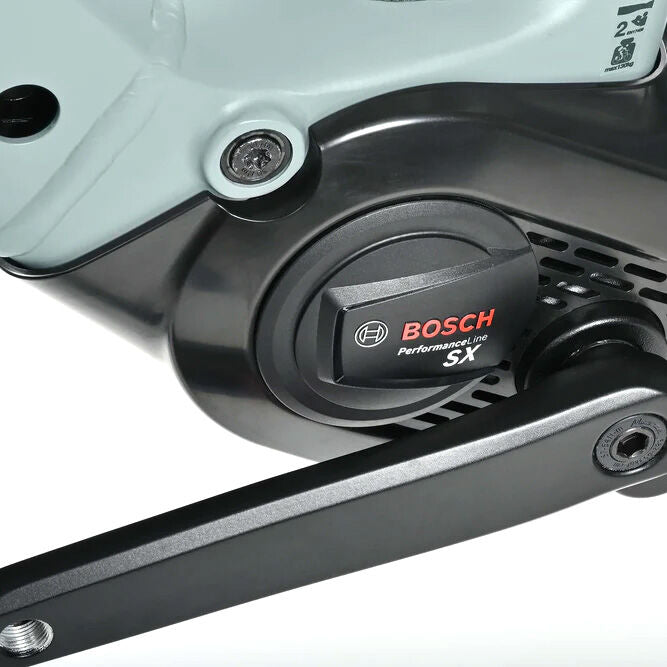

• Motor: Bosch Performance Line SX, 250W, 55Nm, 25km/h

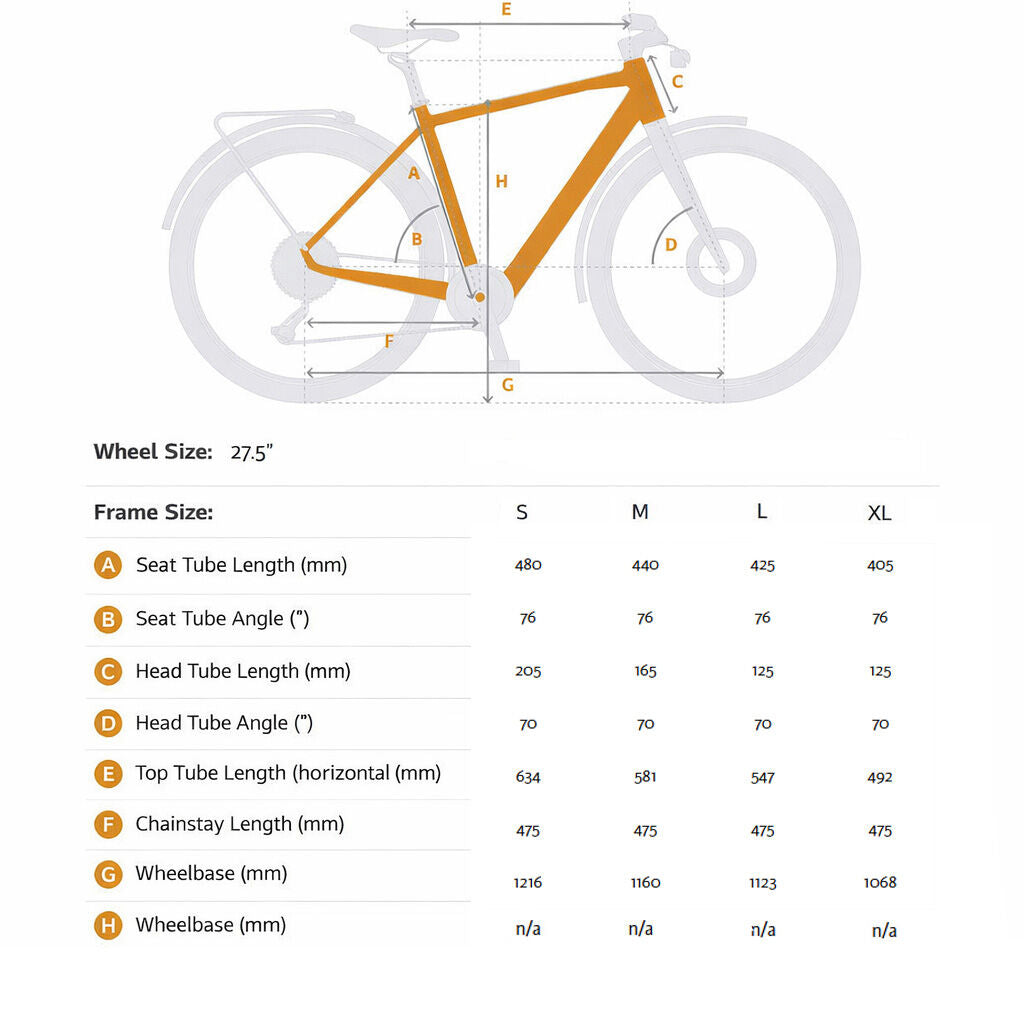

Frame

• Frame: aluminium, disc brake Post Mount
• Maximum loadable weight: 130kg

Drive

• Chain: Shimano CN-LG500 9-11s, LINKGLIDE
• Derailleur Rear: Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed
• Number of gears: 10-speed
• Shifter Right: Shimano CUES SL-U6000-10R, Rapidfire+, Trigger shifte

Suspension

• Front Fork: Winora Feathershock, Travel: 30mm

Components

• Front Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm
• Rear Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm
• Headlight: Litemove SE-110, 5-12V
• Rear Light: Büchel Nano COB, 6-12V
• Grips: Herrmans DD37, Clik Grips
• Handlebar: JD TR25AL Dia. 31.8 mm, Rise: 25 mm 640 mm
• Pedal: Marwi SP-880, non-slip
• Saddle: Selle Italia X-Bow
• Seatpost: XLC Harmony-LT2, Dia. 31.6 mm, L: 350 mm

Wheelset

• Rim: Schürmann YAK 25 32H with Silver Eyelets
• Tyre: Continental Contact Urban, 62-584, reflex

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
