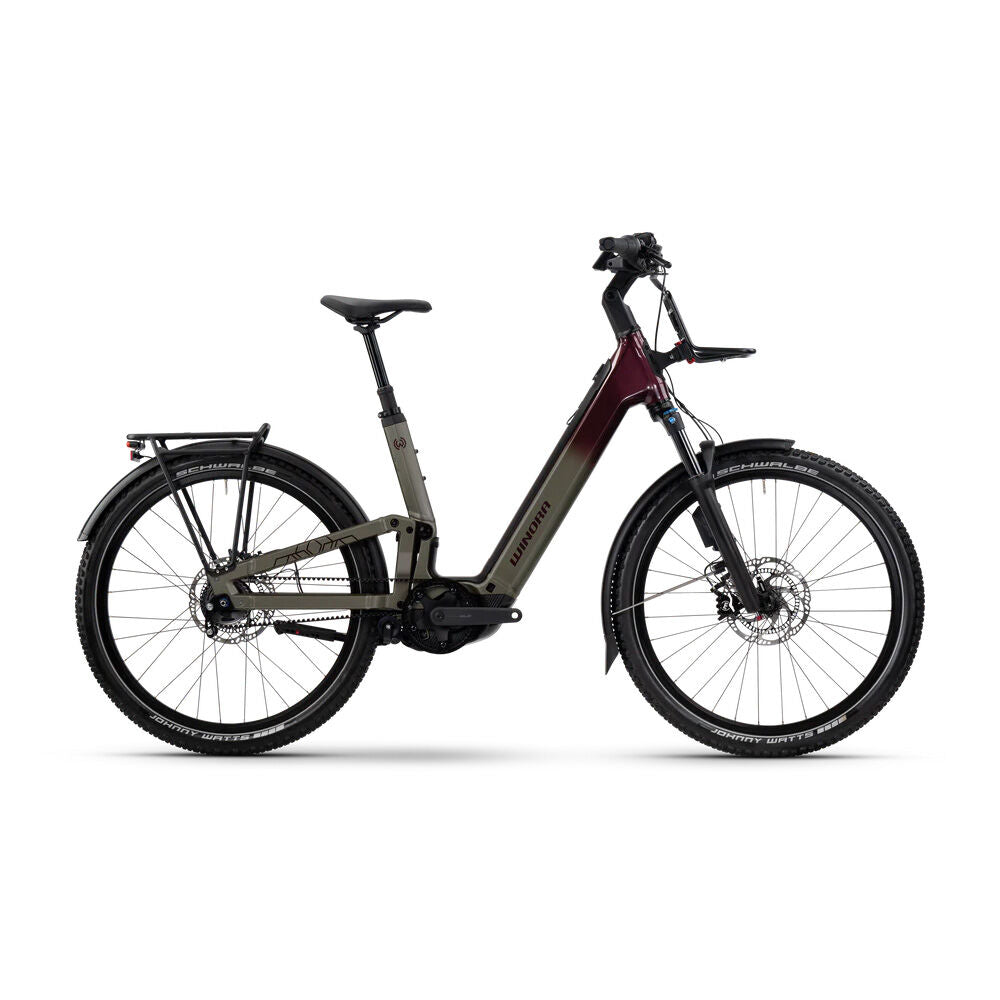

Winora Sinus FS R5f Pro Low e-bike

Comfort and ease with every mile

That's what our new Winora Sinus FS R5f Pro full suspension represents. Equipped with the latest Bosch Performance CX motor and an 800Wh battery, this comfort e-bike is your reliable companion at all times. The durable belt drive, a low-maintenance alternative to the traditional chain, also contributes to its reliability. The full suspension setup with front fork and rear frame damping, together with wide tires, make even cobblestone roads and bumpy trails a pleasure to ride on. The low-step frame and adjustable saddle make it easy to get on and off the bike at traffic lights. For added convenience, the Klickfix mount with a front rack and rear rack provide enough space even for large shopping trips. We are confident that you will not find more convenience, comfort, and lightness in everyday life than this bike offers.

Tech spec

E-System

• Battery: Bosch PowerTube 800Wh
• Charger: Bosch Charger 4A 220-240V
• Display: Bosch Kiox 500 + LED Remote
• Motor: Bosch Performance Line CX, 600W, 85Nm, 25km/h

Frame

• Frame: aluminium 6061, disc brake Post Mount
• Maximum loadable weight: 150kg

Drive

• Chain: Gates Carbon Drive Belt CDX, 130T
• Gear: Shimano Nexus SG-C7000-5D, Internal Geared Hub, 5-speed
• Number of gears: 5-speed
• Shifter Right: Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift

Suspension

• Front Fork: SR Suntour SF24 Mobie 34 Boost ABS EQ 2CR DS, Travel: 100mm

Components

• Front Brake: Magura MT-C ABS, 2 pistons, 203 mm
• Rear Brake: Magura MT-C ABS, 2 pistons, 203 mm
• Headlight: Litemove AC-210S, 6-16 V
• Rear Light: Spanninga Aerline 2.0 XE Brakelight, 6-48 V
• Grips: Herrmans DD42, Lockable Grips
• Handlebar: JD TR28AL, Dia. 31.8 mm, Rise: 19 mm 680 mm
• Pedal: XLC VPE-527 MTB Alloy Pedal w. Reflector
• Saddle: Selle Royal Vivo
• Seatpost: Limotec A1H Dropper, Dia. 34.9 mm, Travel: 100 mm

Wheelset

• Rim: Ryde Andra 40 32H, double-walled rim, aluminium
• Tyre: Schwalbe AL Grounder Performance, DD RaceGuard, 60-584, reflex

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
