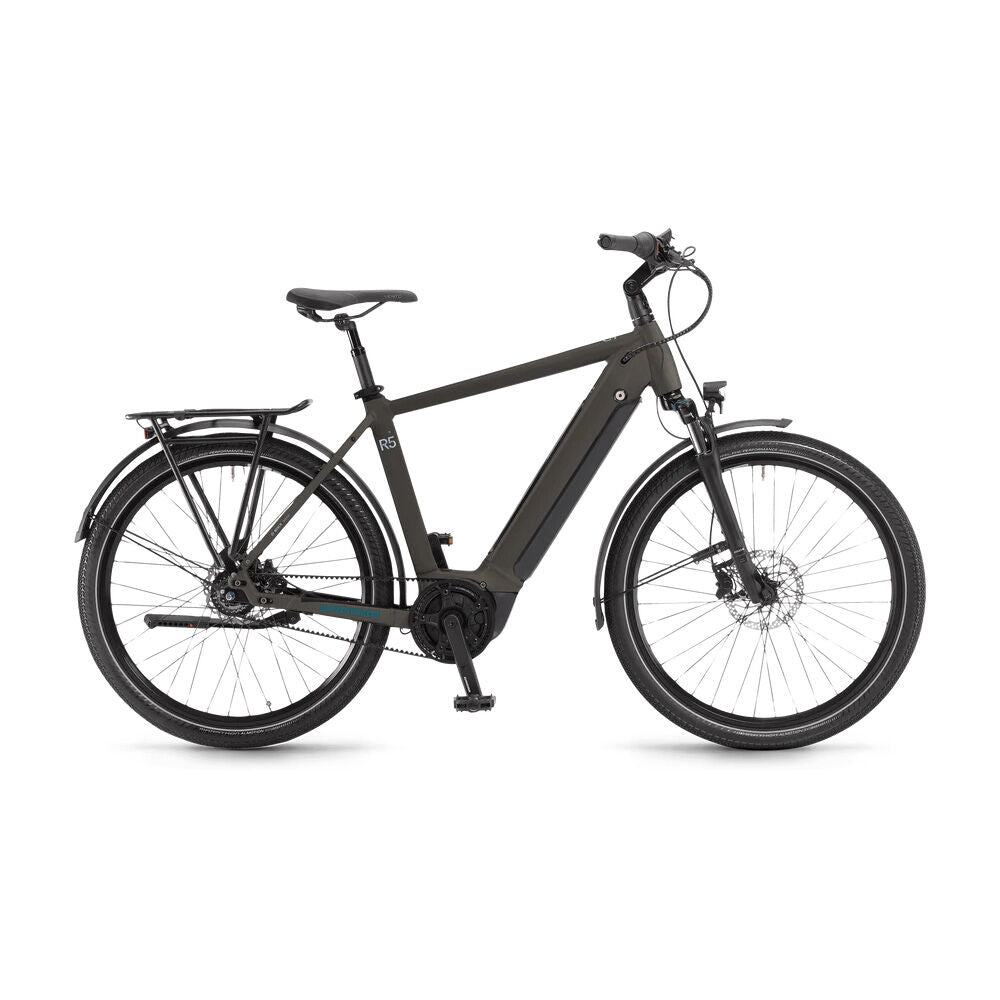

Winora Sinus R5f High e-bike

Better than a car and more stylish than a scooter

The Winora Sinus R5f with freewheel is a versatile city e-bike for commuting to work, urban shopping or a leisurely weekend ride. It impresses with its classic, well-thought-out design, attractive battery integrated into the frame, reliable Shimano components for gear shifting and braking, and easy-to-clean belt drive. Thanks to the powerful Bosch Performance Line Smart System drive, acceleration is powerful yet smooth, while the 625 Wh PowerTube battery offers sufficient reserves for all routes, even

Tech spec

E-system

• Battery: Bosch PowerTube 625Wh
• Charger: Bosch Charger 4A 220-240V
• Display: Bosch Intuvia 100
• Motor: Bosch Performance Line Smart System, 600W, 75Nm, 25km/h

Frame

• Frame: aluminium 6061, disc brake Post Mount
• Maximum loadable weight: 130kg

Drive

• Chain: Gates CarbonDrive
• Gear: Shimano Nexus SG-C7000-5D, Internal Geared Hub, 5-speed
• Number of gears: 5-speed
• Shifter Right: Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift

Suspension

• Front Fork: SR Suntour NEX E25, Travel: 60mm

Components

• Front Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm
• Rear Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 160 mm
• Headlight: Herrmans MR5, 6-12V
• Rear Light: Herrmans integrated in the fender
• Grips: Herrmans DD42, Lockable Grips
• Handlebar: JD TR25AL Dia. 31.8 mm, Rise: 25 mm 640 mm
• Pedal: VP Components VPE-461 MTB Alloy Pedal w/ Reflector
• Saddle: Selle Royal Viento
• Seatpost: XLC Harmony-LT2, Dia. 31.6 mm, Tavel: 300 mm

Wheelset

• Rim: Ryde Zac421 36H 8,5 mm Valve, eyed, double-walled rim, aluminium
• Tyre: Schwalbe Marathon Almotion, 55-584, puncture protection, reflex

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
