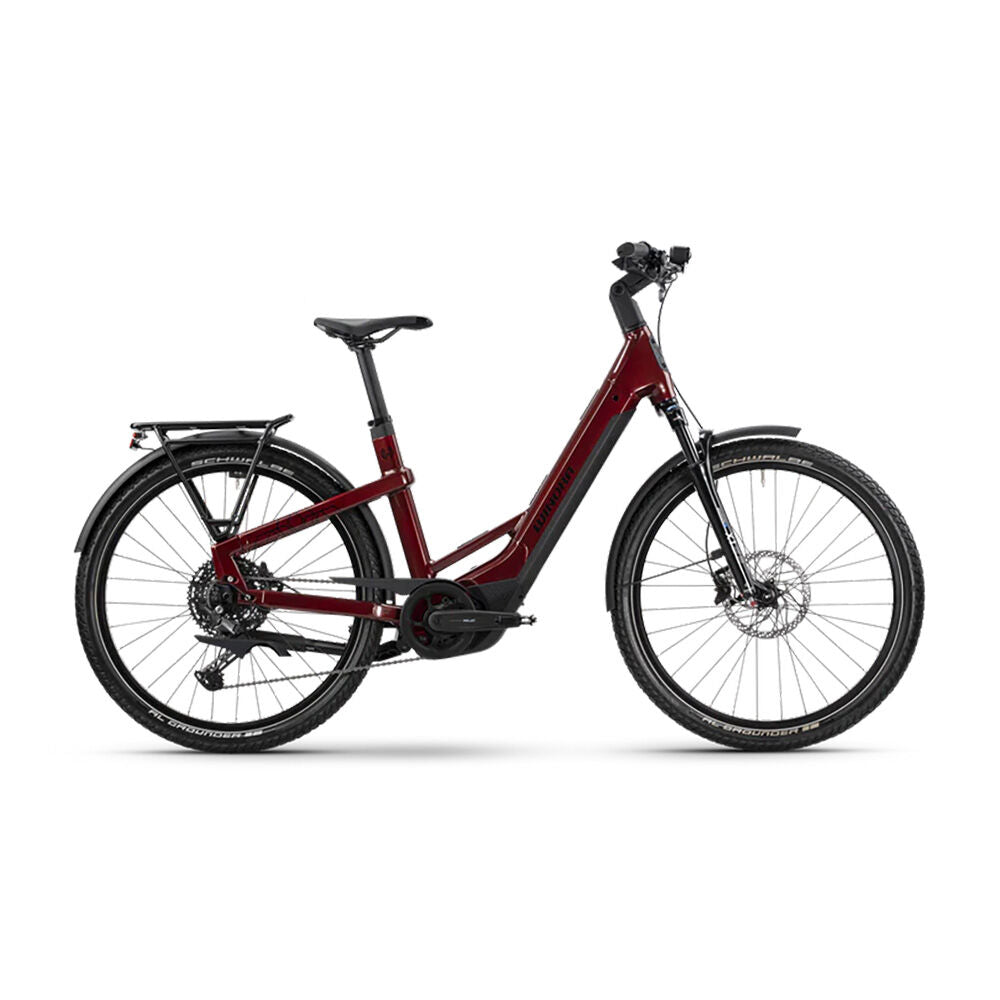

Winora Yakun X10 Low

Effort? Absolutely not!

The Winora Yakun X10 has everything you need for your e-bike adventures, in and out of town. The latest edition of this classic Yakun impresses with a new frame design, promising even more comfort and versatility than its predecessors. What's more, the new Bosch Performance CX motor, combined with an 800Wh battery, gives you effortless power on longer adventures. The bike is available in high or low frame versions, with an air suspension fork that easily absorbs shocks when you're off-road; wide tires also make even the bumpiest roads smoother than asphalt. The Modular Rail System is useful for attaching various accessories, such as an extra bottle cage, while a Klickfix mount on the head tube allows for easy installation of a front rack. With this e-trekking bike, your next ride will be an unforgettable experience – without any effort.

Tech spec

E-System

• Battery: Bosch PowerTube 800Wh
• Charger: Bosch Charger 4A 220-240V

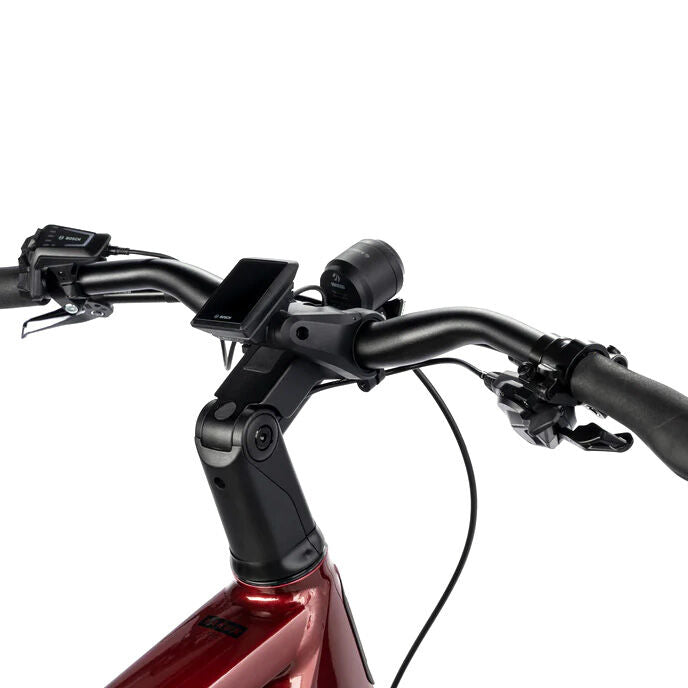

• Display: Bosch Kiox 300 + LED Remote

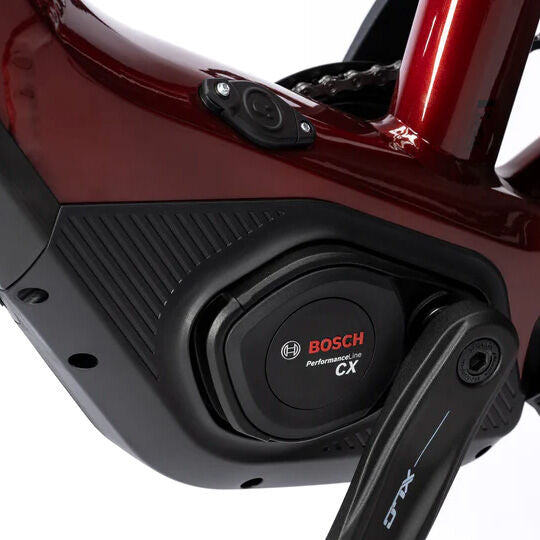

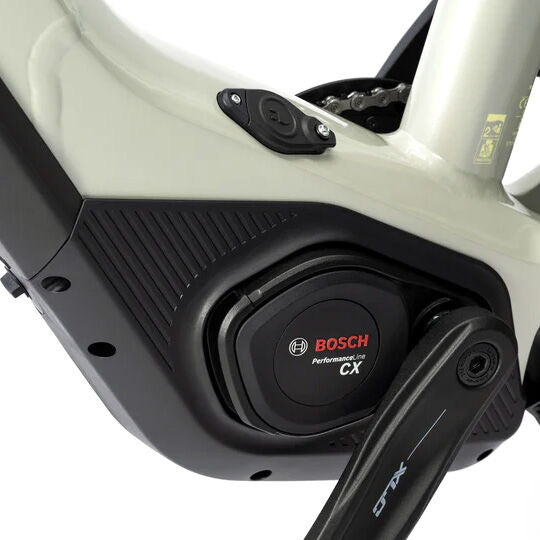

• Motor: Bosch Performance Line CX, 600W, 85Nm, 25km/h

Frame

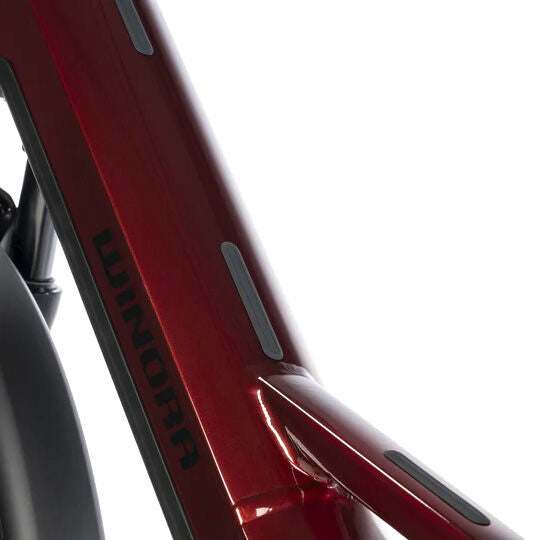

• Frame: aluminium 6061, disc brake Post Mount
• Maximum loadable weight: 130kg

Drive

• Chain: Shimano CN-LG500 9-11s, LINKGLIDE

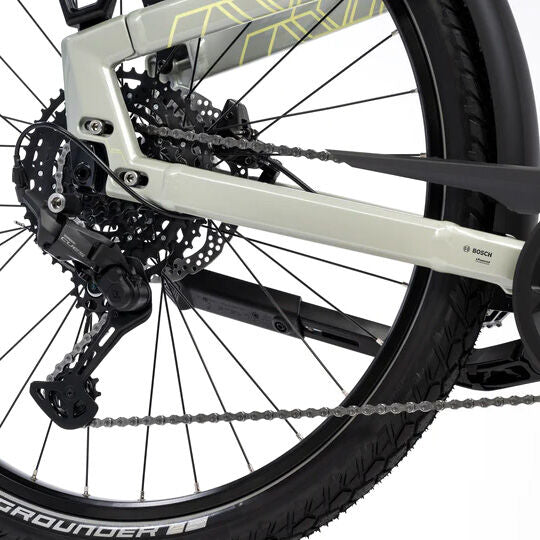

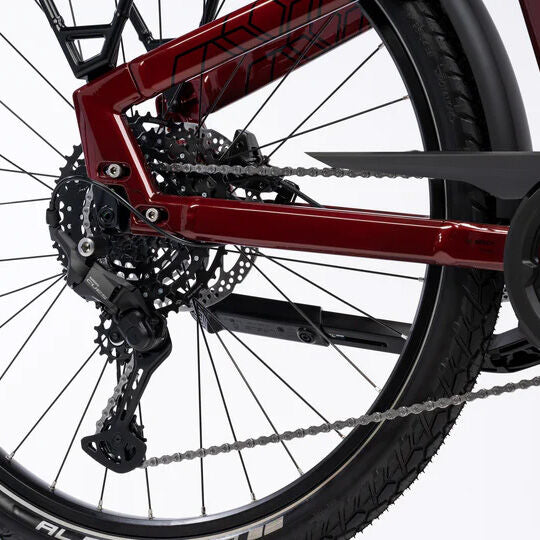

• Derailleur Rear: Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed
• Number of gears: 10-speed
• Shifter Right: Shimano CUES SL-U6000-10R, Rapidfire+, Trigger shifter

Suspension

• Front Fork: SR Suntour SF23 X1 Boost LO-R, Travel: 80mm

Components

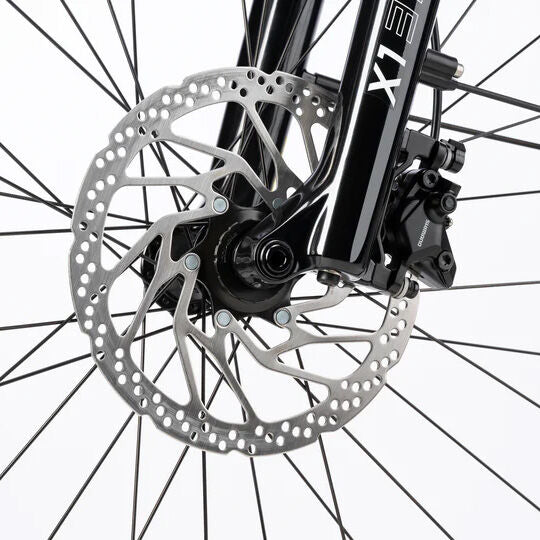

• Front Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 203 mm
• Rear Brake: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm

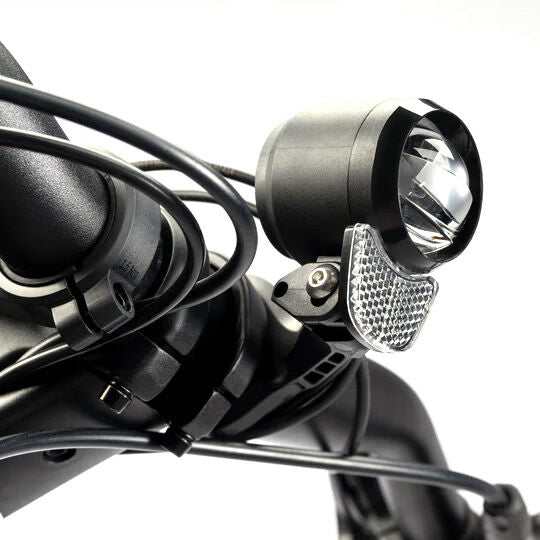

• Headlight: Trelock Skybeamer 300, 6-24V

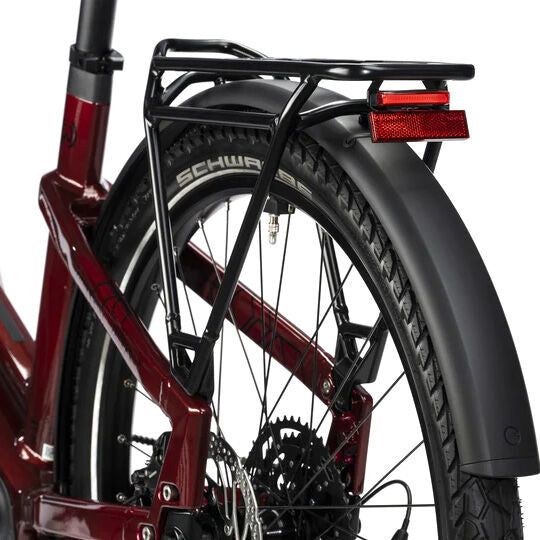

• Rear Light: Spanninga Pimento XE Brakelight
• Grips: Herrmans DD42, Lockable Grips
• Handlebar: JD TR28AL, Dia. 31.8 mm, Rise: 19 mm 680 mm
• Pedal: VP Components 625 aluminium, non-slip
• Saddle: Selle Royal Vivo Ergo 1217HRN
• Seatpost: JD SP20T.1A, Dia. 34.9 mm, L: 400 mm

Wheelset

• Rim: Schürmann YAK Disc 25-584 32H 8,5 mm Valve
• Tyre: Schwalbe AL Grounder Performance, DD RaceGuard, 60-584, reflex

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
